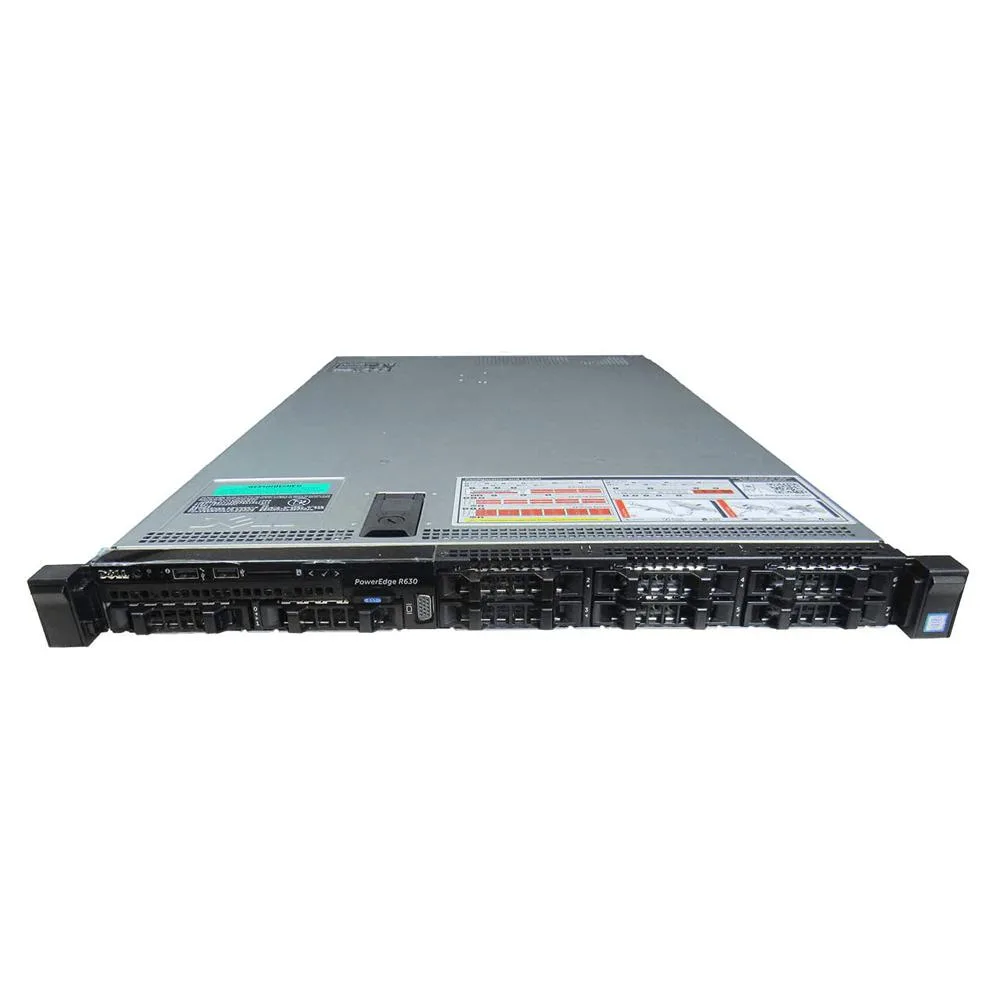

Silver 1U rack server with eight front drive bays and dual redundant power supplies

DELL

DELL PowerEdge R630 1U 2x E5-2637 V3 128GB DDR4 H730

SKU CH-HVYY-1MMWM

1U rack server with dual Xeon E5-2637 V3 processors, 128GB DDR4, H730 RAID controller and eight 2.5-inch drive bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 128GB

HDD None

  • Dual Xeon E5-2637 V3 CPUs deliver 16 virtual cores for multi-threaded workloads
  • 128GB DDR4 memory fills every slot for immediate high-capacity operation
  • H730 RAID controller supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible data protection
  • Dual 750W hot-swap power supplies keep the server running during a module failure
  • 1U rack height fits dense deployments while holding up to 8 hot-plug 2.5" drives

1U Rack Server for Dense Compute

The Dell PowerEdge R630 fits two Intel Xeon E5-2637 V3 processors and 128GB of DDR4 memory into a single rack unit. It targets workloads that need high core density and fast memory access in a compact footprint. The system ships without drives or an operating system.

Check Power Redundancy and Drive Bay Count

Verify that your rack can supply two 750W redundant power supplies and that you have up to eight 2.5-inch hot-plug SAS or SATA drives ready. The H730 controller supports RAID 0, 1, 5, 6, 10, 50 and 60 but no drives or trays are included. Confirm the iDRAC8 management level you require.

Integrates with PCIe 3.0 Expansion and 1GbE

Three PCIe 3.0 slots plus a dedicated PERC slot allow additional controllers or network cards. The default daughter card provides four 1GbE ports, with optional 10GbE upgrades. Remote management runs through iDRAC8 with Lifecycle Controller, freeing you from a local console.

Highlights

  • Dual Xeon E5-2637 V3 CPUs deliver 16 virtual cores for multi-threaded workloads
  • 128GB DDR4 memory fills every slot for immediate high-capacity operation
  • H730 RAID controller supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible data protection
  • Dual 750W hot-swap power supplies keep the server running during a module failure
  • 1U rack height fits dense deployments while holding up to 8 hot-plug 2.5" drives

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity128GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the server ship with any 2.5" SAS or SATA drives or trays included?

No drives or trays are included. The chassis has up to 8 hot-plug bays for 2.5" SAS or SATA drives, so you must purchase those separately.

How much DDR4 memory is already installed and can it be expanded further?

128GB is installed across the 24 DIMM slots. The memory controller supports up to 1536GB total, so additional DDR4 modules up to 128GB each can be added.

What RAID levels can the PERC H730 controller handle with the installed drives?

The H730 supports RAID 0, 1, 5, 6, 10, 50 and 60. The actual level you can use depends on how many SAS or SATA drives you install in the 8 bays.
