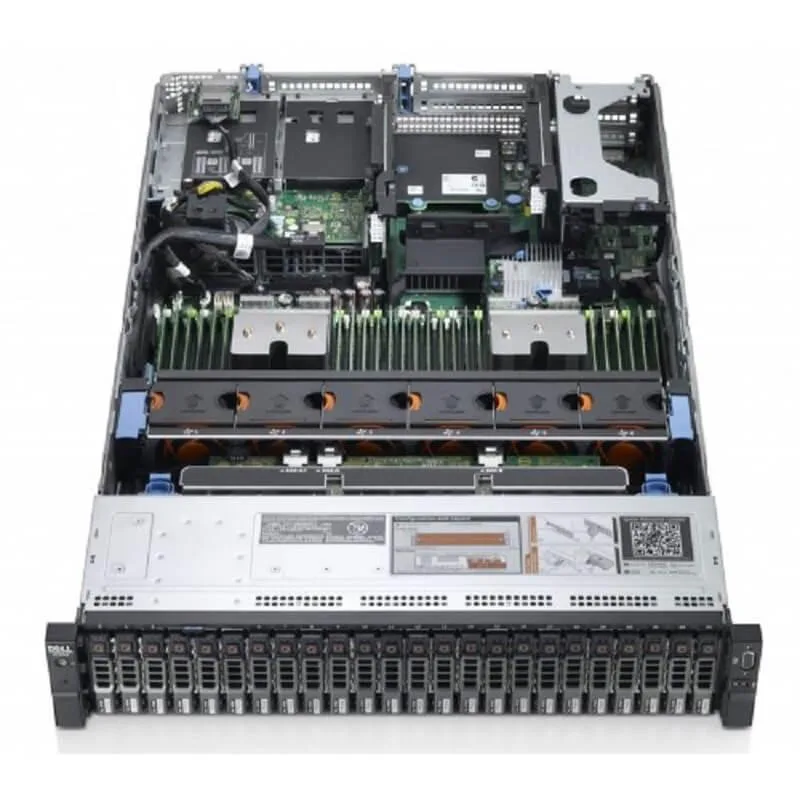

Silver 2U rack server with 24 front drive bays and dual power supplies

DELL

DELL PowerEdge R730XD 2U rack server E5-2609 v3 1.9GHz 16GB DDR4 3x 1TB SATA H730

SKU CH-1SB5-P2DY6

2U rack server with a 1.9 GHz Xeon E5-2609 v3, 16 GB DDR4, three 1 TB SATA drives and a PERC H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 1TB

  • Dense 2U chassis fits 24 hot-plug 2.5" drives for high capacity
  • Single Xeon E5-2609 v3 six-core 1.9 GHz handles core workloads
  • 16 GB DDR4 in 24 DIMM slots leaves room to grow
  • H730 1 GB 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies keep the server running

Dense 2U rack server for storage-heavy workloads

The Dell PowerEdge R730XD fits 24 hot-plug 2.5-inch drive bays into a 2U chassis. A single Xeon E5-2609 v3 six-core processor running at 1.9 GHz and 16 GB of DDR4 memory are installed. The Perc H730 RAID controller with 1 GB cache manages the three 1 TB 7.2 K SATA drives supplied. Dual 750 W redundant power supplies and a quad-port 1 GbE daughter card complete the base configuration.

Tool-less drive carriers

Each 2.5-inch bay uses a hot-plug carrier so drives can be swapped without shutting down or opening the chassis. The H730 controller supports RAID 0, 1, 5, 6, 10, 50 and 60, letting administrators reshape arrays while the server runs. Two 750 W power supplies share the load; if one fails the other continues without interruption. The iDRAC8 Express module provides remote console, power control and hardware health monitoring over a dedicated management port.

PCIe 3.0 and 1 GbE set the expansion ceiling

Six PCIe 3.0 slots plus a dedicated RAID slot are available for additional controllers or network cards. The installed daughter card delivers four 1 GbE ports; optional NDCs can upgrade this to two 10 GbE plus two 1 GbE or four 10 GbE links. Memory tops out at 1 536 GB across 24 DDR4 slots, though the single processor limits active channels to twelve. Internal raw capacity maxes at 52 TB with 2.5-inch drives, and the Matrox G200eR2 graphics only serves basic console output.

Highlights

  • Dense 2U chassis fits 24 hot-plug 2.5" drives for high capacity
  • Single Xeon E5-2609 v3 six-core 1.9 GHz handles core workloads
  • 16 GB DDR4 in 24 DIMM slots leaves room to grow
  • H730 1 GB 12 Gbps RAID controller supports RAID 0/1/5/6/10/50/60
  • Dual 750 W redundant power supplies keep the server running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What RAID levels does the H730 controller support and how many drives can it handle?

The H730 controller supports RAID 0/1/5/6/10/50/60 and the chassis accommodates up to 24 x 2.5" hot-plug drives.

What rack space and depth does this 2U server require for mounting?

The server occupies 2U of rack height and measures 26.8 inches deep by 17.44 inches wide.

How is the H730 RAID controller installed and what slot does it use?

The H730 installs in the dedicated RAID card slot, separate from the six PCIe 3.0 expansion slots.
