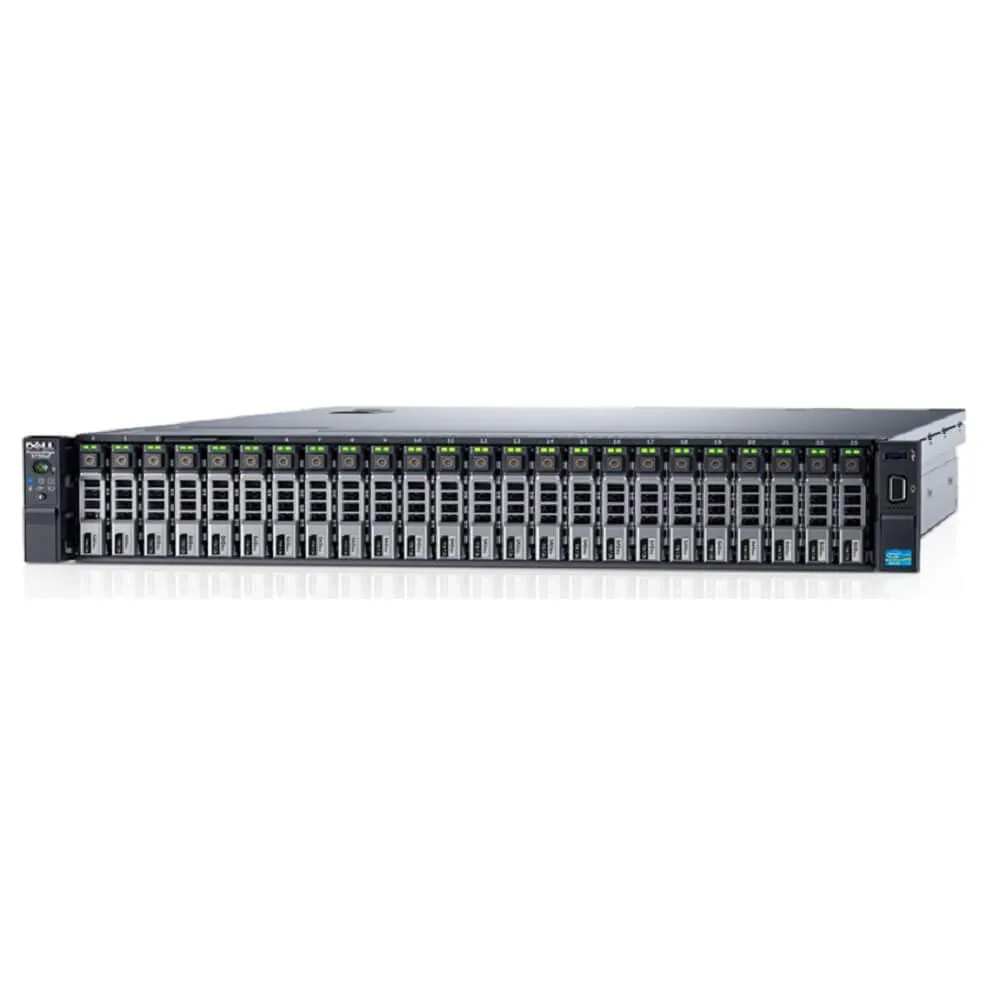

Silver 2U rack server with 24 front drive bays and DVD slot

DELL

DELL PowerEdge R730XD 2U Rack Server E5-2650 v3 10C 2.3GHz 16GB DDR4 3x 1TB SATA H730

SKU CH-BAKT-TADQ5

2U rack server with a 10-core 2.3 GHz Xeon processor, 16 GB DDR4 memory, three 1 TB SATA drives and an H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

HDD 3 x 1TB

  • 24 hot-plug 2.5" bays support up to 52TB storage
  • Dual 750W redundant power supplies maintain uptime
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • 10-core Xeon E5-2650 v3 at 2.3GHz delivers 20 virtual threads
  • 16GB DDR4 installed across 24 DIMM slots for expansion

2U Rack Server with 24 Drive Bays

The Dell PowerEdge R730XD is a 2U rack server built for storage-dense workloads. It ships with a single Intel Xeon E5-2650 v3 ten-core processor running at 2.3 GHz and 16 GB of DDR4 memory. Three 1 TB 7.2K SATA drives and a PERC H730 RAID controller with 1 GB cache are included. Dual 750 W redundant power supplies provide resiliency.

Suits high-capacity storage; not for GPU compute

This configuration suits organisations that need many hot-plug drive bays in a compact chassis for backup, archiving or software-defined storage. The single-socket layout and lack of installed GPUs make it unsuitable for workloads that require parallel graphics acceleration or maximum per-core frequency. Buyers needing more than 16 GB of memory or a second processor must add those components separately.

24 x 2.5-inch hot-plug bays with H730 RAID

The defining specification is the 24-bay 2.5-inch front panel paired with the H730 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. This combination determines how many drives you can install and which redundancy schemes are available. The server also includes a DVD-ROM drive, iDRAC8 remote management and up to six PCIe 3.0 expansion slots.

Highlights

  • 24 hot-plug 2.5" bays support up to 52TB storage
  • Dual 750W redundant power supplies maintain uptime
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60
  • 10-core Xeon E5-2650 v3 at 2.3GHz delivers 20 virtual threads
  • 16GB DDR4 installed across 24 DIMM slots for expansion

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the installed H730 RAID controller and 2.5-inch SATA drives work with my existing 2.5-inch SAS drives?

The H730 controller supports both SAS and SATA drives, and the chassis accepts up to 24 x 2.5-inch hot-plug SAS or SATA drives, so your existing SAS drives can be added to the available bays.

How can I verify the single E5-2650 v3 processor and 16GB DDR4 memory are recognised after installation?

Check the iDRAC8 Lifecycle Controller or the system BIOS during POST; both will display the detected 10-core 2.3GHz processor and the 16GB DDR4 installed across the 24 DIMM slots.

Which components are included and what must I source separately?

The server ships with one E5-2650 v3 CPU, 16GB DDR4, three 1TB 7.2K SATA drives in trays, H730 1GB RAID controller, two 750W redundant power supplies, DVD drive, and 4 x 1GbE daughter card; operating system, additional CPUs, memory modules, drives, and upgraded iDRAC licences are not included.
