DELL
DELL PowerEdge R760xa 2U rack server 32 DDR5 slots 12 GPU support
A 2U rack server supporting up to 12 GPUs and 32 DDR5 memory slots for AI, HPC and virtualization workloads
- WorkloadAI-ML/DL Training and Inferencing, HPC and Render Farms and
- TypeRack
- Rack Height2U
- SecurityCryptographically signed firmware Data at Rest Encryption (S
- CPU TypeIntel Xeon Scalable
- # of Processors Installed0
- Designed for AI-ML training with up to 12 GPUs
- 32 DDR5 slots enable up to 8TB memory capacity
- 2U rack form factor fits dense data-centre deployments
- Front bays support 8 x 2.5-inch or 6 x E3.S NVMe drives
- Hardware root of trust and signed firmware secure the platform

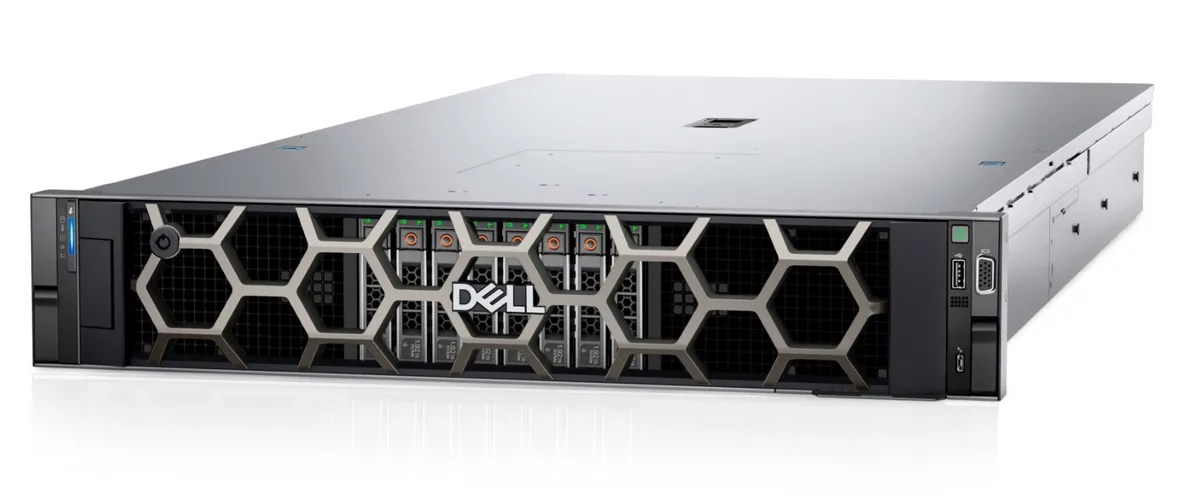

2U AI Server Chassis

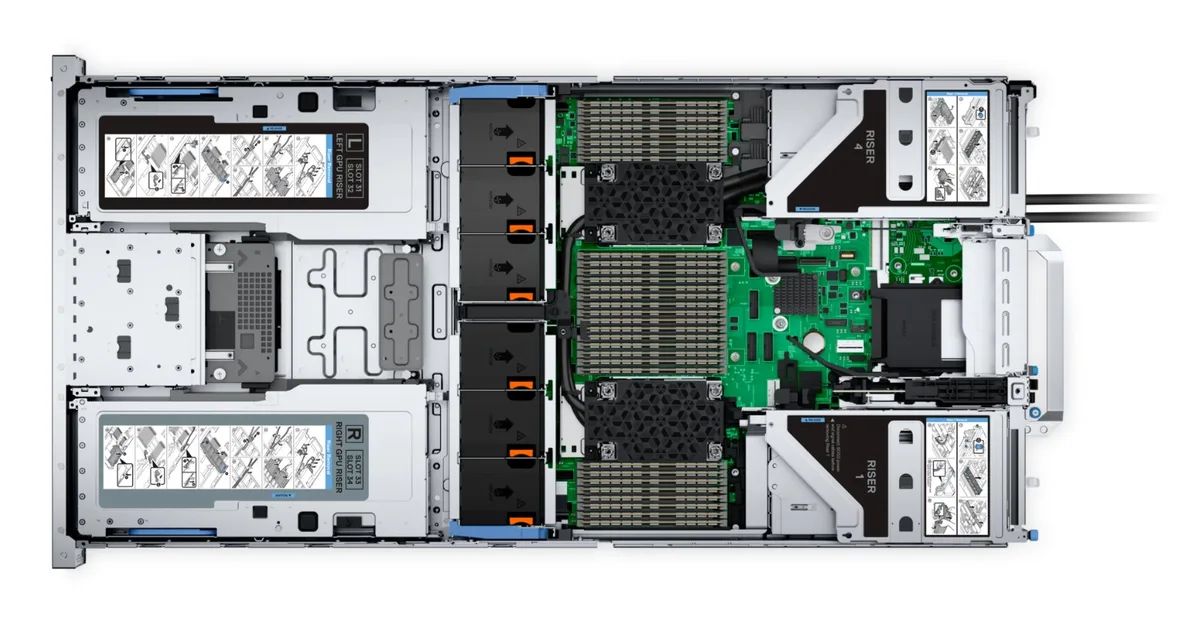

The Dell PowerEdge R760xa is a 2U rack server built for AI training, inferencing, HPC and render farms. It ships without processors, memory or drives, letting integrators configure up to two Intel Xeon Scalable CPUs and 32 DDR5 slots for 8TB maximum capacity.
GPU Density Upgrade
This platform replaces general-purpose 2U servers that cannot fit double-wide accelerators. The jump is worth it when workloads demand four double-wide or twelve single-wide GPUs in a single rack unit, a density standard 2U designs cannot deliver.
Build Integration Needs

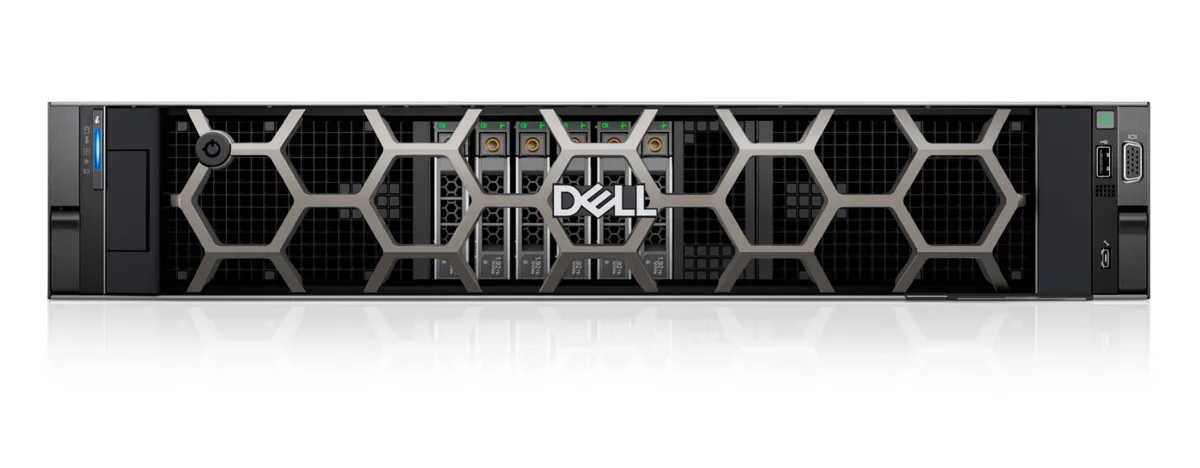

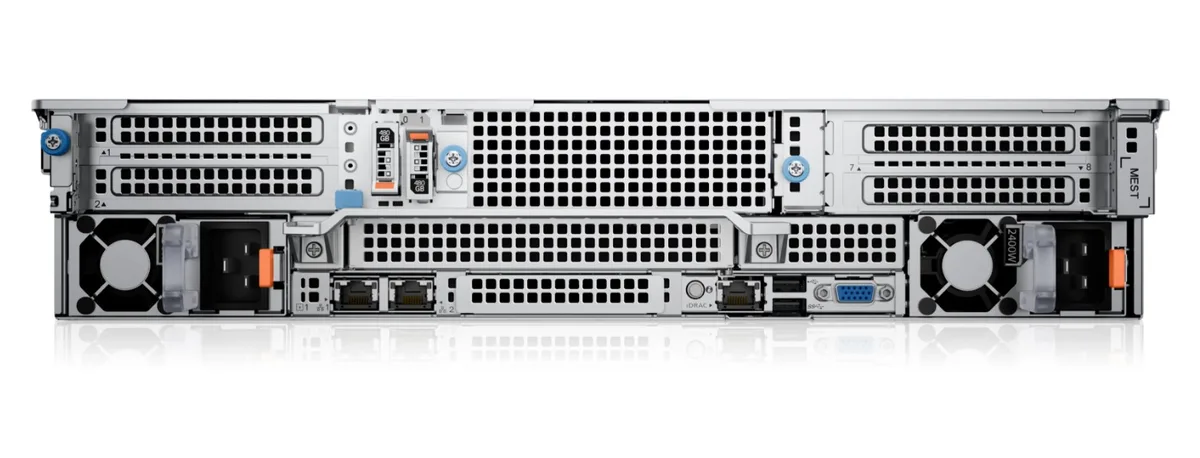

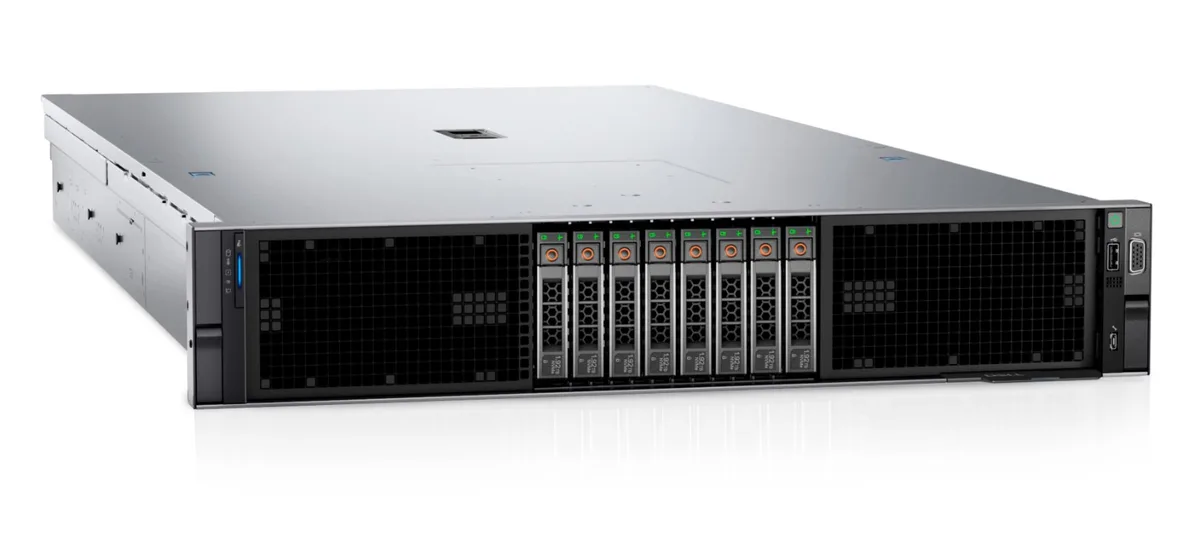

The chassis accepts up to eight 2.5-inch SAS/SATA/NVMe drives or six E3.S Gen5 NVMe devices at the front. Rear I/O provides a dedicated iDRAC Ethernet port, USB 2.0, USB 3.0 and VGA, while front service access adds iDRAC Direct Micro-AB USB and another USB 2.0.
Highlights
- Designed for AI-ML training with up to 12 GPUs
- 32 DDR5 slots enable up to 8TB memory capacity
- 2U rack form factor fits dense data-centre deployments
- Front bays support 8 x 2.5-inch or 6 x E3.S NVMe drives
- Hardware root of trust and signed firmware secure the platform
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge R760xa |
| Workload | AI-ML/DL Training and Inferencing, HPC and Render Farms and Virtualization |
| Type | Rack |
| Rack Height | 2U |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| CPU Type | Intel Xeon Scalable |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 8TB |
| Number of Memory Slots | 32 |
| Hard Drive (Installed) | None |
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| GPU Type | Supports 4 x Double-Wide or 12 x Single-Wide GPU's |
| Expansion Bays | Front STORAGE - Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB - Up to 6 x E3.S Gen5 NVMe, max 46.08 TB |
| Other ports | Front ports - 1 x iDRAC Direct (Micro-AB USB) port - 1 x USB 2.0 - 1 x VGA Rear ports - 1 x Dedicated iDRAC Ethernet port - 1 x USB 2.0 - 1 x USB 3.0 |
| Operating System | No |
| Dimensions | 3.41" x 18.97" x 37.27" |
| Shipping weight | 22.68 kg |
| Package size | 762 × 635 × 254 mm |
Questions about this item
Does the R760xa fit a standard 2U rack opening?
Yes, the chassis is a 2U rack server and mounts in any standard 2U rack slot.
What is the correct order for installing the 12 single-wide GPUs and the two Xeon processors?
Install both Xeon processors first, then populate GPU risers from the lowest slot upward to ensure proper power and signal routing.
Which drive carriers must I replace when I move from 2.5-inch SAS drives to E3.S Gen5 NVMe drives?
Swap the 2.5-inch carriers for the E3.S-specific carriers; the backplane supports both form factors but the carriers are not interchangeable.
