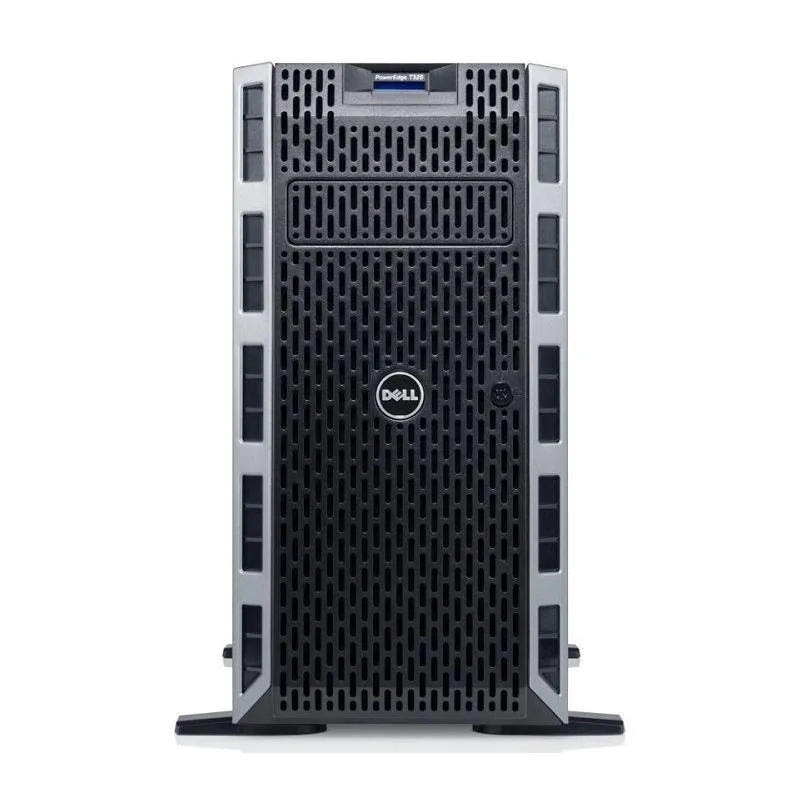

Tower server chassis with front bezel and eight drive bays

DELL

DELL PowerEdge T430 5U rack server 2× Xeon E5-2650 v4 12‑core 2.2 GHz 384 GB DDR4 8× 4 TB HDD H730

SKU CH-AMK9-1269T

A 5U rack server with dual 12‑core Xeon CPUs, 384 GB DDR4, a PERC H730 RAID controller and eight 4 TB SATA drives for high‑capacity storage

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.90 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 384GB

HDD 8 x 4TB 7.2K SATA

  • Dual 12-core Xeon E5-2650 v4 CPUs at 2.2 GHz base and 2.9 GHz turbo
  • 384 GB DDR4 registered ECC memory across 12 slots at 2400 MHz
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 4 TB 7.2K SATA drives in hot-swap 3.5-inch bays
  • Dual 750 W platinum hot-swap PSUs with iDRAC 8 Express remote management

Server purpose & audience

The Dell PowerEdge T430 is a 5U rack server built for small-office and remote-office workloads such as file, print, mail and web serving. Dual Xeon E5-2650 v4 processors deliver 24 total cores at 2.2 GHz with a 2.9 GHz turbo frequency. 384 GB of DDR4 registered ECC memory fills the maximum supported capacity. Eight 4 TB 7.2K SATA drives sit behind a PERC H730 controller with 1 GB cache and battery backup.

Fit & limits

This configuration suits teams needing dense internal storage and redundant power in a single chassis. Two 750 W platinum supplies and hot-swap bays support continuous operation. Buyers who need more than eight 3.5-inch drive bays or who require memory beyond 384 GB cannot expand this unit further. The LGA 2011-3 platform also prevents use of newer processor families.

Deciding specification

The installed 384 GB DDR4 reaches the system's maximum memory capacity, so no further RAM upgrades are possible. If your application demands additional memory headroom, a different platform must be selected.

Highlights

  • Dual 12-core Xeon E5-2650 v4 CPUs at 2.2 GHz base and 2.9 GHz turbo
  • 384 GB DDR4 registered ECC memory across 12 slots at 2400 MHz
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 4 TB 7.2K SATA drives in hot-swap 3.5-inch bays
  • Dual 750 W platinum hot-swap PSUs with iDRAC 8 Express remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.90 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size384GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 4TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power do the dual 750 watt PSUs draw when the server runs continuously?

Each supply is rated at 750 watts platinum efficiency; actual draw depends on workload but the redundant pair shares the load for lower per-unit stress.

Which rails or rack hardware must I supply to mount this 5U tower in a standard cabinet?

The chassis is a 5U rack-mount tower; you will need compatible sliding rails or a shelf rated for the unit depth and weight.

Will the PERC H730 controller recognise older 3 Gb/s SATA drives I might add later?

The H730 supports SAS and SATA at 12 Gb/s and 6 Gb/s; it will negotiate down to 3 Gb/s for legacy drives.
