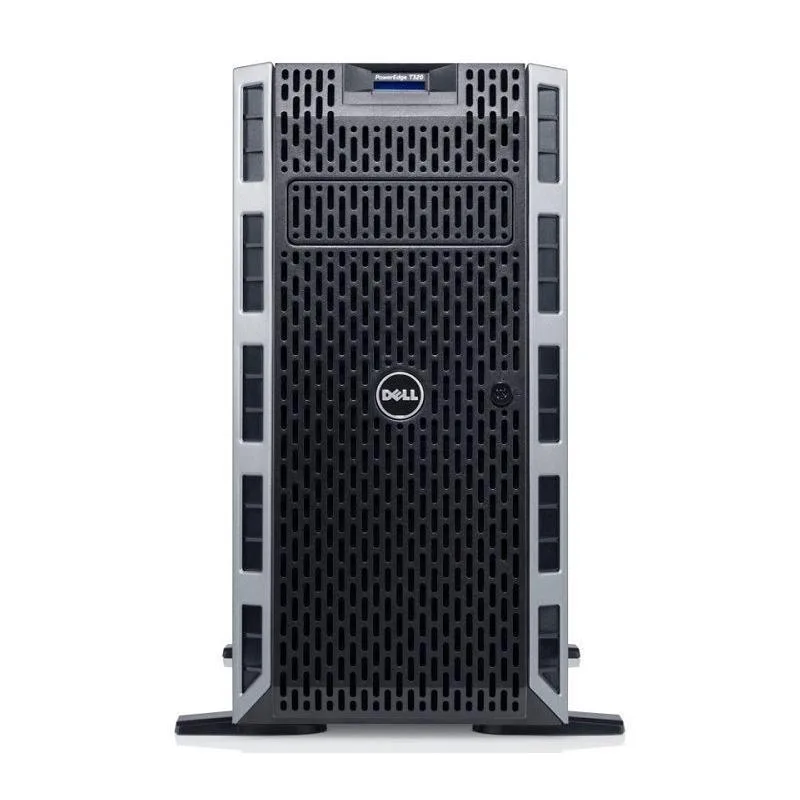

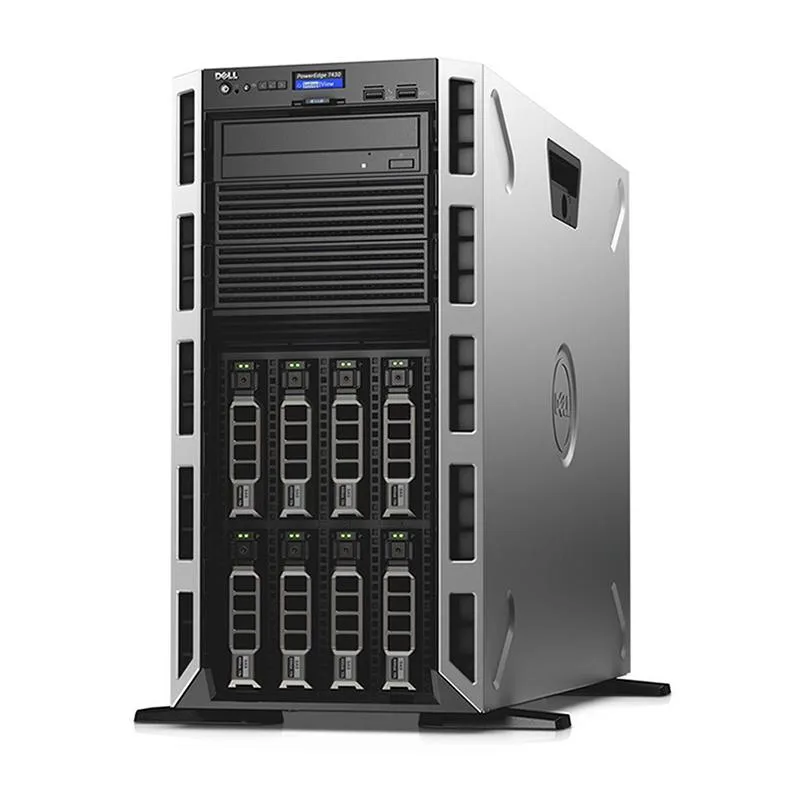

Silver 5U rack server tower with front bezel, eight 3.5-inch drive bays and dual power supplies

DELL

DELL PowerEdge T430 5U rack server 2× Xeon E5-2650 v4 2.2GHz 12-core 384GB DDR4 H730 8× 3.5" trays

SKU CH-Z067-GMKY3

5U tower server with dual 12-core Xeon E5-2650 v4 CPUs at 2.2 GHz, 384 GB DDR4 ECC memory, PERC H730 RAID controller and eight 3.5-inch drive trays

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.90 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 384GB

HDD None

  • Dual 12-core Xeon E5-2650 v4 CPUs deliver 24 threads at 2.2 GHz base
  • 384 GB DDR4 registered ECC memory fills all 12 slots for large datasets
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 3.5" hot-swap trays accept SAS or SATA drives for flexible storage
  • Dual 750 W platinum PSUs plus iDRAC8 Express give redundant power and remote management

Server for office and branch workloads

The PowerEdge T430 is a 5U rack server built for workgroup collaboration, mail, file and print serving, and web serving in small or remote offices. Dual Intel Xeon E5-2650 v4 processors supply 24 cores at 2.2 GHz with 2.9 GHz turbo, and 384 GB of DDR4 ECC memory fills every slot.

RAID controller and drive trays define storage scope

The PERC H730 1 GB controller enables RAID 0, 1, 5, 6, 10, 50, 60 and pass-through across eight 3.5" SAS/SATA trays. No drives are installed, so capacity and performance depend entirely on the disks you add. Dual 1 GbE ports and iDRAC 8 Express handle network and remote management.

Redundant power and fixed memory limit expansion

Two hot-swap 750 W platinum supplies provide redundancy, and the front bezel is included. All 12 memory slots are occupied, so no further RAM upgrades are possible. The chassis uses fixed rails, so rack depth and cable routing must be planned before installation.

Highlights

  • Dual 12-core Xeon E5-2650 v4 CPUs deliver 24 threads at 2.2 GHz base
  • 384 GB DDR4 registered ECC memory fills all 12 slots for large datasets
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • Eight 3.5" hot-swap trays accept SAS or SATA drives for flexible storage
  • Dual 750 W platinum PSUs plus iDRAC8 Express give redundant power and remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.90 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size384GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)None
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum memory capacity and which DDR4 modules does the T430 support for future upgrades?

The system maxes out at 384 GB across 12 slots; it currently runs 12× 32 GB DDR4 2400 MHz registered ECC DIMMs.

Which component limits sustained throughput first — the PERC H730 controller or the 12 Gb/s SAS/SATA backplane?

The PERC H730 1 GB cache controller caps RAID 0/1/5/6/10/50/60 performance before the 12 Gb/s backplane saturates.

How loud and hot do the dual 750 W platinum PSUs run under continuous load?

Dual 750 W platinum supplies share load efficiently, keeping fan speed and exhaust temperature lower than single-PSU configurations during all-day operation.
