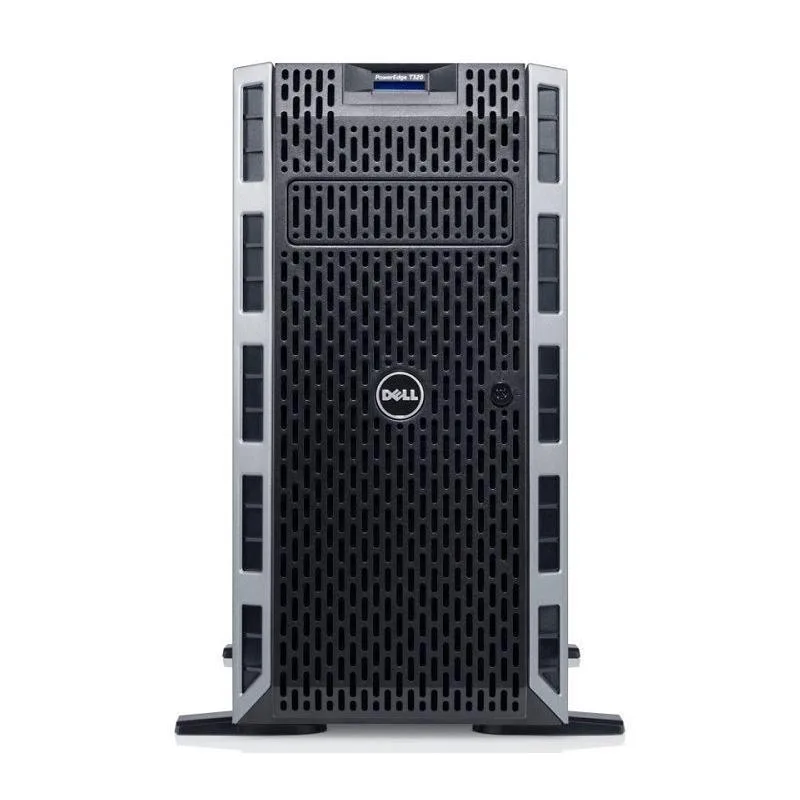

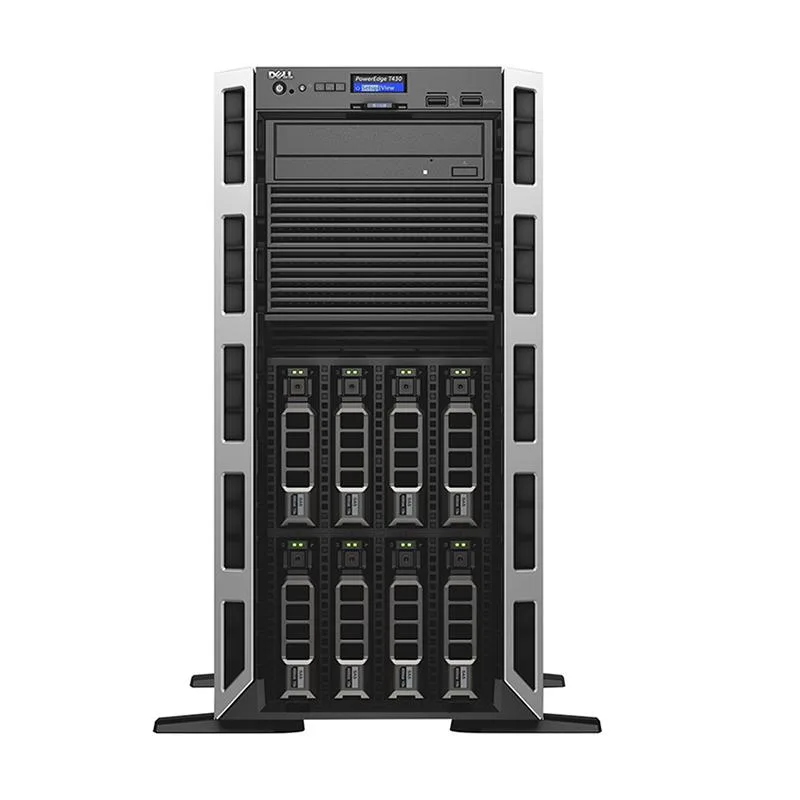

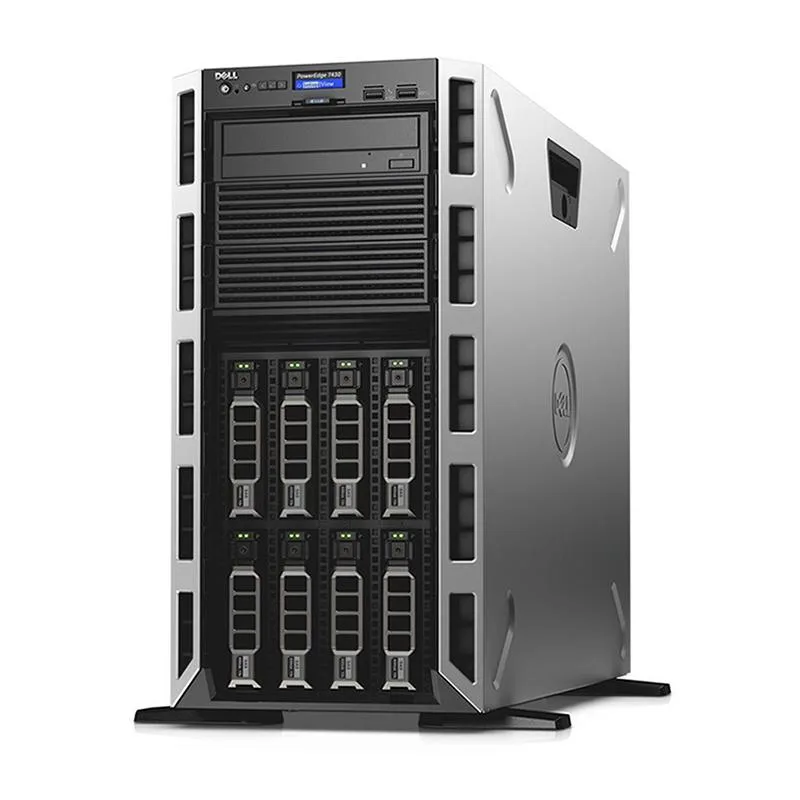

A silver 5U rack server with eight front drive bays and a bezel

DELL

DELL PowerEdge T430 5U rack server 2x Xeon E5-2660 v4 14-core 2.0GHz 256GB DDR4 8x 8TB SATA H730

SKU CH-V97D-0S5MN

A 5U rack server with dual 14-core Xeon processors, 256GB DDR4 ECC memory, and eight 8TB SATA drives on a PERC H730 RAID controller

  • Type0
  • Rack Height5U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 256GB

HDD 8 x 8TB 7.2K SATA

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy multi-thread workloads
  • 256 GB DDR4 2400 MHz registered ECC memory across 12 slots up to 384 GB capacity
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 plus pass-through
  • Eight 8 TB 7.2K SATA 3.5" enterprise drives provide high-capacity local storage
  • Dual 750 W platinum power supplies with hot-swap redundancy and iDRAC8 Express remote management

Tower server for office workloads

The Dell PowerEdge T430 is a 5U tower system built around two Xeon E5-2660 v4 processors, each with 14 cores at 2.0 GHz and a 3.2 GHz turbo frequency. It ships with 256 GB of DDR4 registered ECC memory across eight 32 GB modules and a PERC H730 controller with 1 GB cache. Eight 8 TB 7.2K SATA drives fill the 3.5-inch bays, and dual 750 W platinum power supplies provide redundancy.

Suits small offices needing a single-server platform

This configuration fits workgroup collaboration, mail, file, print and web serving in a small or remote office. Buyers who require more than 384 GB of memory, additional drive bays beyond the eight installed, or a rackmount form factor should consider a different platform. The integrated dual-port 1 GbE LOM and iDRAC 8 Express cover basic connectivity and remote management.

256 GB DDR4 registered ECC memory installed

The system arrives with 256 GB of DDR4 2400 MHz registered ECC memory in eight slots, leaving four slots open for expansion up to the 384 GB maximum. This capacity determines how many virtual machines or database instances can run concurrently without swapping. Memory type and speed are fixed to DDR4 registered ECC; other generations or unbuffered modules are not compatible.

Highlights

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy multi-thread workloads
  • 256 GB DDR4 2400 MHz registered ECC memory across 12 slots up to 384 GB capacity
  • PERC H730 1 GB controller supports RAID 0/1/5/6/10/50/60 plus pass-through
  • Eight 8 TB 7.2K SATA 3.5" enterprise drives provide high-capacity local storage
  • Dual 750 W platinum power supplies with hot-swap redundancy and iDRAC8 Express remote management

Specifications

BrandDELL
SeriesPowerEdge T430
ModelT430
Type0
Rack Height5U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed0
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity384GB
Number of Memory Slots12
Hard Drive (Installed)8 x 8TB 7.2K SATA
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Dell Broadcom 5720 Dual Port 1GbE LOM
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 2.0 GHz base clock with 3.2 GHz turbo mean for real workloads on the two 14-core Xeon E5-2660 v4 processors?

The dual 14-core Xeons run at a 2.0 GHz base frequency and can boost to 3.2 GHz, giving up to 28 threads of compute for multi-threaded server workloads such as virtualisation, databases or file services.

What RAID levels and drive limits does the PERC H730 1GB controller support with the eight 3.5-inch SATA bays?

The PERC H730 supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through across the eight 3.5-inch SATA drive bays, with 1 GB cache backed by a battery.

How much rack space and power does the 5U chassis with dual 750 W supplies need?

The server occupies 5U of rack height and ships with two hot-swap 750 W platinum power supplies for redundant operation.
