Green printed circuit board M.2 2280 NVMe SSD with black controller and silver label

FANXIANG

FANXIANG S500 256GB M.2 2280 NVMe internal SSD

SKU CH-PTNB-FB6PS MPN S500

M.2 2280 NVMe SSD with 256 GB capacity, PCIe 3.0 x4 interface and up to 2800 MB/s sequential read

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity256GB
  • Memory Components3D NAND TLC
  • InterfacePCI-Express 3.0 x4

Options 256GB

  • Up to 2800 MB/s sequential read accelerates boot and load times
  • Up to 2000 MB/s sequential write speeds up large file transfers
  • 3D NAND TLC flash delivers higher endurance than QLC alternatives
  • 160 TBW rating supports heavy daily workloads for years
  • M.2 2280 form factor fits laptops and desktops with PCIe 3.0 slots

PCIe 3.0 NVMe 256GB

The FANXIANG S500 256GB is an M.2 2280 internal SSD using a PCIe 3.0 x4 interface and 3D NAND TLC flash. It targets everyday computing workloads on laptops and desktops that support NVMe. The drive delivers up to 2800 MB/s sequential read and 2000 MB/s sequential write. Rated endurance is 160 TBW with a 2,000,000-hour MTBF.

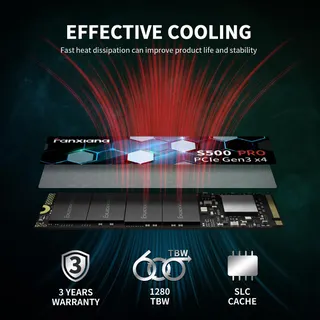

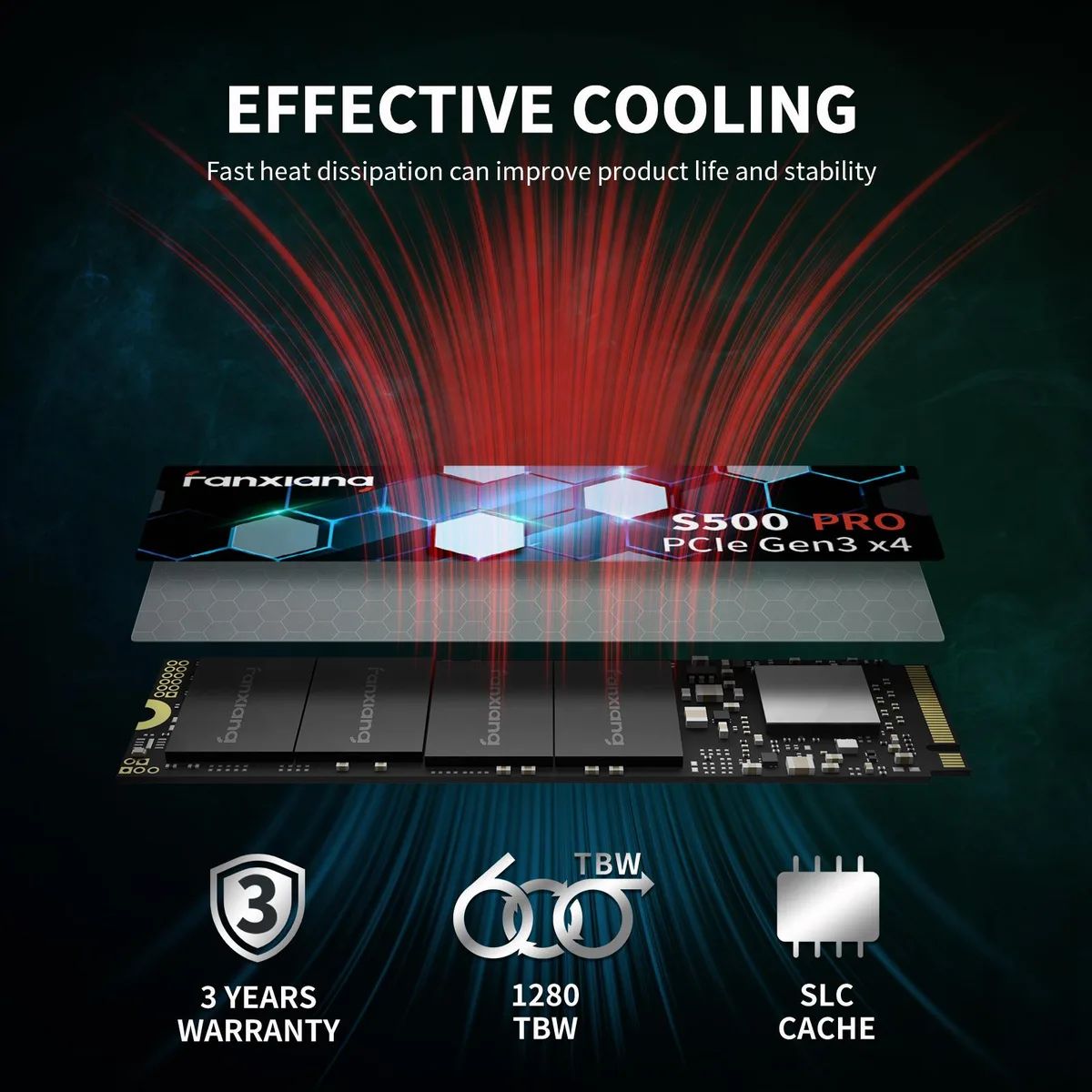

Sustained thermal behaviour

Without a heatsink the controller relies on the motherboard slot airflow to shed heat during long writes. The 4.00 mm single-sided profile keeps the drive within the 0 °C to 70 °C operating window in typical chassis. LDPC error correction and wear-leveling maintain data integrity as temperatures rise. Performance remains consistent until thermal limits trigger throttling.

Upgrade from SATA SSDs

Replacing a 2.5-inch SATA SSD with this NVMe drive removes the 6 Gb/s bottleneck and cuts boot and application load times. The jump is worth it when the platform has an M.2 2280 slot wired for PCIe 3.0 x4 and the user needs 256 GB of low-latency storage. Older systems limited to SATA or PCIe 2.0 will not see the full speed benefit.

Highlights

  • Up to 2800 MB/s sequential read accelerates boot and load times
  • Up to 2000 MB/s sequential write speeds up large file transfers
  • 3D NAND TLC flash delivers higher endurance than QLC alternatives
  • 160 TBW rating supports heavy daily workloads for years
  • M.2 2280 form factor fits laptops and desktops with PCIe 3.0 slots

Specifications

BrandFANXIANG
SeriesS500 Pro
ModelS500 Pro
Part NumberS500 Pro-256GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity256GB
Memory Components3D NAND TLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 2800MBps
Max Sequential WriteUp to 2000MBps
Terabytes Written (TBW)160
MTBF2,000,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-45°C ~ +85°C
Height4.00mm
Width22.00mm
Depth80.00mm
Weight8g

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this drive fit in a standard laptop M.2 2280 slot?

Yes, the drive uses the M.2 2280 form factor measuring 22.00mm wide by 80.00mm long and 4.00mm tall, matching the standard slot dimensions.

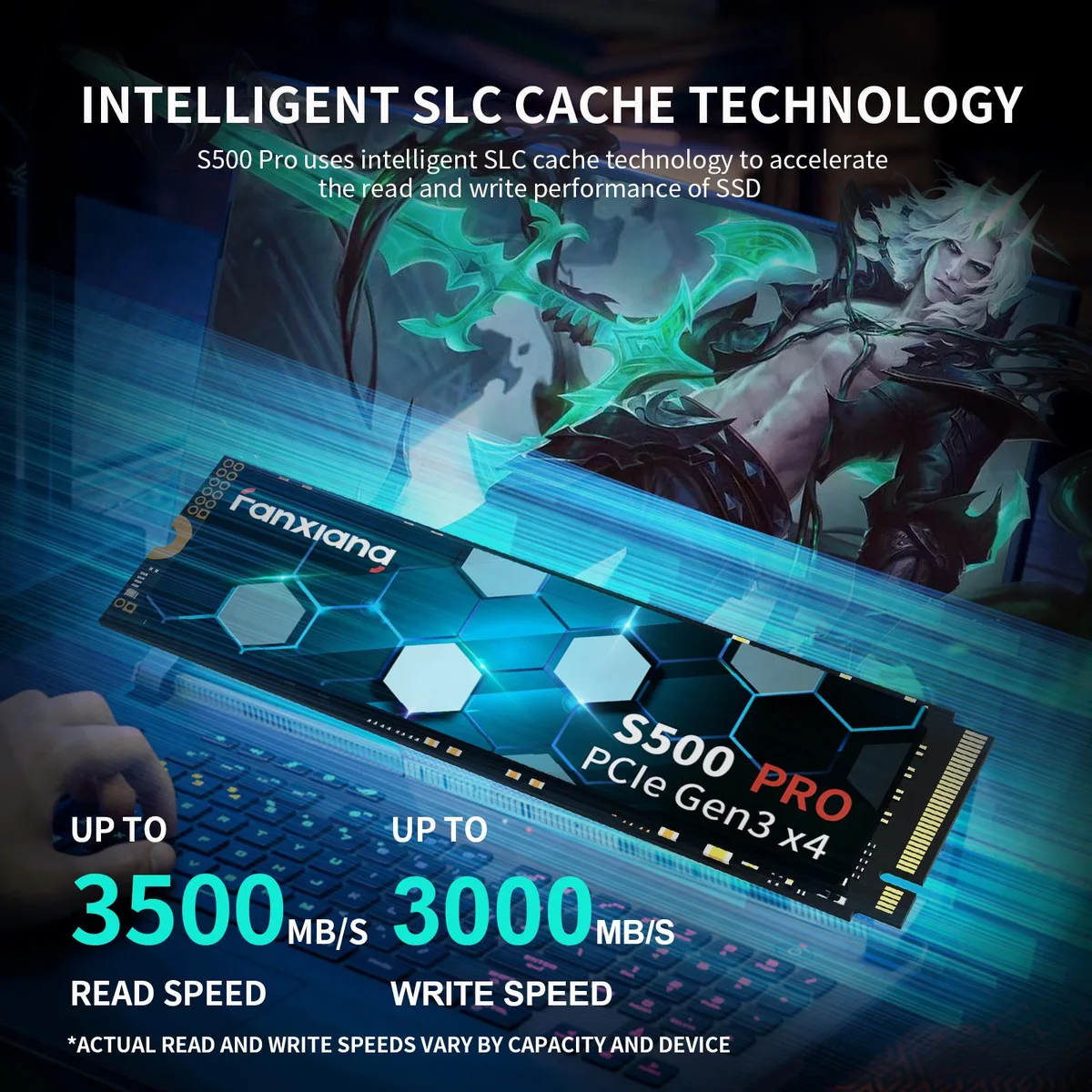

Does the 256GB model reach the 3500MB/s read speed mentioned in the highlights?

No, the 256GB capacity is rated for up to 2800MB/s sequential read and 2000MB/s sequential write; the higher 3500MB/s figure applies to the 1TB model.

Is a heatsink required for this SSD in a typical desktop build?

The drive ships without a heatsink and is rated for 0°C to 70°C operating temperature; most motherboards provide sufficient airflow, but a motherboard heatsink can be added if desired.
