Rectangular M.2 2280 SSD with silver heatsink and label sticker

FANXIANG

FANXIANG S660 1TB M.2 2280 NVMe internal SSD with Heatsink

SKU CH-VMT4-AQ3JZ

A 1TB M.2 2280 NVMe drive with a heatsink, PCIe 4.0 x4 interface and up to 5000MB/s read speed for PS5 and PC

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND TLC
  • InterfacePCI-Express 4.0 x4
  • Quick game loads with up to 5000MB/s read speed
  • Sustained performance from an included heatsink you install yourself
  • DRAM-less speed boost via HMB and SLC cache
  • High endurance at 700TBW and 2000000 hours MTBF
  • Fits PS5, laptops and desktops in M.2 2280 form factor

FANXIANG S660 1TB NVMe SSD

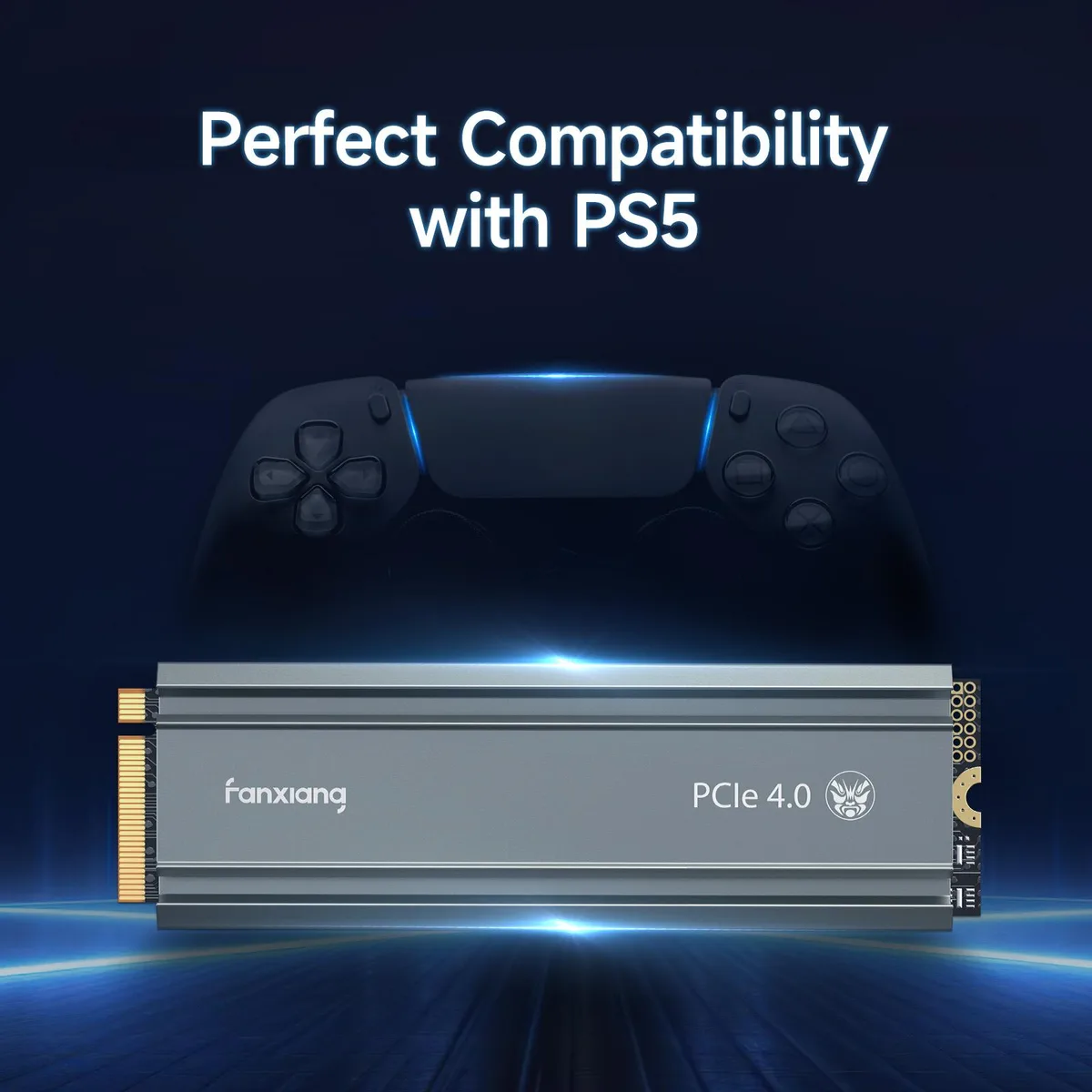

The FANXIANG S660 is a 1TB internal solid state drive built on PCIe 4.0 x4 and 3D NAND TLC. It targets gamers and PC builders who need fast sequential speeds for game installs and large file work. The drive also fits PlayStation 5 expansion slots with its included heatsink. ||

M.2 2280 Form Factor with Manual Heatsink

The drive uses the standard M.2 2280 layout and measures 9.50mm tall once the heatsink is fitted by hand. That height clears most laptop bays and desktop motherboards, though the manual step adds a minute to installation. The aluminium heatsink spreads heat across a larger surface so sustained writes stay within the 0°C to 70°C operating window. ||

DRAM-Less Design with HMB and SLC Cache

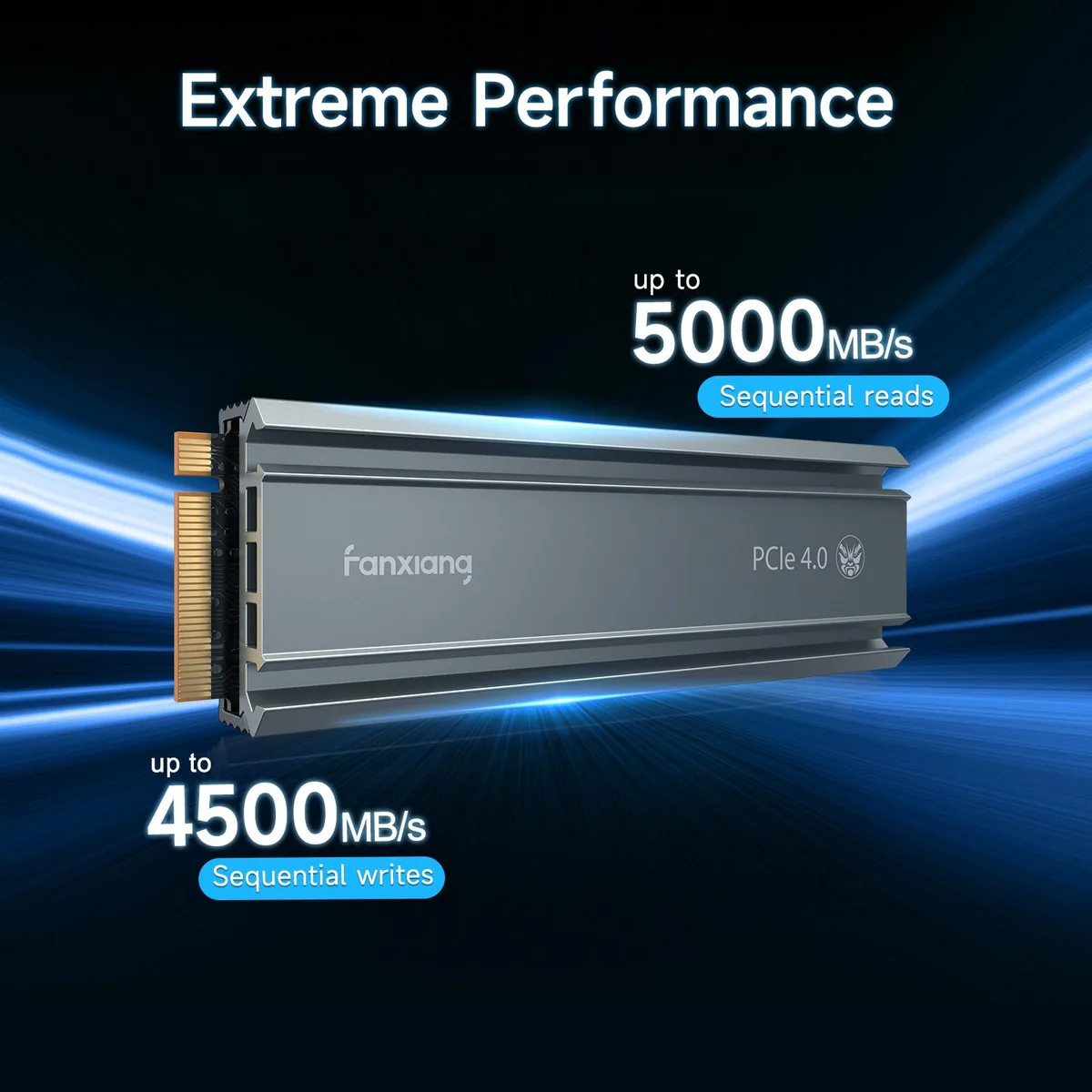

Without a dedicated DRAM chip the controller leans on Host Memory Buffer and a dynamic SLC cache to hit 5000MB/s reads and 4500MB/s writes. The 700TBW rating and 2,000,000-hour MTBF show it can replace older PCIe 3.0 drives or smaller capacity sticks when the workload demands more throughput and endurance.

Highlights

  • Quick game loads with up to 5000MB/s read speed
  • Sustained performance from an included heatsink you install yourself
  • DRAM-less speed boost via HMB and SLC cache
  • High endurance at 700TBW and 2000000 hours MTBF
  • Fits PS5, laptops and desktops in M.2 2280 form factor

Specifications

BrandFANXIANG
ModelS660
Part NumberS660-1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND TLC
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 5000MBps
Max Sequential WriteUp to 4500MBps
Terabytes Written (TBW)700
MTBF2,000,000 hours
HeatSinkwith HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-45°C ~ +85°C
Height9.50mm
Width22.00mm
Depth80.00mm
Weight30g

Questions about this item

What maximum sequential read speed does the PCIe 4.0 x4 interface cap the S660 at?

The PCIe 4.0 x4 interface limits the S660 to a maximum sequential read of 5000MBps and a maximum sequential write of 4500MBps.

What physical clearance does the 9.50mm heatsink height need in a laptop or PS5 slot?

The drive measures 9.50mm tall with the heatsink fitted, so the M.2 slot must accommodate at least that height plus the PCB.

How is the heatsink installed, and which step do people often miss?

The heatsink ships separately; you must peel the thermal pad liner, press the pad onto the controller, then screw the heatsink down — skipping the liner removal leaves an air gap.
