Green circuit board with black controller and silver label, M.2 2280 form factor, no heatsink

FANXIANG

FANXIANG S880E 500GB M.2 2280 NVMe internal SSD

SKU CH-87X8-KVXBP

PCIe 4.0 x4 NVMe drive delivering up to 7300 MB/s read and 6800 MB/s write in a single-sided M.2 2280 form factor

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options 500GB

  • Up to 7300 MB/s sequential read for fast boot and load times
  • Up to 6800 MB/s sequential write to accelerate file saves and installs
  • 600 TBW endurance rating backed by 2,000,000-hour MTBF for long-term reliability
  • PCIe 4.0 x4 NVMe interface on M.2 2280 form factor fits laptops, desktops and PS5
  • Single-sided 3.20 mm profile with graphite-coated copper and aluminium thermal layers for cooler operation

Capacity and form factor

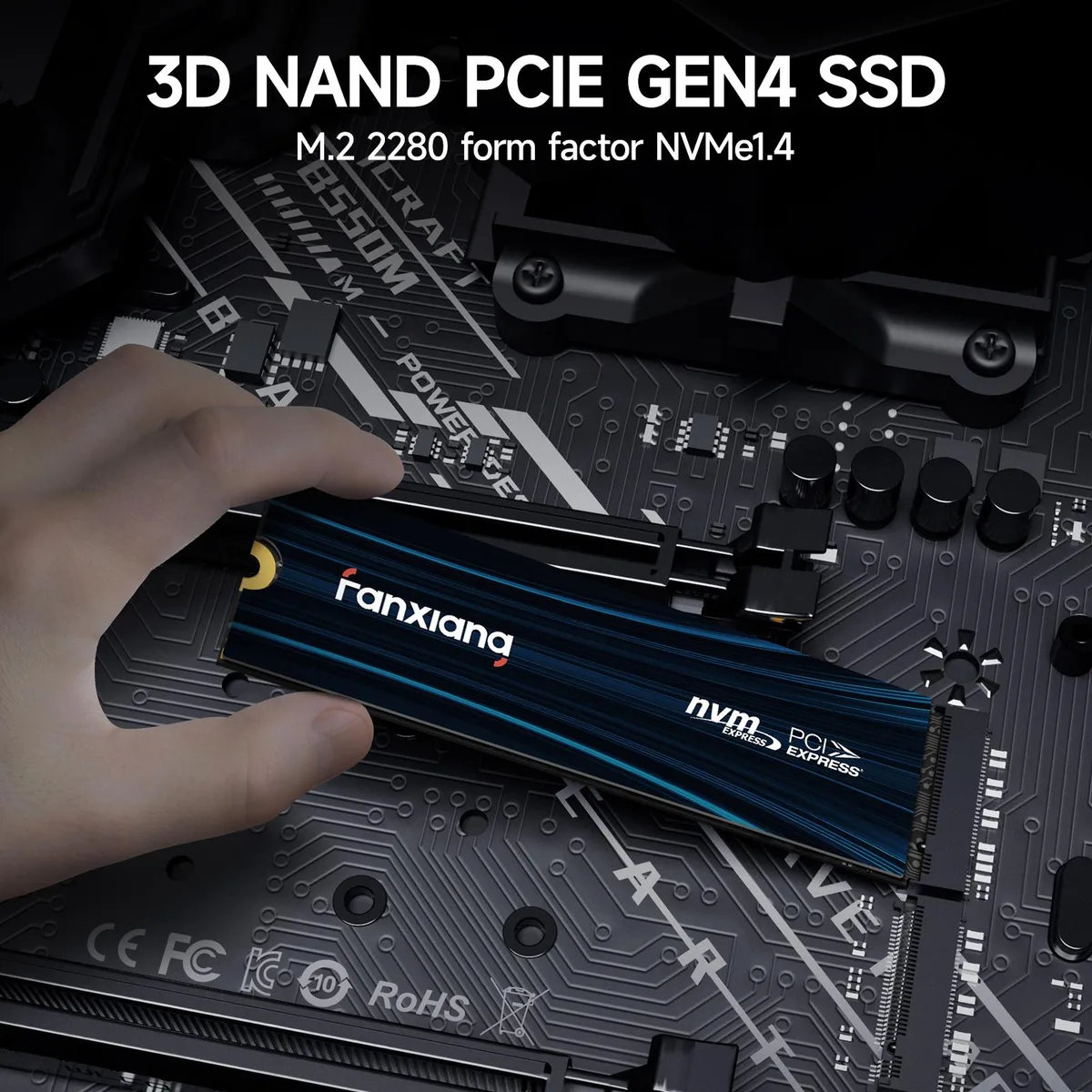

The FANXIANG S880E is a 500GB internal SSD built in the M.2 2280 form factor. It uses 3D NAND flash memory and is designed for consumer workloads including gaming, content creation and everyday computing. The single-sided layout keeps the module at 3.20mm height for broad device compatibility.

PCIe 4.0 x4 interface limits

The drive connects through a PCI-Express 4.0 x4 link with NVMe 2.0 support, delivering sequential reads up to 7300MBps and writes up to 6800MBps. Performance scales with the host controller; on a PCIe 3.0 platform the same drive will operate at the lower generation’s bandwidth ceiling. Thermal throttling may activate under sustained loads if system airflow is limited.

Endurance and thermal headroom

A 600TBW rating and 2,000,000-hour MTBF indicate the write endurance available for heavy workloads. The operating range spans 0°C to 70°C while storage tolerates -40°C to 85°C. The graphite-coated copper and aluminium foil label helps dissipate heat, but prolonged maximum-speed transfers in confined spaces can still push the controller toward its thermal limit.

Highlights

  • Up to 7300 MB/s sequential read for fast boot and load times
  • Up to 6800 MB/s sequential write to accelerate file saves and installs
  • 600 TBW endurance rating backed by 2,000,000-hour MTBF for long-term reliability
  • PCIe 4.0 x4 NVMe interface on M.2 2280 form factor fits laptops, desktops and PS5
  • Single-sided 3.20 mm profile with graphite-coated copper and aluminium thermal layers for cooler operation

Specifications

BrandFANXIANG
ModelS880E
Part NumberS880E-500GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 7300MBps
Max Sequential WriteUp to 6800MBps
Terabytes Written (TBW)600TBW
MTBF2,000,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height3.20mm
Width22.00mm
Depth80.00mm
Weight8g
Manufacturer RecertifiedYes

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 500 GB S880E or a larger capacity from the 500 GB to 4 TB range?

The 500 GB model suits OS and a few games; larger capacities add more space for media libraries and heavy workloads without changing the 7300 MB/s read or 6800 MB/s write ceiling.

What does the 7300 MB/s read figure deliver inside my PC or PS5?

It enables faster boot times, quicker game level loads and snappier file transfers when the host supports PCIe 4.0 x4 and NVMe 2.0.

How does the PCIe 4.0 x4 interface limit real-world speed?

The four-lane Gen 4 link caps sequential throughput at the drive’s rated 7300 MB/s read and 6800 MB/s write; older PCIe 3.0 slots will reduce those peaks.
