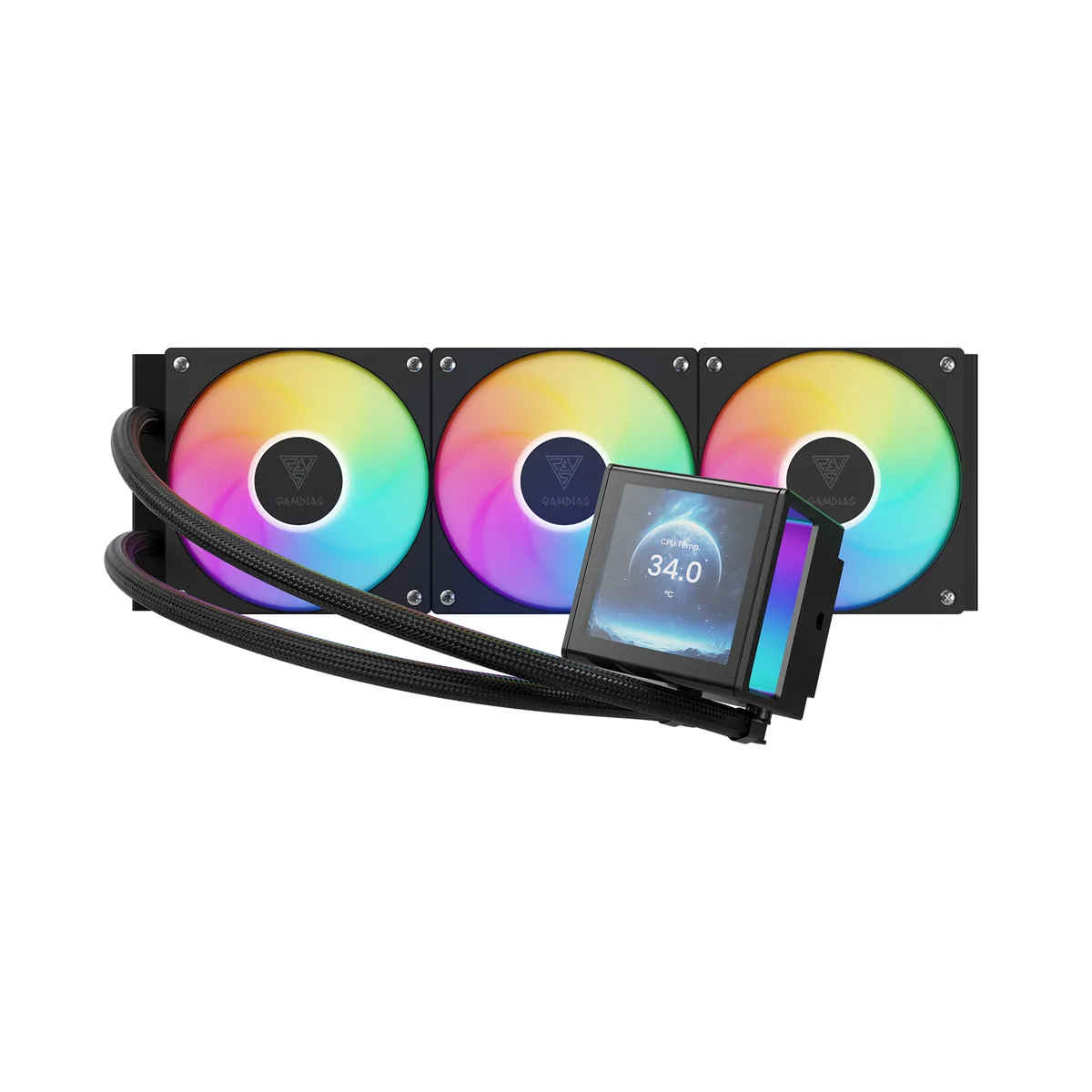

Black 360mm AIO with square 3.4" LCD pump head and three 120mm fans

GAMDIAS Technology

GAMDIAS Technology CHIONE P5-360 360mm liquid cooler with 3.4" IPS LCD

SKU CH-RJVB-51MJ8 MPN CHIONE P5-360

A 360 mm liquid cooler with three 120 mm hydraulic PWM fans, a rotatable magnetic pump and a customizable 3.4" IPS LCD

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Sock
  • Pump Speed2700 RPM+/-10%
  • Radiator Size396 x 120 x 27 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)

Option CHIONE P5 (3x 120mm) - Black

Struck-through versions exist but are not stocked here.

  • Customisable 3.4" IPS LCD shows real-time stats and GIFs
  • 360 mm radiator with three 120 mm fans moves 81.81 CFM for strong cooling
  • Pump runs at 2700 RPM with upgraded copper base for efficient heat transfer
  • Hydraulic-bearing fans operate from 400 to 2200 RPM at 11–34.91 dBA quiet range
  • Daisy-chained hidden cable routing and rotatable magnetic pump simplify installation

360 mm AIO with 3.4" LCD

The GAMDIAS CHIONE P5-360 is a 360 mm all-in-one liquid cooler built around a 396 x 120 x 27 mm aluminum radiator and three 120 mm hydraulic PWM fans. A 3.4" IPS LCD with 480 x 480 resolution mounts on the pump head and can show live hardware data or custom images and GIFs. The pump runs at 2700 RPM ±10% while the fans operate between 400 and 2200 RPM ±10% at 11–34.91 dBA.

Builders who want live monitoring

This cooler suits builders who want a 360 mm radiator, ARGB lighting synced through motherboard headers and a rotatable magnetic display they can orient by hand or via ZEUS CAST software. It is not for buyers who need a smaller radiator to fit a compact chassis, nor for those who prefer a simpler air cooler without display or software overhead.

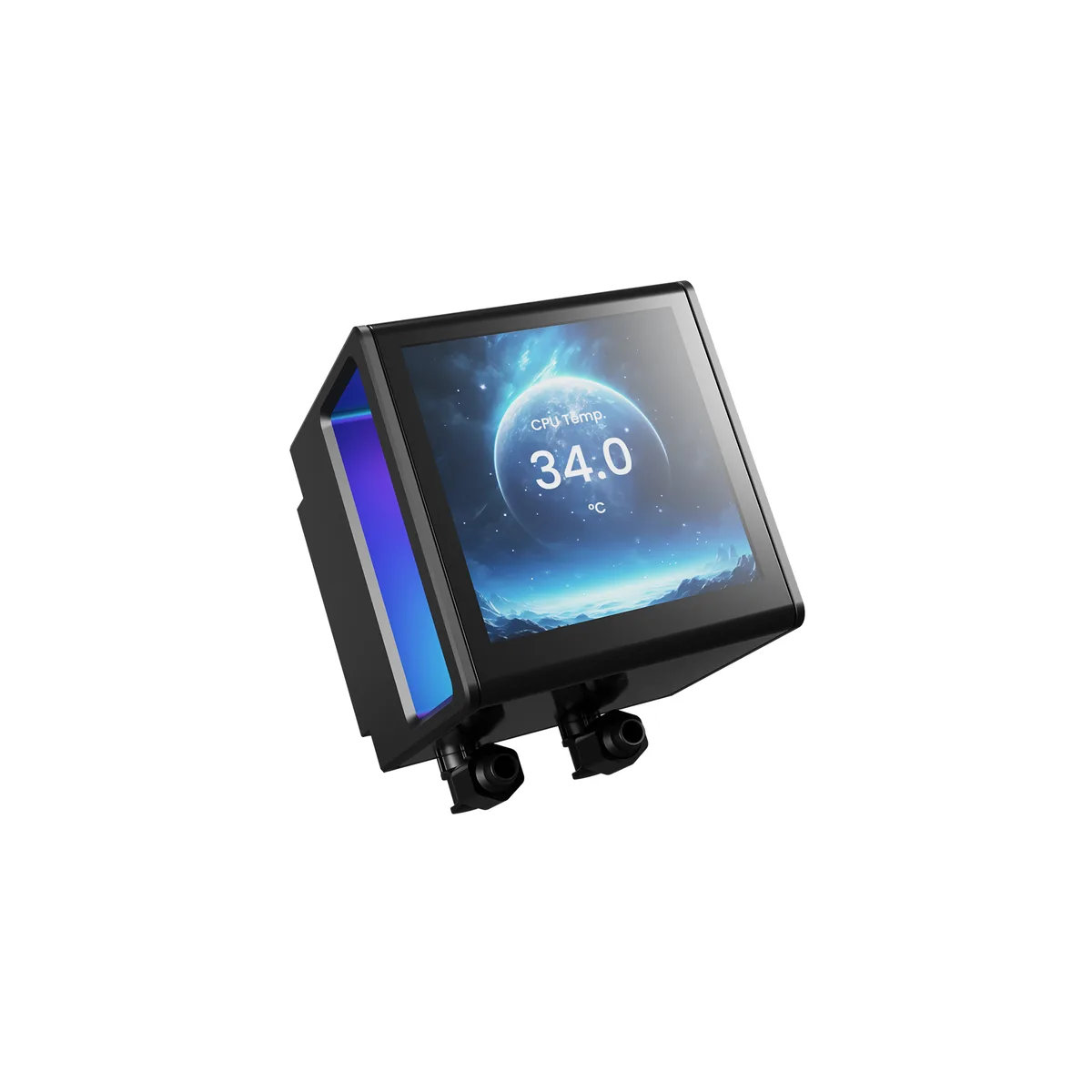

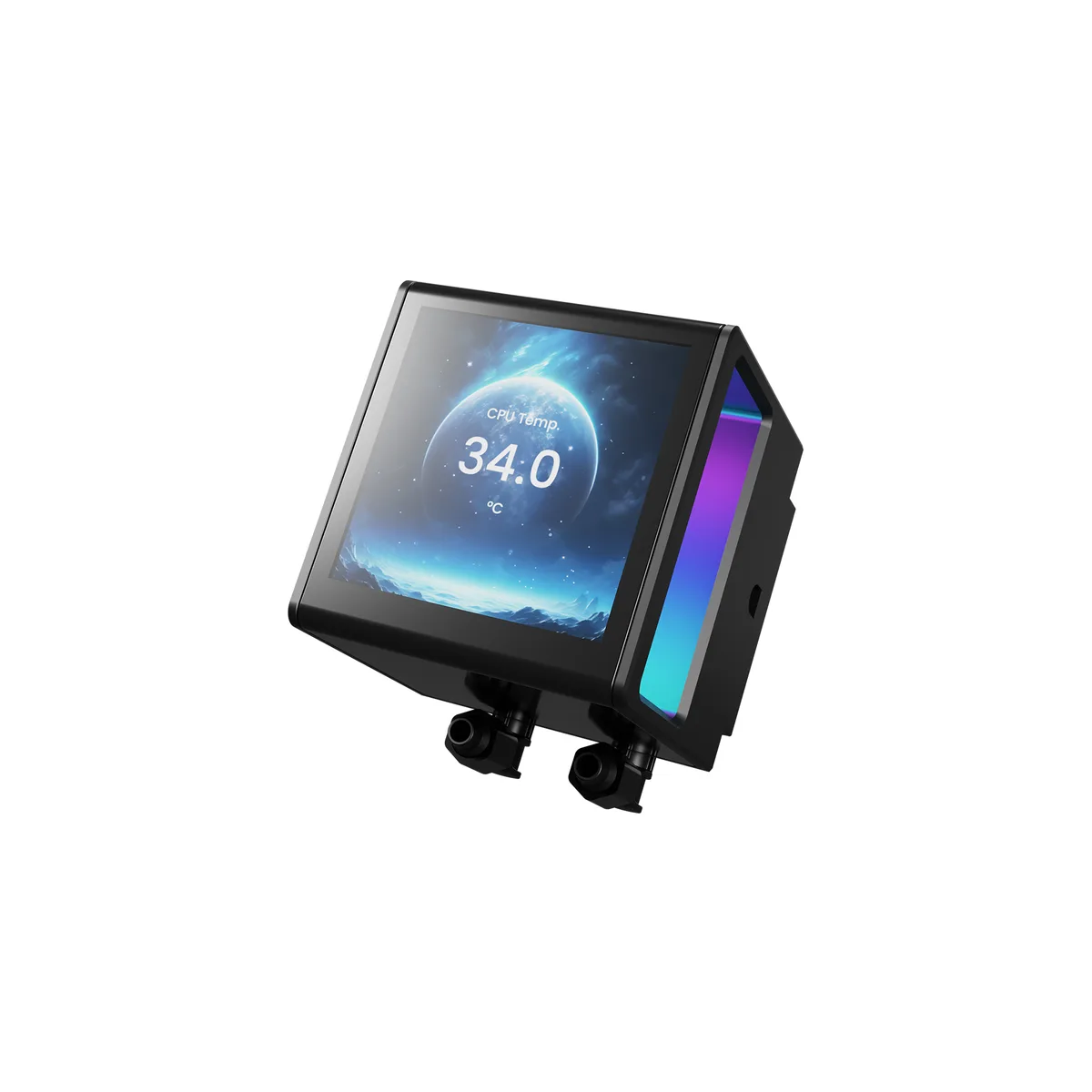

Rotatable magnetic 3.4" IPS LCD

The pump housing includes a magnetic 3.4" IPS LCD that detaches and rotates freely for any viewing angle, while ZEUS CAST software handles orientation, brightness and custom content uploads. This integrated display is the single specification that decides whether the CHIONE P5-360 matches the build.

Highlights

  • Customisable 3.4" IPS LCD shows real-time stats and GIFs
  • 360 mm radiator with three 120 mm fans moves 81.81 CFM for strong cooling
  • Pump runs at 2700 RPM with upgraded copper base for efficient heat transfer
  • Hydraulic-bearing fans operate from 400 to 2200 RPM at 11–34.91 dBA quiet range
  • Daisy-chained hidden cable routing and rotatable magnetic pump simplify installation

Specifications

BrandGAMDIAS
ModelCHIONE P5-360
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Socket AM3+ / AMD Socket AM4 / AMD Socket AM5 / AMD Socket FM1 / AMD Socket FM2 / AMD Socket FM2+ / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851 / Intel LGA 2011 / Intel LGA 2011-v3 / Intel LGA 2066
Pump Speed2700 RPM+/-10%
Radiator Size396 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeHydraulic
Fan RPM400 - 2200 RPM+/-10%
Fan Air Flow81.81 CFM
Fan Noise11 - 34.91 dBA
ColorBlack
LED ColorARGB
Pressure3.15 mmH2O
Tube MaterialEPDM
Screen Size3.4"
Resolution480 x 480
Package ContentsCooler 1
Fan 3
Thermal Grease 1
Mounting Kit
Shipping weight2.36 kg
Package size439 × 211 × 147 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What clearance does the 396 mm radiator and 27 mm thickness need in my case?

The radiator measures 396 mm long, 120 mm wide and 27 mm thick, so your case must support a 360 mm radiator with at least 27 mm depth plus fan thickness.

How do I orient the 3.4 inch 480 x 480 IPS LCD on the pump housing?

The magnetic display pulls off the pump; rotate it to the desired angle and snap it back, then use ZEUS CAST software to match the screen orientation.

When should I expect to replace the three 120 mm hydraulic-bearing fans?

The hydraulic-bearing fans are rated for long life; plan to replace them if noise rises above 34.91 dBA or airflow drops below 81.81 CFM after several years.
