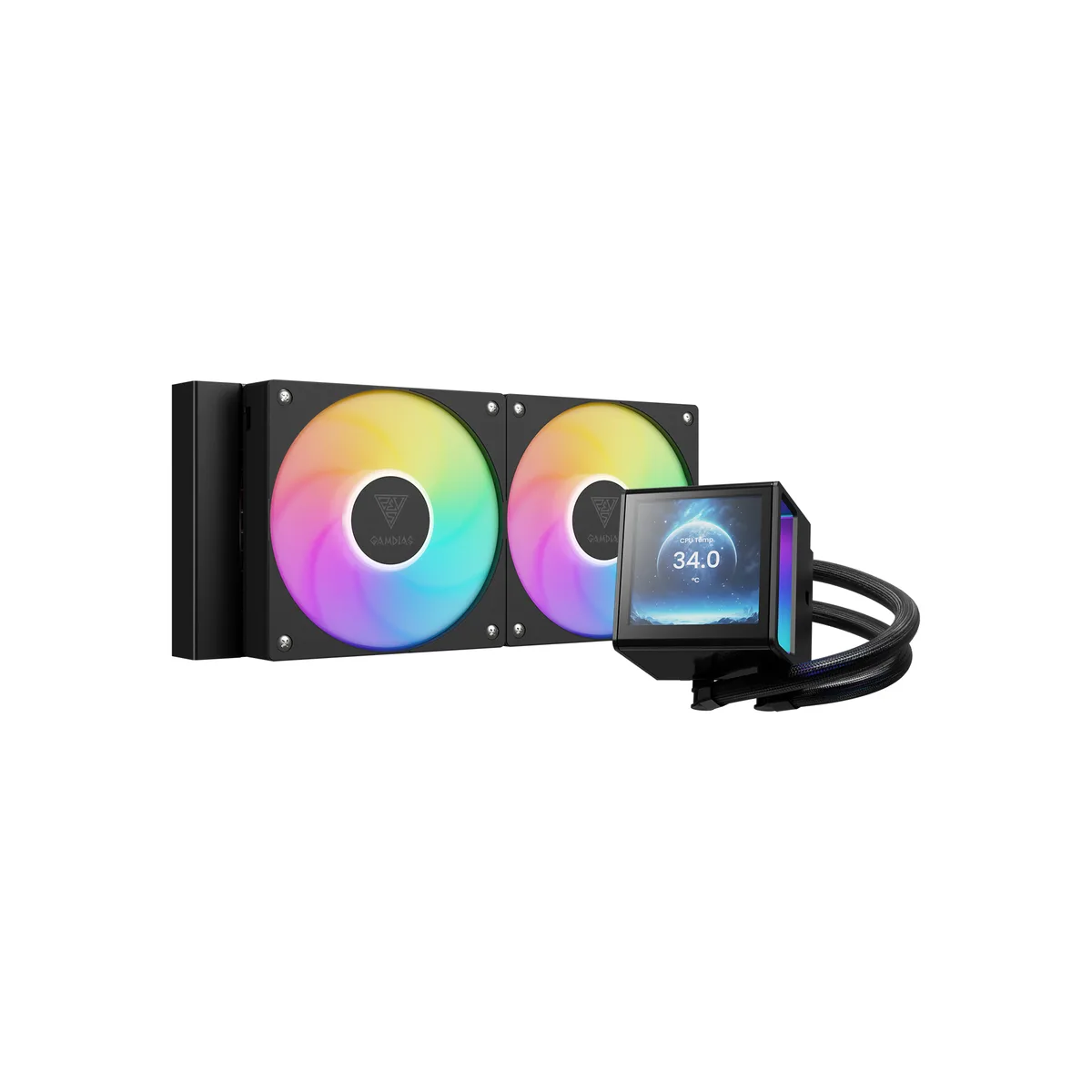

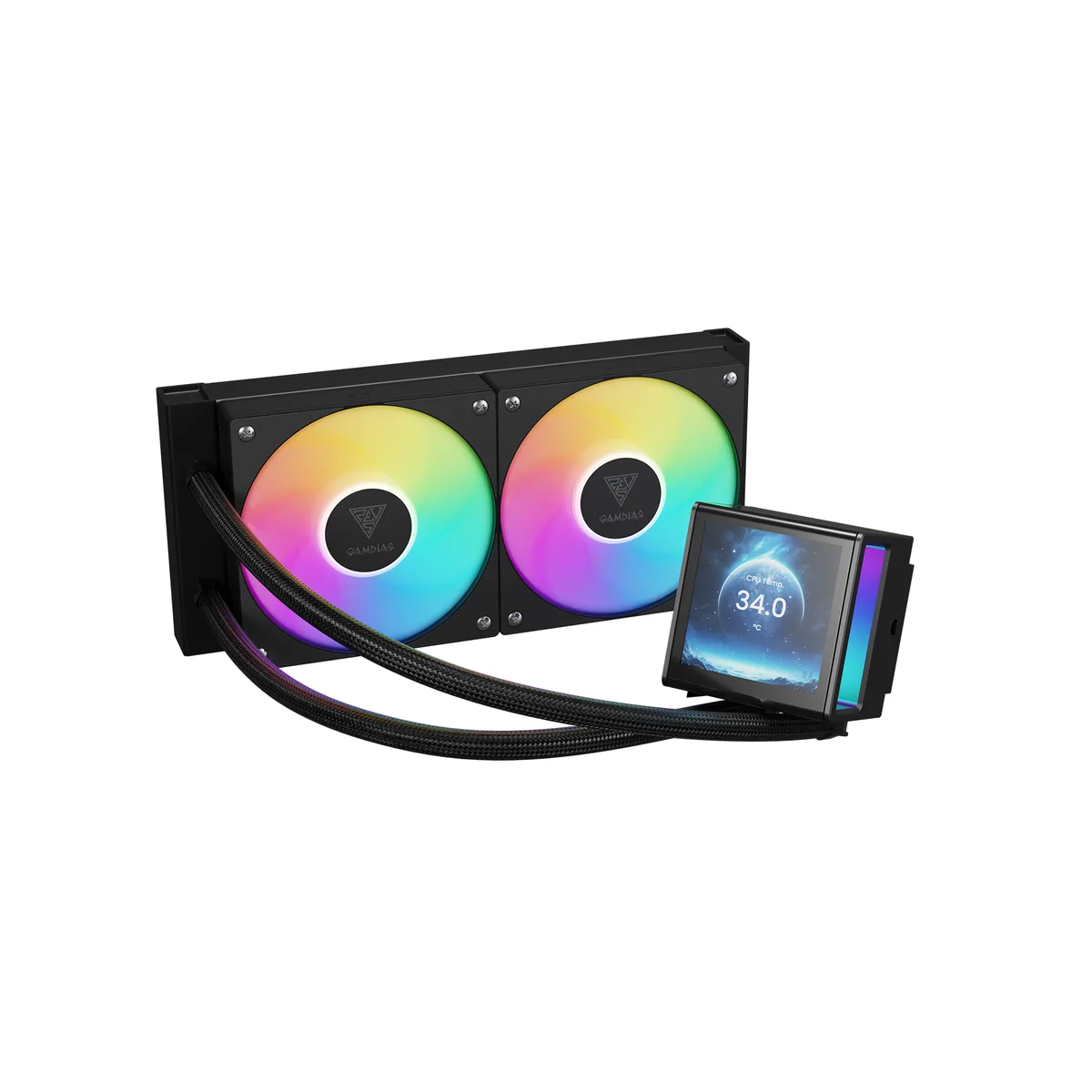

Black 240 mm AIO liquid cooler with 3.4 inch IPS LCD screen on pump head, two 120 mm ARGB fans, black tubing and radiator

GAMDIAS Technology

GAMDIAS Technology GD-CHIONE P5-240 liquid cooler

SKU CH-H28Q-DHS5J MPN GD-CHIONE P5-240

A 240 mm liquid CPU cooler with a rotatable 3.4" 480 x 480 IPS LCD, two 120 mm hydraulic PWM fans at 400–2200 RPM, 81.81 CFM airflow, 3.15 mmH₂O pressure and 11–34.91 dBA noise.

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Sock
  • Pump Speed2700 RPM+/-10%
  • Radiator Size276 x 120 x 27 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)

Option CHIONE P5 (2x 120mm) - Black

Struck-through versions exist but are not stocked here.

  • Customizable 3.4" IPS LCD shows real-time stats
  • Rotatable magnetic display adjusts orientation without tools
  • 240 mm radiator with two 120 mm fans delivers 81.81 CFM airflow
  • Hydraulic-bearing PWM fans run 400 to 2200 RPM at 11 to 34.91 dBA
  • Broad socket support covers Intel LGA 1851 and AMD AM5

3.4\" IPS LCD liquid cooler

The GAMDIAS CHIONE P5-240 is a 240 mm all-in-one liquid cooler with a customisable 3.4\" IPS LCD running at 480 x 480 resolution. It targets builders who want real-time system statistics and personalised graphics on the pump head. The rotatable magnetic display can be reoriented by hand or through ZEUS CAST software. It suits users who value visual customisation alongside thermal performance.

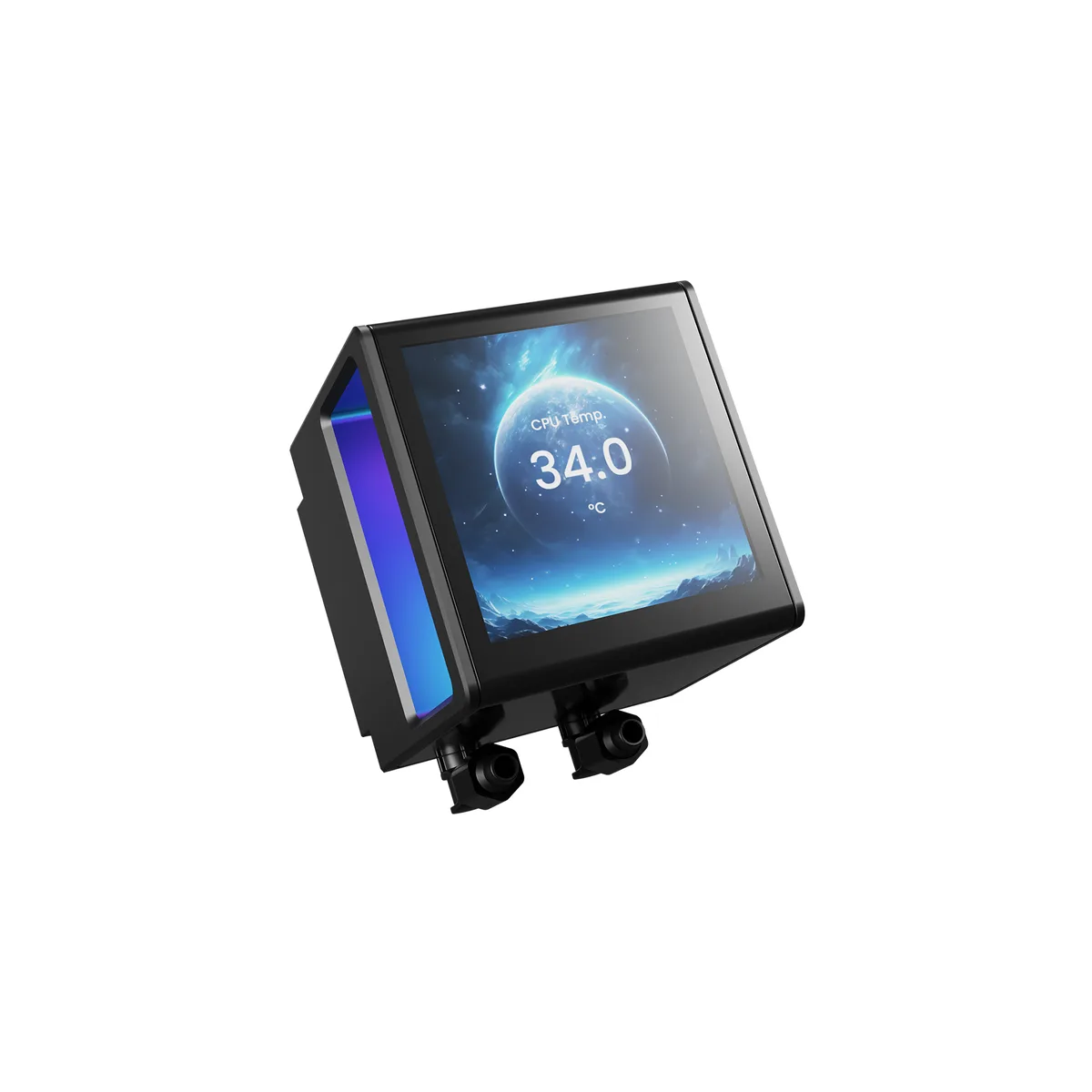

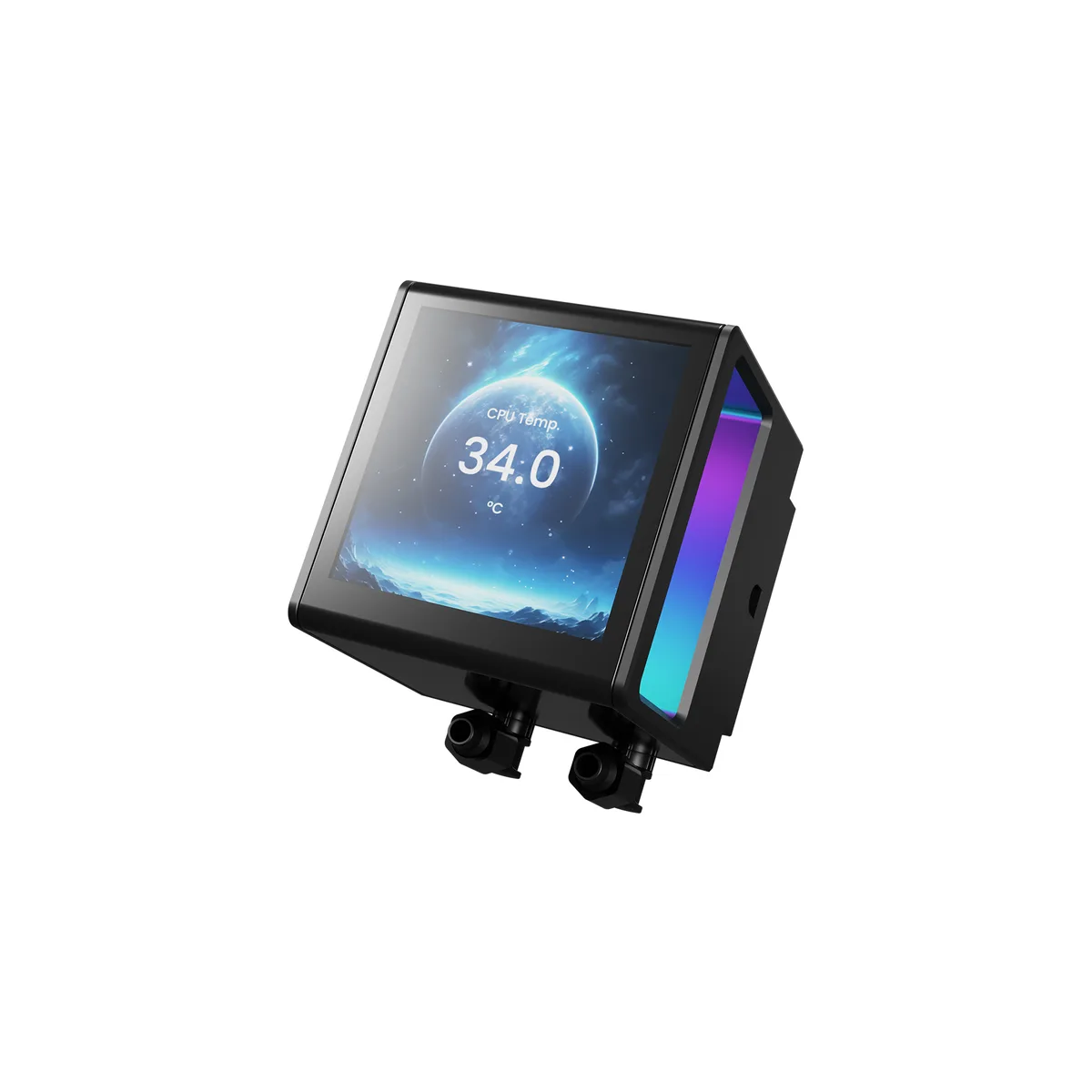

Rotatable magnetic pump with hidden cable fans

The pump block mounts on Intel LGA 1150, 1151, 1155, 1851 and AMD AM2 through AM5 plus FM1, FM2 and FM2+. Two 120 mm hydraulic-bearing fans connect via a daisy-chained PWM and 5 V ARGB cable, reducing visible wiring inside the case. Radiator dimensions are 276 x 120 x 27 mm with aluminium construction and EPDM tubing. The package includes mounting hardware and thermal grease for immediate installation.

2700 RPM pump and 400-2200 RPM fans

The pump runs at 2700 RPM ±10 % while fans span 400 to 2200 RPM ±10 %, delivering up to 81.81 CFM airflow and 3.15 mmH2O static pressure. Acoustic output ranges from 11 to 34.91 dBA across the speed curve. This headroom handles mainstream and high-end desktop CPUs under sustained loads. Builds requiring larger radiator surface area or higher static pressure for restrictive loops will need a different solution.

Highlights

  • Customizable 3.4" IPS LCD shows real-time stats
  • Rotatable magnetic display adjusts orientation without tools
  • 240 mm radiator with two 120 mm fans delivers 81.81 CFM airflow
  • Hydraulic-bearing PWM fans run 400 to 2200 RPM at 11 to 34.91 dBA
  • Broad socket support covers Intel LGA 1851 and AMD AM5

Specifications

BrandGAMDIAS
ModelGD-CHIONE P5-240
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Socket AM3+ / AMD Socket AM4 / AMD Socket AM5 / AMD Socket FM1 / AMD Socket FM2 / AMD Socket FM2+ / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851 / Intel LGA 2011 / Intel LGA 2011-v3 / Intel LGA 2066
Pump Speed2700 RPM+/-10%
Radiator Size276 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeHydraulic
Fan RPM400 - 2200 RPM+/-10%
Fan Air Flow81.81 CFM
Fan Noise11 - 34.91 dBA
Fan ConnectorPWM & 5V sync
ColorBlack
LED ColorARGB
Pressure3.15 mmH2O
Tube MaterialEPDM
Package ContentsCooler 1
Fan 2
Thermal Grease 1
Mounting Kit
Shipping weight1.81 kg
Package size349 × 210 × 145 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum fan noise level this 240 mm liquid cooler reaches under full load?

The two 120 mm hydraulic fans run between 11 and 34.91 dBA depending on speed, so sustained heavy loads will sit at the upper end of that range.

How much heat can the pump move continuously at its rated 2700 RPM?

The pump operates at 2700 RPM ±10 % and the fans deliver 81.81 CFM with 3.15 mmH₂O static pressure, giving the 240 mm aluminium radiator its sustained cooling capacity.

Which CPU socket mounting hardware is included in the box for this cooler?

The package contains a universal mounting kit that supports Intel LGA 1150, 1151, 1155, 1851 and AMD AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+.
