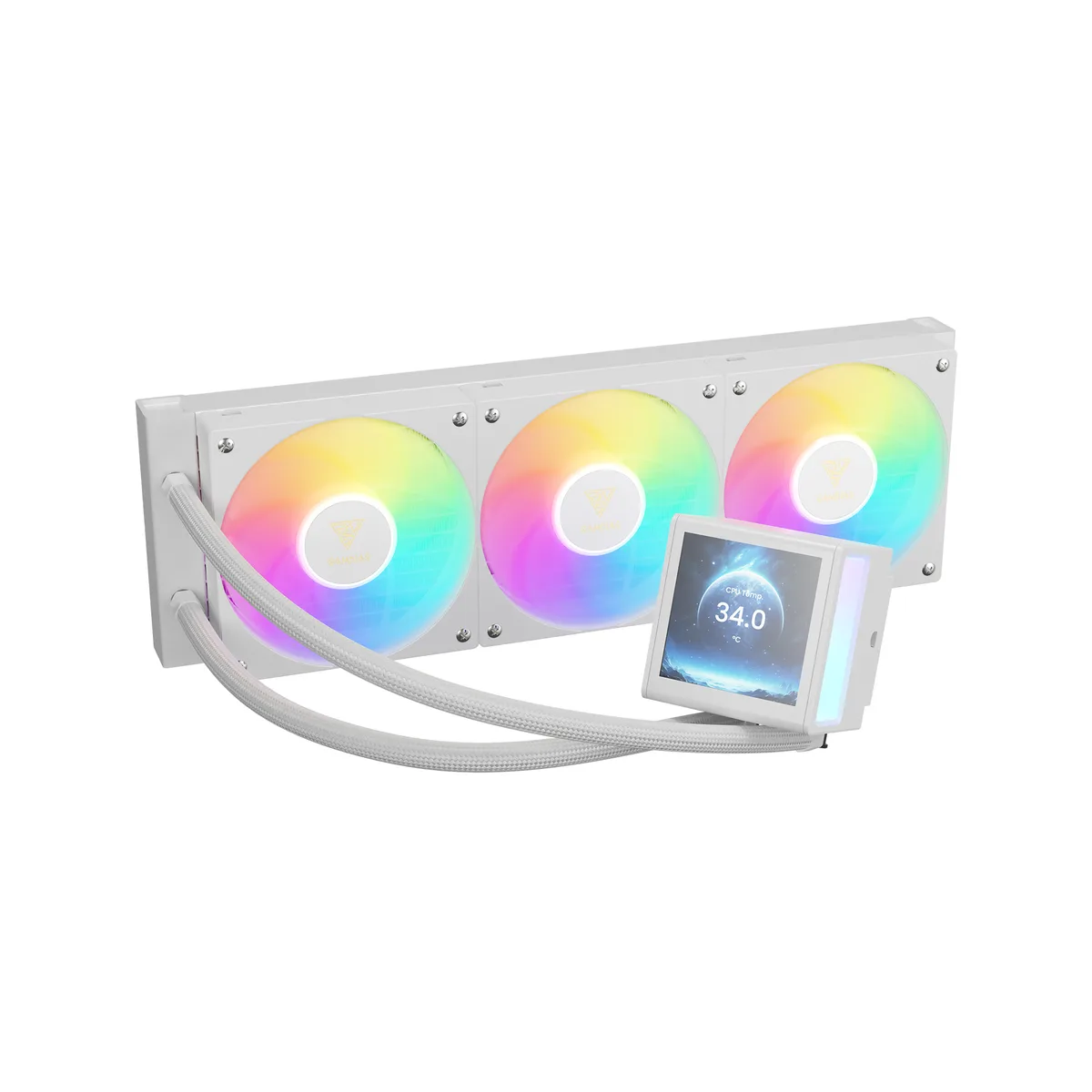

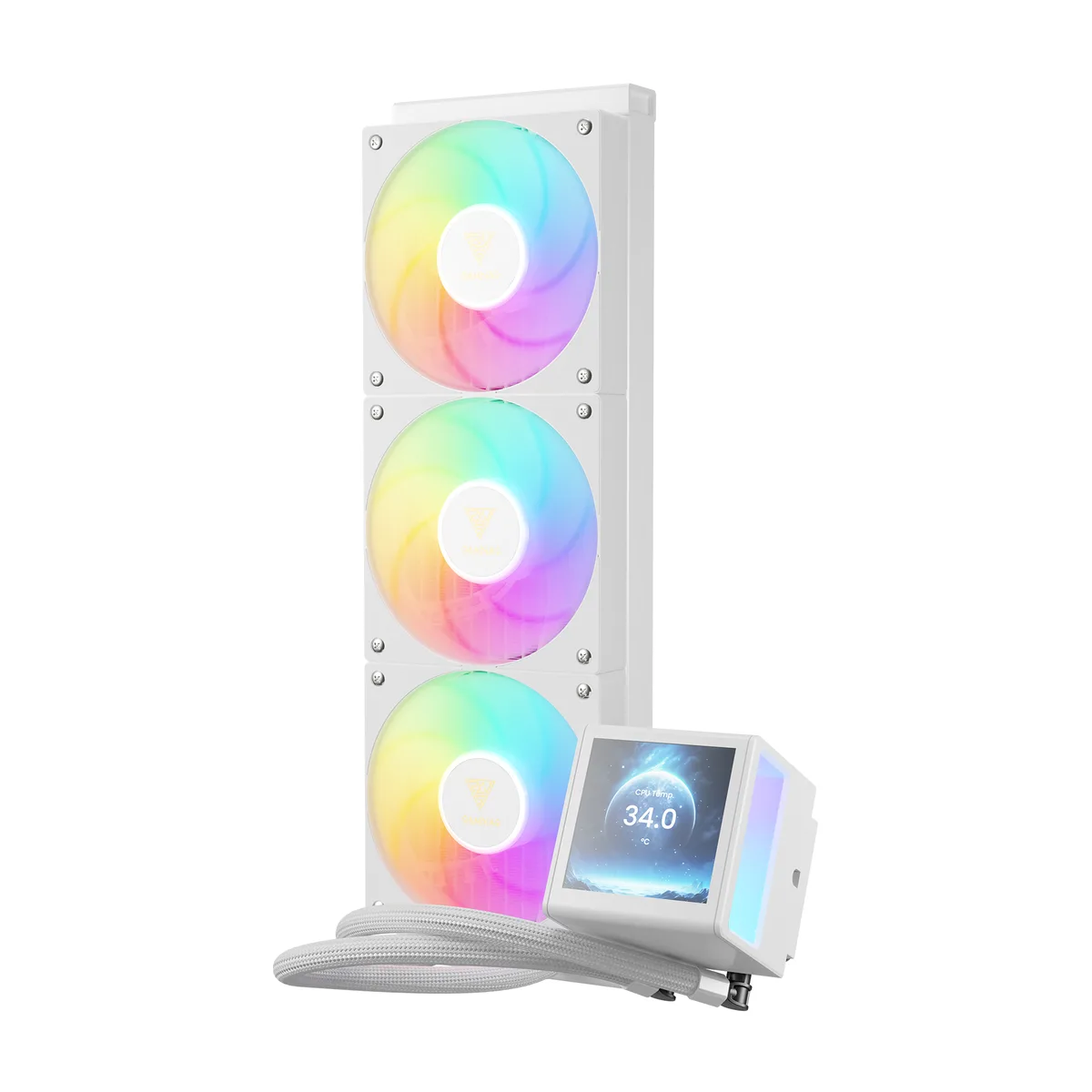

White 360 mm AIO with square pump block showing 3.4 inch IPS LCD and three 120 mm fans

GAMDIAS Technology

GAMDIAS Technology CHIONE P5-360 WH liquid cooler

SKU CH-R1BH-N6BCR MPN CHIONE P5-360 WH

A 360 mm liquid CPU cooler with a customisable 3.4" IPS LCD, rotatable magnetic pump block and three daisy-chained 120 mm ARGB PWM fans

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Sock
  • Pump Speed2700 RPM+/-10%
  • Radiator Size396 x 120 x 27 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)

Option CHIONE P5 (3x 120mm) - White

Struck-through versions exist but are not stocked here.

  • Customise system stats and GIFs on a 3.4" 480×480 IPS LCD
  • Rotate or reorient the magnetic display by hand or via software
  • 360 mm aluminium radiator with three 120 mm hydraulic PWM fans
  • Fans run 400–2200 RPM for 81.81 CFM at 11–34.91 dBA
  • Pump spins at 2700 RPM with 3.15 mmH₂O pressure for strong flow

Liquid cooler with 3.4 IPS LCD

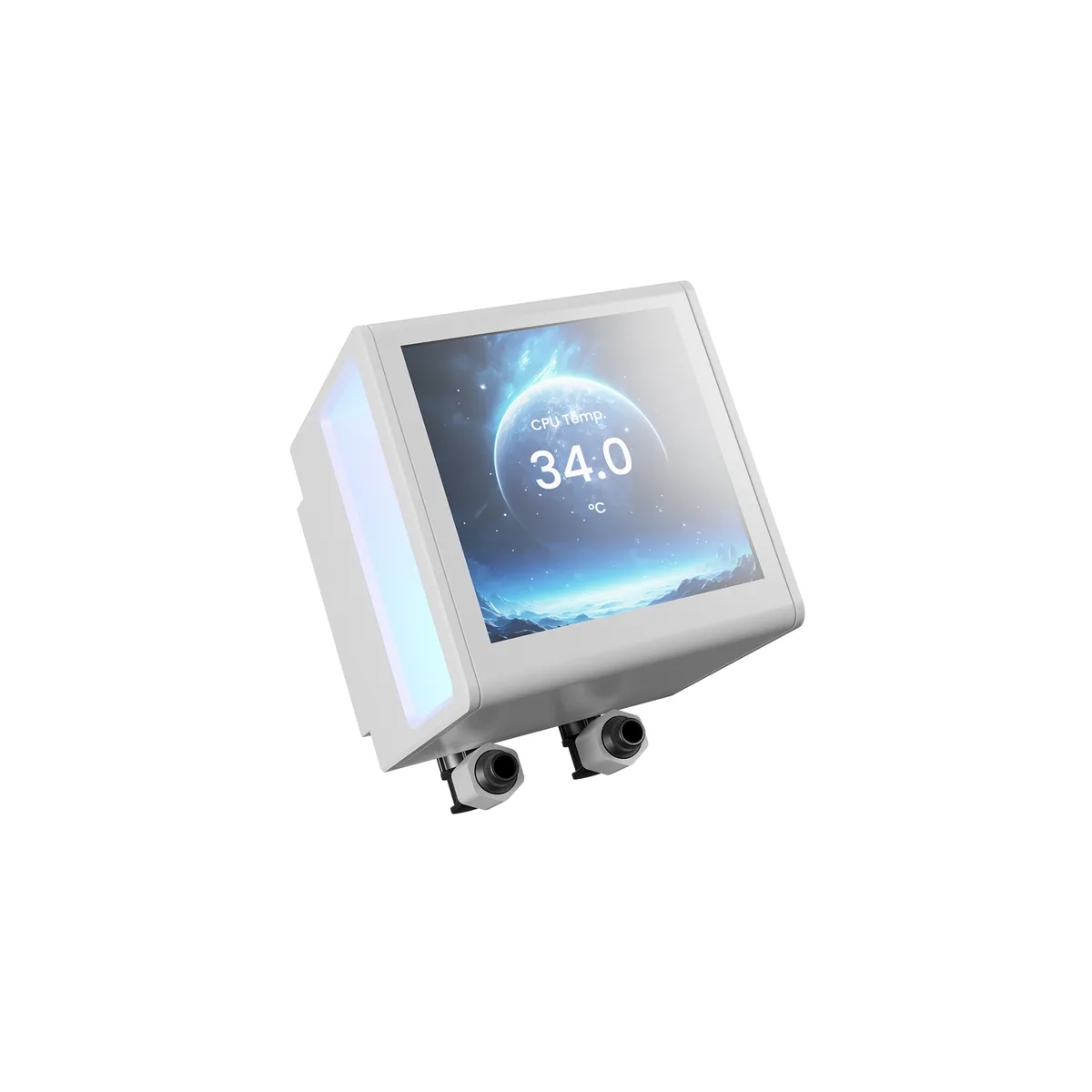

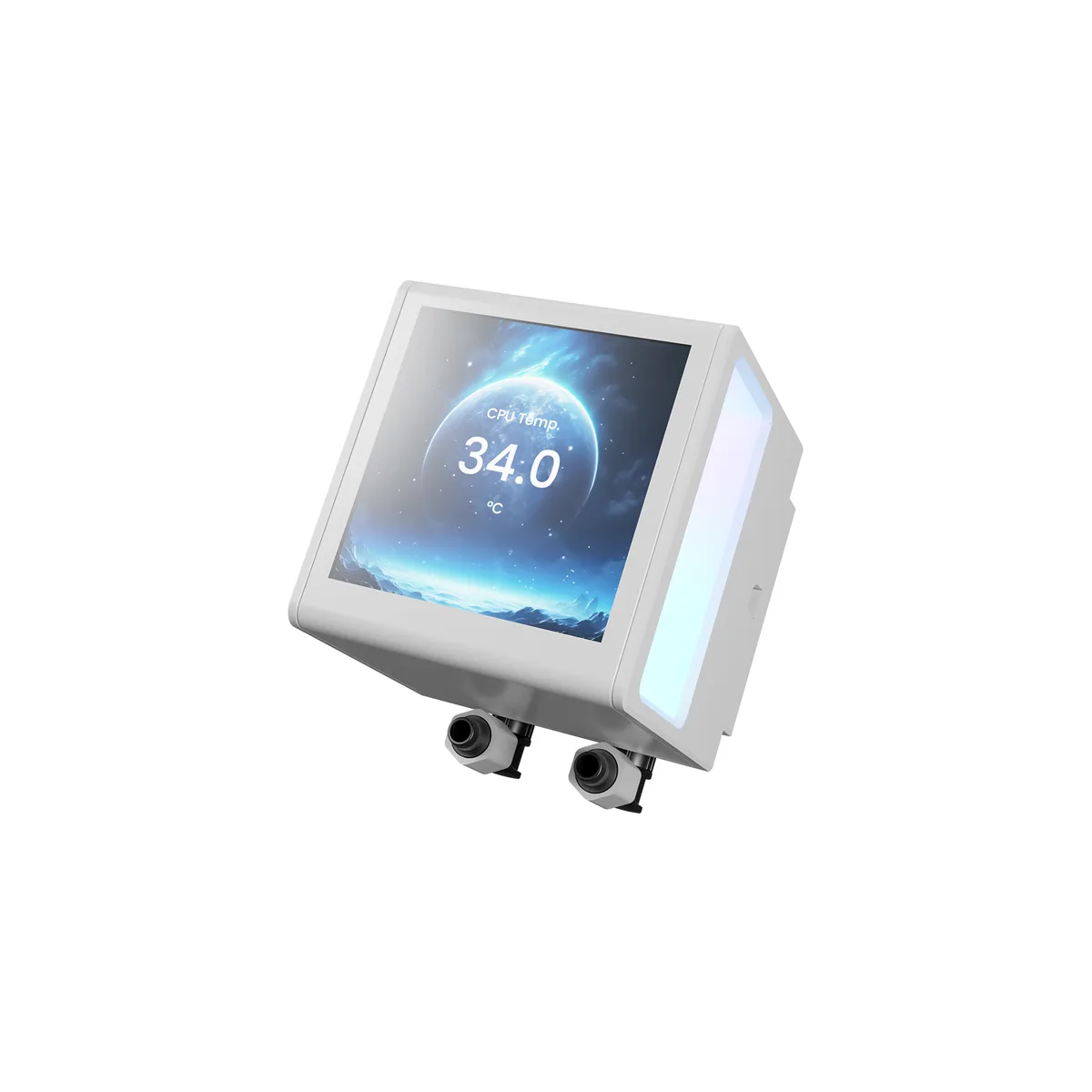

The CHIONE P5-360 WH is a 360 mm all-in-one liquid cooler that integrates a 3.4 inch IPS LCD panel on the pump head. The screen runs at 480 x 480 resolution and can show real-time system data or custom images and animated GIFs. A magnetic mount lets you pull and reattach the display to change its orientation, while ZEUS CAST software handles brightness and rotation.

Builders who want a white 360 mm AIO

This unit suits enthusiasts building a white-themed system who value a built-in screen for monitoring and personalisation. It supports a wide range of Intel and AMD sockets including LGA 1851 and AM5, and the daisy-chained fans simplify cable routing. Buyers who need a smaller radiator, a non-white colour scheme, or a cooler without an LCD should consider other options.

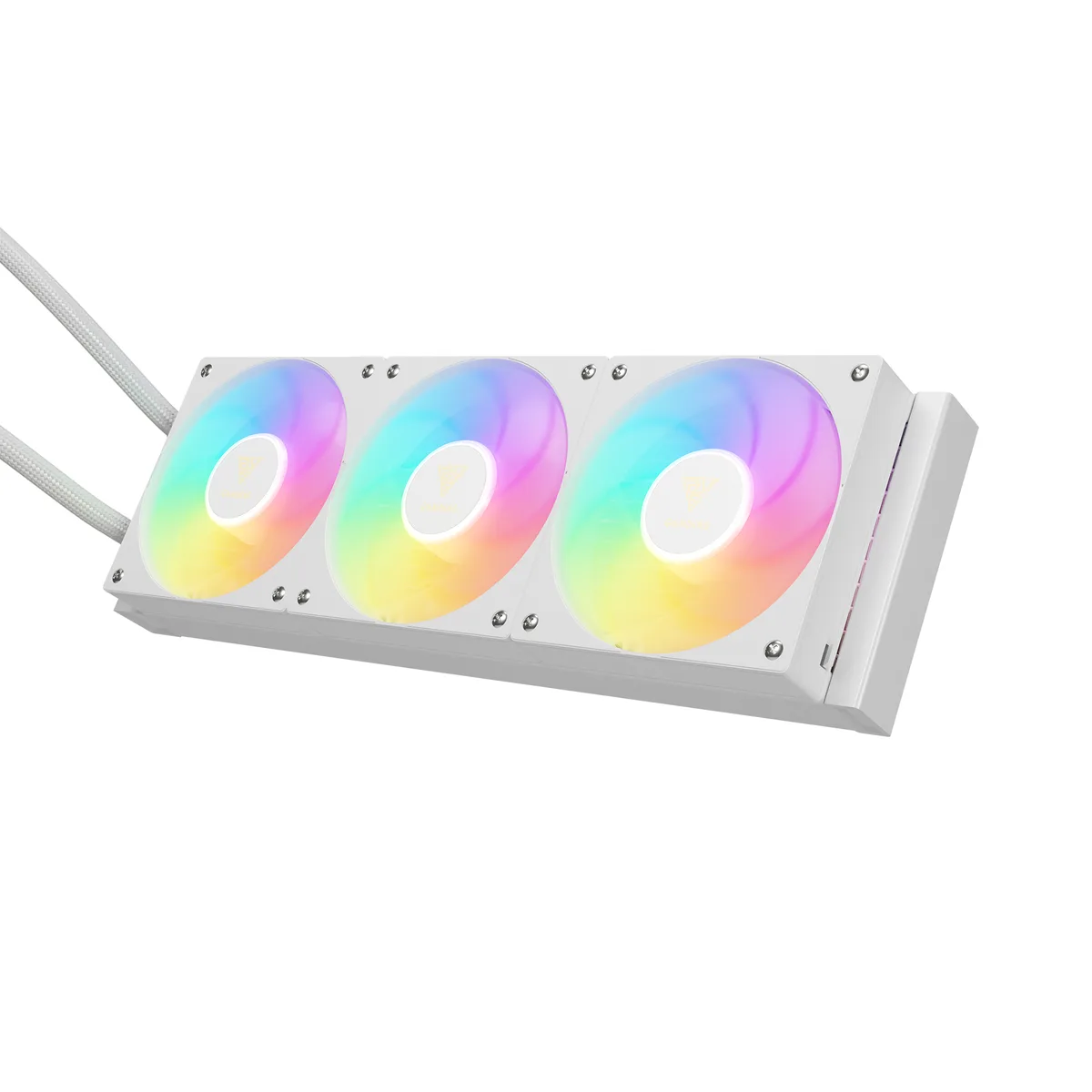

360 mm radiator with three 120 mm hydraulic fans

The 396 x 120 x 27 mm aluminium radiator pairs with three 120 x 120 x 25 mm fans that spin from 400 to 2200 RPM and deliver up to 81.81 CFM at 3.15 mmH2O static pressure. Noise ranges from 11 to 34.91 dBA. The pump runs at 2700 RPM and uses EPDM tubing. This capacity handles high-heat CPUs comfortably; extreme overclocks that exceed the thermal limits of a 360 mm AIO will require a custom loop.

Highlights

  • Customise system stats and GIFs on a 3.4" 480×480 IPS LCD
  • Rotate or reorient the magnetic display by hand or via software
  • 360 mm aluminium radiator with three 120 mm hydraulic PWM fans
  • Fans run 400–2200 RPM for 81.81 CFM at 11–34.91 dBA
  • Pump spins at 2700 RPM with 3.15 mmH₂O pressure for strong flow

Specifications

BrandGAMDIAS
ModelCHIONE P5-360 WH
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM2 / AMD Socket AM2+ / AMD Socket AM3 / AMD Socket AM3+ / AMD Socket AM4 / AMD Socket AM5 / AMD Socket FM1 / AMD Socket FM2 / AMD Socket FM2+ / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851 / Intel LGA 2011 / Intel LGA 2011-v3 / Intel LGA 2066
Pump Speed2700 RPM+/-10%
Radiator Size396 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeHydraulic
Fan RPM400 - 2200 RPM+/-10%
Fan Air Flow81.81 CFM
Fan Noise11 - 34.91 dBA
ColorWhite
LED ColorARGB
Pressure3.15 mmH2O
Tube MaterialEPDM
Screen Size3.4"
Resolution480 x 480
Package ContentsCooler 1
Fan 3
Thermal Grease 1
Mounting Kit
Shipping weight2.27 kg
Package size439 × 203 × 147 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to buy a separate mounting bracket for my Intel LGA 1851 motherboard?

The cooler includes a mounting kit that supports Intel LGA 1851 so no extra bracket is required for that socket.

Can I keep my existing 120 mm case fans and run them together with the cooler's three fans?

Yes, the cooler uses standard 120 mm PWM fans with a 400 to 2200 RPM range so they can share a fan header or controller with other 120 mm PWM fans.

How do I confirm the pump is running at the correct 2700 RPM after installation?

The pump speed is reported through the motherboard header and ZEUS CAST software; check the RPM reading there to verify it sits near 2700 RPM.
