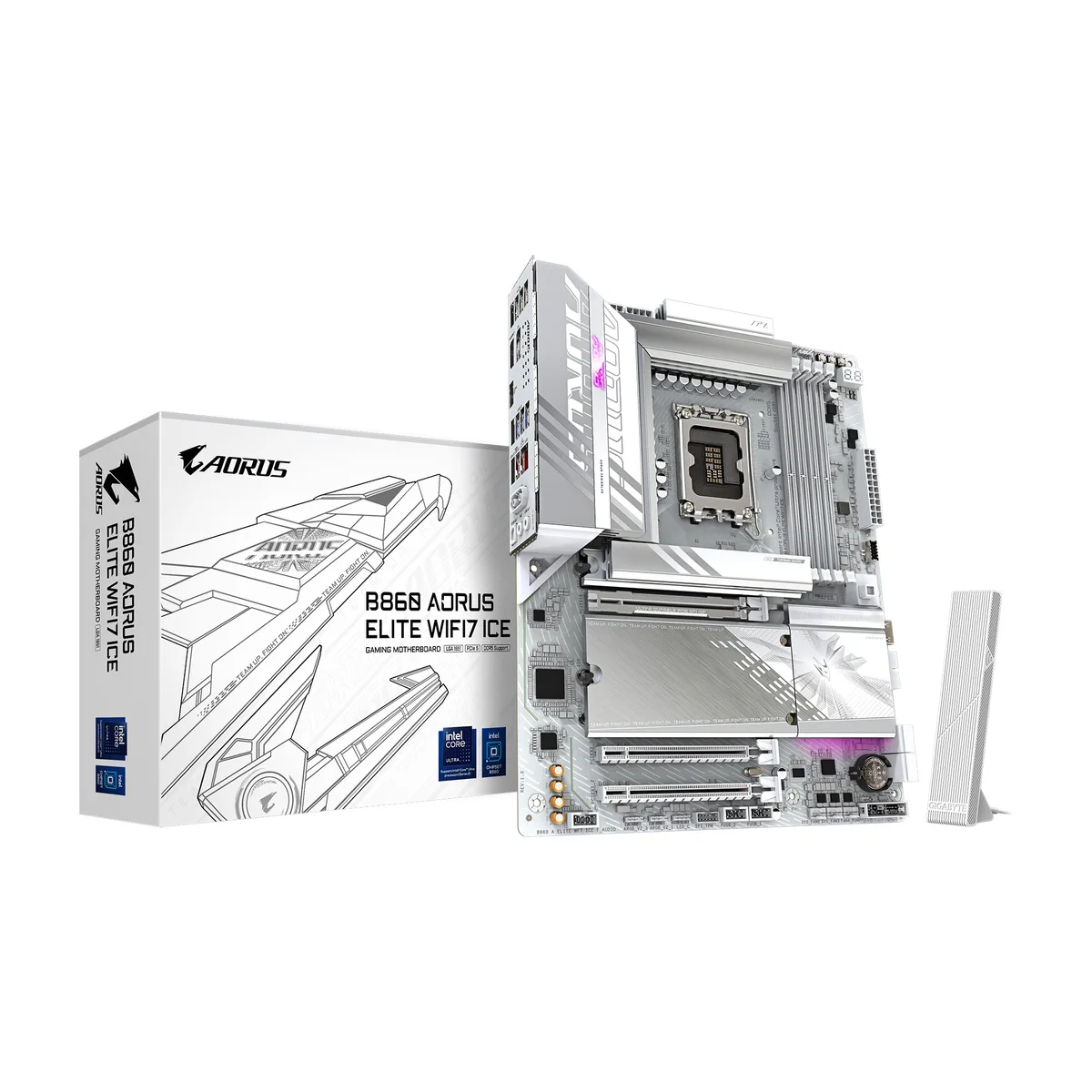

White ATX motherboard with silver heatsinks and blue accents

GIGABYTE

GIGABYTE B860 A ELITE WF7 ICE Intel motherboard

SKU CH-99K9-GCS1C MPN B860 A ELITE WF7 ICE

An ATX motherboard for Intel Core Ultra Series 2 processors with LGA 1851 socket, DDR5 memory up to 256 GB, PCIe 5.0 graphics slot, three M.2 connectors, USB4 Type-C, WIFI7.

  • CPU Socket TypeLGA 1851
  • CPU TypeLGA1851 socket: Support for Intel ® Core™ Ultra Processors (
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C)
  • Maximum Memory Supported256GB

Option B860 AORUS ELITE WIFI7 ICE

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s overclocked across four slots, 256 GB maximum
  • 14+1+2+1 phase 60 A DrMOS VRM with MOSFET heatsinks for stable power delivery
  • Wi-Fi 7 and BLUETOOTH 5.4 plus 2.5 GbE LAN for high-speed networking
  • PCIe 5.0 x16 slot, three M.2 sockets and USB4 Type-C for fast storage and peripherals

Intel Core Ultra Ready Platform

This LGA 1851 motherboard accepts Intel Core Ultra Series 2 processors and pairs them with the Intel B860 chipset. Four DDR5 DIMM slots support up to 256 GB of memory and a long list of overclocked speeds. The 14+1+2+1 phase VRM uses 60 A DrMOS for the VCORE and VCCSA rails and a 40 A phase for VCCGT.

Build Integration And Expansion

The board fits ATX cases and provides one PCIe 5.0 x16 slot that can host a graphics card or an NVMe SSD, plus two PCIe 4.0 x16 slots running at x1. Three M.2 sockets and four SATA 6 Gb/s ports handle storage, while RAID 0, 1, 5 and 10 are available on the SATA array. A USB4 Type-C port, two USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports and four USB 2.0 ports cover rear I/O.

DIY Friendly Extras And Networking

EZ-Latch mechanisms on the primary PCIe slot and M.2 sockets remove the need for tools when swapping cards or drives. The WIFI EZ-Plug simplifies antenna attachment for the Realtek Wi-Fi 7 RTL8922AE and MediaTek MT7925 controllers, which deliver WIFI7 on 2.4, 5 and 6 GHz bands with 160 MHz channels and BLUETOOTH 5.4. A 2.5 GbE LAN port completes the network stack.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s overclocked across four slots, 256 GB maximum
  • 14+1+2+1 phase 60 A DrMOS VRM with MOSFET heatsinks for stable power delivery
  • Wi-Fi 7 and BLUETOOTH 5.4 plus 2.5 GbE LAN for high-speed networking
  • PCIe 5.0 x16 slot, three M.2 sockets and USB4 Type-C for fast storage and peripherals

Specifications

BrandGIGABYTE
ModelB860 AORUS ELITE WIFI7 ICE
Part NumberB860 AORUS ELITE WIFI7 ICE
CPU Socket TypeLGA 1851
CPU TypeLGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x162 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)
Serial ATA (SATA)4 x SATA 6Gb/s connectors
M.23 x M.2
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio ChannelsRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Max LAN SpeedRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LANRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends
BluetoothBLUETOOTH 5.4

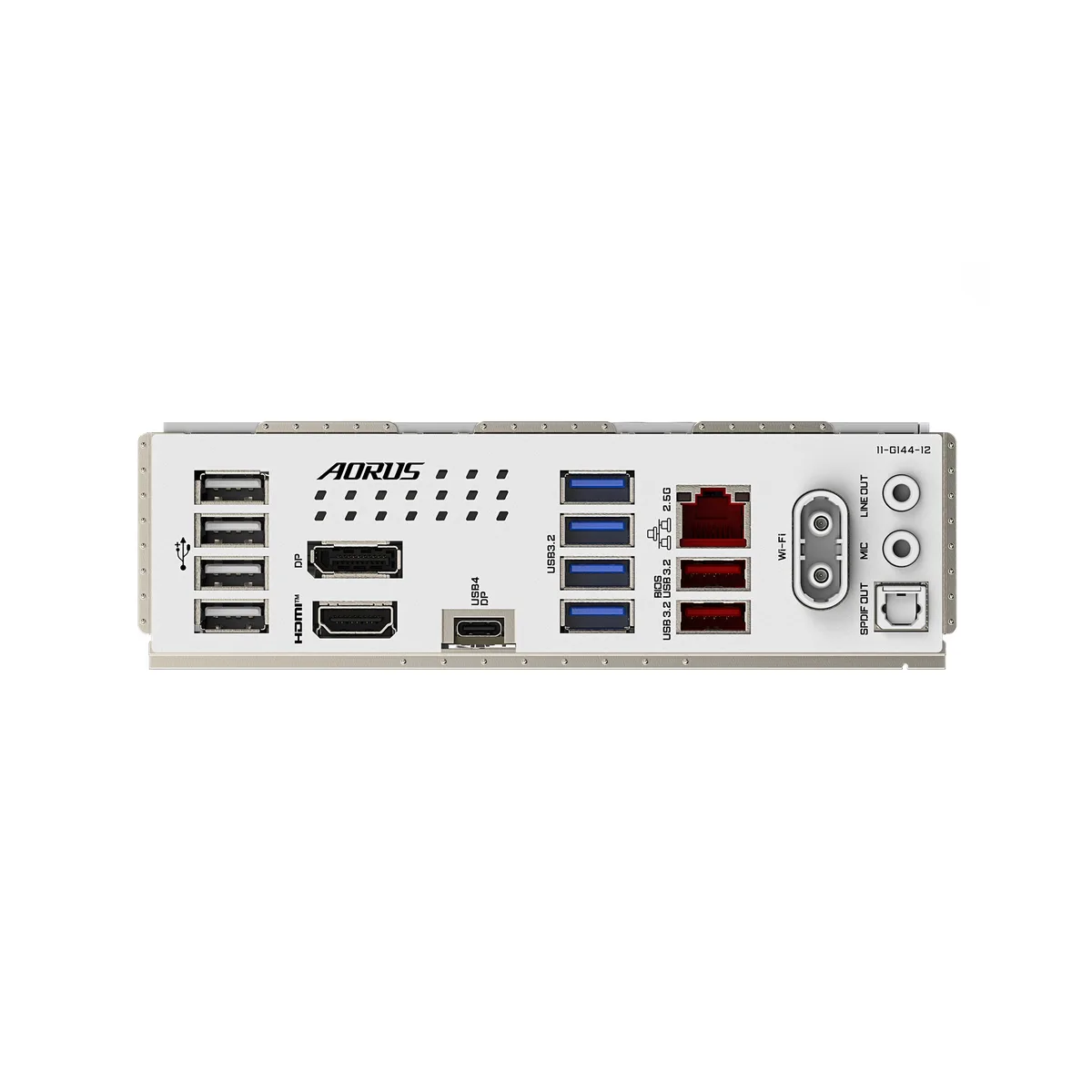

Back I/O Ports1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
(Note) Actual support may vary by CPU.
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Not
Windows 11Support for Windows 11 64-bit
Form FactorATX
Dimensions (W x L)30.5cm x 24.4cm
FeaturesSupports Intel® Core™ Ultra processors (Series 2)
Digital twin 14+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control,
Shipping weight1.68 kg
Package size356 × 279 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What VRM phase limit appears first during sustained all-core loads on the 14+1+2+1 60 A DrMOS design?

The 14 VCORE phases are rated at 60 A each, so total VCORE current capacity is the first hard limit under heavy multi-core workloads.

How loud and hot does the MOSFET heatsink and M.2 Thermal Guard get when the board runs all day?

Large MOSFET heatsinks and M.2 Thermal Guards are designed to dissipate VRM and SSD heat quietly during continuous operation.

Which DDR5 memory kit must I already own to reach the listed 9200 MT/s overclock on this board?

Any DDR5 kit on the GIGABYTE QVL validated for 9200 MT/s will work; the board supports up to 256 GB across four 288-pin slots.
