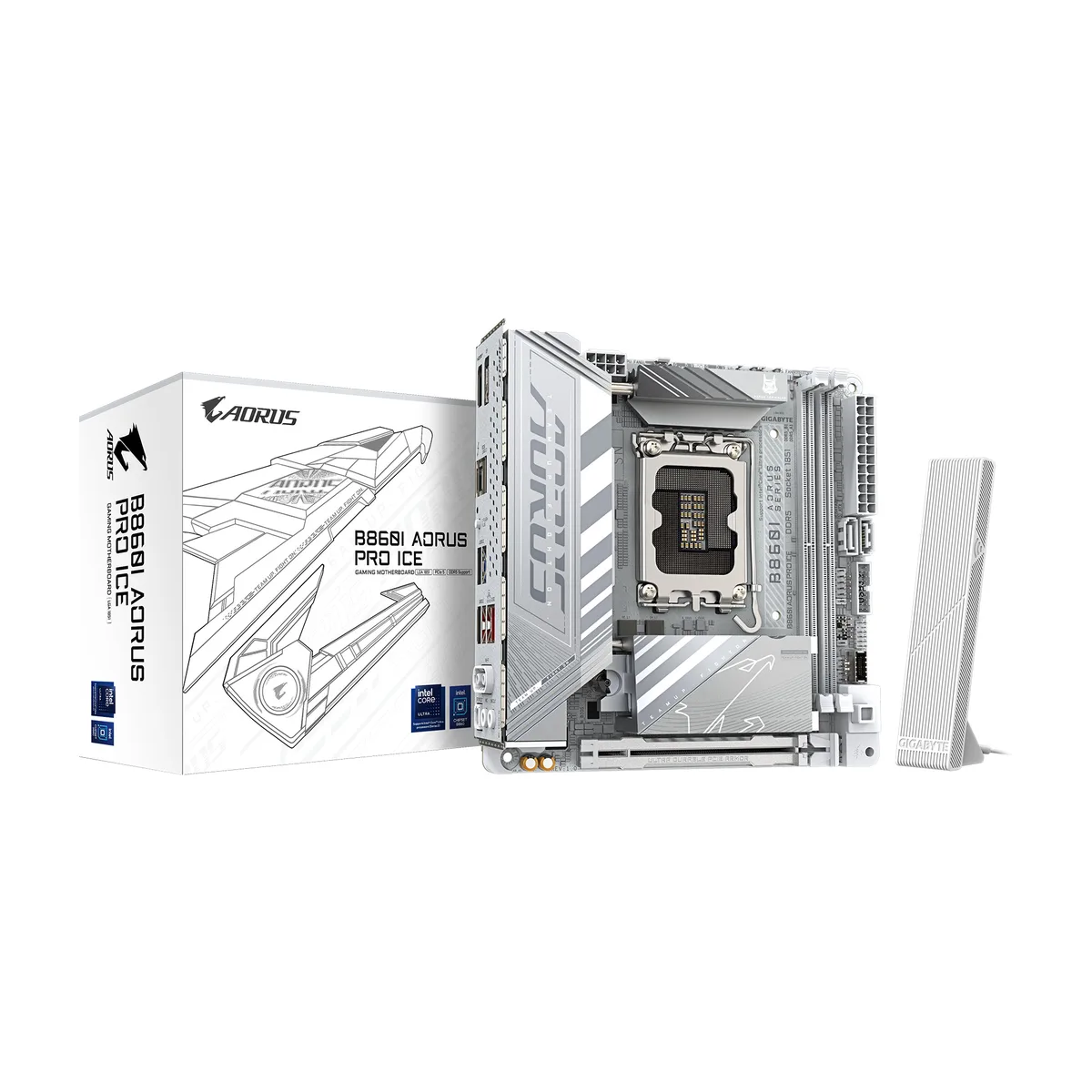

White Mini-ITX motherboard with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE B860I AORUS PRO ICE Intel motherboard

SKU CH-5DGH-QADMY MPN B860I AORUS PRO ICE

Mini-ITX board for Intel Core Ultra Series 2 processors with DDR5 memory up to 256 GB, PCIe 5.0 graphics slot, two M.2 sockets, Thunderbolt 4, WIFI7 and 2.5 GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 /
  • Maximum Memory Supported256GB

Option B860I AORUS PRO ICE

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 256GB maximum DDR5 capacity across two 288-pin slots with XMP 3.0 profiles
  • 80A SPS VRM design with 8+1+2+1 phase layout and VRM Thermal Armor Advanced cooling
  • PCIe 5.0 x16 slot plus two M.2 2280 slots (one CPU 5.0, one chipset 4.0)
  • Thunderbolt 4, WIFI7 and 2.5GbE LAN with EZ-Latch DIY features

Compact Intel Core Ultra platform

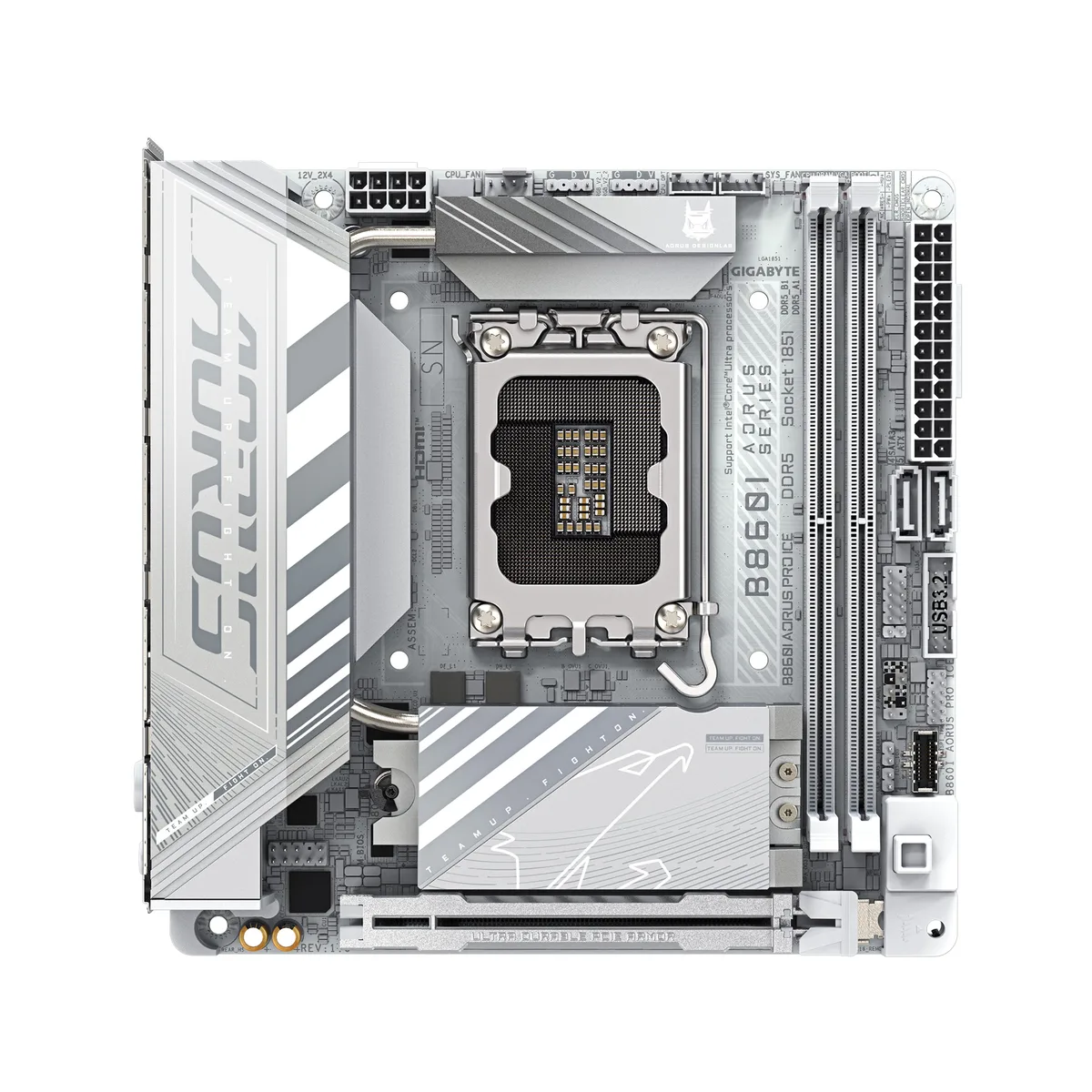

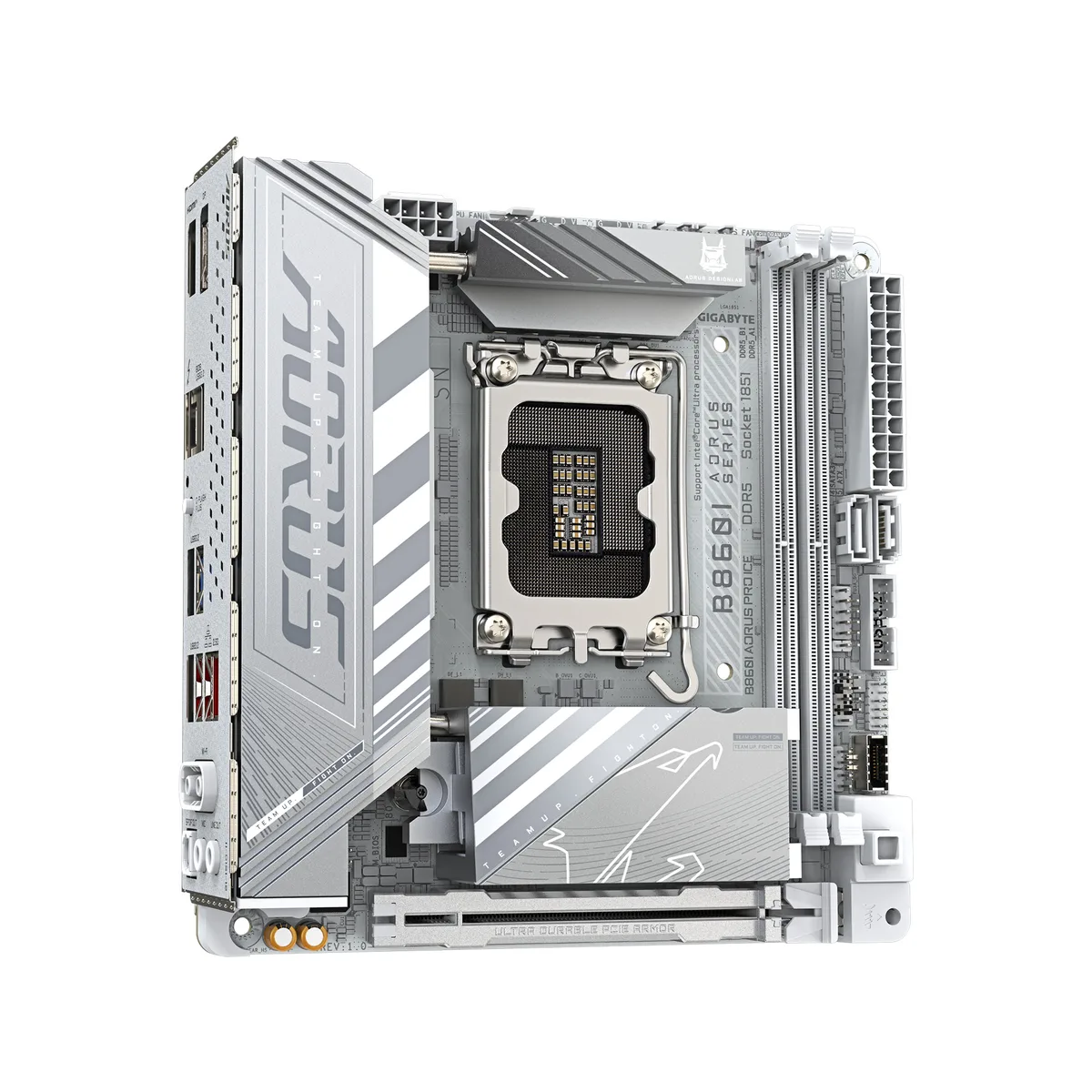

The B860I AORUS PRO ICE is a Mini-ITX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It targets builders who need high-end connectivity in a small chassis. The board supports up to 256GB of DDR5 memory across two slots with speeds ranging from 5600 to 9200 MT/s.

Thermal armour and tool-free mounting

An 80A SPS VRM with 8+1+2+1 phases is covered by VRM Thermal Armor Advanced and an M.2 Thermal Guard for sustained loads. The PCIe 5.0 x16 slot and the primary M.2 2280 slot both use EZ-Latch mechanisms so cards and drives install without screws. A rear M.2 2280 slot adds a second NVMe option.

Thunderbolt 4 and WIFI7 ready

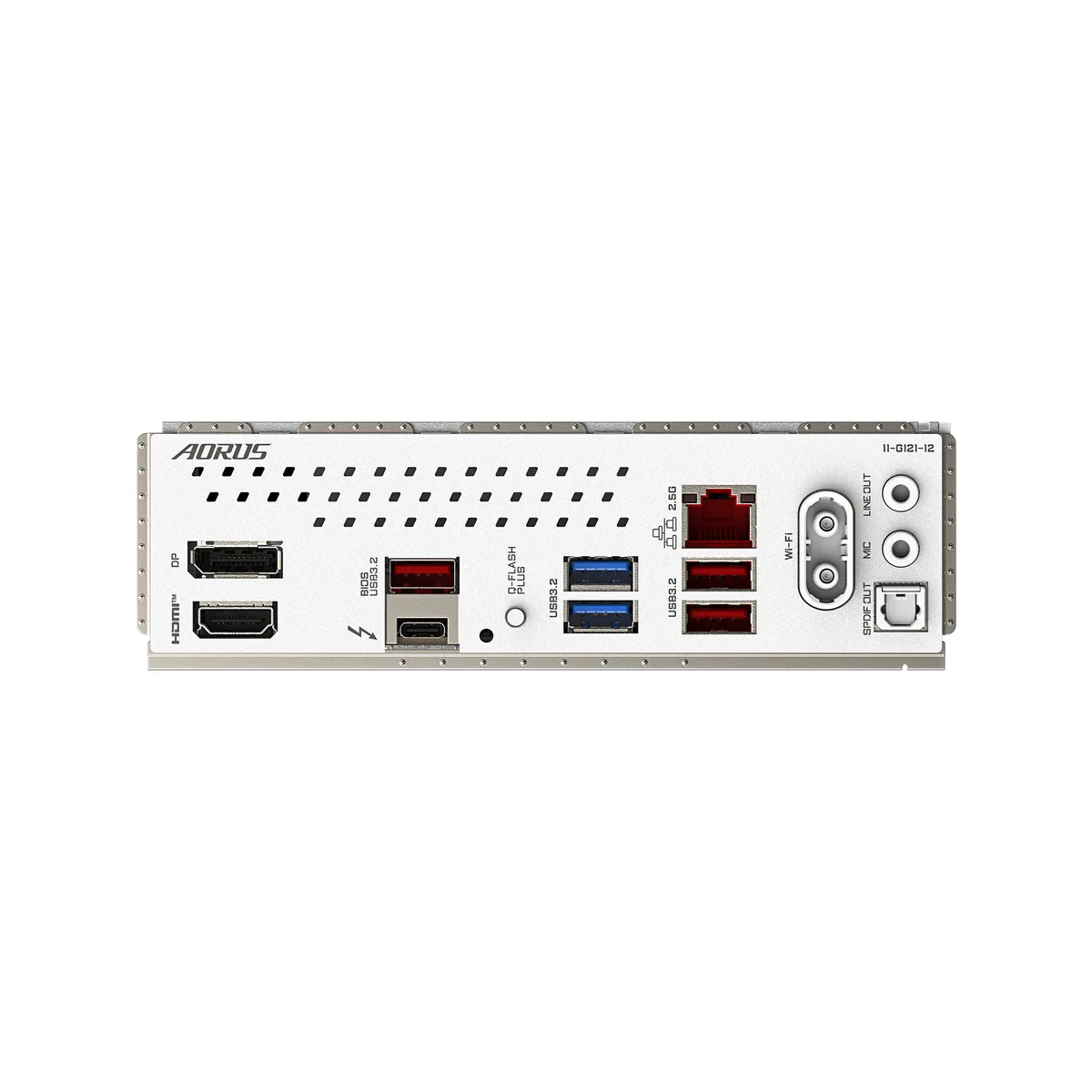

The rear I/O includes a Thunderbolt 4 USB Type-C port, DisplayPort, HDMI, three USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 ports and 2.5GbE LAN. WIFI7 with 2T2R antennas and a Q-Flash Plus button complete the feature set for quick BIOS updates.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 256GB maximum DDR5 capacity across two 288-pin slots with XMP 3.0 profiles
  • 80A SPS VRM design with 8+1+2+1 phase layout and VRM Thermal Armor Advanced cooling
  • PCIe 5.0 x16 slot plus two M.2 2280 slots (one CPU 5.0, one chipset 4.0)
  • Thunderbolt 4, WIFI7 and 2.5GbE LAN with EZ-Latch DIY features

Specifications

BrandGIGABYTE
ModelB860I AORUS PRO ICE
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Shipping weight1.25 kg
Package size241 × 234 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe standard does the single M.2 slot wired to the CPU support, and what is its practical bandwidth limit?

The CPU-connected M.2 slot runs PCIe 5.0 x4, capping sequential throughput at the 5.0 x4 ceiling for NVMe drives.

What physical space and mounting hardware does the board require for the M.2 drives?

Both slots accept 2280-length modules; the top slot uses a screw while the rear slot uses the EZ-Latch clip, so no tool is needed there.

How is the Wi-Fi 7 module attached, and which step do builders often miss?

The WIFI EZ-Plug antenna connectors snap onto the rear I/O; the step people skip is pressing both connectors fully home until they click.
