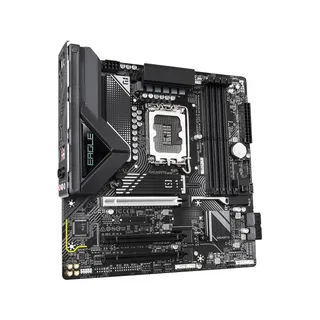

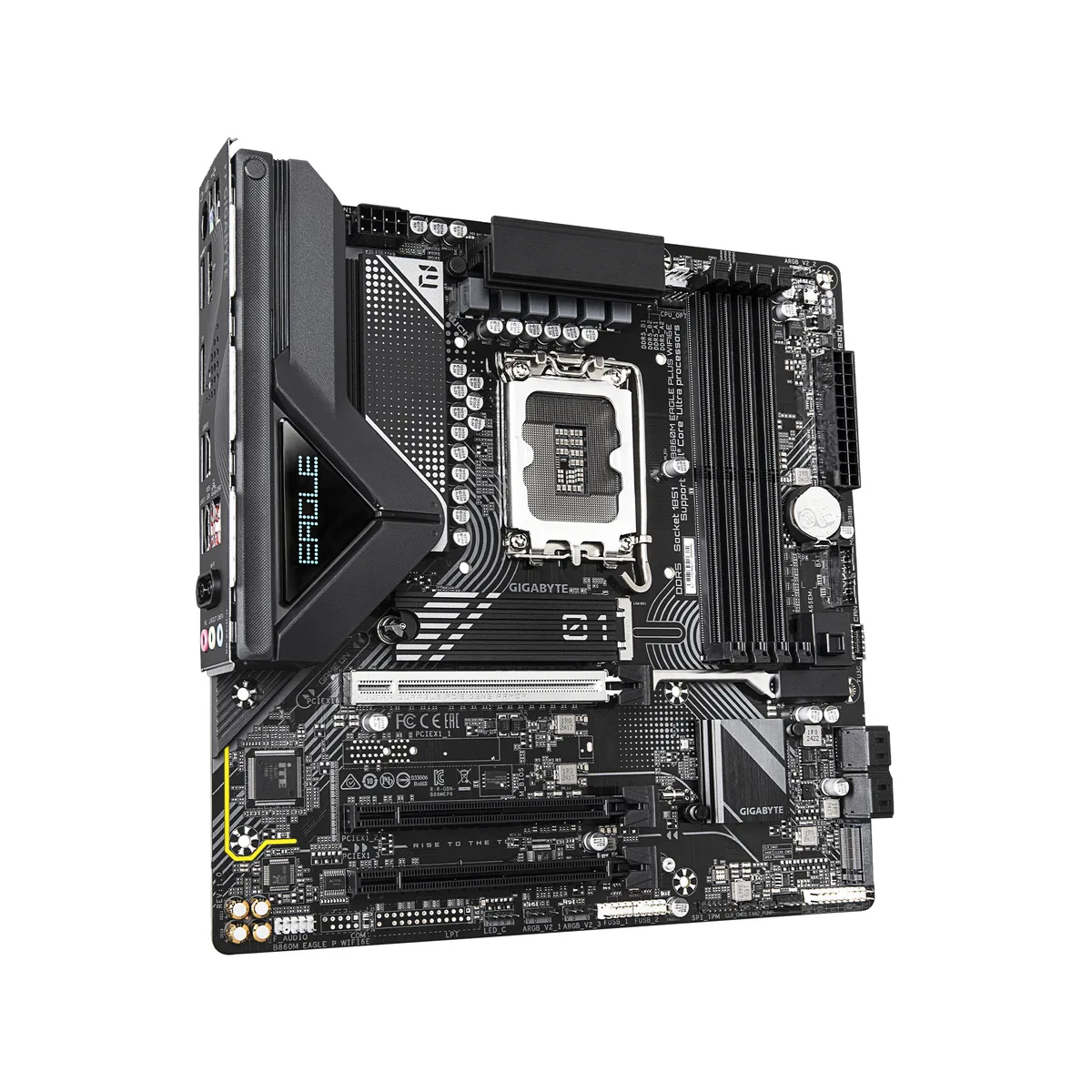

Micro-ATX motherboard with silver heatsinks and black PCB

GIGABYTE

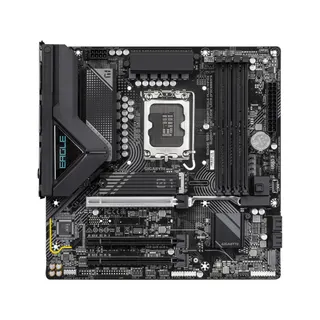

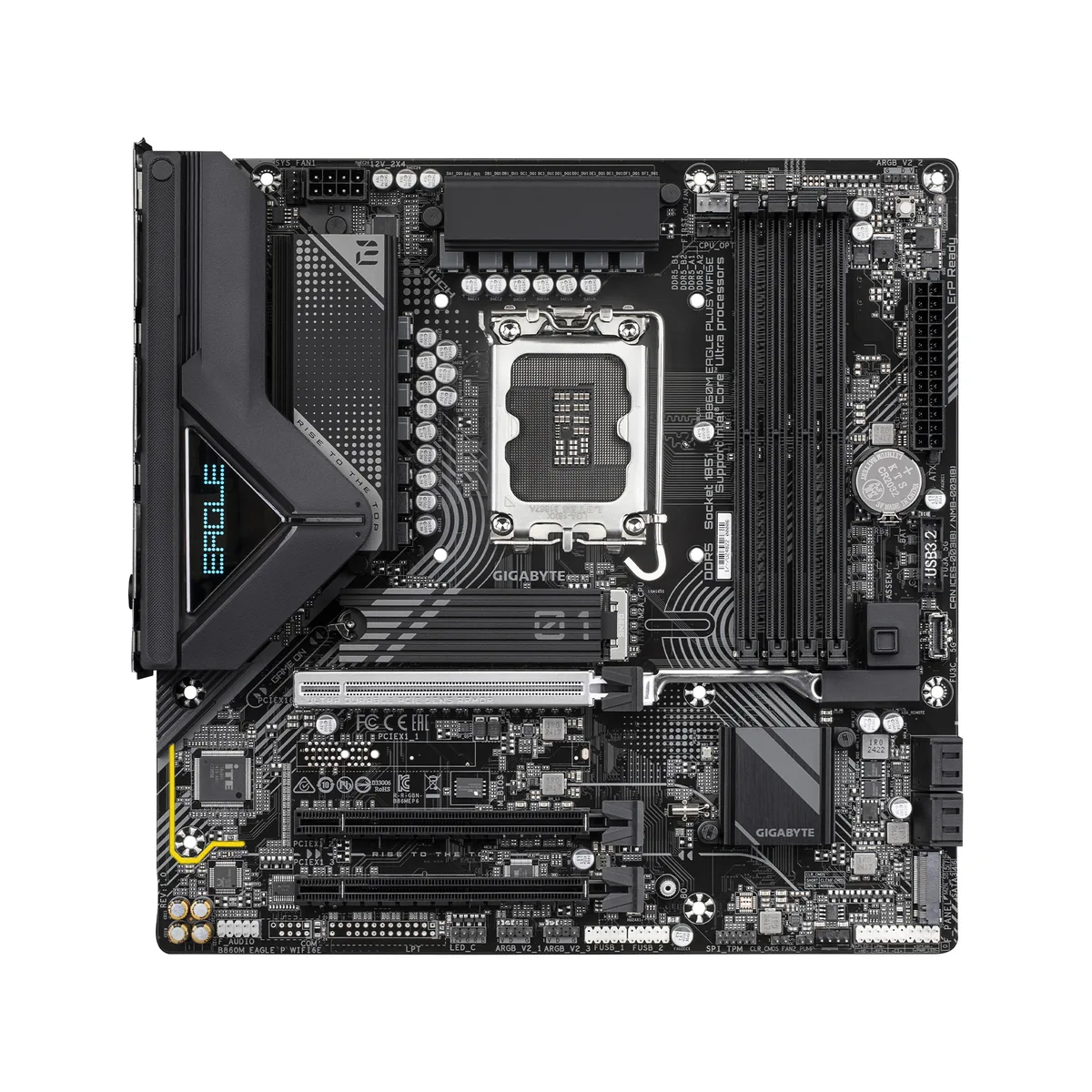

GIGABYTE B860M EAGLE P WIFI6E Intel motherboard

SKU CH-9SPP-1PJ7T MPN B860M EAGLE P WIFI6E

mATX board for Intel Core Ultra Series 2 with DDR5 up to 9066 MT/s, PCIe 5.0 x16, two M.2 slots, WIFI6E, 2.5GbE LAN and Bluetooth 5.3

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 /
  • Maximum Memory Supported256GB

Option B860M EAGLE PLUS WIFI6E

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 4 DDR5 slots reach 9066 MT/s with XMP 3.0 up to 256 GB
  • PCIe 5.0 x16 slot and M.2 2280 PCIe 5.0 x4 for fast GPU and storage
  • WIFI6E and 2.5 GbE LAN plus Bluetooth 5.3 for modern connectivity
  • EZ-Latch M.2, PCIe and WIFI EZ-Plug simplify DIY assembly

LGA 1851 mATX platform for Intel Core Ultra Series 2

This mATX motherboard uses the Intel B860 chipset and the LGA 1851 socket to support Intel Core Ultra processors from Series 2. Four DDR5 slots accept up to 256 GB of memory in dual-channel mode. The board targets builders who want a compact foundation with modern connectivity and PCIe 5.0 graphics support.

Compatibility checks before ordering

Verify that your CPU is an Intel Core Ultra Series 2 processor for the LGA 1851 socket. Confirm your memory kit is DDR5 and appears on the board’s QVL for the desired speed. Ensure your case fits an mATX board and provides clearance for the MOSFET heatsink. Check that your power supply delivers the required 12VHPWR or 8-pin EPS connectors for the VRM.

EZ-Latch, Wi-Fi 6E and 2.5 GbE LAN

The bundled EZ-Latch mechanisms simplify M.2 and PCIe card installation without tools. An integrated Wi-Fi 6E and Bluetooth 5.3 module provides wireless connectivity, while the 2.5 GbE LAN port handles wired networking. The rear I/O includes a USB-C port and 7.1-channel audio jacks for peripherals and sound.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 4 DDR5 slots reach 9066 MT/s with XMP 3.0 up to 256 GB
  • PCIe 5.0 x16 slot and M.2 2280 PCIe 5.0 x4 for fast GPU and storage
  • WIFI6E and 2.5 GbE LAN plus Bluetooth 5.3 for modern connectivity
  • EZ-Latch M.2, PCIe and WIFI EZ-Plug simplify DIY assembly

Specifications

BrandGIGABYTE
ModelB860M EAGLE PLUS WIFI6E
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2N_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3

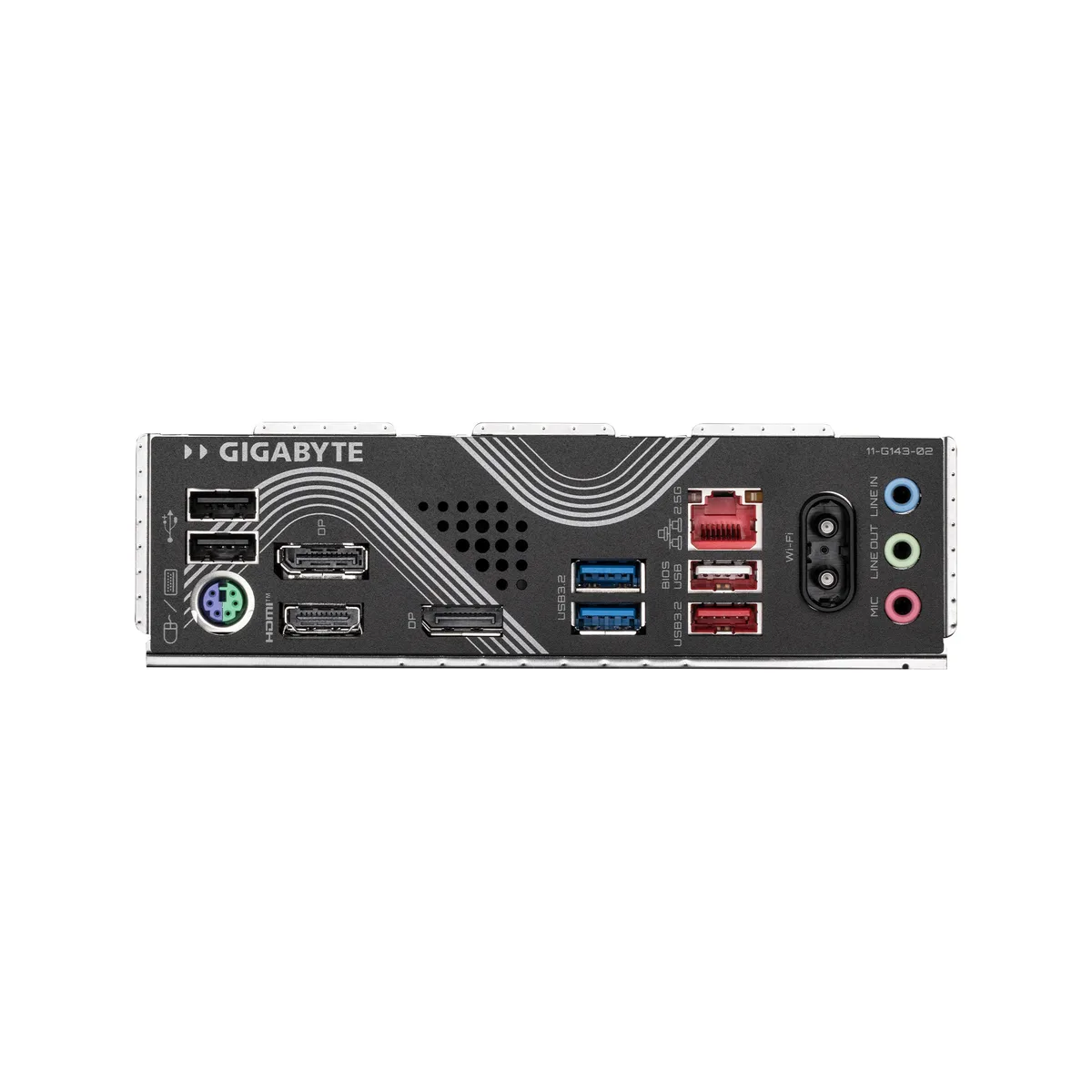

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x HDMI port
2 x DisplayPorts
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Shipping weight1.18 kg
Package size356 × 279 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and what must I buy separately?

The board ships with the motherboard, I/O shield, SATA cables, M.2 screws, Wi-Fi antenna, EZ-Latch accessories and driver disc. You must supply an LGA 1851 Intel Core Ultra Series 2 CPU, DDR5 DIMMs, graphics card or NVMe SSD, storage drives, PSU, case and OS.

Which DDR5 speed should I choose from the supported list?

The board validates DDR5 from 5600 up to 9066 MT/s including 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 and 8800 MT/s; pick a kit on the QVL that matches your target frequency and capacity.

What does the PCIe 5.0 x16 slot deliver once a GPU or NVMe drive is installed?

The CPU-linked PCIe 5.0 x16 slot runs at full x16 bandwidth for a graphics card or a single NVMe SSD, while the two chipset-linked x16 slots operate at PCIe 4.0 x1 each for add-in cards.
