White triple-fan graphics card with silver accents, 281 mm long, two-slot design

GIGABYTE

GIGABYTE GV-N506TAERO OC-8GD GeForce RTX 5060 Ti graphics card

SKU CH-6TCF-42Q58 MPN GV-N506TAERO OC-8GD

White dual-slot GPU with 8 GB GDDR7 memory, 4608 CUDA cores and a 2647 MHz boost clock

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2647 MHz
  • CUDA Cores4608

Option AERO

  • AORUS AI BOX
  • AORUS
  • AERO
  • Gaming
  • EAGLE ICE
  • EAGLE
  • WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5060 Ti 8GB OC

  • RTX 5060 Ti 16GB OC MAX
  • RTX 5060 Ti 16GB OC
  • RTX 5060 Ti 16GB
  • RTX 5060 Ti 8GB OC MAX
  • RTX 5060 Ti 8GB OC
  • RTX 5060 Ti 8GB

Struck-through versions exist but are not stocked here.

  • Boosted 2647 MHz core clock drives high frame rates
  • 4608 CUDA cores accelerate rendering and compute workloads
  • 8 GB GDDR7 at 28 GHz on a 128-bit bus delivers fast memory throughput
  • PCI Express 5.0 x8 interface enables high-speed data transfer

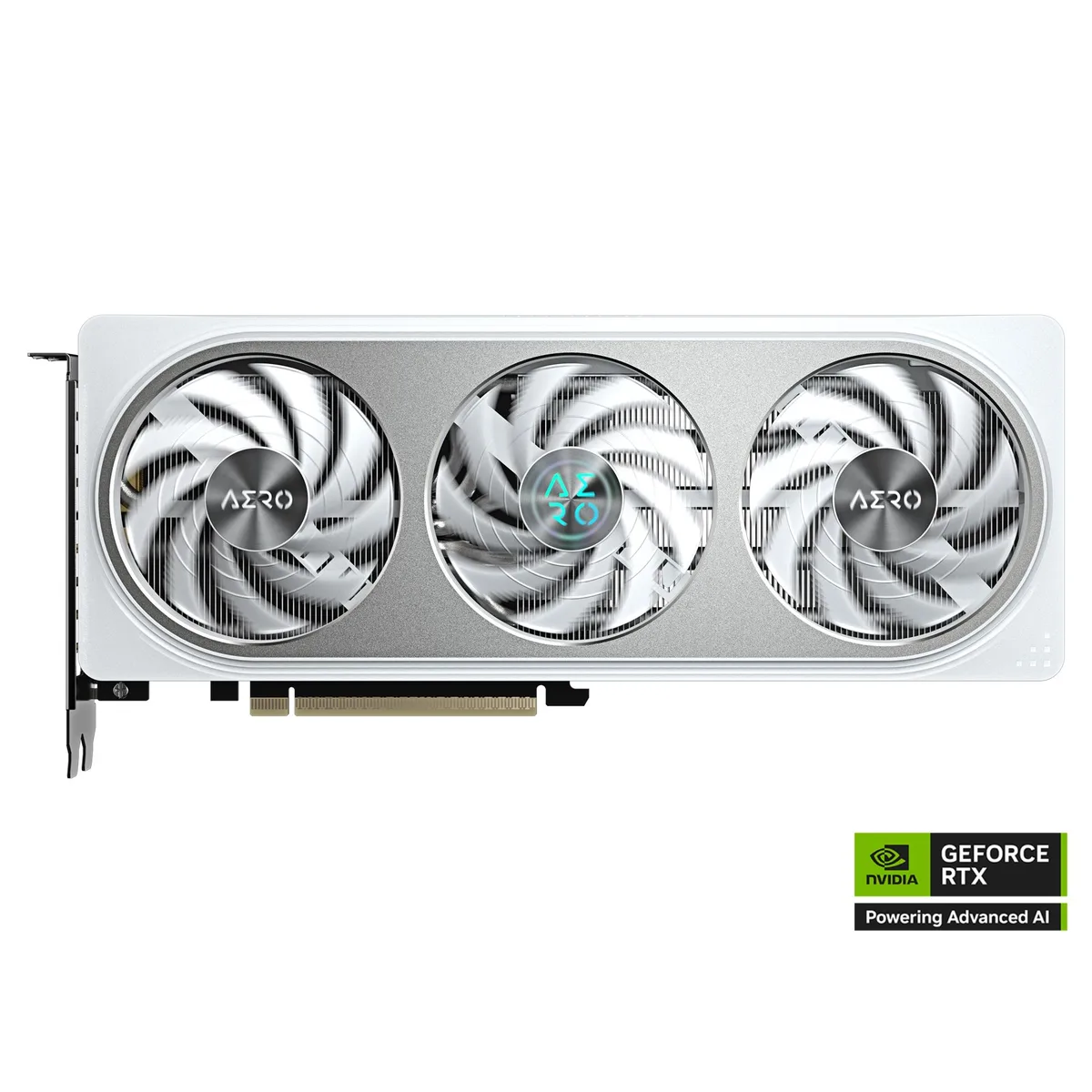

  • White triple-fan cooler with 281 mm length fits ATX builds

What this card does

The GIGABYTE AERO GeForce RTX 5060 Ti is a white graphics card built for 1440p gaming and creative work. It uses the NVIDIA Blackwell architecture with 4608 CUDA cores and a 2647 MHz core clock. The PCI Express 5.0 x8 interface connects to modern platforms. Eight gigabytes of GDDR7 memory on a 128-bit bus deliver 28 Gbps bandwidth.

Accessories and software impact

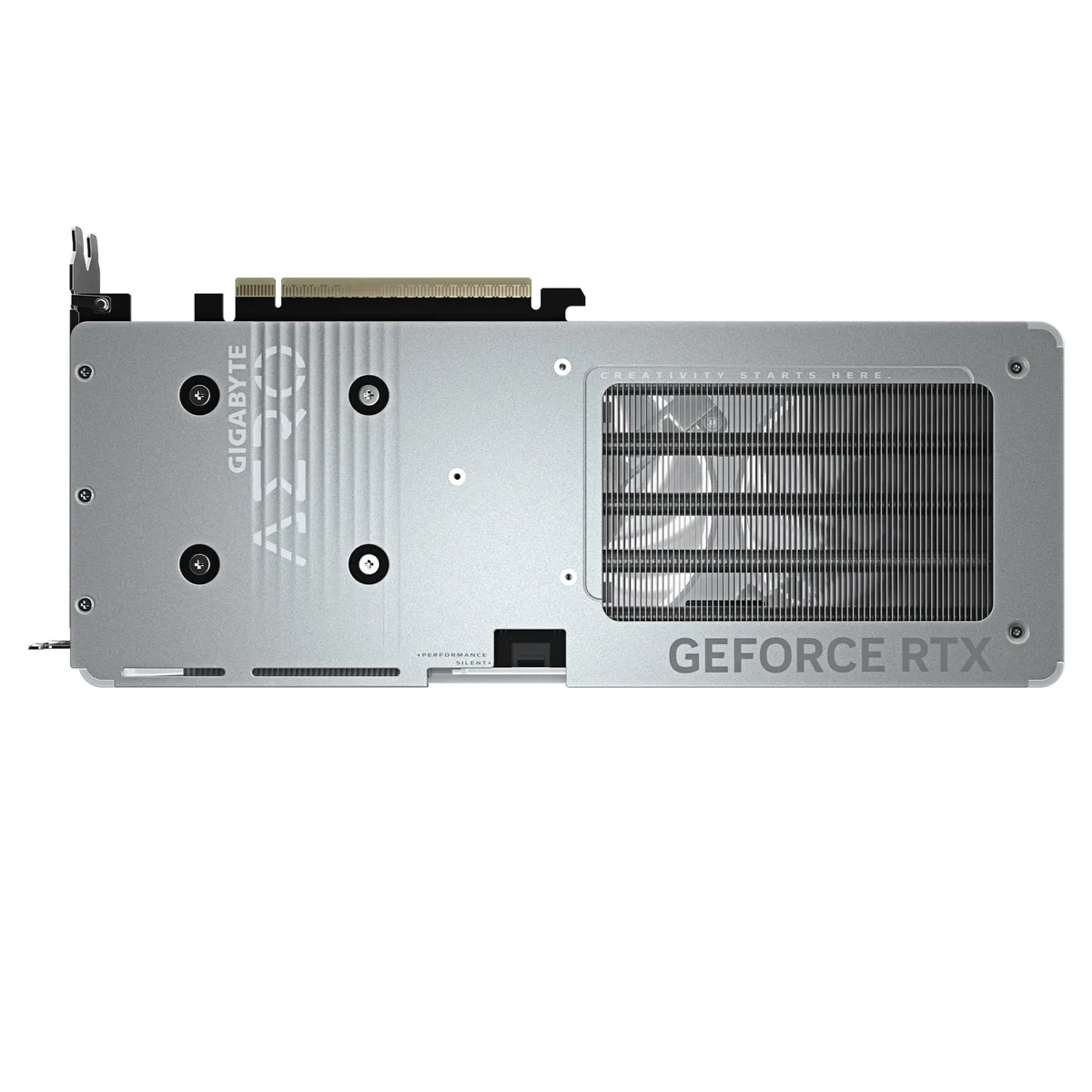

The box includes a triple-fan cooler that keeps the 180 W thermal design power under control. A metal backplate adds structural rigidity to the 281 mm long PCB. RGB Fusion lighting can be synchronised with other components. The 8-pin power connector simplifies cable routing for a 650 W supply.

Check your system first

Verify that your case fits a 281 mm long, 40 mm thick, dual-slot card. Ensure the power supply provides at least 650 W and a free 8-pin PCIe connector. The motherboard needs a PCI Express 5.0 x16 slot wired for x8 electrical. Confirm display cables match one HDMI 2.1b and three DisplayPort 2.1b outputs.

Highlights

  • Boosted 2647 MHz core clock drives high frame rates
  • 4608 CUDA cores accelerate rendering and compute workloads
  • 8 GB GDDR7 at 28 GHz on a 128-bit bus delivers fast memory throughput
  • PCI Express 5.0 x8 interface enables high-speed data transfer
  • White triple-fan cooler with 281 mm length fits ATX builds

Specifications

BrandGIGABYTE
SeriesAERO
ModelGV-N506TAERO OC-8GD
Part NumberGV-N506TAERO OC-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2647 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorWhite
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length281 mm
Card Dimensions (L x H)281 x 117 x 40 mm
Slot Width2 Slots
Shipping weight1.13 kg
Package size361 × 188 × 84 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the triple-fan cooler on the GV-N506TAERO OC-8GD need cleaning or fan replacement?

The triple-fan cooler has no published service interval; dust buildup on the heatsink fins is the main long-term concern, so plan a quick compressed-air clean every 6–12 months depending on case airflow.

Which limit appears first during extended loads — the 180 W thermal design power or the 128-bit GDDR7 memory bandwidth?

The 180 W TDP ceiling is reached before the 128-bit GDDR7 interface saturates, so sustained clocks are governed by the power limit and the 650 W PSU headroom rather than memory throughput.

What noise and heat levels should I expect when the card runs all day at its 2647 MHz core clock?

At full load the 180 W TDP pushes noticeable heat into the case; the triple-fan design keeps GPU temperatures in check but fan speed ramps up, producing audible airflow noise that varies with case ventilation.
