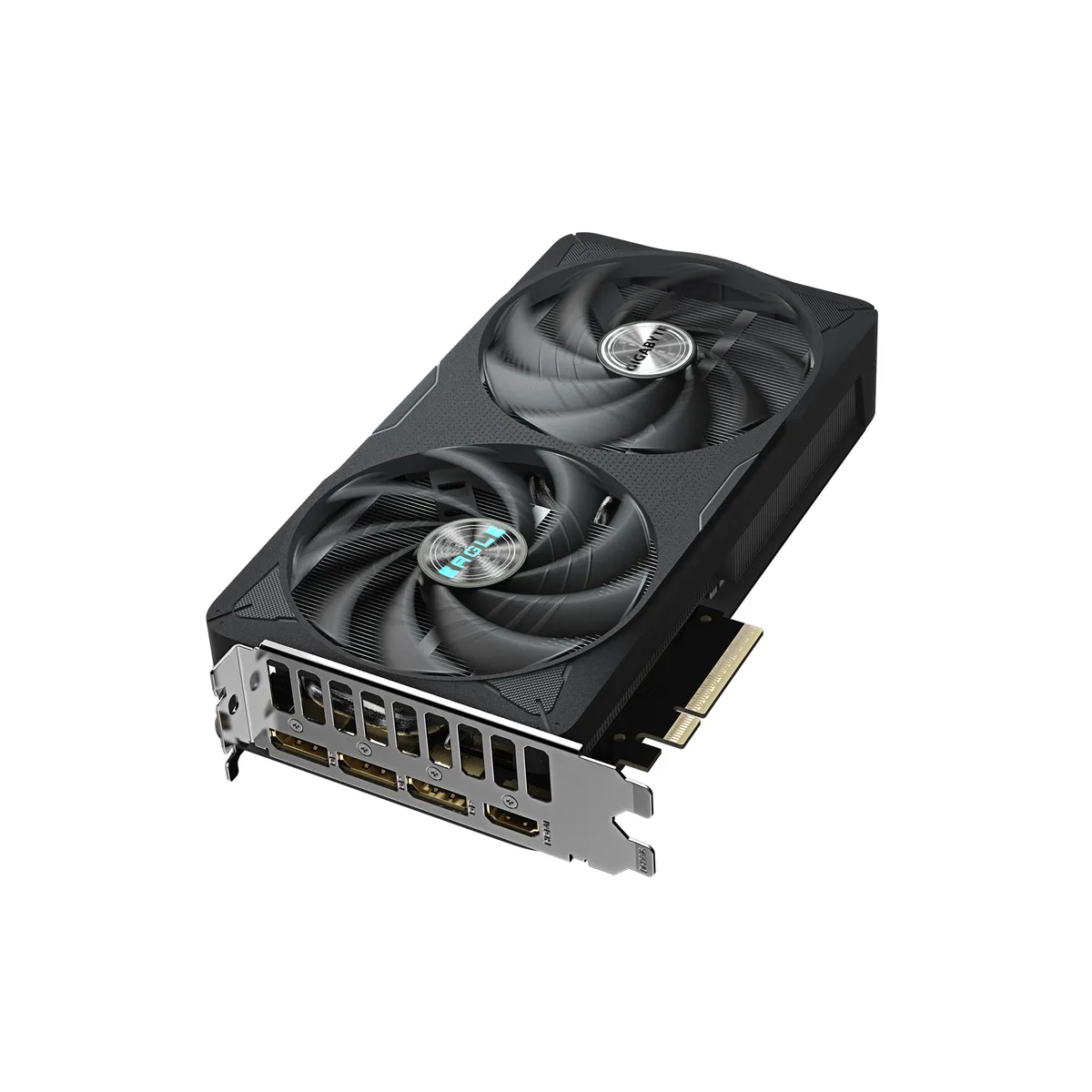

Black dual-fan graphics card with silver accents, two-slot metal backplate visible

GIGABYTE

GIGABYTE GV-N506TEAGLE OC-8GD GeForce RTX 5060 Ti 8GB graphics card

SKU CH-4FH2-HJWRC MPN GV-N506TEAGLE OC-8GD

GeForce RTX 5060 Ti graphics card with 8GB GDDR7 memory, 4608 CUDA cores and a 2617 MHz core clock

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2617 MHz
  • CUDA Cores4608

Option EAGLE

  • AORUS AI BOX
  • AORUS
  • AERO
  • Gaming
  • EAGLE ICE
  • EAGLE
  • WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5060 Ti 8GB OC

  • RTX 5060 Ti 16GB OC MAX
  • RTX 5060 Ti 16GB OC
  • RTX 5060 Ti 16GB
  • RTX 5060 Ti 8GB OC MAX
  • RTX 5060 Ti 8GB OC
  • RTX 5060 Ti 8GB

Struck-through versions exist but are not stocked here.

  • GDDR7 memory at 28 GHz feeds 4608 CUDA cores for fast 1440p gaming
  • Core clock hits 2617 MHz giving strong raster and ray-tracing frame rates
  • PCI Express 5.0 x8 interface doubles bandwidth headroom versus older slots
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays
  • Dual-fan cooler keeps the 180 W board quiet inside a 215 mm ATX slot

Product profile

The GIGABYTE GV-N506TEAGLE OC-8GD is a GeForce RTX 5060 Ti graphics card built on the NVIDIA GeForce RTX 50 Series architecture. It carries 8GB of GDDR7 memory on a 128-Bit interface with an effective clock of 28 GHz and 4608 CUDA cores running at a 2617 MHz core clock. The board connects through a PCI Express 5.0 x8 slot and draws up to 180 W from a single 8-Pin power connector.

Suitability check

This card suits builders who need four simultaneous displays via one HDMI 2.1b and three DisplayPort 2.1b outputs, and who have a 650 W power supply and two free expansion slots. The 215 mm length and 40 mm thickness fit most ATX cases, but small-form-factor chassis may lack the required clearance. Users wanting SLI multi-GPU scaling should look elsewhere because SLI support is not present.

Compatibility checklist

Verify that your motherboard provides a PCI Express 5.0 x8 slot and that your power supply delivers at least 650 W with an available 8-Pin connector. Measure the case interior to confirm 215 mm of longitudinal space and 40 mm of vertical height for a dual-slot, dual-fan cooler. Ensure the operating system supports DirectX 12 Ultimate and OpenGL 4.6 for full feature access.

Highlights

  • GDDR7 memory at 28 GHz feeds 4608 CUDA cores for fast 1440p gaming
  • Core clock hits 2617 MHz giving strong raster and ray-tracing frame rates
  • PCI Express 5.0 x8 interface doubles bandwidth headroom versus older slots
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 8K displays
  • Dual-fan cooler keeps the 180 W board quiet inside a 215 mm ATX slot

Specifications

BrandGIGABYTE
SeriesEagle
ModelGV-N506TEAGLE OC-8GD
Part NumberGV-N506TEAGLE OC-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2617 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length215 mm
Card Dimensions (L x H)215 x 122 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size330 × 234 × 56 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

My power supply has a single 8-pin connector — will that run the 180W TDP of this GV-N506TEAGLE OC-8GD?

Yes, the card draws up to 180W and ships with an 8-pin power connector, so a 650W PSU with one 8-pin cable is sufficient.

I have a motherboard limited to PCI Express 3.0 — will the PCIe 5.0 x8 interface on this RTX 5060 Ti still function?

The card is backward compatible and will operate at PCIe 3.0 x8 speeds when installed in a 3.0 slot.

After installing drivers, how can I verify the 2617 MHz core clock and 28 GHz memory clock are active on this Eagle model?

Open GPU-Z or the NVIDIA control panel; the sensors tab will report the real-time core clock at 2617 MHz and effective memory clock at 28 GHz.
