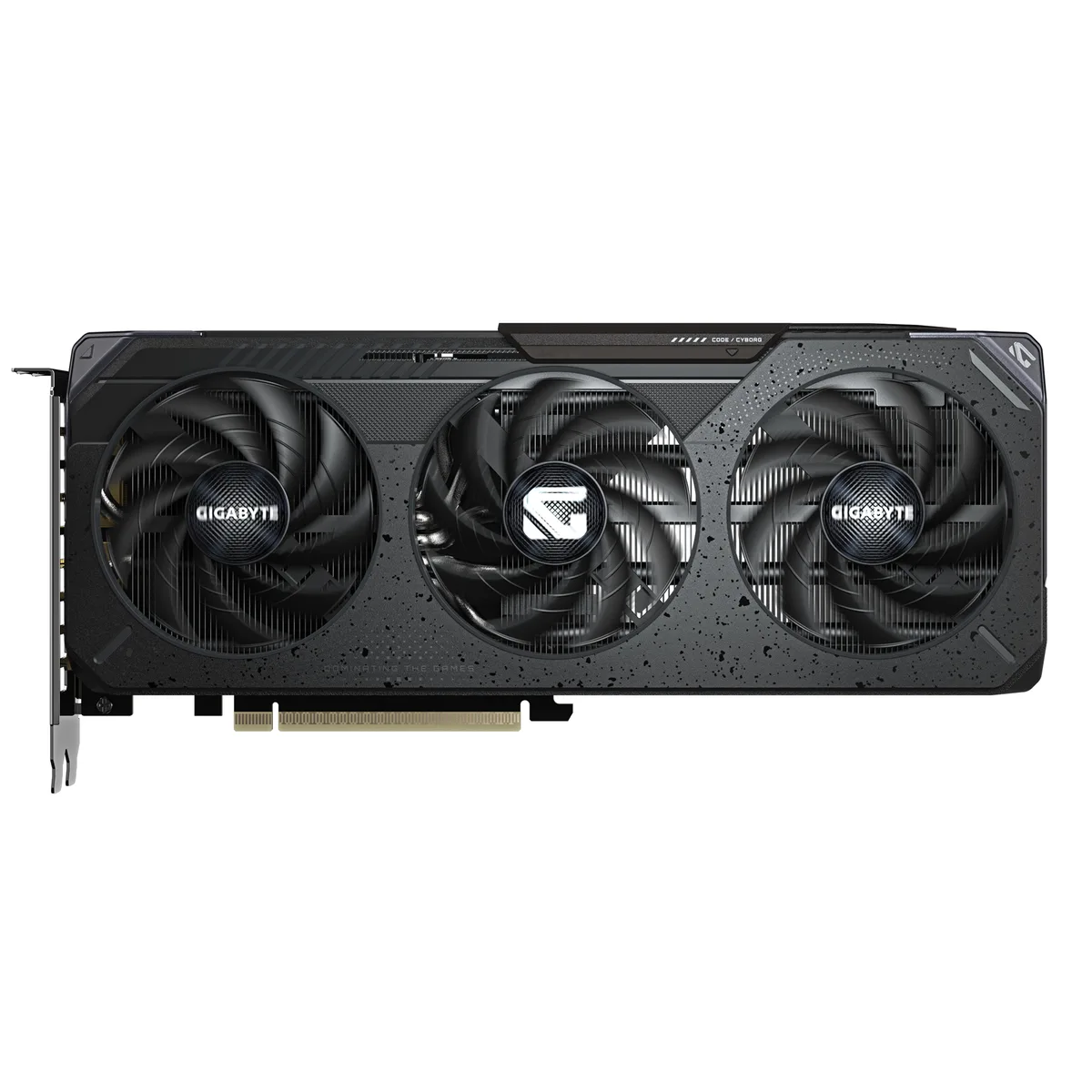

Black graphics card with three fans and metal backplate, two-slot ATX form factor

GIGABYTE

GIGABYTE GV-N506TGAMING OC-8GD GeForce RTX 5060 Ti graphics card

SKU CH-TYD6-7ZEA7 MPN GV-N506TGAMING OC-8GD

GeForce RTX 5060 Ti with 8 GB GDDR7, 4608 CUDA cores and a 2647 MHz boost clock on a PCIe 5.0 x8 interface

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2647 MHz
  • CUDA Cores4608

Option Gaming

  • AORUS AI BOX
  • AORUS
  • AERO
  • Gaming
  • EAGLE ICE
  • EAGLE
  • WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5060 Ti 8GB OC

  • RTX 5060 Ti 16GB OC MAX
  • RTX 5060 Ti 16GB OC
  • RTX 5060 Ti 16GB
  • RTX 5060 Ti 8GB OC MAX
  • RTX 5060 Ti 8GB OC
  • RTX 5060 Ti 8GB

Struck-through versions exist but are not stocked here.

  • 8GB GDDR7 memory at 28 GHz for high-bandwidth gaming
  • Core clock reaches 2647 MHz with 4608 CUDA cores for strong compute
  • PCIe 5.0 x8 interface doubles link bandwidth over previous standard
  • Triple-fan cooler handles 180W TDP in a 281 mm ATX card
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 7680x4320 displays

Ready-to-install PCIe 5.0 graphics card

The card arrives assembled with a triple-fan cooler and a standard ATX bracket, so no extra mounting hardware is needed. Drop it into a PCI Express 5.0 x8 slot, connect the single 8-pin power cable, and screw the bracket down. Most builders trip up by forgetting to reseat the cable fully or by leaving the protective film on the backplate, which can trap heat. A quick visual check of the connector latch and a clean backplate avoid both issues.

Verify slot, power and case clearance

Confirm the motherboard has a PCI Express 5.0 x8 slot and that the 650 W power supply includes an 8-pin PCIe connector. Measure the case interior: the card is 281 mm long, 119 mm tall and occupies two expansion slots, so check for drive-cage or cable interference. Ensure the display outputs — one HDMI 2.1b and three DisplayPort 2.1b — match your monitor cables. The 180 W thermal design power means adequate case airflow is essential for stable operation.

Highlights

  • 8GB GDDR7 memory at 28 GHz for high-bandwidth gaming
  • Core clock reaches 2647 MHz with 4608 CUDA cores for strong compute
  • PCIe 5.0 x8 interface doubles link bandwidth over previous standard
  • Triple-fan cooler handles 180W TDP in a 281 mm ATX card
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four 7680x4320 displays

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-N506TGAMING OC-8GD
Part NumberGV-N506TGAMING OC-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2647 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length281 mm
Card Dimensions (L x H)281 x 119 x 40 mm
Slot Width2 Slots
Shipping weight1.20 kg
Package size362 × 185 × 79 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the card is running at its 2647 MHz boost clock after installation?

Open GPU-Z or the NVIDIA control panel while a 3D load is running and verify the reported boost clock reads 2647 MHz.

What cables or adapters are included in the box besides the card itself?

The package contains the graphics card, a quick-install guide and a warranty card; power cables and display cables are not included.

Should I choose this 8 GB model or look for a 16 GB version for 1440p gaming?

This SKU ships with 8 GB of GDDR7 on a 128-bit bus; a 16 GB variant is a separate part number not covered by this listing.
