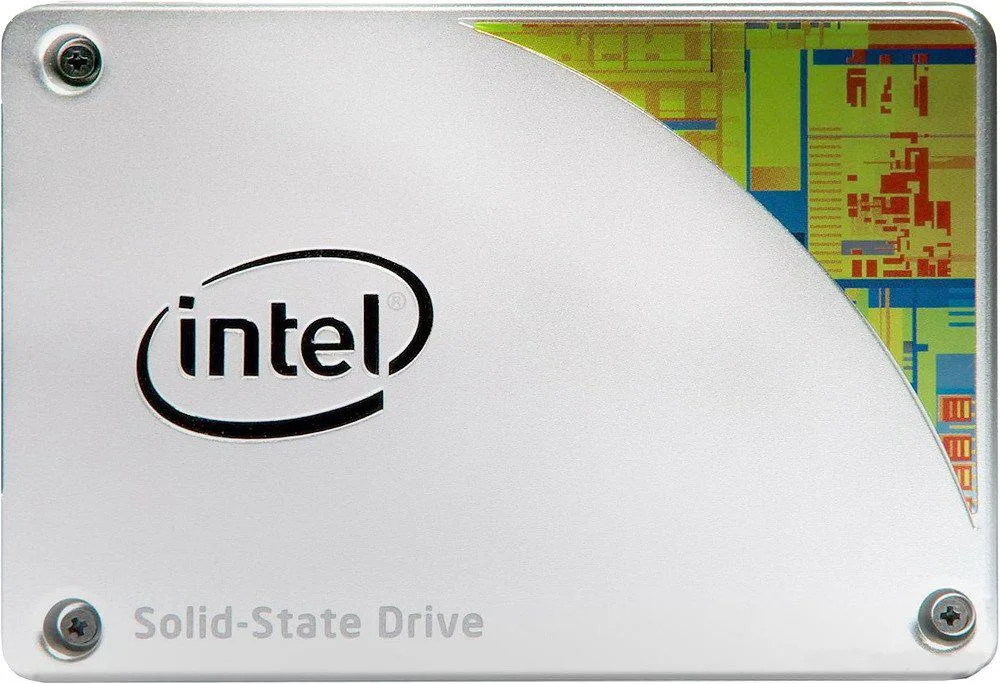

Rectangular 2.5 inch silver metal SSD with label and SATA connectors

Intel

Intel 530 Series SSDSC2BW080A401 80GB 2.5" SATA internal SSD

SKU CH-5T5K-3D4VM

An 80 GB 2.5 inch SATA internal SSD using MLC memory with sequential speeds up to 540 MB/s read and 480 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity80GB
  • Memory ComponentsMLC
  • InterfaceSATA 6Gb/s

Options 80GB

  • Fast boot and load times with 540 MB/s sequential read
  • Responsive multitasking from 80,000 IOPS random write
  • Low power draw at 0.05 W idle consumption
  • Durable MLC memory rated for 1,200,000 hours MTBF
  • Compact 2.5 inch form factor fits standard drive bays

Intel 530 Series 80GB SATA SSD

This 2.5-inch internal solid-state drive uses MLC NAND and a SATA 6Gb/s interface. It is intended for consumer desktops or laptops that accept a standard 7.0 mm drive bay. The 80GB capacity suits a boot drive or a focused application install.

SATA 6Gb/s interface limits

The SATA 6Gb/s link caps sequential throughput at 540 MB/s read and 480 MB/s write. Random 4KB performance reaches 24,000 IOPS read and 80,000 IOPS write. Latency sits at 80 µs read and 85 µs write. The drive draws 0.05 W idle and 0.14 W active.

7.0 mm 2.5" build with MLC endurance

The metal enclosure measures 7.0 mm thick and weighs up to 78.0 g, fitting typical laptop caddies and desktop brackets. MLC memory contributes to a 1,200,000-hour MTBF and an uncorrectable bit error rate below one sector per 10^16 bits read. Vibration tolerance is rated at 2.17G operating and 3.13G non-operating across 5-700 Hz, with 1500G shock resistance at 0.5 ms.

Highlights

  • Fast boot and load times with 540 MB/s sequential read
  • Responsive multitasking from 80,000 IOPS random write
  • Low power draw at 0.05 W idle consumption
  • Durable MLC memory rated for 1,200,000 hours MTBF
  • Compact 2.5 inch form factor fits standard drive bays

Specifications

BrandIntel
Series530 Series
ModelSSDSC2BW080A401
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity80GB
Memory ComponentsMLC
InterfaceSATA 6Gb/s
Max Sequential Read540 MB/s
Max Sequential Write480 MB/s
4KB Random ReadRandom 8GB Read: up to 24,000 IOPS
4KB Random WriteRandom 8GB Write: up to 80,000 IOPS
Read Latency80 µs
Write Latency85 µs
MTBF1,200,000 hours
FeaturesUncorrectable Bit Error Rate (UBER): <1 sector per 10^16 bits read
Power Consumption (Idle)0.05 W
Power Consumption (Active)0.14 W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1500 G (Max) at 0.5 msec
Max Vibration ResistanceVibration - Operating: 2.17 GRMS (5-700 Hz) Max
Vibration - Non-Operating: 3.13 GRMS (5-700 Hz) Max
Height7.00mm
Weight78 g
Shipping weight0.10 kg
Package size152 × 107 × 20 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which capacity of the Intel 530 Series should I choose for a boot drive?

The 80 GB model uses MLC NAND and delivers 540 MB/s sequential read, 480 MB/s sequential write, plus 24,000 random read IOPS and 80,000 random write IOPS.

What do the 540 MB/s read and 480 MB/s write figures mean once the SSD is installed?

They represent the maximum sequential transfer rates the drive can sustain over SATA, so large file copies and OS loads will approach those speeds in practice.

What does the SATA 6Gb/s interface cap in real use?

The SATA 6Gb/s link sets the bus ceiling; this drive reaches 540 MB/s read and 480 MB/s write, operating near the interface limit.
