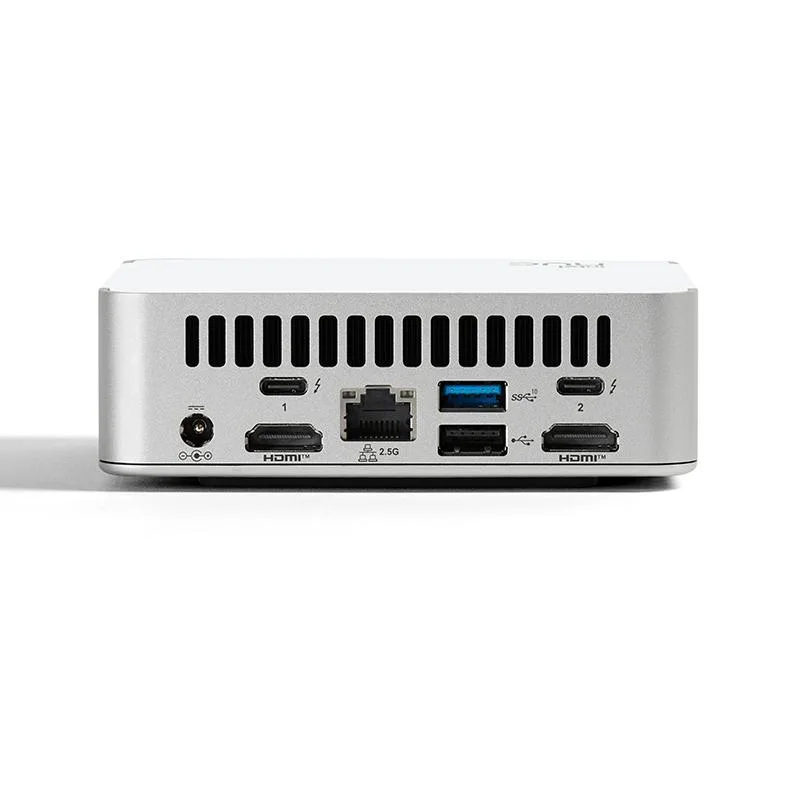

Small square mini PC, white matte finish, compact barebone unit

Intel

Intel NUC13VYKi5 Core i5-1340P 32GB 1TB barebone mini PC

SKU CH-9F9W-DNG2E MPN NUC13VYKi5

A 13th-gen Core i5 barebone with dual Thunderbolt 4, 2.5 Gb Ethernet and Wi-Fi 6E, supporting 64 GB DDR4 and dual M.2 storage

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Storage InstalledNo Hard Drive

CPU Type Intel Core i5-1340P

Group 32G RAM / 1T SSD

Options NUC 13 Pro NUC13VYKi5

  • 12-core i5-1340P reaches 4.5 GHz for responsive multitasking
  • Iris Xe 80 EU graphics drives 4K60 on dual HDMI 2.1
  • Dual DDR4-3200 SO-DIMM slots accept up to 64 GB
  • Two Thunderbolt 4 ports carry DP 1.4a and USB4
  • 5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5 keep connections fast

Vivid Canyon i5-1340P barebone

This Intel NUC13VYKi5 barebone mini PC arrives with a 13th Gen Core i5-1340P processor and Intel Iris Xe Graphics 80EU already fitted. The system supports dual-channel DDR4-3200 SODIMMs up to 64 GB and provides two M.2 slots for NVMe or SATA storage expansion. Thunderbolt 4 ports and HDMI 2.1 outputs handle 4K 60 Hz displays. Qualified for 24/7 operation with discrete TPM 2.0.

System builders adding their own RAM and SSD

Integrators who want to choose memory capacity and storage type will appreciate the empty SODIMM slots and open M.2 bays. Buyers who need a complete, ready-to-run unit with an operating system pre-installed should look at a fully configured mini PC instead.

12-core 35 W processor with Iris Xe 80EU

The i5-1340P delivers 4 performance cores and 8 efficient cores with 16 threads and a 4.5 GHz turbo ceiling inside a 35 W TDP envelope. That core count and graphics slice determine whether the platform meets your compute and media workloads.

Highlights

  • 12-core i5-1340P reaches 4.5 GHz for responsive multitasking
  • Iris Xe 80 EU graphics drives 4K60 on dual HDMI 2.1
  • Dual DDR4-3200 SO-DIMM slots accept up to 64 GB
  • Two Thunderbolt 4 ports carry DP 1.4a and USB4
  • 5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5 keep connections fast

Specifications

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 80EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will I need to replace the pre-installed DDR4-3200 memory modules later?

The unit ships with no memory installed, so you add two DDR4-3200 SO-DIMMs up to 64 GB total. No replacement is required unless you decide to upgrade capacity later.

What thermal limit appears first when the Core i5-1340P runs at 35 W TDP continuously?

The 35 W base power envelope is the primary limit; sustained loads hold the processor at its 4.5 GHz turbo until the cooling solution reaches equilibrium.

How loud does the fan get when the NUC13VYKi5 operates 24/7?

Intel qualifies the chassis for 24/7 operation; the fan ramps only enough to keep the 35 W processor within its thermal envelope, staying at a low acoustic level.
