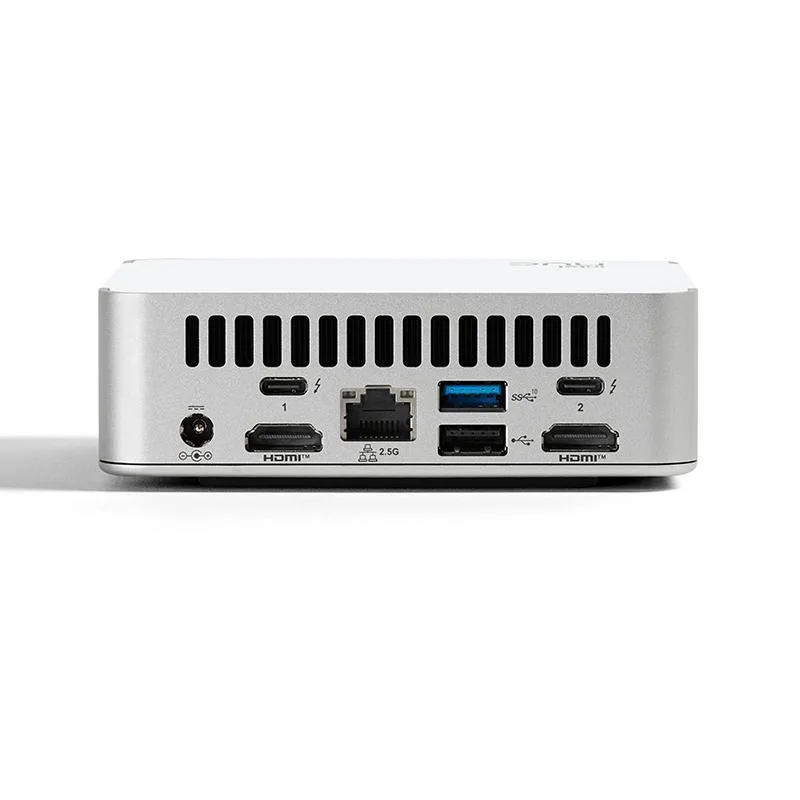

Small square white Intel mini PC barebone

Intel

Intel NUC13VYKi5 Core i5-1340P barebone mini PC

SKU CH-D0EJ-GTCH2 MPN NUC13VYKi5

Barebone mini PC with 13th Gen Core i5-1340P, Iris Xe 80EU graphics, dual-channel DDR4-3200 up to 64GB, dual M.2 slots, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5, dual Thunderbolt 4 and dual HDMI 2.1 ports

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Storage InstalledNo Hard Drive

CPU Type Intel Core i5-1340P

Group No Memory / No Hard Drive

Options NUC 13 Pro NUC13VYKi5

  • 13th Gen Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB system memory
  • Two M.2 slots accept PCIe Gen 4 NVMe and Gen 3 SSDs for fast storage
  • Dual Thunderbolt 4 ports deliver 4K video, data and charging over one cable
  • Intel 2.5 Gb Ethernet plus Wi-Fi 6E AX211 and Bluetooth 5 for modern connectivity

Barebone mini PC with 13th Gen Core i5

The Intel NUC13VYKi5 is a barebone mini PC built around a 13th Generation Intel Core i5-1340P processor with 12 cores and 16 threads. It ships without memory or storage, letting you choose dual-channel DDR4-3200 SO-DIMMs up to 64 GB and two M.2 drives. Integrated Intel Iris Xe graphics with 80 execution units drive up to two 4K displays at 60 Hz via HDMI 2.1.

Who this suits and who it does not

This unit suits builders who want a compact 35 W system for office work, digital signage or light content creation and who are comfortable adding their own RAM and SSDs. It is not for buyers who need a ready-to-run computer with Windows pre-installed, nor for workloads that require discrete graphics, more than 64 GB of memory, or PCIe add-in cards.

Key specification that decides fit

The fixed 35 W Core i5-1340P with integrated Iris Xe graphics sets the performance ceiling; you cannot upgrade the CPU or add a discrete GPU, so the system fits only workloads that stay within that thermal and graphics envelope.

Highlights

  • 13th Gen Core i5-1340P with 12 cores and 16 threads for responsive multitasking
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB system memory
  • Two M.2 slots accept PCIe Gen 4 NVMe and Gen 3 SSDs for fast storage
  • Dual Thunderbolt 4 ports deliver 4K video, data and charging over one cable
  • Intel 2.5 Gb Ethernet plus Wi-Fi 6E AX211 and Bluetooth 5 for modern connectivity

Specifications

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 80EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the 35W Core i5-1340P get during 24/7 operation?

The unit is qualified for continuous 24/7 operation with a 35W TDP processor; actual fan noise and surface temperature depend on the cooling load from your workload and the memory and storage you install.

Which DDR4-3200 SO-DIMMs and M.2 SSDs must I supply to make this barebone boot?

You need two 262-pin DDR4-3200 SO-DIMMs (1.2V, up to 64GB total) plus an M.2 2280 PCIe x4 Gen 4 NVMe SSD for the primary slot; a second M.2 2242 slot supports PCIe x1 Gen 3 or SATA drives.

Will my older USB 3.0 peripherals and HDMI 1.4 monitors work with the Thunderbolt 4 and HDMI 2.1 ports?

Yes — the two Thunderbolt 4 ports and three USB 3.2 Gen 2 Type-A ports are backward compatible with USB 3.0 devices, and both HDMI 2.1 outputs will drive HDMI 1.4 displays at their native resolution.
