Black tall mini PC chassis, compact square footprint, matte finish

Intel

Intel NUC14RVHU5 barebone mini PC Core Ultra 5 125H Arc 8GB 512GB

SKU CH-XM21-RNTAG MPN NUC14RVHU5

A compact barebone mini PC with a 14-core Core Ultra 5 125H processor, integrated Arc graphics and an NPU, ready for DDR5 memory and dual NVMe storage

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 5
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group 8gb ram / 512gb ssd

  • 14-core Core Ultra 5 125H reaches 4.50 GHz for fast compute
  • Integrated Arc graphics with 2.2 GHz NPU accelerates AI workloads
  • Two DDR5-5600 SO-DIMM slots support up to 96 GB memory
  • Dual M.2 slots (2280 Gen4×4 and 2242 ×4) for NVMe storage

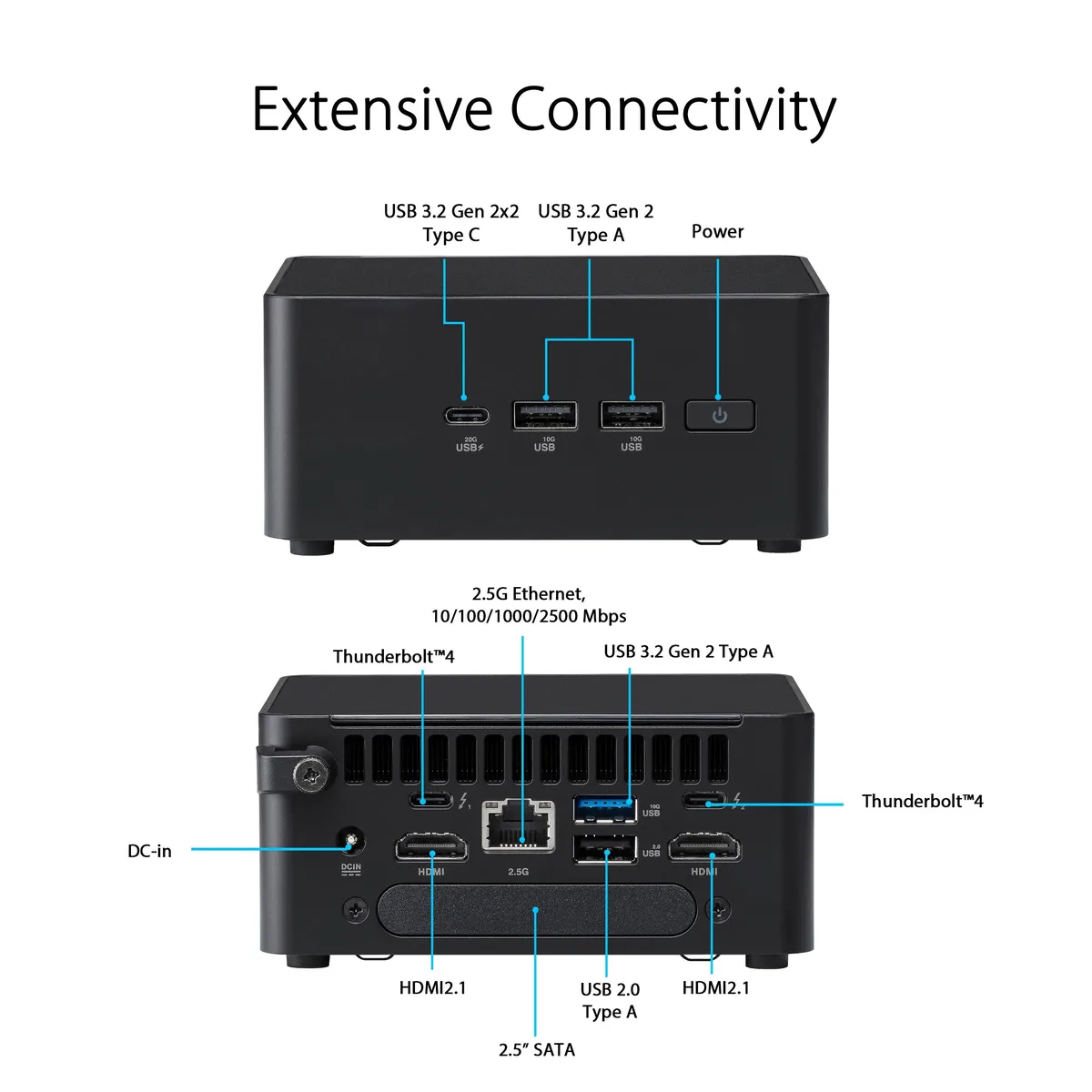

  • 5 GbE, Wi-Fi 6E AX211 and Bluetooth 5.3 plus dual Thunderbolt 4

NUC 14 Pro tall barebone

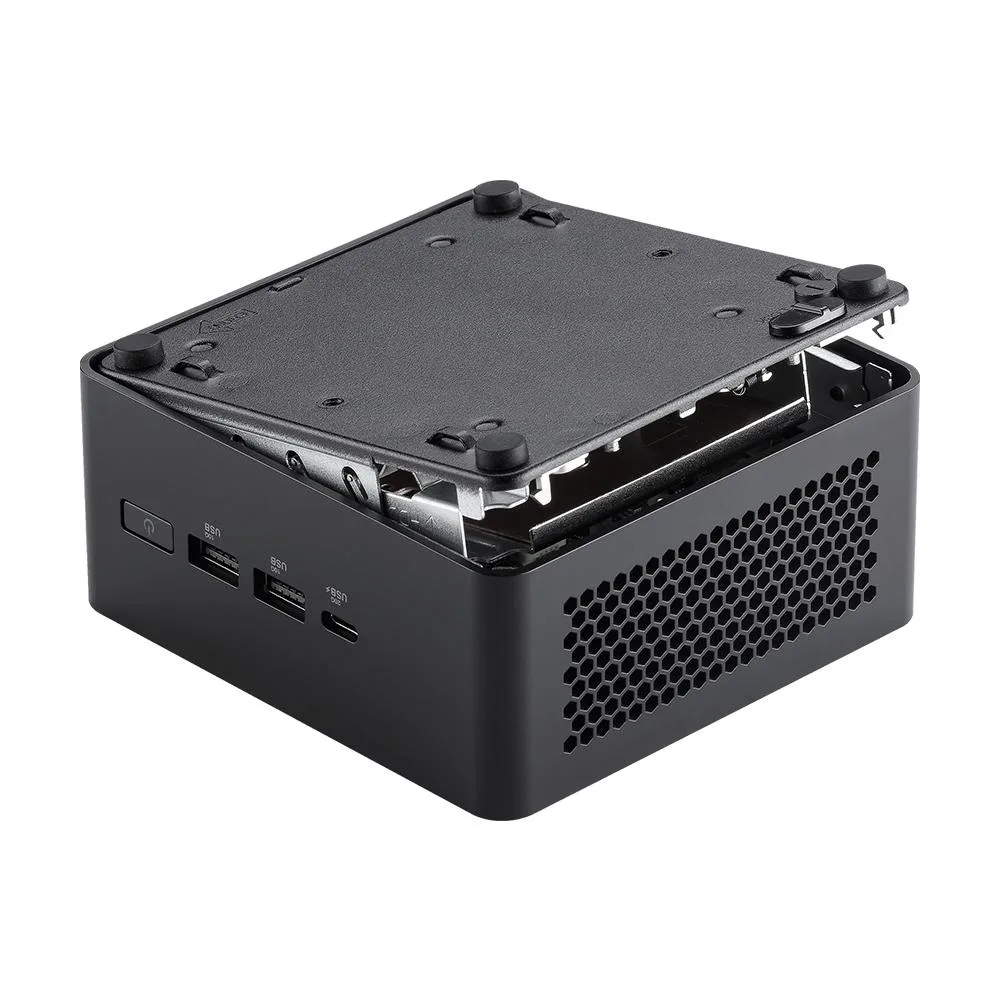

The Intel NUC14RVHU5 is a tall mini-PC barebone built around a Core Ultra 5 125H processor with 14 cores and 18 threads. It targets system integrators and enthusiasts who want to choose their own DDR5 memory and NVMe storage while using a compact 117 x 112 x 54 mm chassis that supports VESA mounting.

Sustained-load behaviour with Arc graphics and NPU

The integrated Arc graphics run at 2.2 GHz alongside an on-die NPU that accelerates AI tasks such as video-conference background effects at low power. A 120 W 19 V adapter feeds the platform, while the tall form factor provides thermal headroom for the 4.50 GHz boost clock during extended workloads.

Deciding specification: two SO-DIMM slots

Memory capacity is the key configuration choice because the board accepts two DDR5-5600 SO-DIMMs for a maximum of 96 GB in dual-channel mode. Buyers who need more than 96 GB of RAM or who require soldered memory cannot use this barebone.

Highlights

  • 14-core Core Ultra 5 125H reaches 4.50 GHz for fast compute
  • Integrated Arc graphics with 2.2 GHz NPU accelerates AI workloads
  • Two DDR5-5600 SO-DIMM slots support up to 96 GB memory
  • Dual M.2 slots (2280 Gen4×4 and 2242 ×4) for NVMe storage
  • 5 GbE, Wi-Fi 6E AX211 and Bluetooth 5.3 plus dual Thunderbolt 4

Specifications

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVHU5
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 5
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the NUC14RVHU5 get when the Core Ultra 5 125H runs at 4.50 GHz all day?

The 120W 19V adapter feeds the system; the processor reaches 4.50 GHz boost while the integrated Arc graphics run at 2.2 GHz, and the tall chassis with VESA mount allows airflow around the 117 x 112 x 54 mm case.

Which DDR5 SO-DIMMs and M.2 NVMe drives must I buy separately to complete the NUC14RVHU5?

You need two DDR5-5600 SO-DIMMs up to 48 GB each for 96 GB total, plus one M.2 2280 PCIe Gen4x4 NVMe and one M.2 2242 PCIe x4 NVMe for storage.

Will my older 2.5 Gbps Ethernet switch and HDMI 2.0 monitors work with the NUC14RVHU5's Intel i226-LM and dual HDMI 2.1 ports?

Yes, the 2.5G Ethernet port negotiates down to 1 Gbps or 100 Mbps, and both HDMI 2.1 TMDS ports drive legacy HDMI 2.0 displays at their native resolutions.
