Black tall mini PC chassis, 117 by 112 by 54 mm

Intel

Intel NUC14RVHU5 barebone mini PC Core Ultra 5 125H Arc DDR5 96GB

SKU CH-XEKH-11J8F MPN NUC14RVHU5

Barebone mini PC with Core Ultra 5 125H, Arc graphics and NPU, supporting 96 GB DDR5-5600 and dual M.2 NVMe slots

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 5
  • Memory installedNo Memory
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

Group No Memory / No Hard Drive

  • 14-core 18-thread Core Ultra 5 125H reaches 4.50 GHz for responsive compute
  • Integrated Arc graphics with 2.2 GHz NPU accelerate AI video effects at low power
  • Dual DDR5-5600 SO-DIMM slots accept up to 96 GB for high-capacity memory

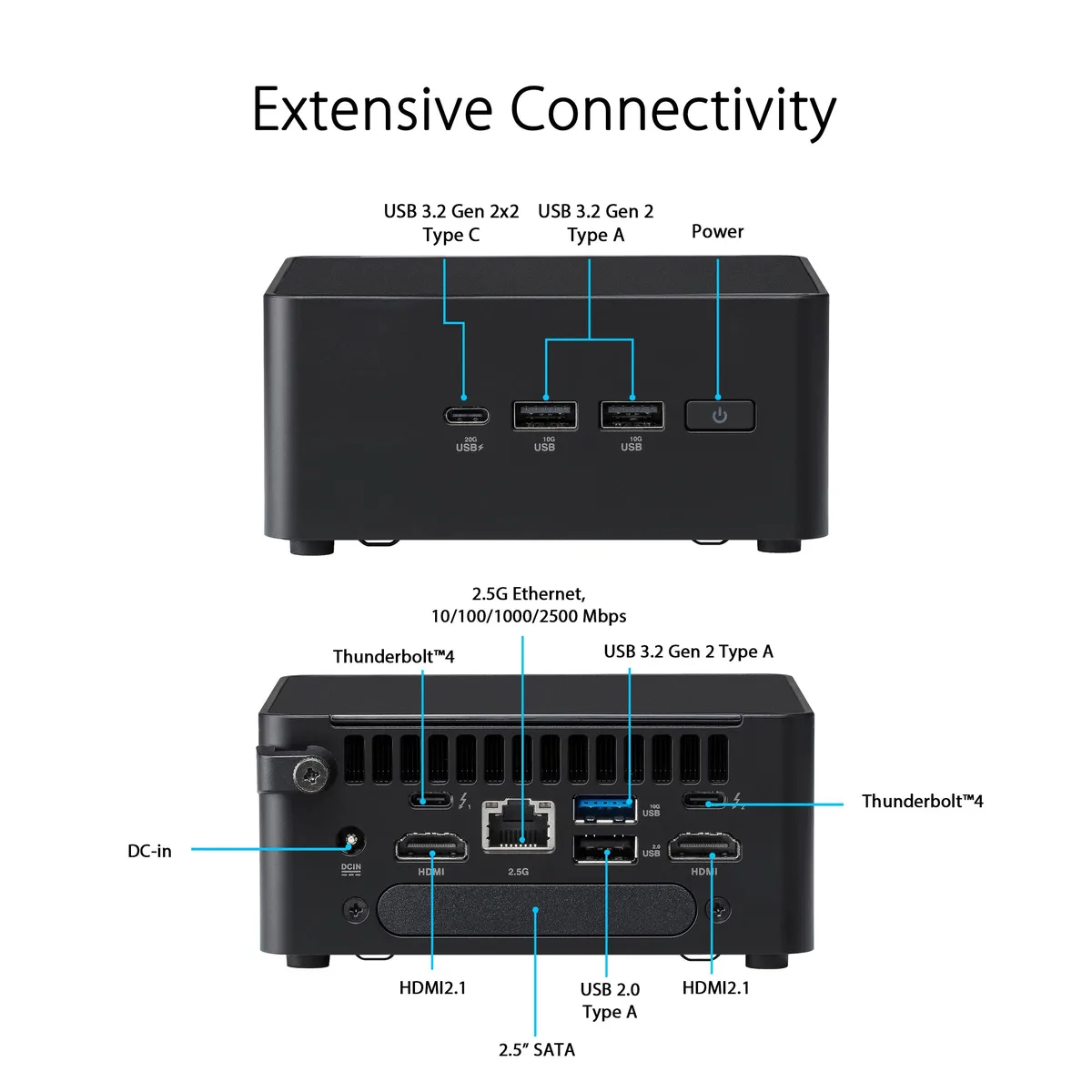

  • Two Thunderbolt 4 and two HDMI 2.1 ports drive up to four displays
  • 5 GbE Intel i226-LM plus Wi-Fi 6E AX211 and Bluetooth 5.3 deliver fast connectivity

Barebone mini PC for DIY builds

The Intel NUC14RVHU5 is a tall barebone mini PC built around a Core Ultra 5 125H processor with 14 cores and 18 threads. Integrated Arc graphics run at 2.2 GHz alongside an NPU for AI-assisted video tasks. The chassis measures 117 x 112 x 54 mm and includes a 120W 19V power adapter with VESA mounting hardware.

Suits integrators adding their own memory

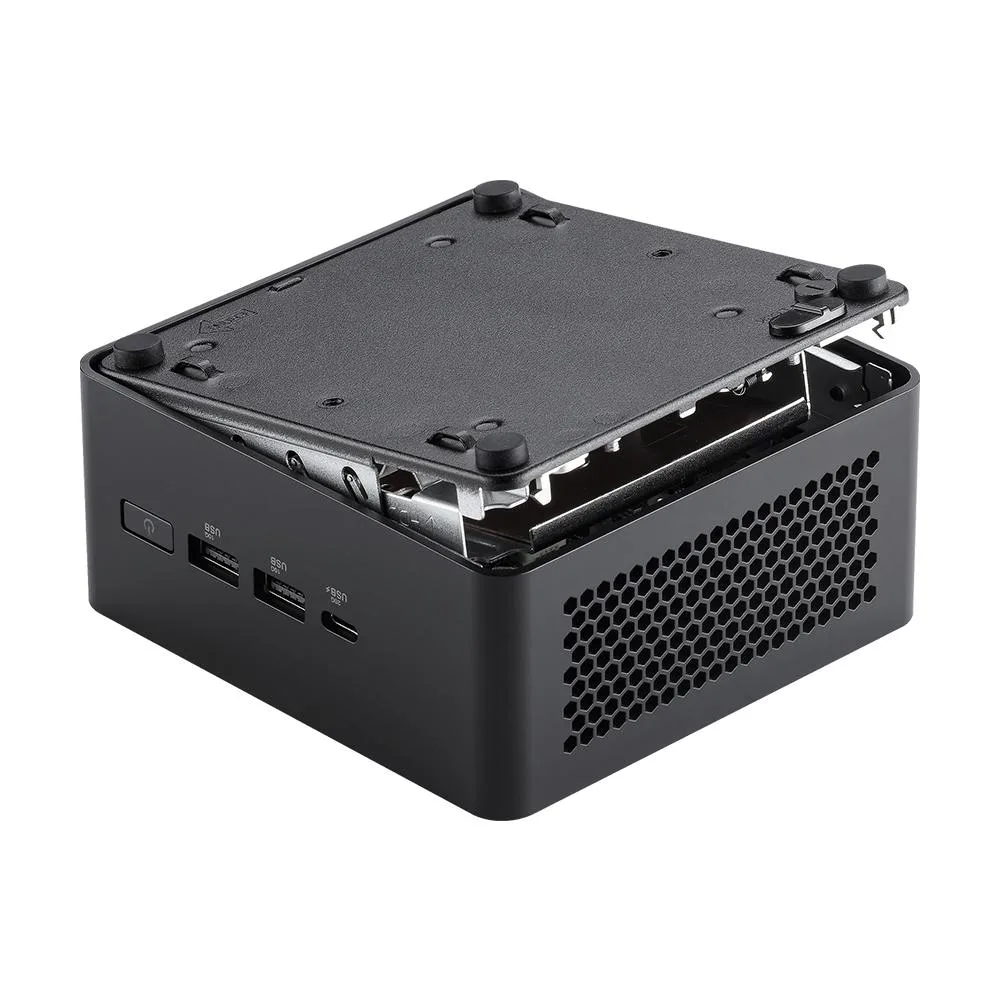

This unit ships with no RAM and no SSD, so buyers must supply two DDR5 5600 SO-DIMMs up to 96 GB total and up to two NVMe drives in 2280 and 2242 sizes. It is not for users who want a complete system ready to run out of the box. Wireless connectivity uses Wi-Fi 6E AX211 and Bluetooth 5.3.

Memory ceiling of 96 GB DDR5 5600

The board provides two SO-DIMM slots supporting dual-channel DDR5 at 5600 MT/s with a maximum capacity of 96 GB. This limit determines whether the platform can handle the intended workloads. Any build requiring more memory must use a different chassis.

Highlights

  • 14-core 18-thread Core Ultra 5 125H reaches 4.50 GHz for responsive compute
  • Integrated Arc graphics with 2.2 GHz NPU accelerate AI video effects at low power
  • Dual DDR5-5600 SO-DIMM slots accept up to 96 GB for high-capacity memory
  • Two Thunderbolt 4 and two HDMI 2.1 ports drive up to four displays
  • 5 GbE Intel i226-LM plus Wi-Fi 6E AX211 and Bluetooth 5.3 deliver fast connectivity

Specifications

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelNUC14RVHU5
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 5
Memory installedNo Memory
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
LANIntel i226-LM
Max LAN Speed2.5Gbps
BluetoothBluetooth 5.3
HDMI2
Rear USB4
RJ451

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What are the exact chassis dimensions for the VESA mounting plate?

The chassis measures 117 x 112 x 54 mm and includes VESA mounting hardware for attaching the unit to a monitor or wall bracket.

Which screw size secures the M.2 2280 NVMe SSD during installation?

The M.2 2280 slot uses a standard M2.5 screw; the common mistake is forgetting to fit the standoff for the shorter M.2 2242 slot before tightening the 2280 drive.

What SO-DIMM specification is required when upgrading memory later?

Install two DDR5 5600 SO-DIMMs up to 48 GB each for a maximum of 96 GB in dual-channel mode.
