Intel

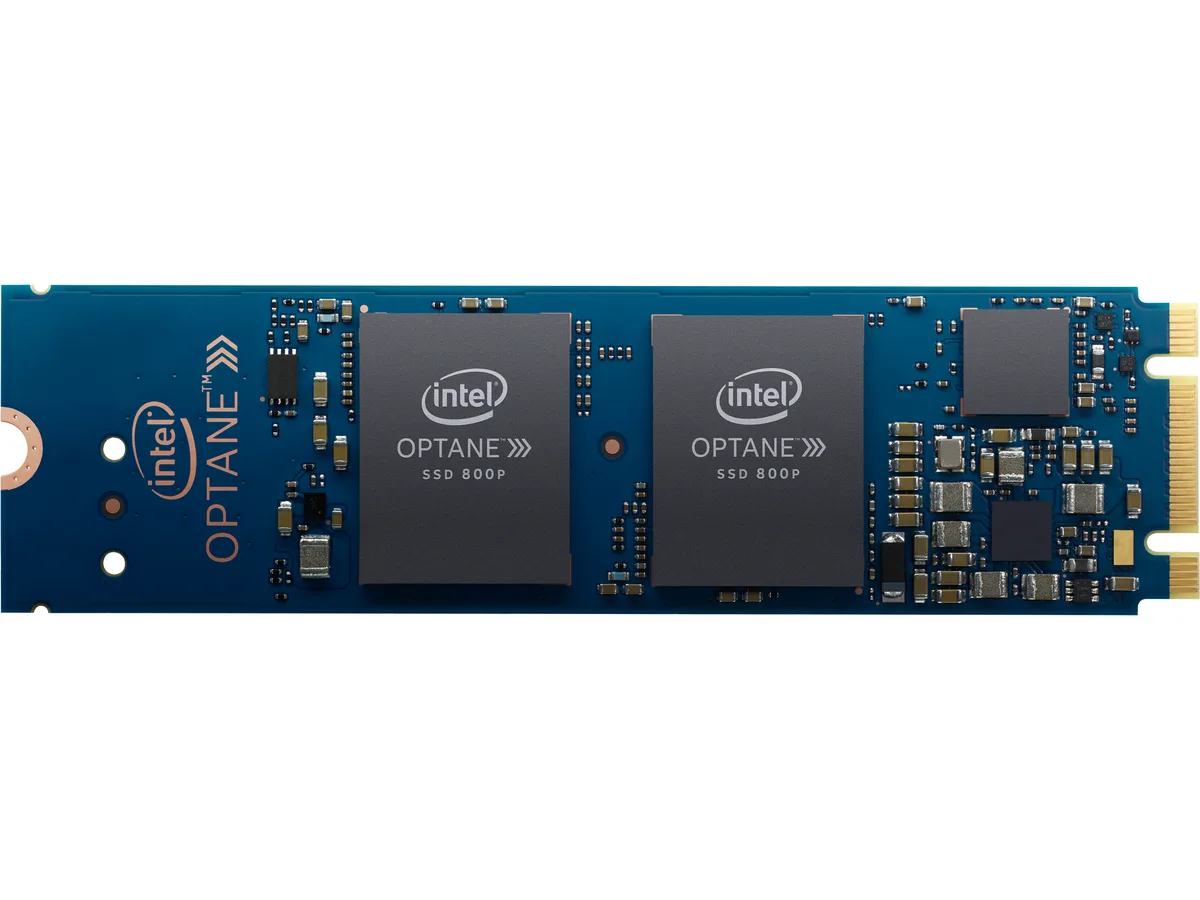

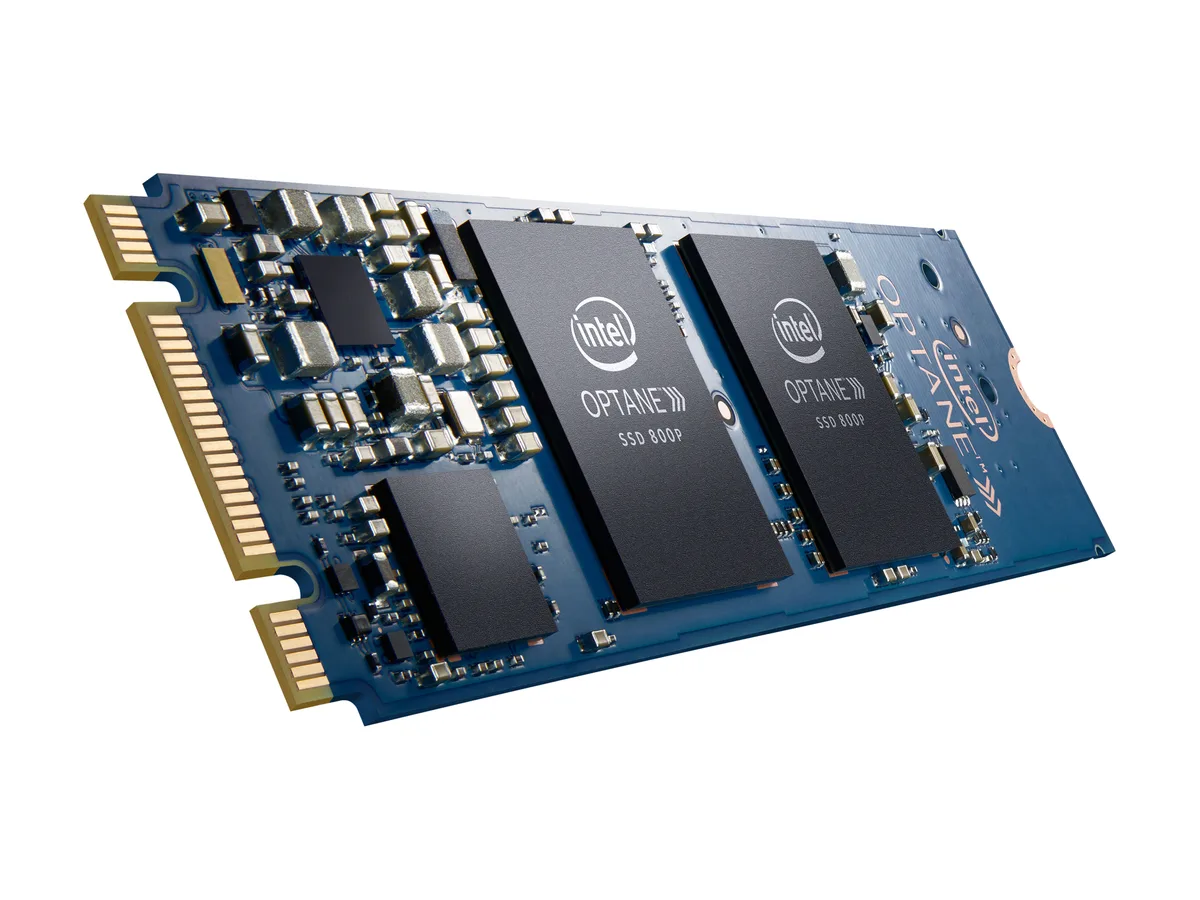

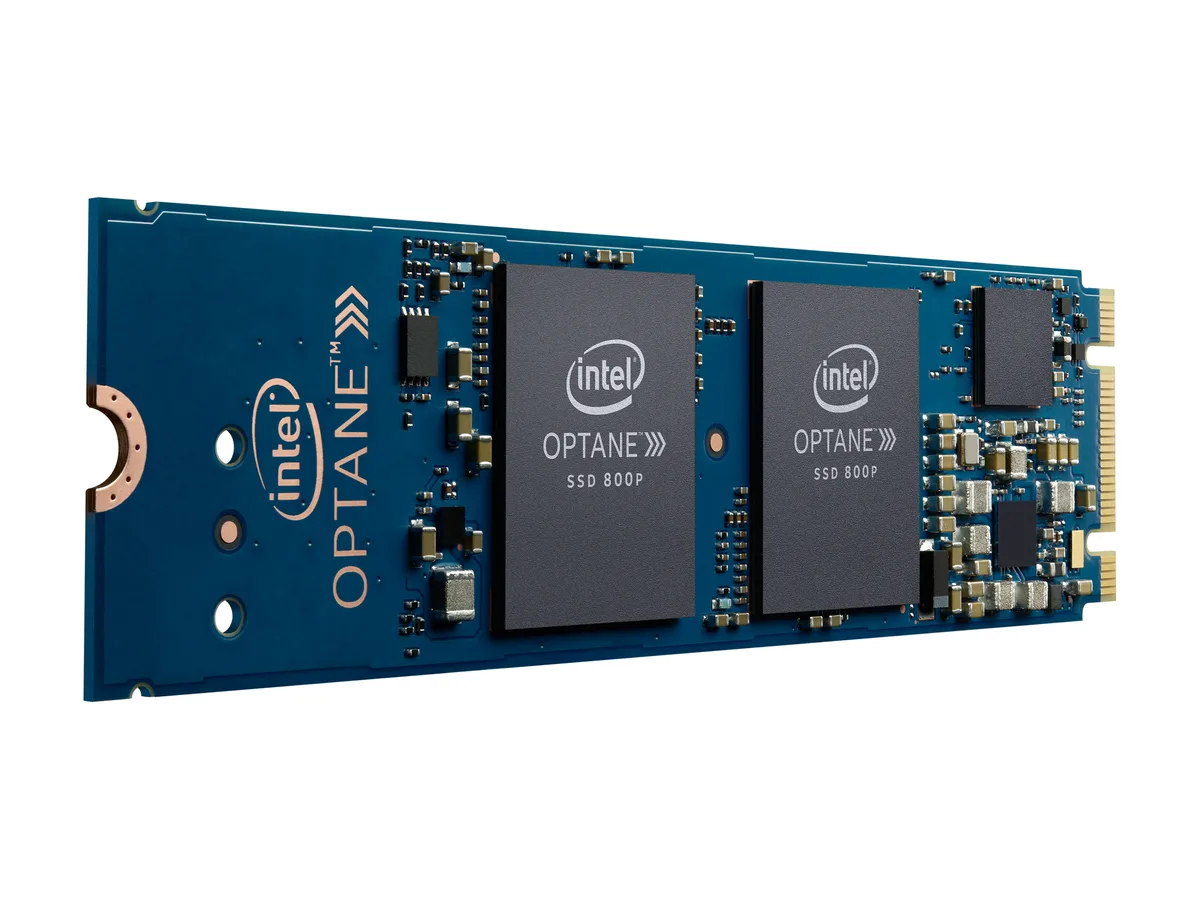

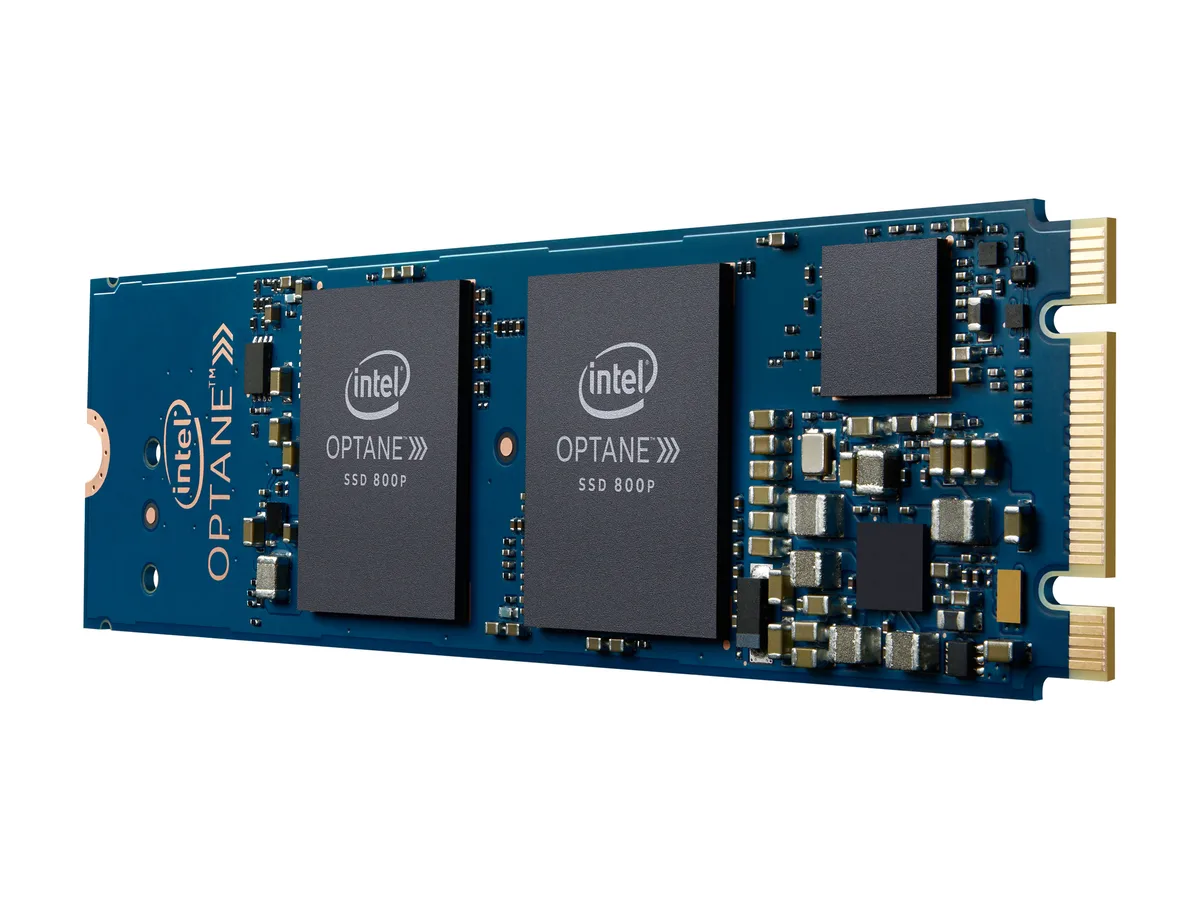

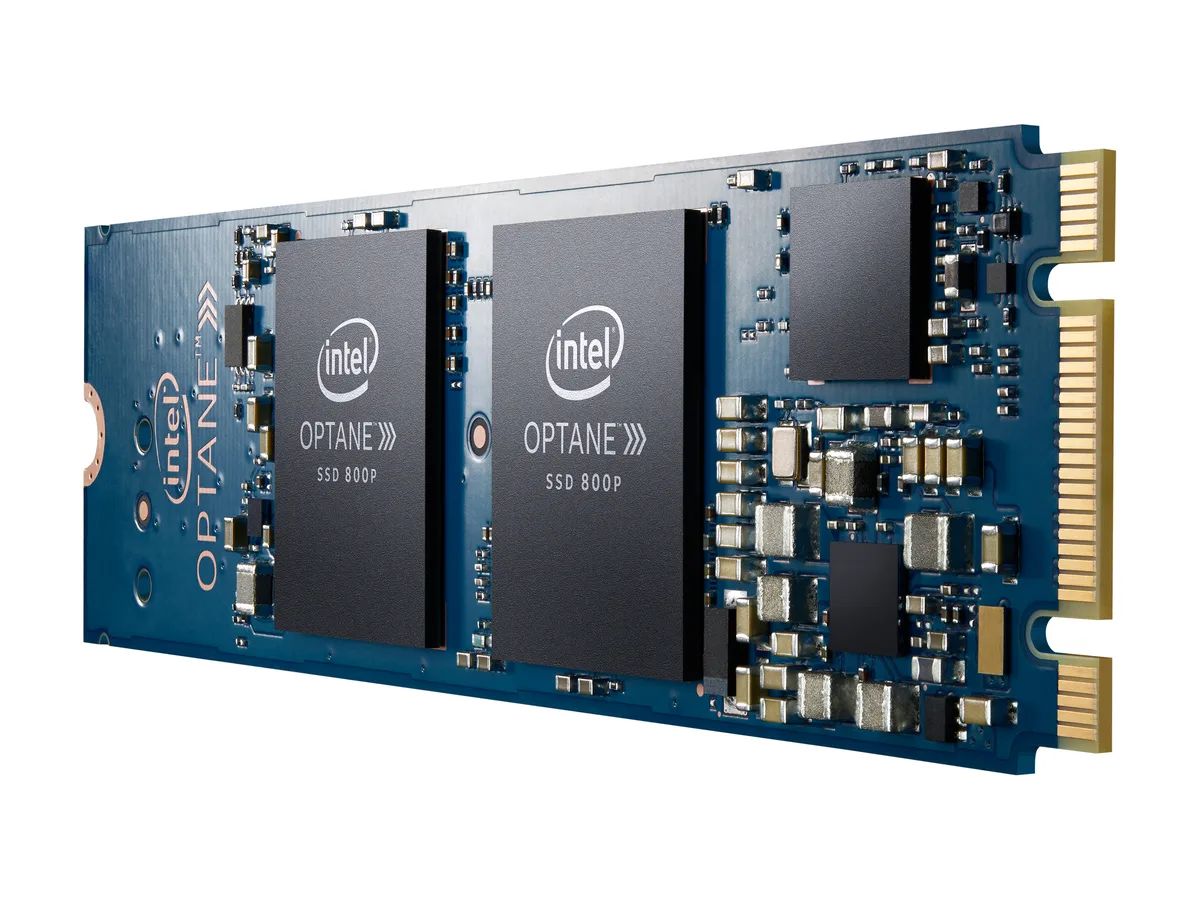

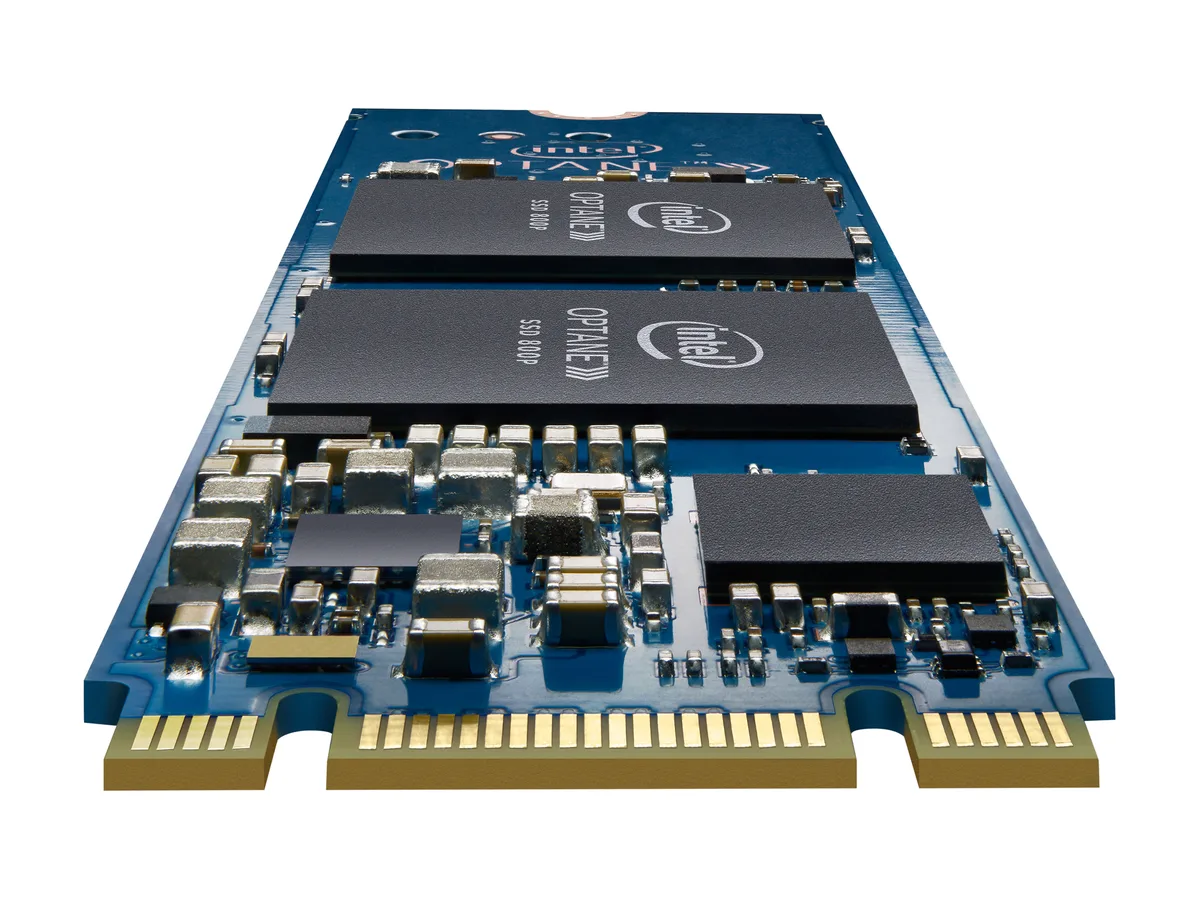

Intel Optane SSD 800P 58GB M.2 2280 PCIe 3.0 x2 NVMe SSDPEK1W060GAXT
A 58 GB M.2 2280 NVMe drive using 3D XPoint media for 1450 MB/s sequential read and 250,000 IOPS random read at low queue depth
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity58GB
- Memory Components3D NAND
- InterfacePCI-Express 3.0 x2
- 3D XPoint media enables ultra-low 6.75 µs read latency
- Sequential reads up to 1450 MB/s speed system boot
- Random read IOPS of 250,000 at queue depth 4
- Idle power draw of 500 mW suits mobile use
- 6 million hour MTBF ensures long-term reliability
58GB M.2 2280 NVMe for low-latency workloads
The Intel Optane SSD 800P 58GB uses 3D XPoint media on a PCIe 3.0 x2 NVMe interface to deliver read latency of 6.75 us and write latency of 18 us. It sustains up to 1450 MBps sequential read and 640 MBps sequential write with 250000 random read and 140000 random write IOPS at queue depth 4. This drive targets users who value consistent responsiveness over raw capacity.
Best for OS drives and latency-sensitive tasks
The 58GB capacity suits operating system volumes, application swap files, logging or mobile RAID where low latency at low queue depths matters most. It is not suited for bulk media storage, large game libraries or workloads that need more than 58GB of usable space. Users needing higher capacity should consider the 116GB variant or alternative drives.
PCIe 3.0 x2 NVMe interface and 58GB capacity
The drive connects through an M.2 2280 slot with a PCIe 3.0 x2 NVMe link, so the host must provide that exact interface. The 58GB capacity is the single specification that decides fit; verify the slot and capacity requirement before purchase.
Highlights
- 3D XPoint media enables ultra-low 6.75 µs read latency
- Sequential reads up to 1450 MB/s speed system boot
- Random read IOPS of 250,000 at queue depth 4
- Idle power draw of 500 mW suits mobile use
- 6 million hour MTBF ensures long-term reliability
Specifications
| Brand | Intel |
|---|---|
| Series | Optane SSD 800P Series |
| Model | SSDPEK1W060GAXT |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 58GB |
| Memory Components | 3D NAND |
| Interface | PCI-Express 3.0 x2 |
| Max Sequential Read | Up to 1450 MBps |
| Max Sequential Write | Up to 640 MBps |
| 4KB Random Read | Up to 250,000 IOPS |
| 4KB Random Write | Up to 140,000 IOPS |
| Read Latency | 6.75 us |
| Write Latency | 18 us |
| MTBF | 1,600,000 hours |
| Features | PCIe 3.0 x2 with NVMe interface Intel's revolutionary new storage technology, Intel 3D XPoint memory media Ultra-low latency for exceptional responsiveness Performance saturation at queue depth of 4 and lower Very High Endurance Capabilities |
| Power Consumption (Idle) | 500 mW Deep sleep: 8 mW |
| Power Consumption (Active) | PS0 Write: 3.25W PS1 Write: 2.5W PS2 Write: 2.0W PS0 Read: 3.0W PS1 Read: 2.5W PS2 Read: 2.0W |
| Operating Temperature | 0°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | 5-95% |
| Max Shock Resistance | Operating: 1000G / 0.5 msec Non-Operating: 230G / 3 msec |
| Max Vibration Resistance | Operating: 2.17 GRMS (5-700 Hz) Non-Operating: 3.13 GRMS (5-800 Hz) |
| Weight | < 10.00g |
| Shipping weight | 0.08 kg |
| Package size | 122 × 94 × 25 mm |
Questions about this item
Will the 58GB Optane 800P work in my older laptop that only has an M.2 slot with PCIe 3.0 x2 support?
Yes, the drive uses the standard M.2 2280 form factor and a PCIe 3.0 x2 NVMe interface, so it fits and functions in any compatible M.2 slot.
How can I verify the drive is delivering the rated 6.75 µs read latency after installation?
Run a low-queue-depth benchmark such as CrystalDiskMark at QD1; the average read latency should sit near the 6.75 µs specification.
Does the 58GB Optane 800P package include a heatsink or mounting screw, or must I buy them separately?
The drive ships as a bare M.2 2280 module; a mounting screw is usually supplied by the motherboard or laptop maker, and a heatsink is optional.
