Intel SSDPEKKW512G7X1 512GB M.2 2280 internal SSD
512 GB PCIe 3.0 x4 NVMe M.2 2280 internal SSD with up to 1775 MB/s read and 560 MB/s write speeds
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity512GB
- Memory ComponentsTLC
- InterfacePCI-Express 3.0 x4
- Up to 1775 MB/s sequential read speed via PCIe 3.0 x4 NVMe
- 128,500 IOPS random read for responsive multitasking
- 512GB TLC capacity in single-sided M.2 2280 form factor
- 40 mW idle power draw extends laptop battery life
- AES 256-bit hardware encryption protects stored data

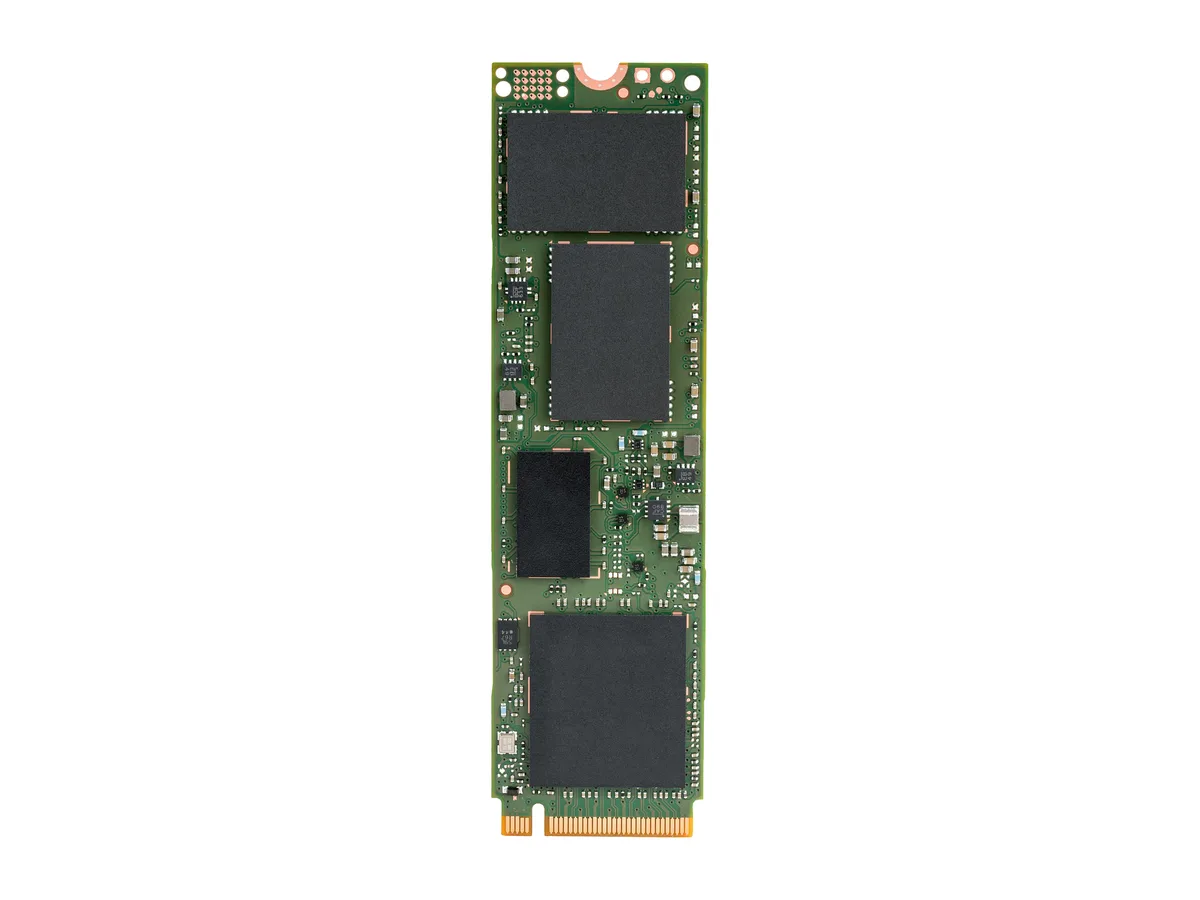

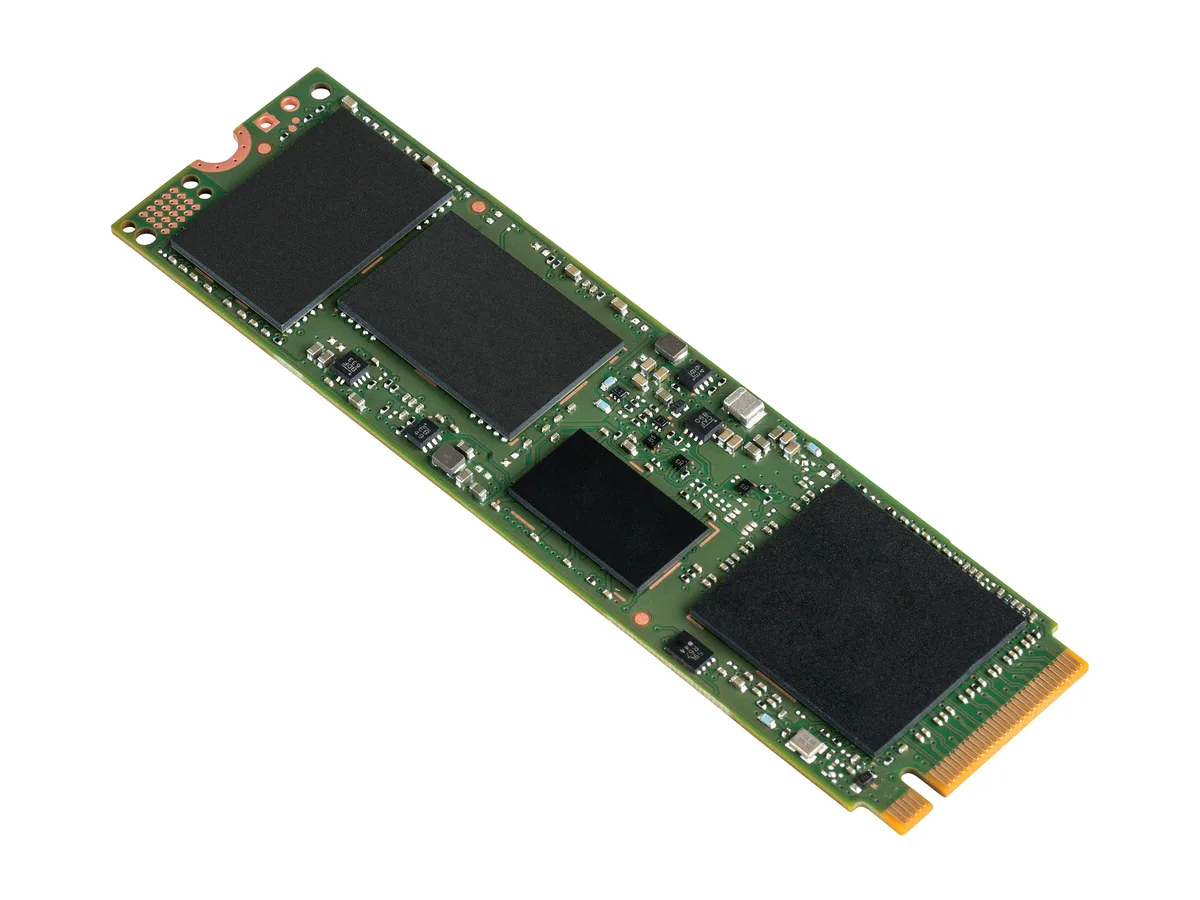

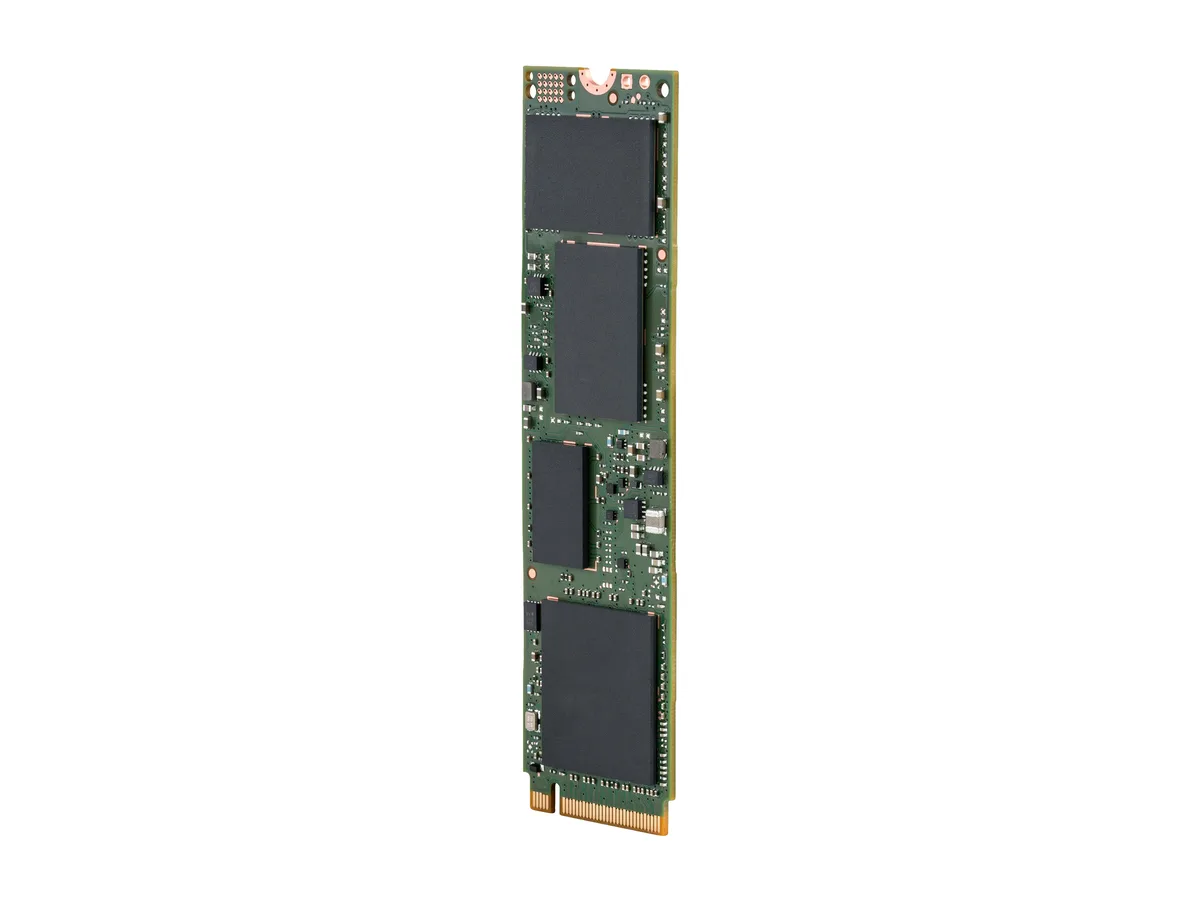

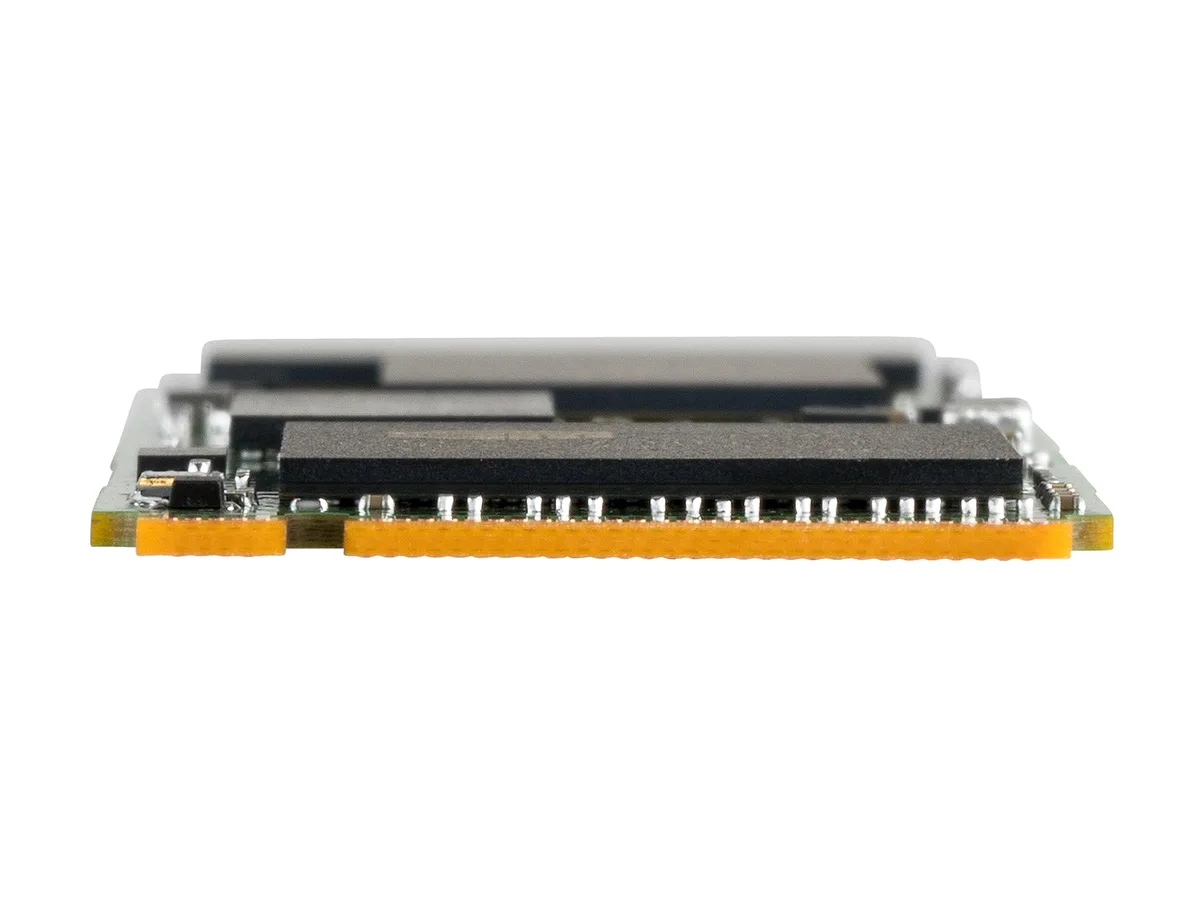

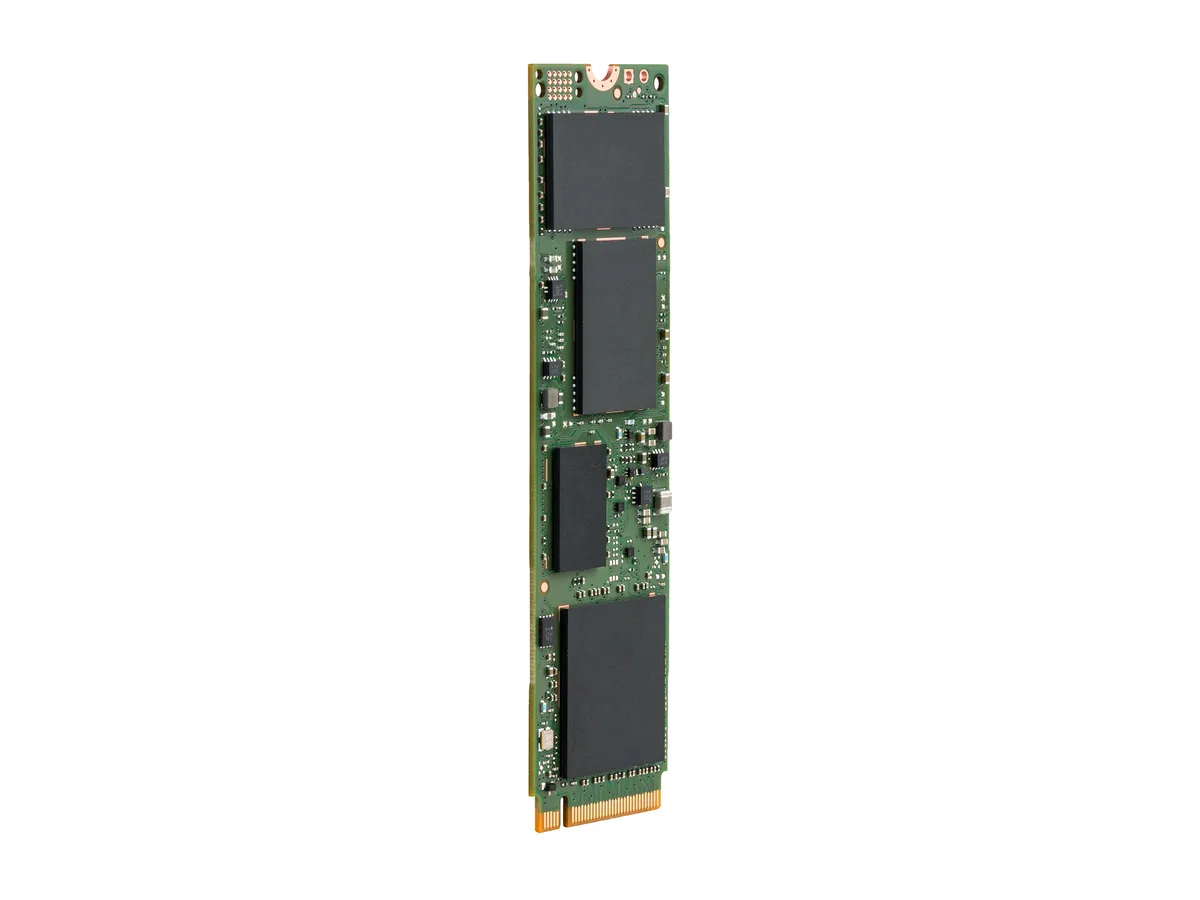

Intel 600p Series 512GB M.2 2280 NVMe SSD
The Intel SSD 600p Series is a 512GB internal solid-state drive built for consumer PCs. It uses the M.2 2280 form factor and a PCIe 3.0 x4 interface with NVMe protocol. The drive suits everyday workloads such as office applications, 4K video playback and light content creation.
PCIe 3.0 x4 NVMe interface with 1775 MBps
The single specification that decides fit is the PCIe 3.0 x4 NVMe interface delivering up to 1775 MBps sequential read and 560 MBps sequential write. Random performance reaches 128500 IOPS read and 128000 IOPS write. The M.2 2280 key must match an NVMe-capable slot; SATA-only M.2 slots will not work.
AES 256-bit encryption and low 40 mW idle power
Bundled features include AES 256-bit self-encryption for data security without software overhead. Idle power draw is 40 mW and active power is 100 mW, which helps extend battery life in laptops. The single-sided design fits thin ultrabooks and small-form-factor desktops. No heatsink is included.
Highlights
- Up to 1775 MB/s sequential read speed via PCIe 3.0 x4 NVMe
- 128,500 IOPS random read for responsive multitasking
- 512GB TLC capacity in single-sided M.2 2280 form factor
- 40 mW idle power draw extends laptop battery life
- AES 256-bit hardware encryption protects stored data
Specifications
| Brand | Intel |
|---|---|
| Series | 600p Series |
| Model | SSDPEKKW512G7X1 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 512GB |
| Memory Components | TLC |
| Interface | PCI-Express 3.0 x4 |
| Max Sequential Read | Up to 1775 MBps |
| Max Sequential Write | Up to 560 MBps |
| 4KB Random Read | Up to 128,500 IOPS |
| 4KB Random Write | Up to 128,000 IOPS |
| MTBF | 1,600,000 hours |
| HeatSink | without HeatSink |
| Features | Intel quality and reliability Performance that matters Single-sided capacities up to 1TB M.2 (80mm) form factor Low power consumption AES 256-bit self-encryption |
| Power Consumption (Idle) | 40 mW |
| Power Consumption (Active) | 100mW |
| Operating Temperature | 0°C ~ +70°C |
| Max Vibration Resistance | Operating: 2.17 GRMS (5 - 700Hz) Max Non-Operating: 3.13 GRMS (5 - 800Hz) Max |
| Height | 1.50mm |
| Width | 22.00mm |
| Depth | 80.00mm |
| Weight | 40.00g |
| Shipping weight | 0.07 kg |
| Package size | 135 × 102 × 22 mm |
Questions about this item
What does the 1775 MBps sequential read mean for everyday use?
The drive can read large files at up to 1775 MBps, so operating system boot and game level loads finish noticeably faster than on a SATA SSD.
How does the PCIe 3.0 x4 interface limit real-world speed?
The x4 lane caps theoretical throughput at roughly 4 GBps, so the drive’s 1775 MBps read and 560 MBps write sit well within that ceiling.
Will the single-sided 2280 board fit my laptop’s M.2 slot?
Yes, the 80 mm single-sided design fits any standard M.2 2280 slot without clearance issues.
