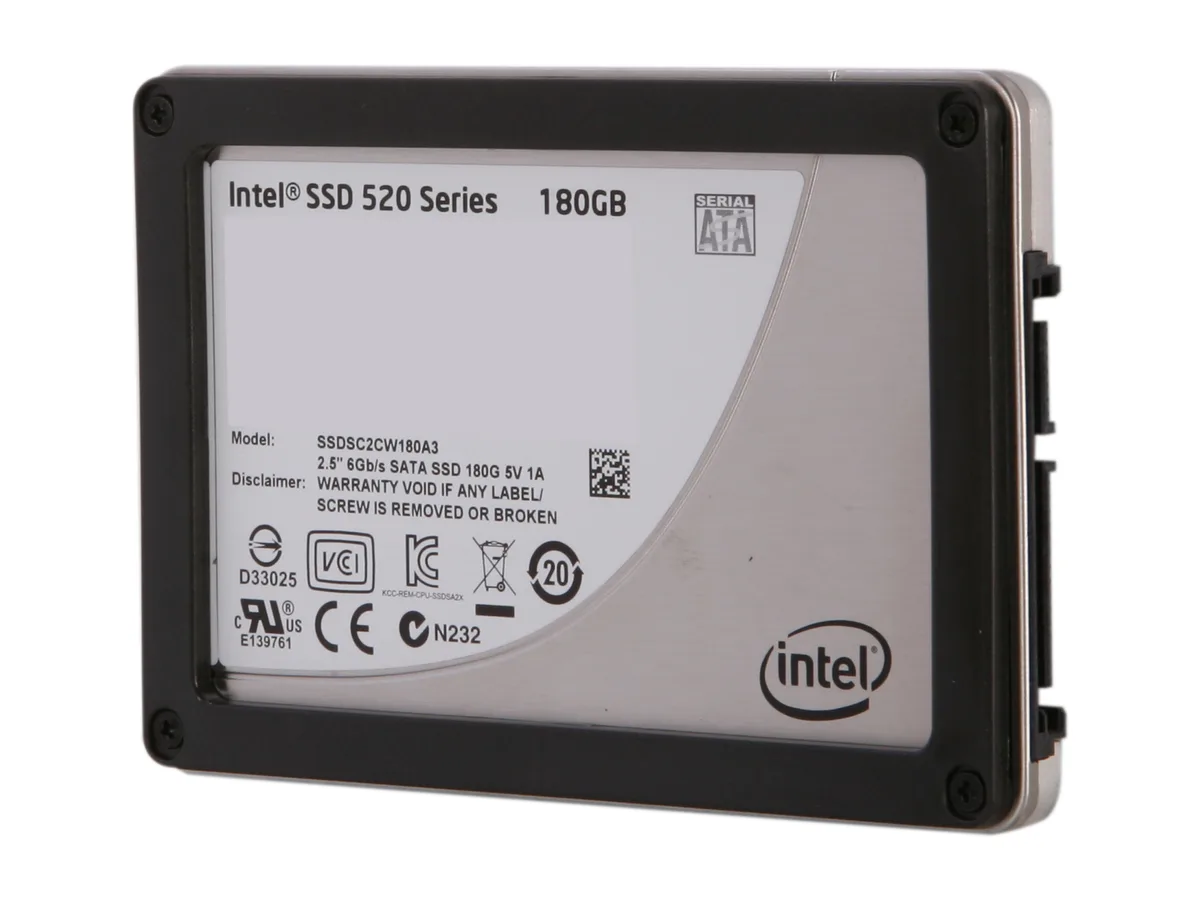

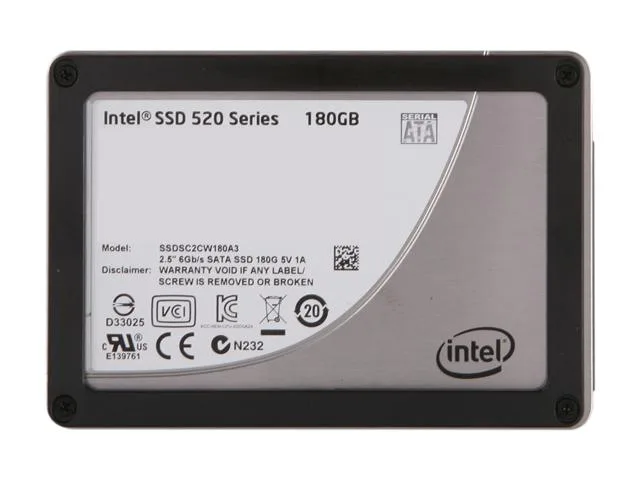

Intel SSDSC2CW180A310 520 Series 2.5" 180GB SATA internal SSD

180 GB SATA III SSD for consumer PCs

The Intel 520 Series Cherryville drive provides 180 GB of MLC flash storage in a standard 2.5 inch form factor. It connects through a SATA III interface with a SandForce controller. Sequential reads reach up to 550 MB/s and writes up to 520 MB/s on a 6.0 Gb/s link. Random 4 KB performance hits up to 50,000 read IOPS and 60,000 write IOPS.

Fits 2.5 inch bays with 9.50 mm height clearance

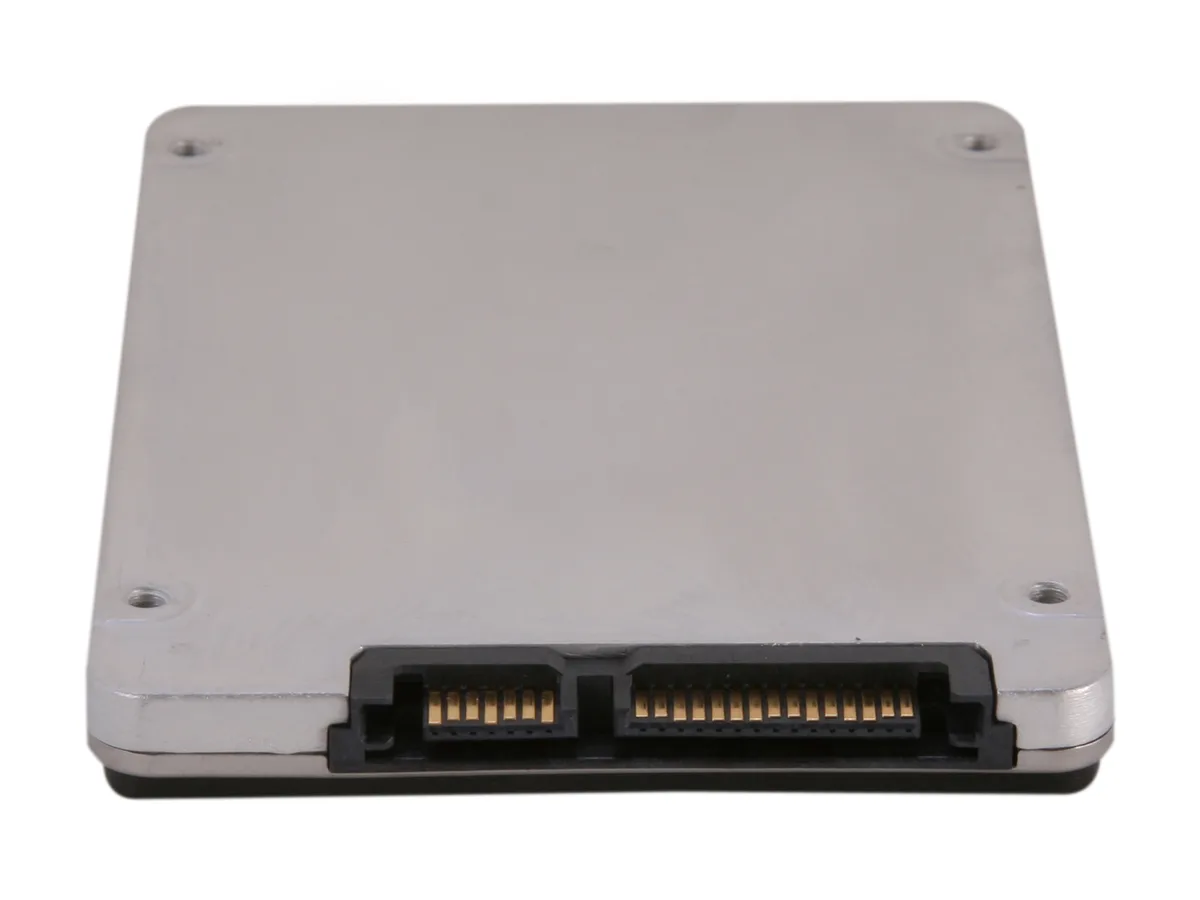

The drive matches the industry-standard 2.5 inch footprint used by mechanical hard drives. At 9.50 mm tall it slides into most laptop and desktop drive bays without adapters. A SATA III host unlocks the full 550 MB/s read and 520 MB/s write ceiling. On a SATA II port speeds drop to 280 MB/s read and 260 MB/s write. No extra cables or mounting hardware are included in the bare drive package.

Sustained workloads within 0°C to 70°C operating

The MLC memory and SandForce controller maintain rated IOPS during extended write sessions thanks to built-in data compression and wear-leveling. End-to-end data protection and AES 128-bit encryption run continuously without throttling throughput. MTBF is rated at 1,200,000 hours. Out-of-the-box write bursts can reach 80,000 IOPS before settling to steady-state random write performance.
