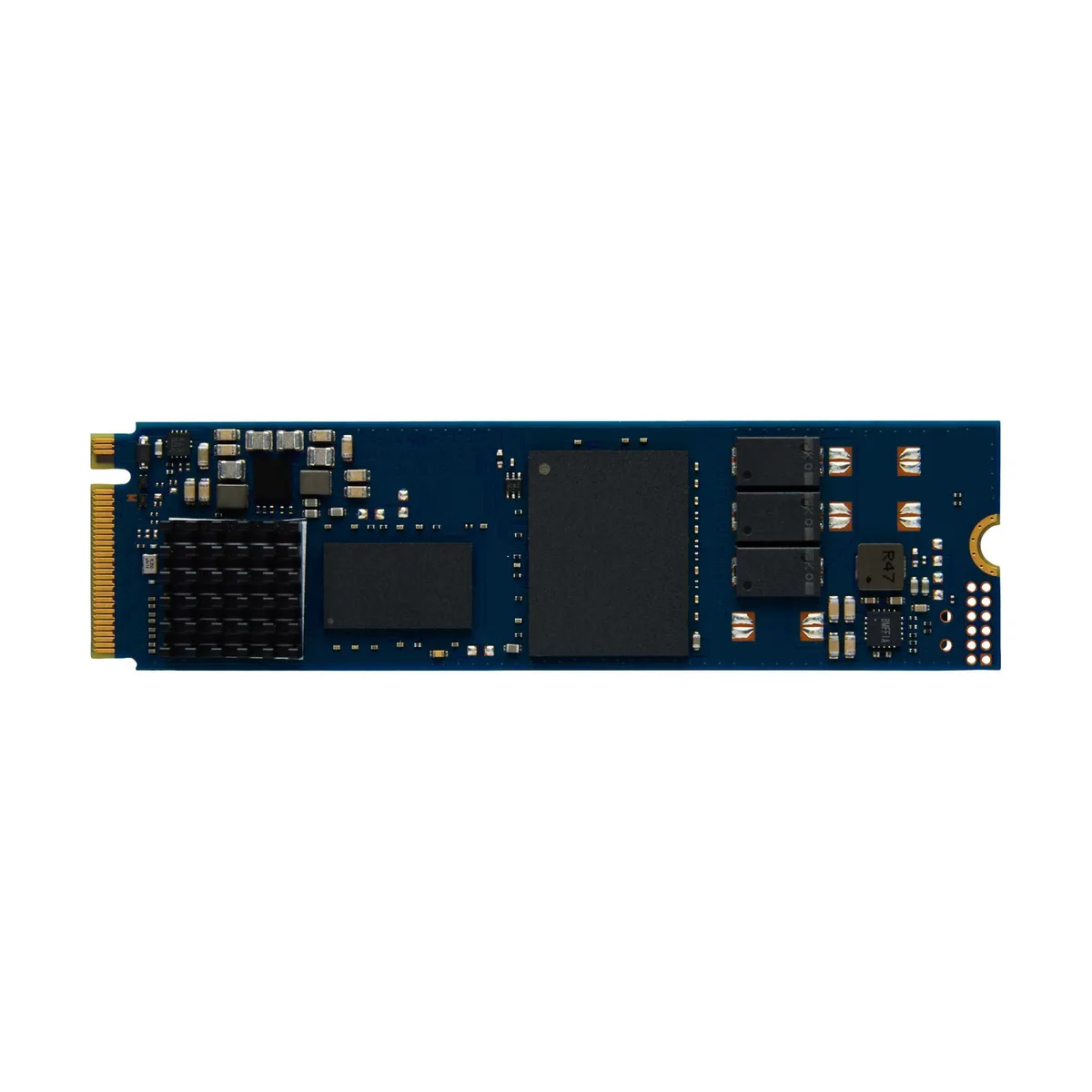

M.2 2280 enterprise SSD with integrated aluminum heatsink

Kingston Technology Corp.

Kingston Technology Corp. SEDC2000BM8/240G enterprise SSD 240GB M.2 2280 PCIe 4.0 x4 NVMe

SKU CH-FD8C-QSBG5 MPN SEDC2000BM8/240G

Enterprise M.2 2280 NVMe SSD with 240 GB capacity, PCIe 4.0 x4 interface, 4500 MBps read, 400 MBps write, and 0.4 DWPD endurance

  • Form FactorM.2 2280
  • Capacity240GB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 4500 MBps
  • Max Sequential WriteUp to 400 MBps

Options 240GB

  • Fast boot and caching with 4500 MBps sequential read
  • Low-latency response at 70 µs read and 53 µs write
  • Enterprise endurance rated at 0.4 DWPD and 175 TBW
  • Hardware power-loss protection guards data during outages

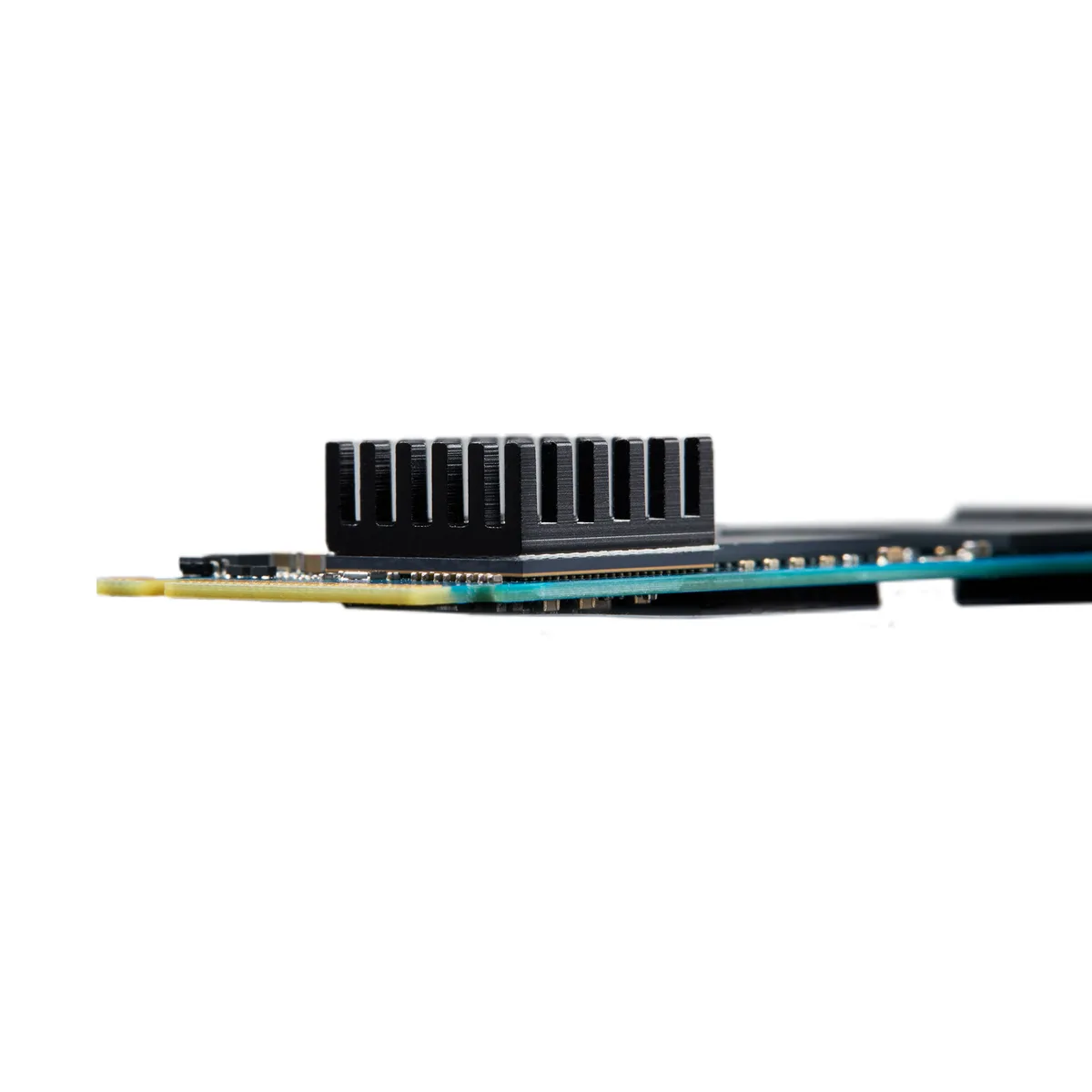

  • Integrated heatsink enables thermal headroom in dense servers

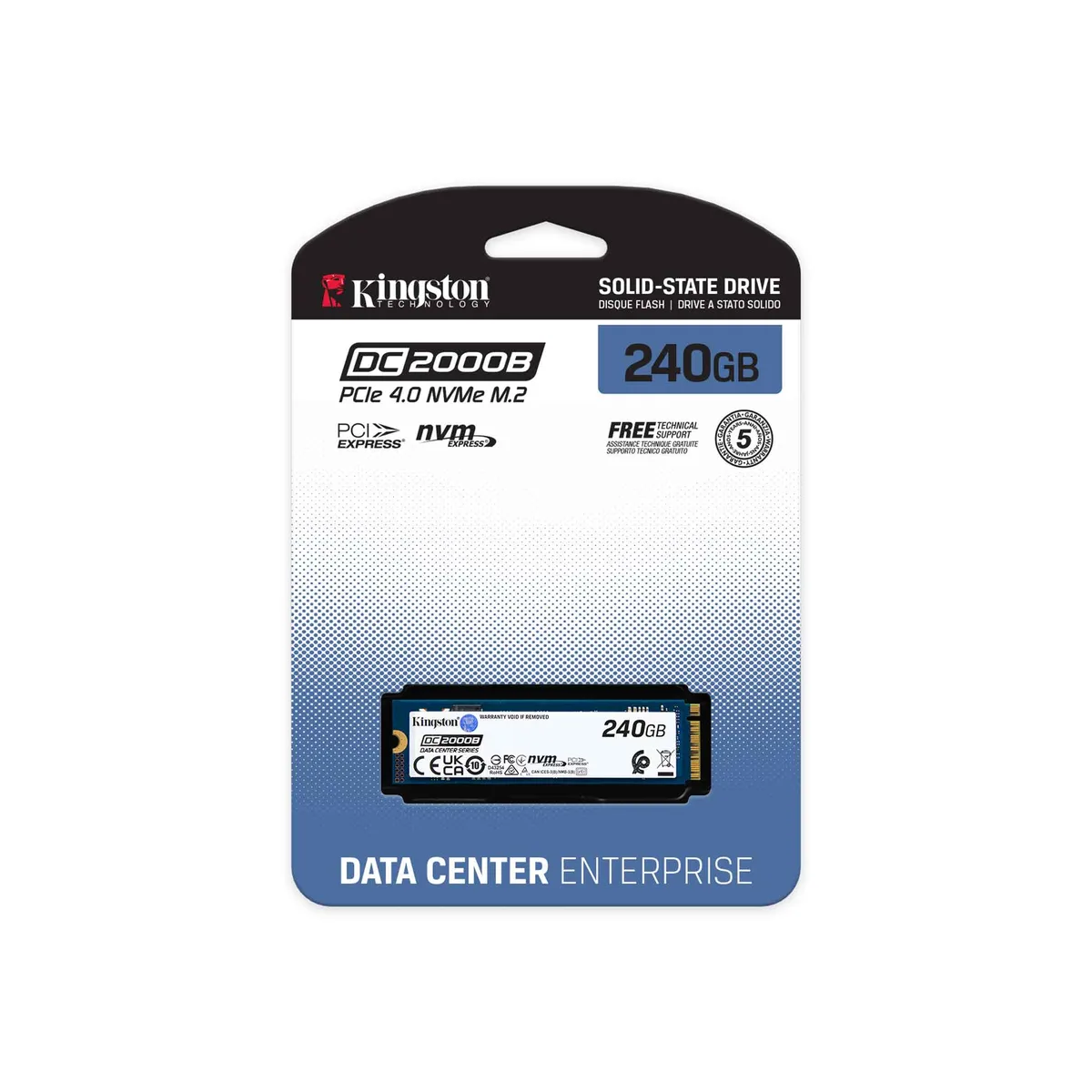

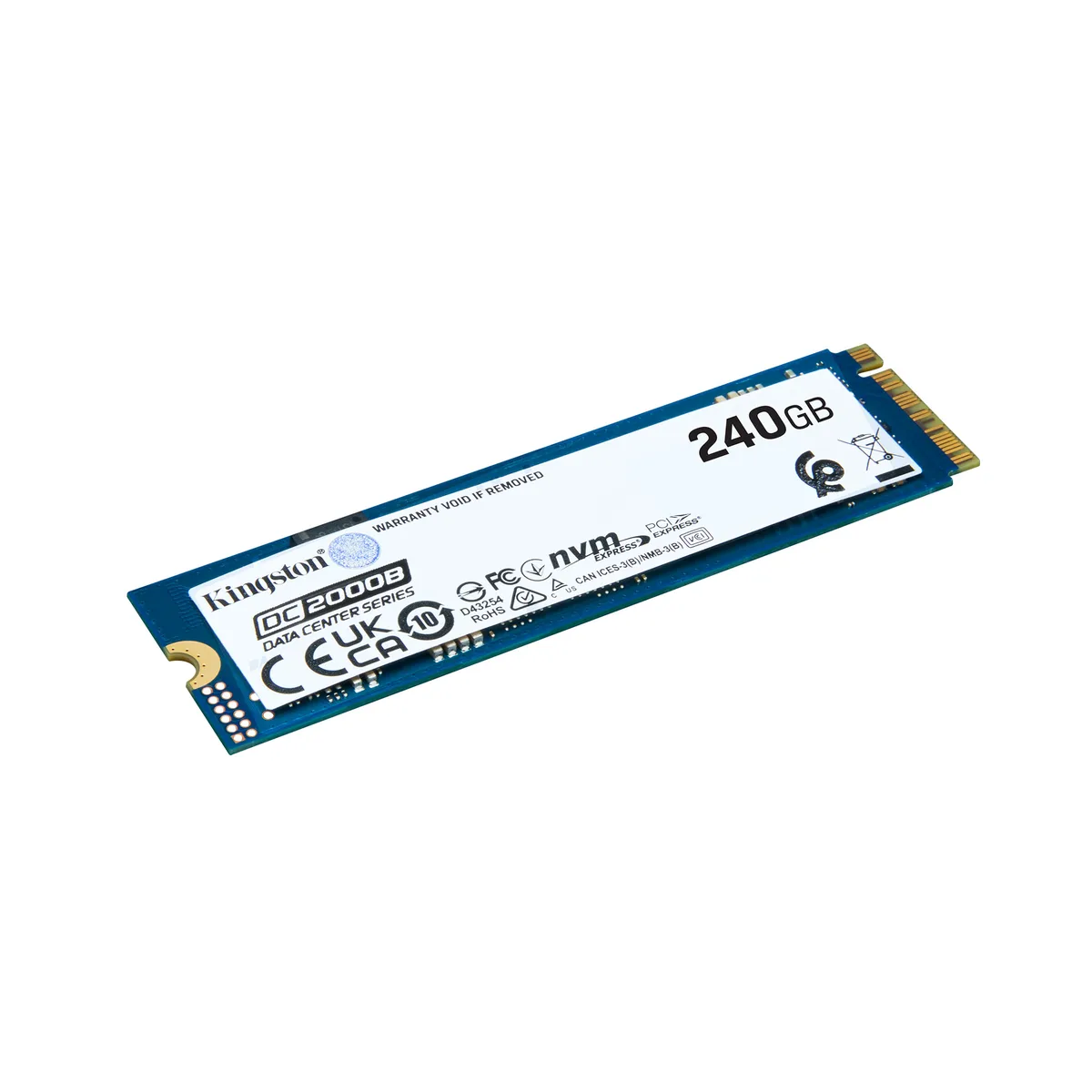

Kingston DC2000B 240GB M.2 2280 NVMe SSD

This enterprise-class solid-state drive uses a PCIe 4.0 x4 interface and 112-layer 3D TLC NAND to deliver sequential read speeds up to 4500 MBps and sequential write speeds up to 400 MBps. Random read performance reaches 260,000 IOPS with random write at 18,000 IOPS. An integrated aluminum heatsink and hardware-based power loss protection support consistent operation in server environments.

Suited for rack-mount server boot drives

The 0.4 DWPD endurance rating and 175 TBW limit make this drive appropriate for read-intensive workloads such as OS boot, logging or application caching. Builders who need higher write endurance for databases, content creation or heavy mixed workloads should look at drives with a higher DWPD rating and larger TBW allocation.

0.4 DWPD endurance rating

This single figure defines the drive's write lifetime: 0.4 drive writes per day over the warranty period. If your workload exceeds this write intensity, the drive will reach its endurance limit sooner; if your workload is predominantly reads with light writes, the rating provides adequate headroom.

Highlights

  • Fast boot and caching with 4500 MBps sequential read
  • Low-latency response at 70 µs read and 53 µs write
  • Enterprise endurance rated at 0.4 DWPD and 175 TBW
  • Hardware power-loss protection guards data during outages
  • Integrated heatsink enables thermal headroom in dense servers

Specifications

BrandKingston
ModelSEDC2000BM8/240G
Form FactorM.2 2280
Capacity240GB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 4500 MBps
Max Sequential WriteUp to 400 MBps
4KB Random ReadUp to 260,000 IOPS
4KB Random WriteUp to 18,000 IOPS
Read Latency70µs
Write Latency53µs
Endurance0.4 DWPD
Terabytes Written (TBW)175TB
MTBF2,000,000 hours
Power Consumption (Active)Average Read: 2.97W
Average Write: 4.02W
Max Read: 3.01W
Max Write: 4.09W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance20G Peak (10-2000Hz)
Height8.3mm
Width22mm
Depth80mm
Weight9g
Shipping weight0.11 kg
Package size180 × 130 × 13 mm
