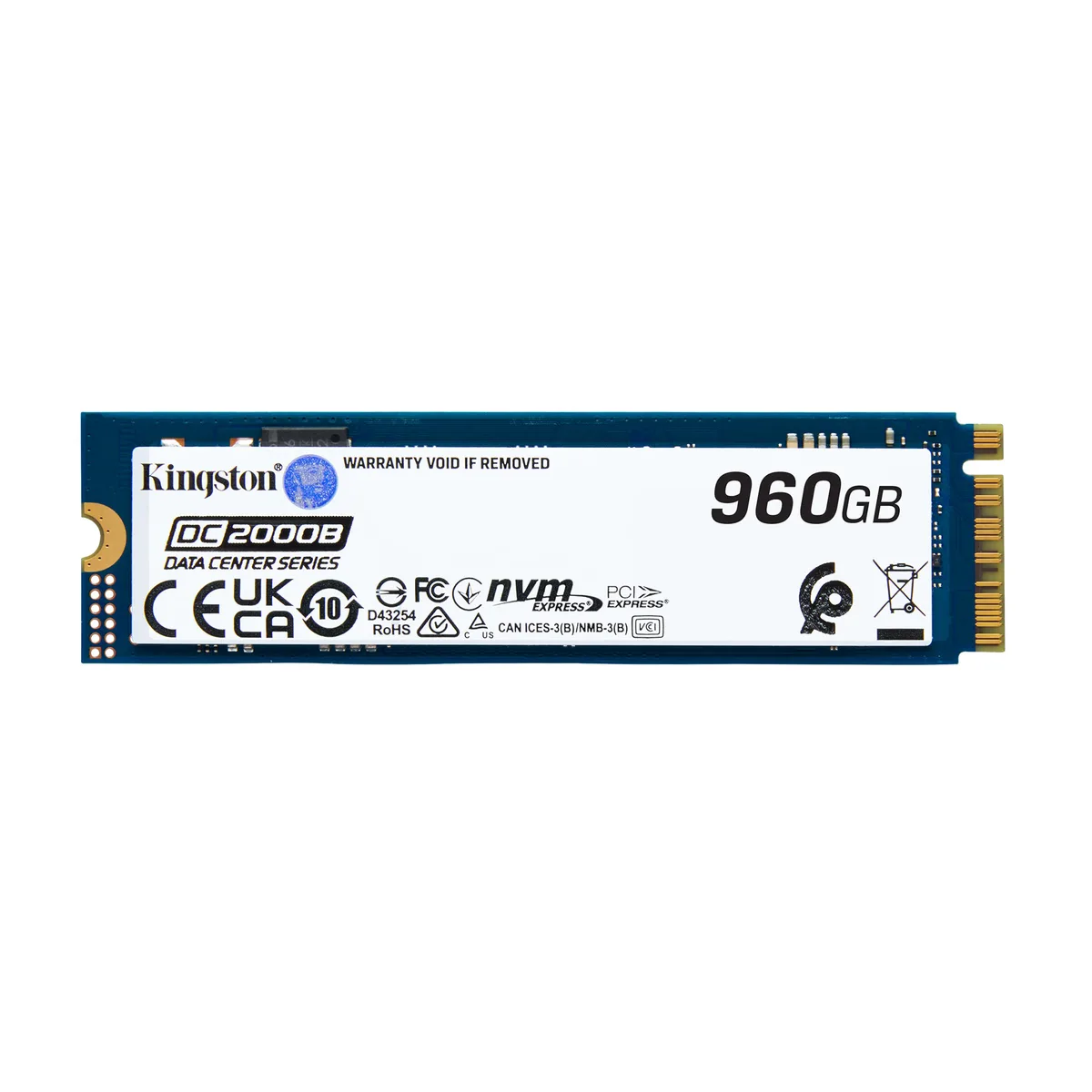

Green printed circuit board M.2 2280 NVMe SSD with black controller and silver label

Kingston Technology Corp.

Kingston Technology Corp. SEDC2000BM8/960G 960GB M.2 2280 PCIe 4.0 NVMe enterprise SSD

SKU CH-ZH5J-S4JS0 MPN SEDC2000BM8/960G

Enterprise M.2 2280 NVMe SSD with 960 GB capacity, 7000 MB/s read, 1300 MB/s write, and 0.4 DWPD endurance

  • Form FactorM.2 2280
  • Capacity960GB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 7000 MBps
  • Max Sequential WriteUp to 1300 MBps

Options 960GB

  • 960 GB capacity stores critical data sets
  • PCIe 4.0 x4 delivers up to 7000 MBps sequential read
  • 4 DWPD and 700 TBW endurance rating
  • Power-loss protection safeguards data during outages
  • M.2 2280 form factor fits dense server chassis

Kingston DC2000B 960 GB M.2 2280 NVMe

The Kingston Data Center DC2000B is an enterprise-class solid-state drive built for servers and data centres. It delivers 960 GB of storage using 3D TLC NAND and a PCI Express 4.0 x4 interface. Sequential reads reach up to 7000 MBps while writes hit 1300 MBps. Random performance is rated at 540,000 read IOPS and 47,000 write IOPS.

Suits read-heavy workloads; not for heavy write duty

This drive fits read-intensive applications such as boot volumes, content delivery and caching where endurance of 0.4 DWPD and 700 TBW is sufficient. It is not for buyers who need higher write endurance for databases, logging or mixed workloads that exceed the rated terabytes written. The 70 µs read latency and 20 µs write latency support consistent low-latency access.

0.4 DWPD endurance rating

The single specification that decides fit is the 0.4 drive writes per day endurance over the warranty period. This figure determines whether the 960 GB capacity can survive the target workload without early wear-out. Verify your daily write volume against this rating before deployment.

Highlights

  • 960 GB capacity stores critical data sets
  • PCIe 4.0 x4 delivers up to 7000 MBps sequential read
  • 4 DWPD and 700 TBW endurance rating
  • Power-loss protection safeguards data during outages
  • M.2 2280 form factor fits dense server chassis

Specifications

BrandKingston
ModelSEDC2000BM8/960G
Form FactorM.2 2280
Capacity960GB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 1300 MBps
4KB Random ReadUp to 540,000 IOPS
4KB Random WriteUp to 47,000 IOPS
Read Latency70µs
Write Latency20µs
Endurance0.4 DWPD
Terabytes Written (TBW)700TB
MTBF2,000,000 hours
Power Consumption (Active)Average Read: 3.26W
Average Write: 7.36W
Max Read: 3.36W
Max Write: 7.80W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance20G Peak (10-2000Hz)
Height8.3mm
Width22mm
Depth80mm
Weight11g
Shipping weight0.02 kg
Package size184 × 130 × 13 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the DC2000B draw at max write and what is its operating temperature ceiling?

The drive peaks at 7.80 W during write operations and is rated for continuous operation up to 70 °C.

What host interface and slot length must the server provide for this M.2 2280 drive?

The drive requires an M.2 2280 slot wired for PCIe 4.0 x4 NVMe signalling.

Will the 0.4 DWPD endurance and 700 TB TBW rating still be valid if the drive shares a backplane with higher-endurance models?

Yes, the 0.4 DWPD and 700 TB TBW ratings are intrinsic to this drive and do not change when mixed with other SSDs.
