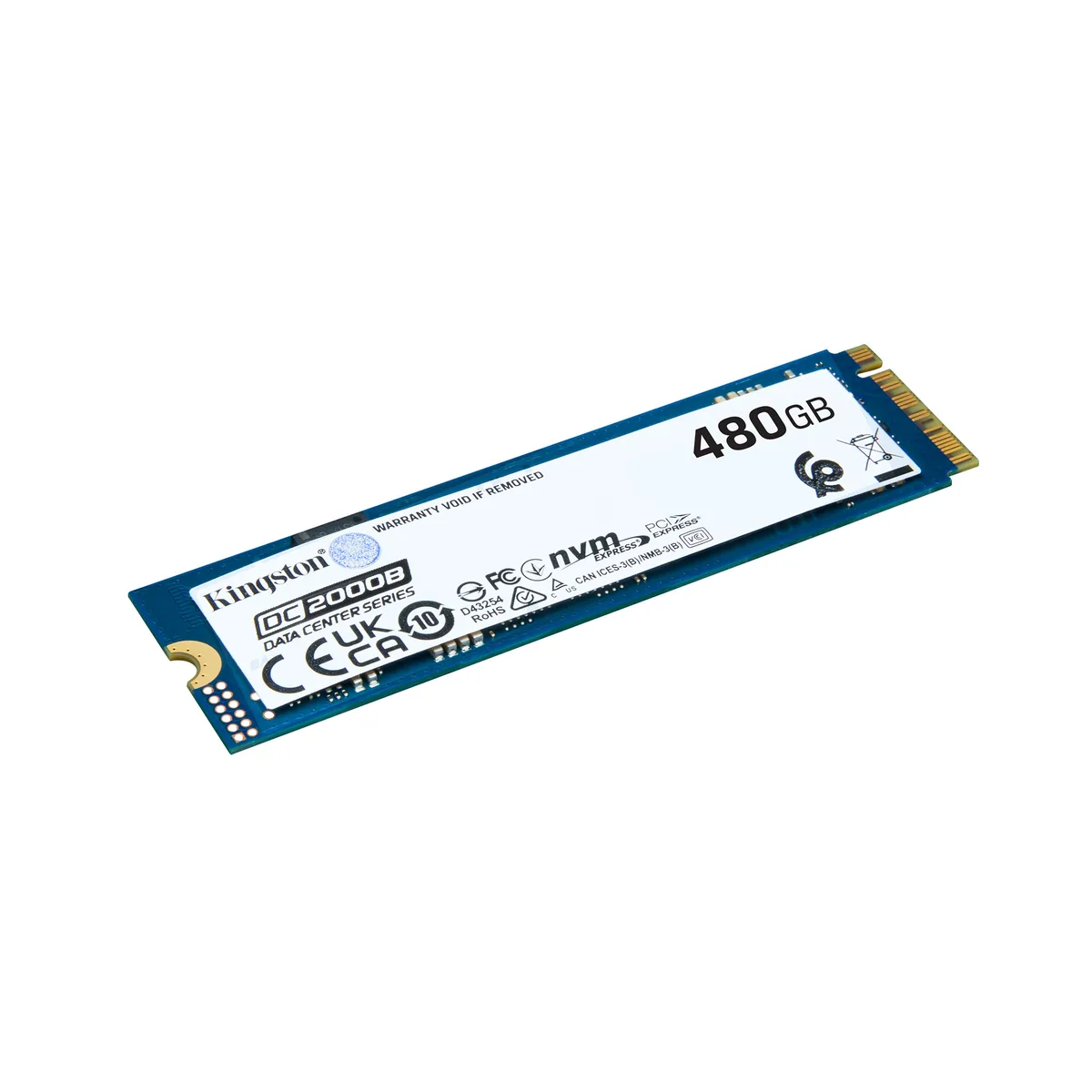

Black M.2 2280 circuit board with gold edge connector and silver controller chips

Kingston Technology Corp.

Kingston Technology Corp. SEDC2000BM8/480G enterprise SSD 480GB M.2 2280 PCIe 4.0 x4

SKU CH-KTA6-Y9G96 MPN SEDC2000BM8/480G

Enterprise SSD with 480 GB capacity, PCIe 4.0 x4 interface, up to 7000 MB/s read and 800 MB/s write speeds, 0.4 DWPD endurance and 350 TBW rating

  • Form FactorM.2 2280
  • Capacity480GB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 7000 MBps
  • Max Sequential WriteUp to 800 MBps

Options 480GB

  • Up to 7000 MB/s sequential read for fast data access
  • Up to 530,000 IOPS random read for responsive mixed workloads
  • 4 DWPD endurance with 350 TBW rating for write-heavy server use
  • PCIe 4.0 x4 NVMe interface delivers high throughput on modern platforms
  • M.2 2280 form factor fits dense server and workstation slots

Enterprise NVMe SSD for servers

This Kingston SEDC2000BM8/480G is a 480GB M.2 2280 drive built for data-centre workloads. It connects through a PCIe 4.0 x4 interface using the NVMe protocol. The 3D TLC memory delivers up to 7000 MBps sequential read and 800 MBps sequential write speeds. Random performance reaches 530,000 read IOPS and 32,000 write IOPS.

Thermals noise and power

Active power draw averages 3.22 W during reads and 5.60 W during writes, peaking at 3.29 W and 5.77 W respectively. The drive operates from 0 °C to 70 °C and survives storage between -40 °C and 85 °C. Vibration resistance is rated at 20 G peak across 10–2000 Hz. No moving parts mean silent operation in normal use.

Endurance rating 0.4 DWPD

The drive is warranted for 0.4 drive writes per day, equivalent to 350 TB total bytes written. MTBF is rated at 2,000,000 hours. Buyers who need higher write endurance or larger capacities should consider other models. The 8.3 mm height fits standard M.2 slots.

Highlights

  • Up to 7000 MB/s sequential read for fast data access
  • Up to 530,000 IOPS random read for responsive mixed workloads
  • 4 DWPD endurance with 350 TBW rating for write-heavy server use
  • PCIe 4.0 x4 NVMe interface delivers high throughput on modern platforms
  • M.2 2280 form factor fits dense server and workstation slots

Specifications

BrandKingston
ModelSEDC2000BM8/480G
Form FactorM.2 2280
Capacity480GB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 800 MBps
4KB Random ReadUp to 530,000 IOPS
4KB Random WriteUp to 32,000 IOPS
Read Latency70µs
Write Latency29µs
Endurance0.4 DWPD
Terabytes Written (TBW)350TB
MTBF2,000,000 hours
Power Consumption (Active)Average Read: 3.22W
Average Write: 5.60W
Max Read: 3.29W
Max Write: 5.77W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance20G Peak (10-2000Hz)
Height8.3mm
Width22mm
Depth80mm
Weight10g
Shipping weight0.02 kg
Package size184 × 130 × 15 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 PCIe 4.0 x4 drive, and what step is often missed?

Insert the M.2 2280 module into the PCIe 4.0 x4 slot at a 30-degree angle, then secure it with the retention screw; the step often missed is confirming the motherboard key matches the M-key notch on the drive.

What maintenance or replacement will the SEDC2000BM8/480G need later?

The drive has no moving parts, so routine maintenance is not required; replacement is driven by the 350 TBW endurance rating or the 0.4 DWPD limit reached over its service life.

What limit appears first under sustained heavy writes on this 480 GB enterprise SSD?

Sustained sequential write speed is rated up to 800 MBps, and the 0.4 DWPD endurance budget will be consumed before thermal throttling becomes the primary constraint.
