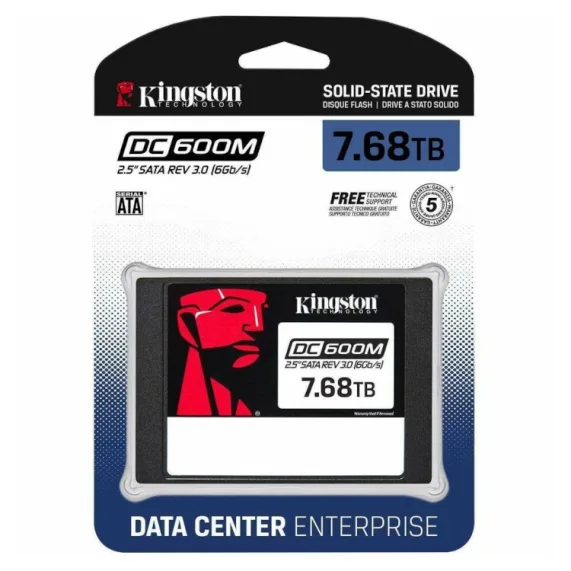

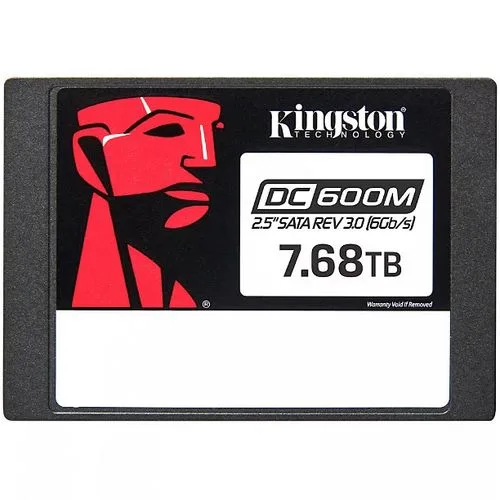

Silver 2.5 inch SATA SSD with black label

Kingston Technology Corp.

Kingston Technology Corp. SEDC600M/7680G 7.68TB enterprise SSD

SKU CH-AR48-5446S MPN SEDC600M/7680G

2.5-inch SATA enterprise SSD with 7.68 TB capacity, 560 MB/s read, 530 MB/s write, 1 DWPD endurance and power-loss protection for mixed-use server workloads

  • Form Factor2.5"
  • Capacity7.68TB
  • Memory Components3D TLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 560 MBps
  • Max Sequential WriteUp to 530 MBps

Options 7.68TB

Struck-through versions exist but are not stocked here.

  • 68TB capacity supports large-scale server datasets
  • 560MB/s sequential read speeds up data access
  • 34,000 random write IOPS handles mixed workloads
  • Power-loss capacitors protect data during outages
  • 14,016TB endurance rating suits write-intensive applications

7.68 TB SATA enterprise drive

The Kingston DC600M is a 2.5 inch SATA III solid-state drive built for mixed-use data-centre workloads. It uses 3D TLC NAND and hardware-based power-loss protection to safeguard data during unexpected outages. The drive targets system integrators and cloud providers who need predictable latency in high-volume rack servers.

Steady mixed-use endurance

Rated at one drive write per day, the SSD delivers 14,016 TBW over its lifetime with an MTBF of two million hours. Sequential throughput reaches 560 MBps read and 530 MBps write while random performance holds at 94,000 read IOPS and 34,000 write IOPS. Read latency stays below 130 µs and write latency below 70 µs for consistent quality of service.

Upgrade from lower-capacity SATA SSDs

The 7.68 TB capacity replaces multiple smaller drives in storage arrays, reducing slot count and cabling. Power draw averages 1.45 W active with peaks of 1.6 W read and 3.6 W write, easing thermal budgets in dense chassis. The jump makes sense when a single high-capacity device simplifies RAID layouts and meets SLA targets.

Highlights

  • 68TB capacity supports large-scale server datasets
  • 560MB/s sequential read speeds up data access
  • 34,000 random write IOPS handles mixed workloads
  • Power-loss capacitors protect data during outages
  • 14,016TB endurance rating suits write-intensive applications

Specifications

BrandKingston
ModelSEDC600M/7680G
Form Factor2.5"
Capacity7.68TB
Memory Components3D TLC
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 530 MBps
4KB Random ReadUp to 94,000 IOPS
4KB Random WriteUp to 34,000 IOPS
Read Latency<130 µs
Write Latency<70 us
Endurance1 DWPD
Terabytes Written (TBW)14016TB
MTBF2,000,000 hours
Power Consumption (Idle)1.30W
Power Consumption (Active)Average: 1.45W
Max Read: 1.6W
Max Write: 3.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance2.17G Peak (7-800Hz) operating
20G Peak (10-2000Hz) non-operating
Height7mm
Width100mm
Depth69.9mm
Weight92.34g
Shipping weight0.05 kg
Package size184 × 127 × 5 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the 7.68TB DC600M draw when running continuously in a server?

Idle power is 1.30W, average active power is 1.45W, with maximum read at 1.6W and maximum write at 3.6W.

What host interface and form factor must my server provide for this 2.5-inch SATA SSD?

The drive requires a standard 2.5-inch SATA III (6Gbps) hot-plug bay with SATA data and power connectors.

Will the 560 MBps sequential read speed saturate an older 3Gbps SATA backplane I still use?

The drive operates at SATA III 6Gbps but is backward compatible; on a 3Gbps link it will be limited to roughly half the rated throughput.
