Compact servo with metal gears, dual bearings, and status indicator light

LORDWORLD

LORDWORLD LX-16A Serial Bus Servo Dual Bearing Full Metal Gear 17kg.cm 240°

SKU CH-CBXR-FNCA9

Serial bus servo with dual ball bearings and full metal gears delivers 17 kg·cm torque at 7.4 V with 240° control angle and real-time position, temperature, voltage feedback

  • High torque for demanding robots with 17 kg/cm at 7.4 V
  • Real-time position, temperature and voltage feedback simplifies debugging
  • Warning light blinks on overcurrent, overtemperature or locked-rotor events

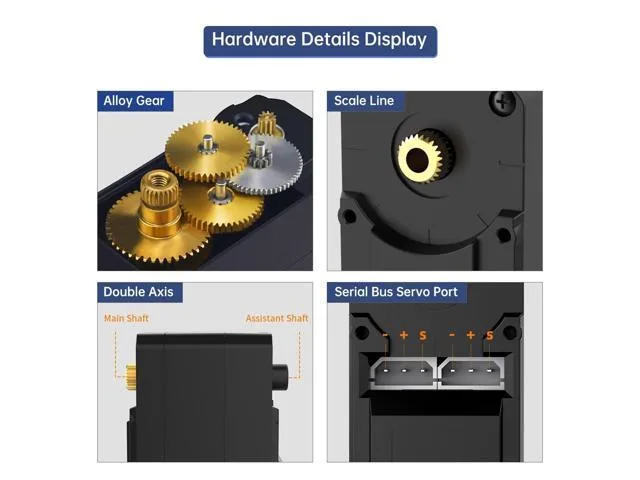

  • Full metal gears and dual ball bearings extend service life and accuracy
  • Daisy-chain serial wiring reduces I/O ports and keeps builds tidy

High-Torque Serial Bus Servo

The LORDWORLD LX-16A is a serial bus servo built with full metal gears and dual ball bearings. It delivers 17 kg.cm of torque at 7.4 V and 15 kg.cm at 6.6 V. Real-time feedback reports position, temperature and voltage, while a top-mounted warning light signals overcurrent, overheating or locked-rotor conditions. The control angle spans 240°.

Suited For Robot Builders And Makers

This servo suits hobbyists and developers assembling RC robots or DIY automation projects that need accurate positioning with simple daisy-chain wiring. The serial interface reduces the number of I/O ports required on the controller. Builders needing continuous rotation or a control range beyond 240° should look at other actuator types.

240° Control Angle With Serial Daisy-Chain

The single specification that decides fit is the 240° control angle combined with the serial bus daisy-chain topology. If your mechanism requires a wider rotation range or a traditional PWM connection, this unit will not match the mechanical or wiring requirements.

Highlights

  • High torque for demanding robots with 17 kg/cm at 7.4 V
  • Real-time position, temperature and voltage feedback simplifies debugging
  • Warning light blinks on overcurrent, overtemperature or locked-rotor events
  • Full metal gears and dual ball bearings extend service life and accuracy
  • Daisy-chain serial wiring reduces I/O ports and keeps builds tidy

Specifications

BrandLORDWORLD

Questions about this item

What mounting dimensions does the LX-16A servo require?

The servo uses a standard serial bus dual-interface connector, allowing daisy-chain wiring from a single I/O port on the control board.

How do I install the LX-16A servo, and what step is often missed?

Connect the servo in series via the dual interface, then apply 6.6 V or 7.4 V; the top warning LED will blink if overcurrent, over-temperature or locked-rotor occurs, confirming correct setup.

What maintenance will the LX-16A servo need over time?

The full metal gears and dual ball bearings are rated for extended service life; monitor the real-time position, temperature and voltage feedback to detect wear early.
