Black Micro-ATX tower with 270-degree tempered glass panels, four pre-installed ARGB fans and USB-C front port

MSI

MSI MAG PANO M100R PZ Micro-ATX PC Case

SKU CH-48RJ-DZC49 MPN MAG PANO M100R PZ

Micro-ATX tower with 270-degree tempered glass, four pre-installed ARGB fans, back-connect motherboard support and a USB 3.2 Type-C front port

  • TypeMicro ATX Tower
  • ColorBlack
  • Case MaterialABS Plastic / SPCC Steel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityMicro ATX (Back Connect) / Mini ITX

Options M100R PZ, MATX (Black)

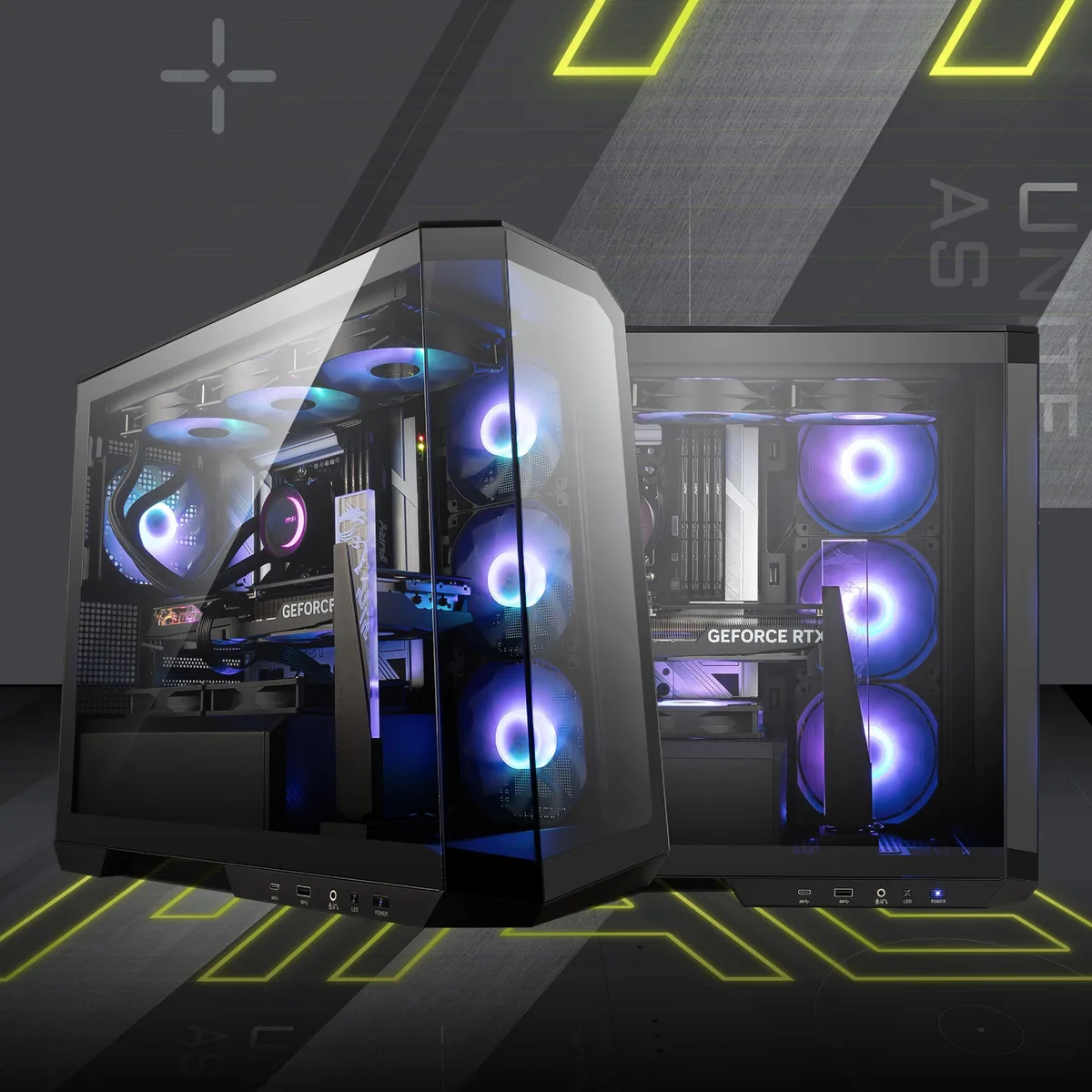

  • 270-degree panoramic tempered glass showcases your ARGB build
  • Four pre-installed 120 mm ARGB fans deliver instant lighting and airflow
  • Back-connect motherboard support keeps cables hidden for a clean interior
  • Front USB 3.2 Type-C at 20 Gbps provides fast peripheral connectivity
  • GPU support stand and dust filters protect components and simplify maintenance

Built for back-connect Micro-ATX builds

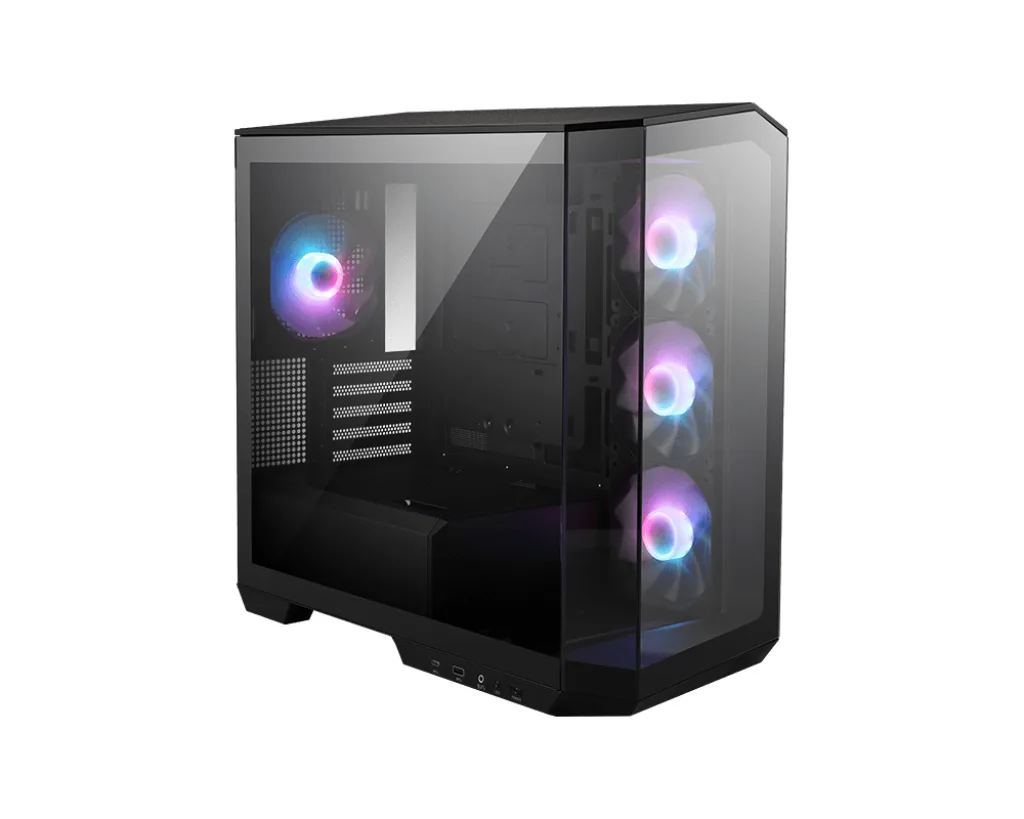

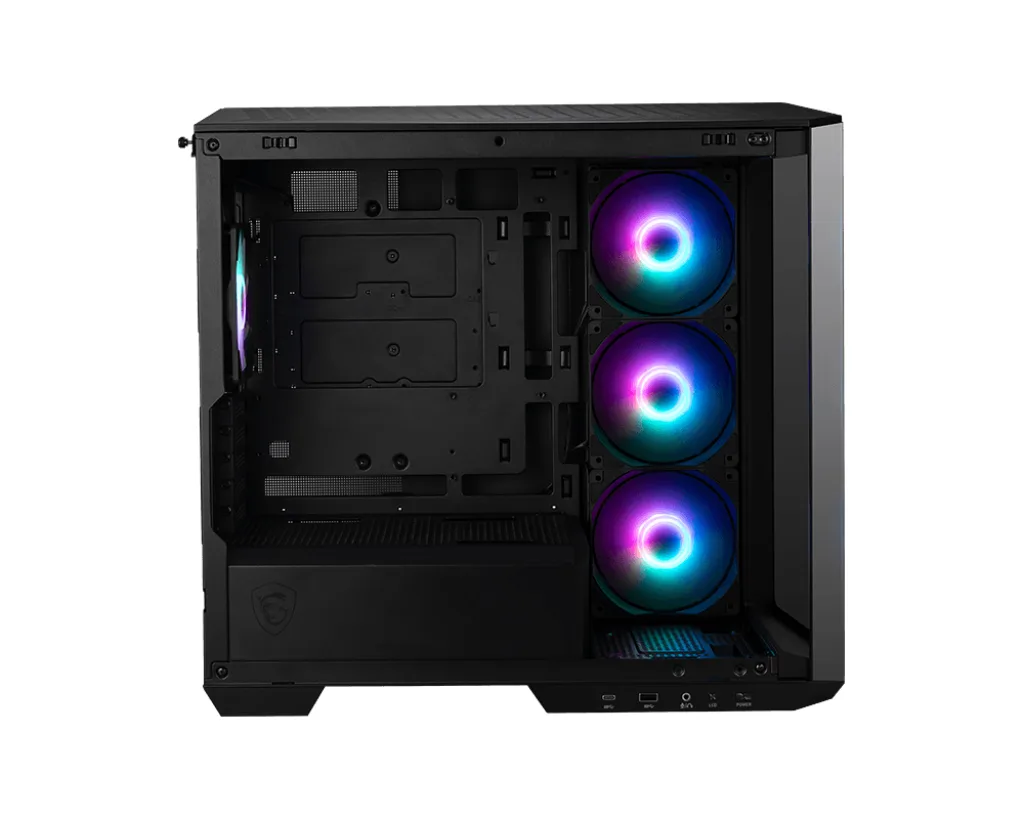

The MAG PANO M100R PZ is a Micro-ATX tower designed around MSI Project Zero motherboards that route cables behind the board. It also accepts Mini-ITX. The chassis uses ABS plastic, SPCC steel and two tempered-glass side panels to create a 270-degree panoramic view of the interior. Four pre-installed 120mm ARGB fans and a 1-to-4 ARGB-PWM control board handle lighting from the front Insta-Light Loop button.

Steady airflow with room for large radiators

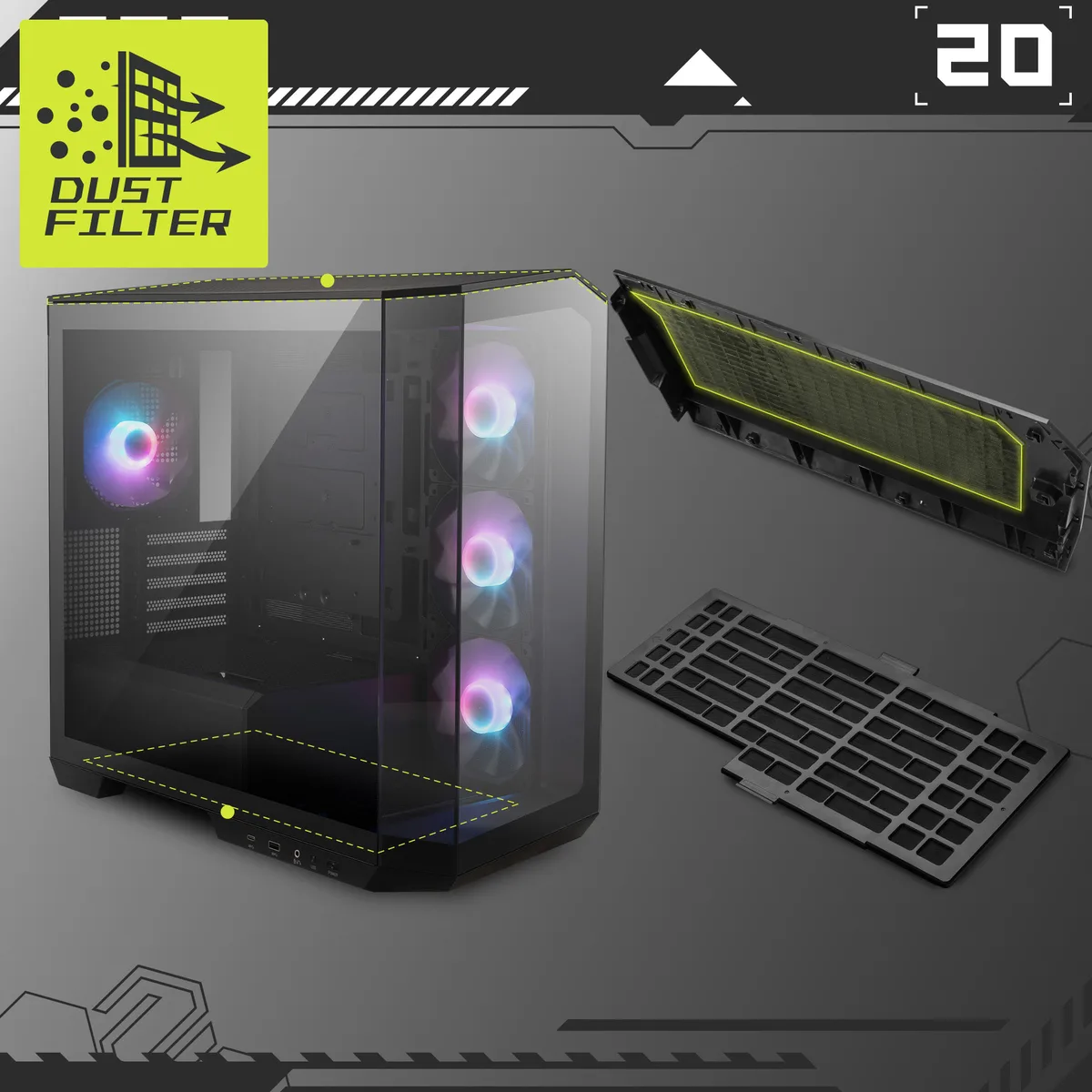

Top mounts accept 120, 240 or 360mm radiators while the rear takes 120 or 140mm units. Side, rear, bottom and PSU-shroud locations support additional 120mm fans for sustained intake and exhaust. A maximum CPU cooler height of 175mm and GPU clearance of 390mm keep high-end air and liquid coolers compatible during long sessions. Dust filters on major intakes reduce buildup over time.

Tool-free glass and a GPU stand simplify assembly

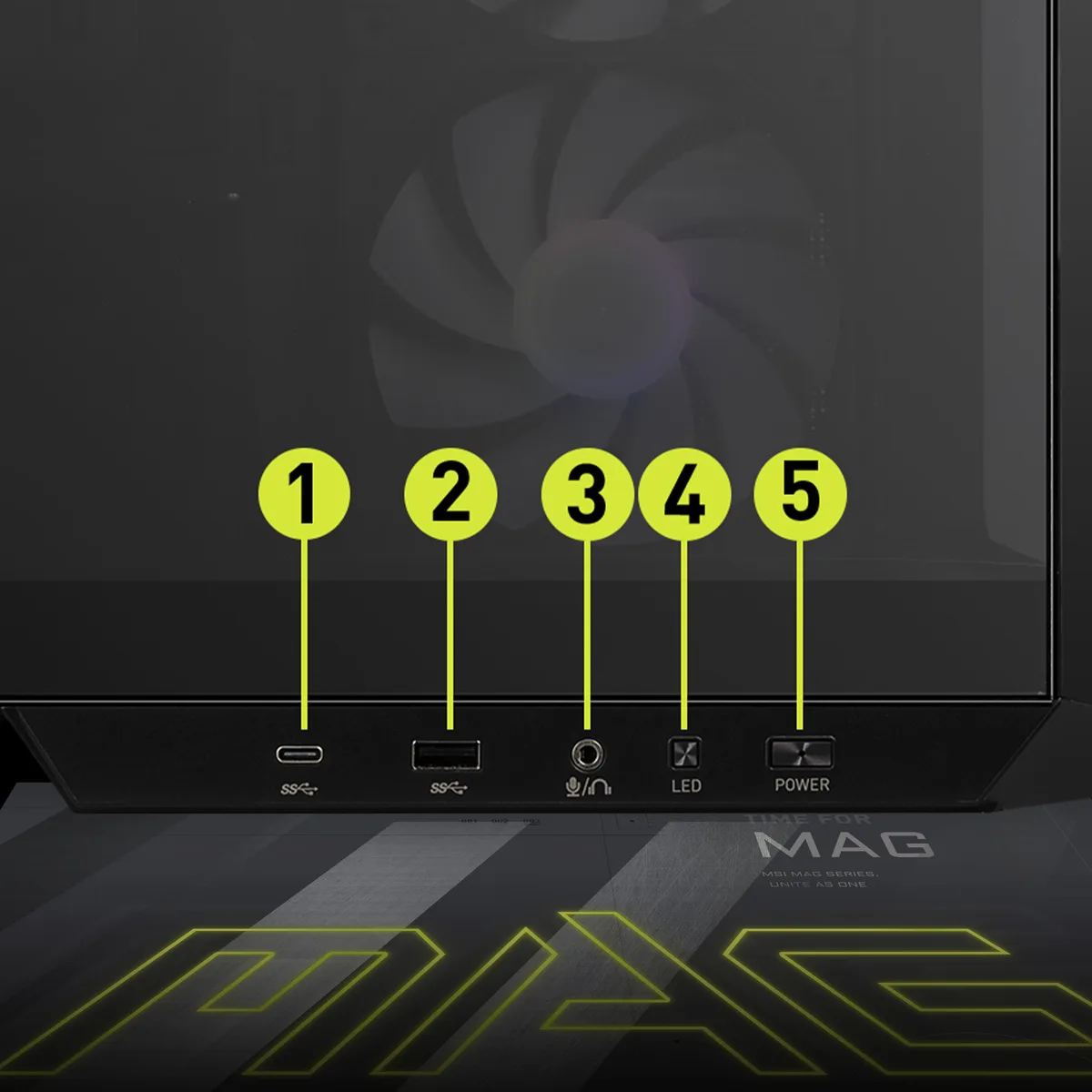

Both tempered-glass panels lift off without screws, giving wide access to the motherboard tray and drive cages. One internal 3.5-inch bay and two 2.5-inch bays sit behind the PSU shroud, which also hides cables and supports power supplies up to 200mm long. A supplied GPU support stand prevents sag on heavy cards, and the front I/O includes a USB 3.2 Type-C port running at 20Gbps plus USB 3.2 Gen 1 and audio jacks.

Highlights

  • 270-degree panoramic tempered glass showcases your ARGB build
  • Four pre-installed 120 mm ARGB fans deliver instant lighting and airflow
  • Back-connect motherboard support keeps cables hidden for a clean interior
  • Front USB 3.2 Type-C at 20 Gbps provides fast peripheral connectivity
  • GPU support stand and dust filters protect components and simplify maintenance

Specifications

BrandMSI
ModelMAG PANO M100R PZ
TypeMicro ATX Tower
ColorBlack
Case MaterialABS Plastic / SPCC Steel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityMicro ATX (Back Connect) / Mini ITX
Side Panel2 x Sides Tempered Glass Panel
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots5
Front Ports1 x USB 3.2 Type-C, 1 x USB 3.2 Gen 1, Control board: ARGB, 2 x Audio
Fan OptionsTop: 3x 120mm or 2x140mm
Side: 3x 120mm
Rear: 1x 120mm
Bottom : 1x 120mm
PSU Shroud: 2 x 120mm
Fan Including:
Side: 3x 120mm A-RGB Fan
Rear: 1x 120mm A-RGB Fan
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator OptionsTop:120/240/360mm radiator x 1
Rear : 120/140mm radiator x 1
Max GPU Length390 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions17.32*9.25*15.94in
Weight24.89 lbs
Shipping weight11.29 kg
Package size597 × 546 × 356 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the case get when four 120 mm ARGB fans run continuously all day?

The four pre-installed 120 mm ARGB fans operate at standard PWM speeds; noise and temperature depend on the fan curve you set in BIOS or software.

Which motherboard form factors and special connectors are required for the back-connect layout to work?

The chassis accepts Micro-ATX and Mini-ITX boards that use the back-connect design such as MSI Project Zero models.

Will a graphics card up to 390 mm and a CPU cooler up to 175 mm fit together with the side-mounted fans?

Yes, the 390 mm GPU limit and 175 mm cooler limit are measured with the three side 120 mm fans installed.
