White mid-tower ATX case with 270-degree tempered glass panels and four ARGB fans

MSI

MSI PANO100RPZ Mid Tower ATX PC Case

SKU CH-K90E-0KHRB MPN PANO100RPZ

Mid-tower ATX chassis with 270-degree tempered-glass view, back-connect motherboard support, four pre-installed ARGB fans and room for 390 mm GPU, 175 mm cooler and 200 mm PSU

  • TypeATX Mid Tower
  • With Power SupplyNo
  • Motherboard CompatibilityATX
  • Side Panel2 x Sides Tempered Glass Panel
  • Internal 3.5" Drive Bays1 x 3.5" 1 x 2.5"/3.5" combo (up to 2 x 2.5" or 1 x 2.5"+ 1
  • Expansion Slots5

Options 100R PZ, ATX (Black)

  • 270-degree panoramic tempered glass showcases the build
  • Back-connect motherboard support simplifies cable routing inside the case
  • Four pre-installed ARGB fans provide immediate airflow and lighting
  • GPU length up to 390 mm and CPU cooler height up to 175 mm fit high-end hardware
  • Front USB 3.2 Gen 2x2 Type-C delivers fast data access

Panoramic ATX Mid Tower

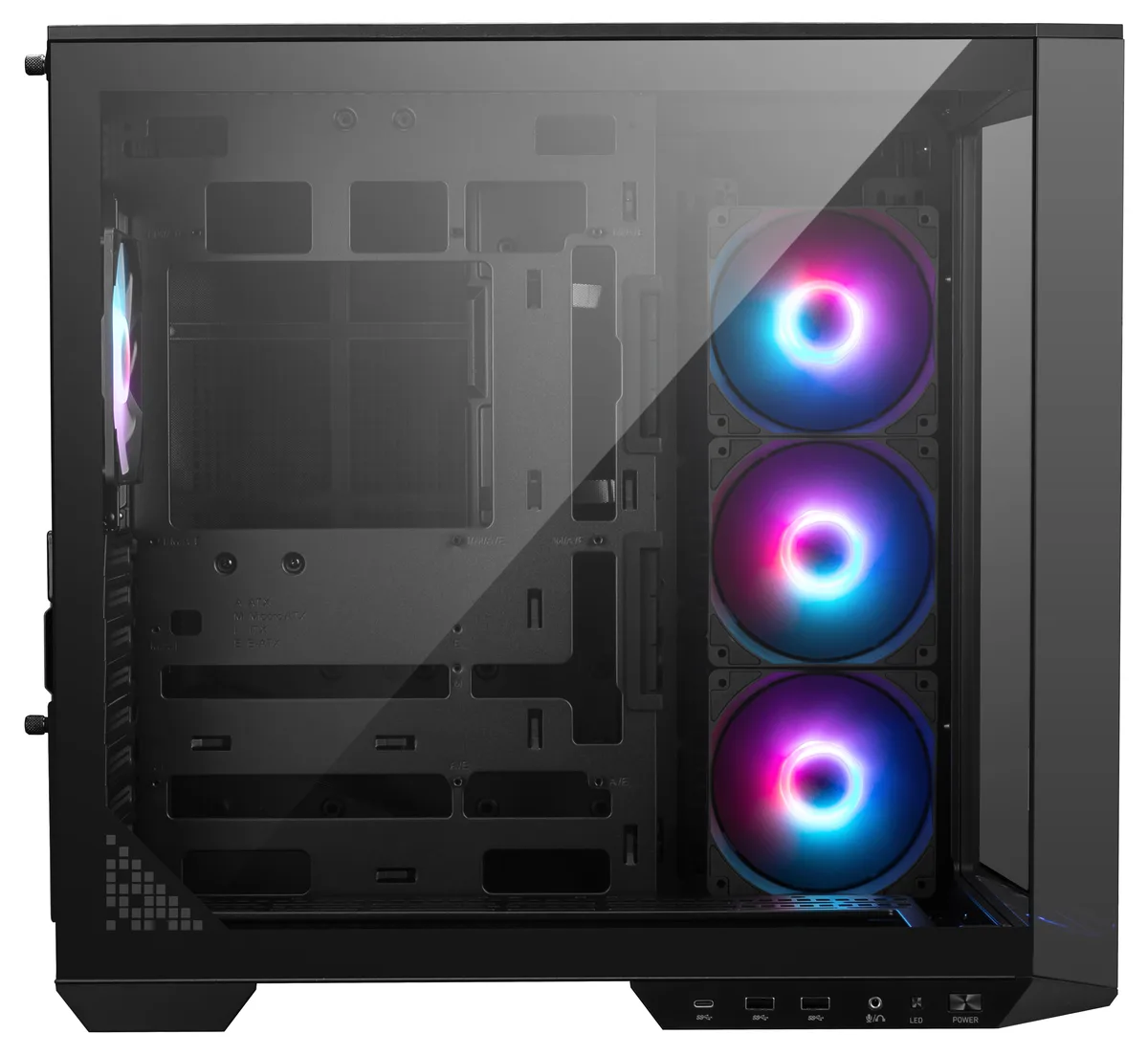

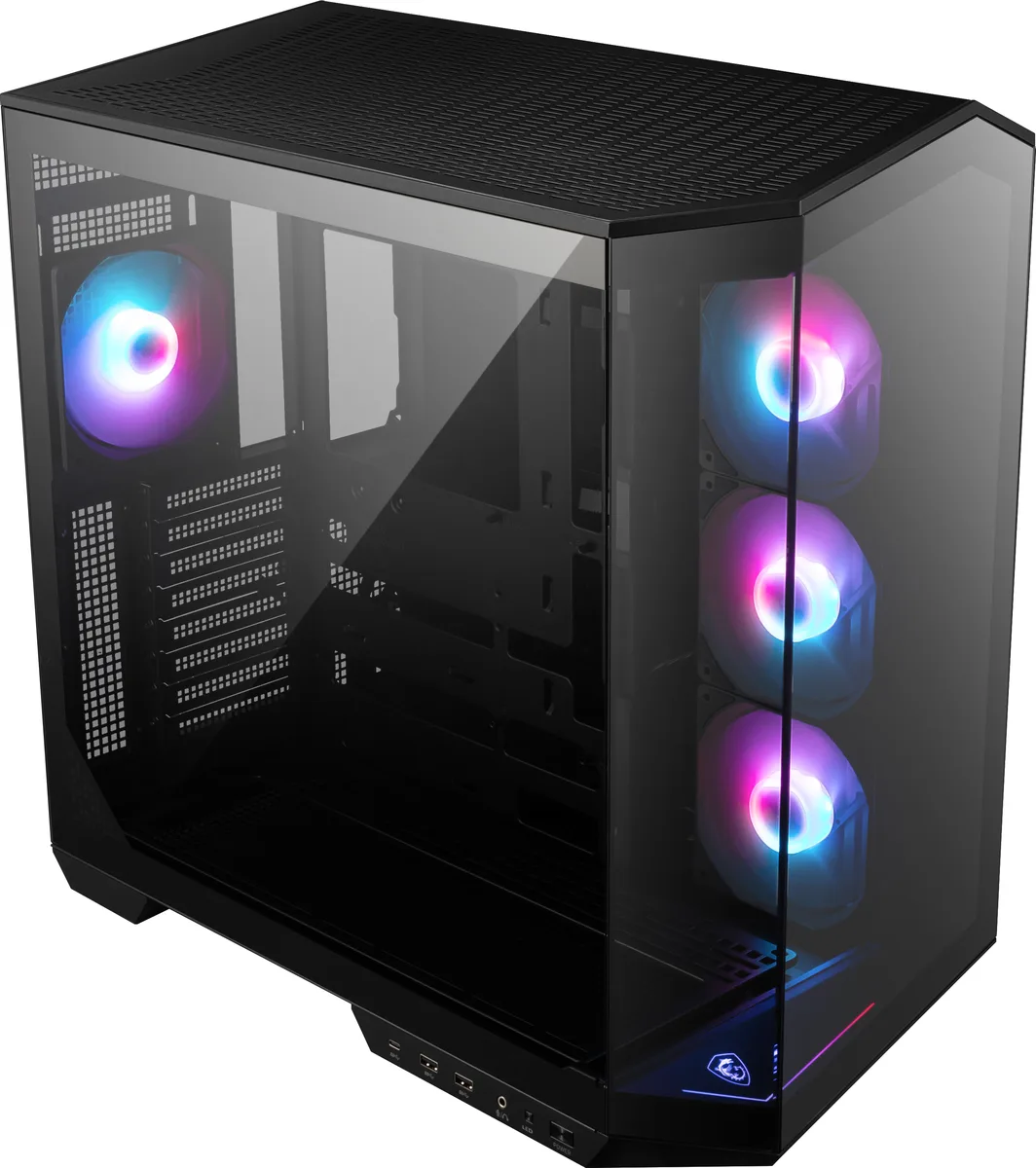

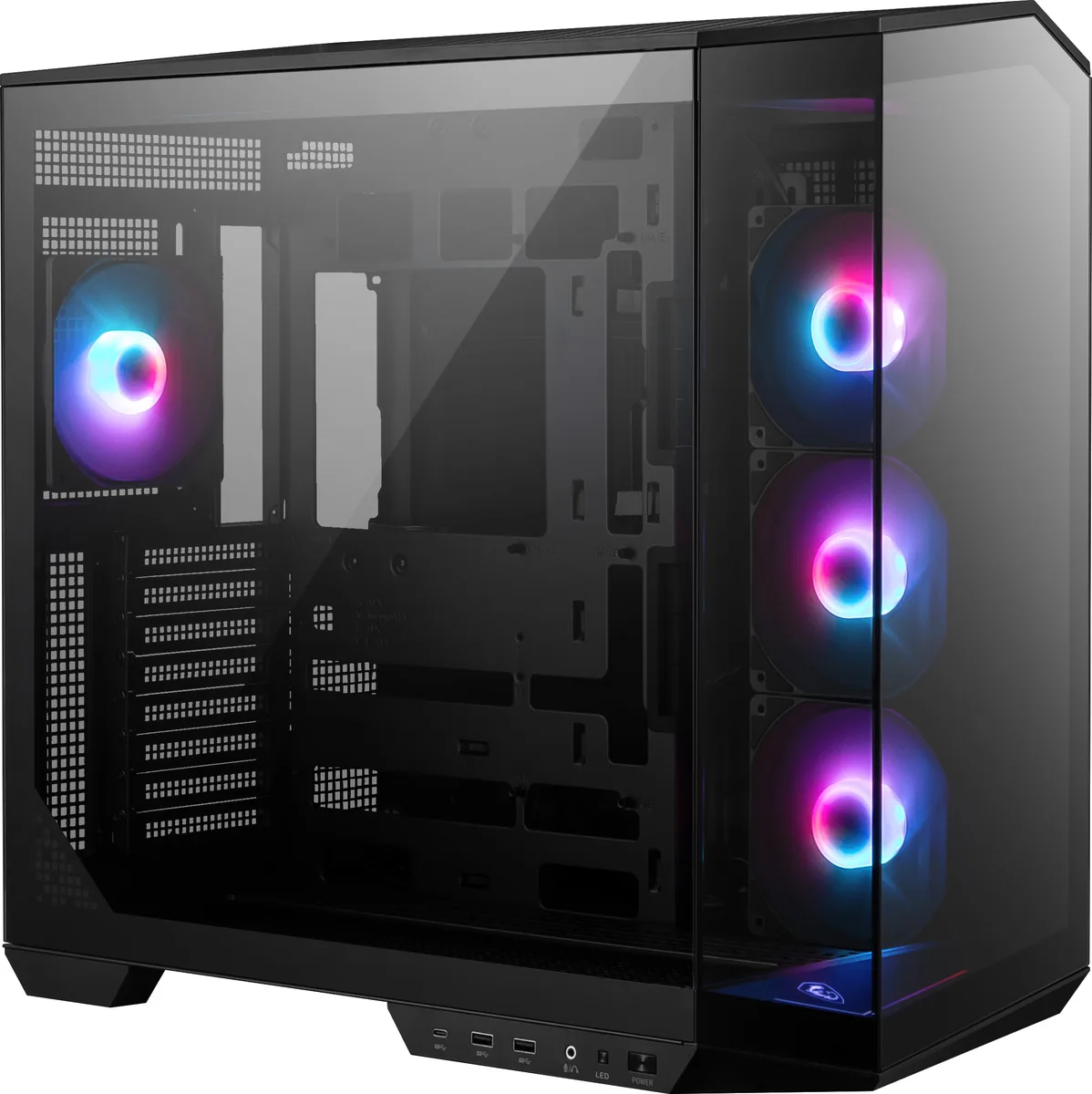

The MSI MAG PANO 100R PZ is an ATX mid tower case built around a 270-degree tempered glass layout. It targets builders who want a wide, uninterrupted view of internal components and ARGB lighting. The chassis includes four pre-installed ARGB fans, three of which use a reverse-blade design on the side panel. Back-connect motherboard support simplifies cable routing for compatible ATX and micro-ATX boards.

Tool-free glass and back-connect wiring

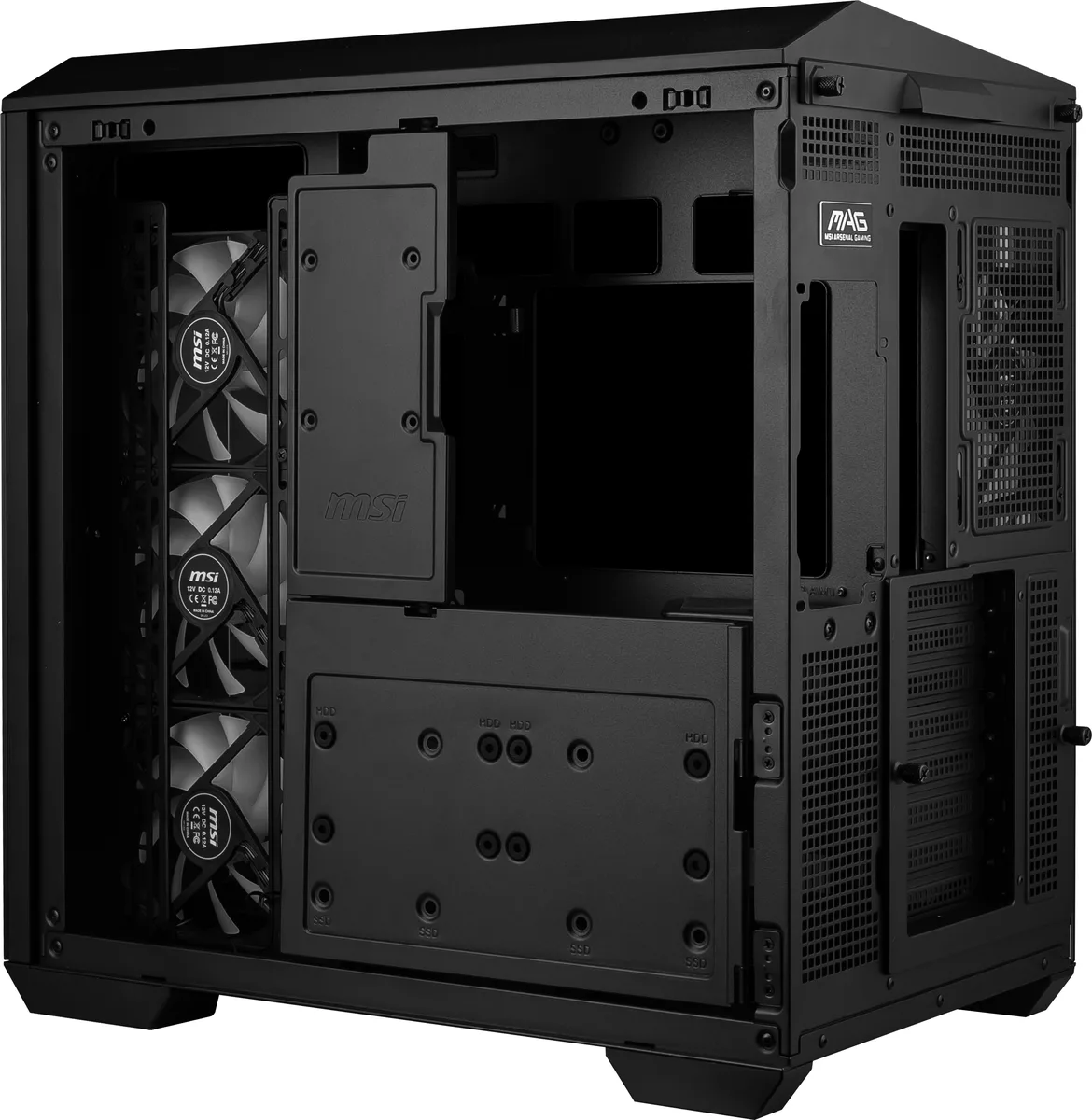

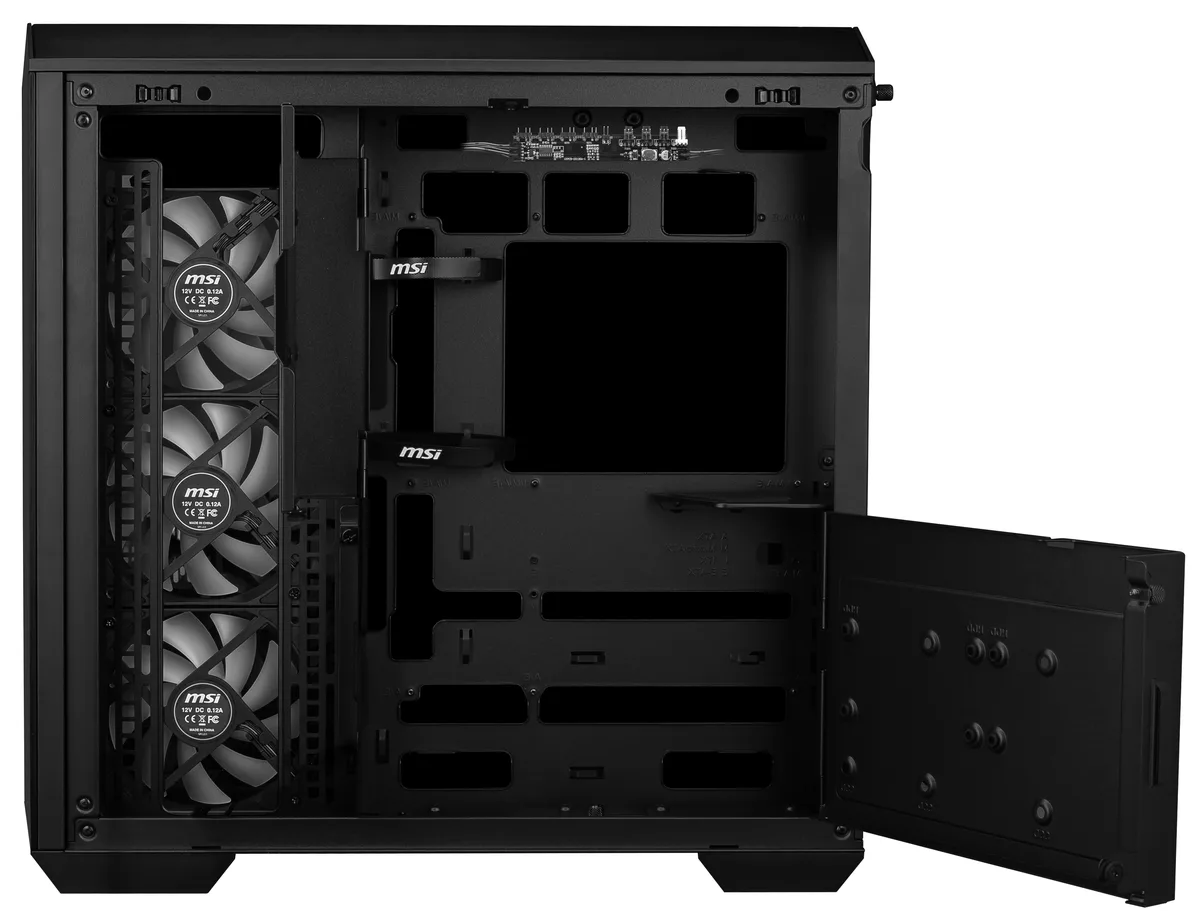

Both side panels use 4 mm tempered glass with chamfered edges that reduce visible gaps. Panels lift off without screws, so internal access is quick. The rear compartment is shaped for back-connect motherboards, letting power and data cables sit behind the tray. Builders using standard ATX boards must route cables conventionally, which can leave the rear chamber less tidy. The GPU support stand slides into a fixed rail and should be tightened before the card is seated.

Clearance checklist before ordering

Maximum graphics-card length is 390 mm and CPU cooler height is 175 mm. The power-supply bay accepts units up to 200 mm long. Top mounts handle radiators up to 360 mm, the rear takes 120 mm or 140 mm, and the side supports three 120 mm fans or a 360 mm radiator. Drive bays provide one dedicated 3.5-inch slot and one combo bay for either a second 3.5-inch drive or up to two 2.5-inch units. Front I/O includes one USB 3.2 Gen 1 Type-A, one USB 3.2 Gen 2x2 Type-C and an audio jack.

Highlights

  • 270-degree panoramic tempered glass showcases the build
  • Back-connect motherboard support simplifies cable routing inside the case
  • Four pre-installed ARGB fans provide immediate airflow and lighting
  • GPU length up to 390 mm and CPU cooler height up to 175 mm fit high-end hardware
  • Front USB 3.2 Gen 2x2 Type-C delivers fast data access

Specifications

BrandMSI
ModelMAG PANO 100R PZ
TypeATX Mid Tower
With Power SupplyNo
Motherboard CompatibilityATX
Side Panel2 x Sides Tempered Glass Panel
Internal 3.5" Drive Bays1 x 3.5"
1 x 2.5"/3.5" combo
(up to 2 x 2.5" or 1 x 2.5"+ 1 x 3.5")
Expansion Slots5
Front Ports1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio, 2 x Buttons
Fan OptionsTop: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator InstalledSide: 3 x ARGB Fan (Reverse Blade)
Rear: 1 x ARGB Fan
Radiator OptionsRear - Up to 120mm / Rear - Up to 140mm / Top - Up to 120mm / Top - Up to 240mm / Top - Up to 360mm
Max GPU Length390 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions405 x 235 x 440 mm / 15.94" x 9.25" x 17.32"
Shipping weight15.50 kg
Package size629 × 613 × 410 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the 270-degree panoramic glass and ARGB fans are working after build?

Power on the system; all four pre-installed ARGB fans should spin and light up, and the two 4 mm tempered-glass panels should form a continuous 270-degree view with minimal edge gaps.

What comes in the box and what must I buy separately?

The case includes two tempered-glass side panels, three 120 mm ARGB front fans, one 120 mm ARGB rear fan, a GPU support stand, and mounting hardware; you must supply a power supply, motherboard, CPU cooler, graphics card, storage drives and any additional fans or radiators.

Which version should I choose for a 390 mm graphics card and 360 mm top radiator?

This single model supports graphics cards up to 390 mm long and accepts a 360 mm radiator in the top position, so it covers both requirements without needing a different variant.
