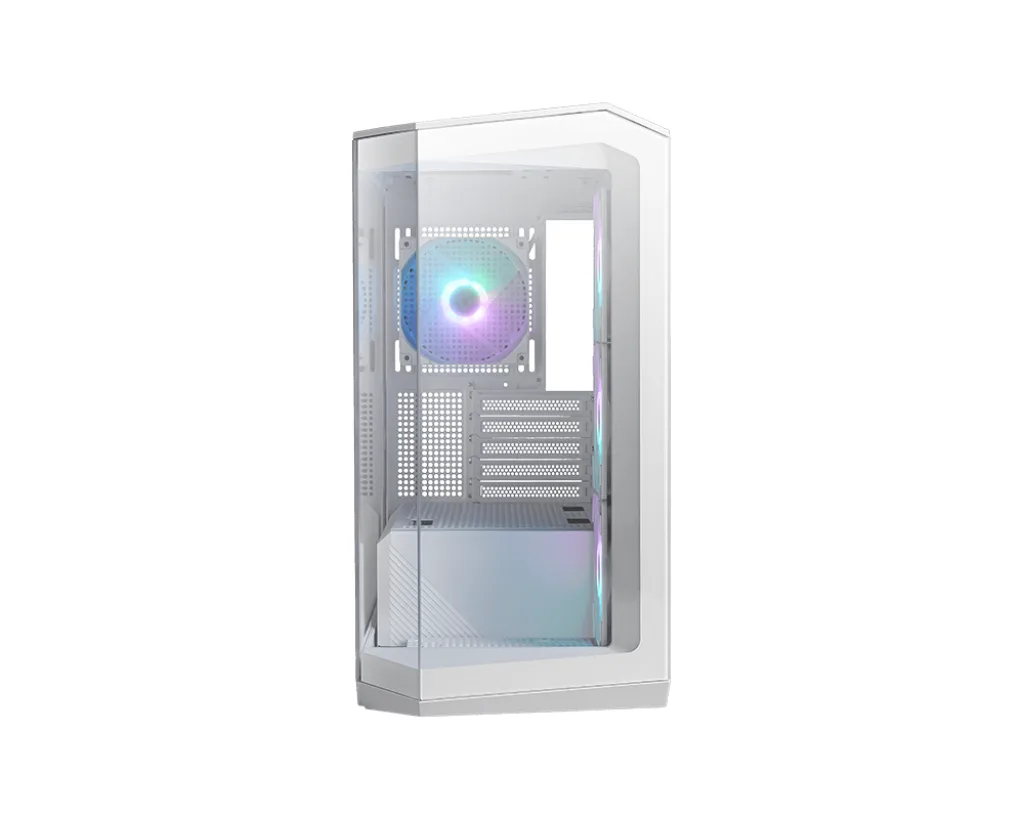

White Micro-ATX tower with 270-degree tempered glass panels and four pre-installed ARGB fans

MSI

MSI MAG PANO M100R PZ WHITE Micro-ATX PC Case

SKU CH-J9J5-EWAR3 MPN MAG PANO M100R PZ WHITE

Micro-ATX tower with 270-degree tempered glass, four pre-installed ARGB fans, USB 3.2 Type-C at 20Gbps, and support for back-connect motherboards

  • TypeMicro ATX Tower
  • ColorWhite
  • Case MaterialABS Plastic / SPCC Steel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityMicro ATX (Back Connect) / Mini ITX

Options M100R PZ, MATX (White)

  • 270-degree panoramic tempered glass showcases ARGB components inside
  • Four pre-installed ARGB fans deliver vibrant lighting out of the box
  • Back-connect motherboard support keeps cables hidden for a clean build
  • GPU support stand included prevents sag on heavy graphics cards
  • Front USB 3.2 Type-C at 20 Gbps enables fast peripheral connections

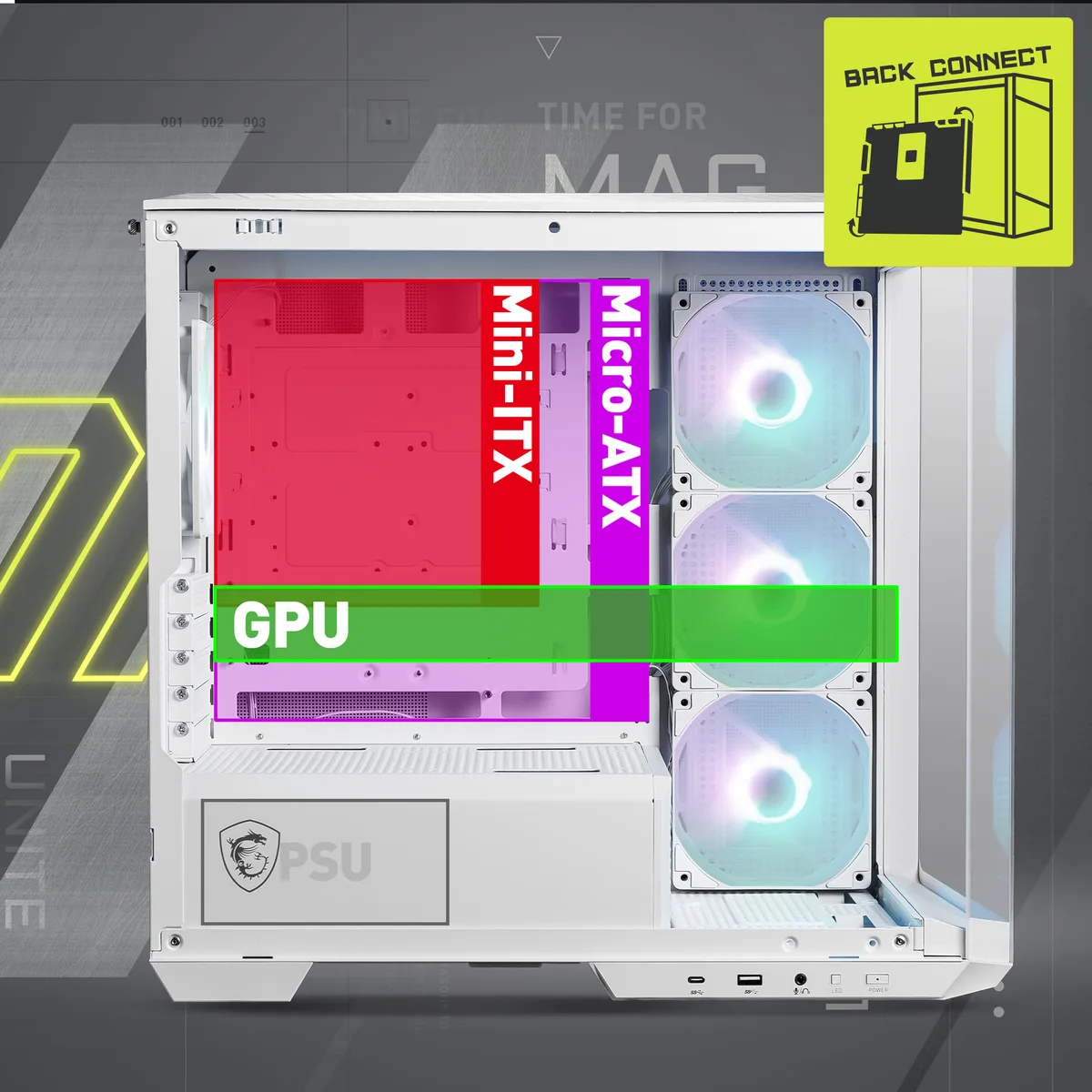

Built for back-connect Micro-ATX builds

The MAG PANO M100R PZ WHITE is a Micro-ATX tower designed for MSI Project Zero motherboards with back-connect layouts. It also accepts Mini-ITX boards. The white finish uses ABS plastic, SPCC steel and tempered glass on both side panels for a clean interior showcase.

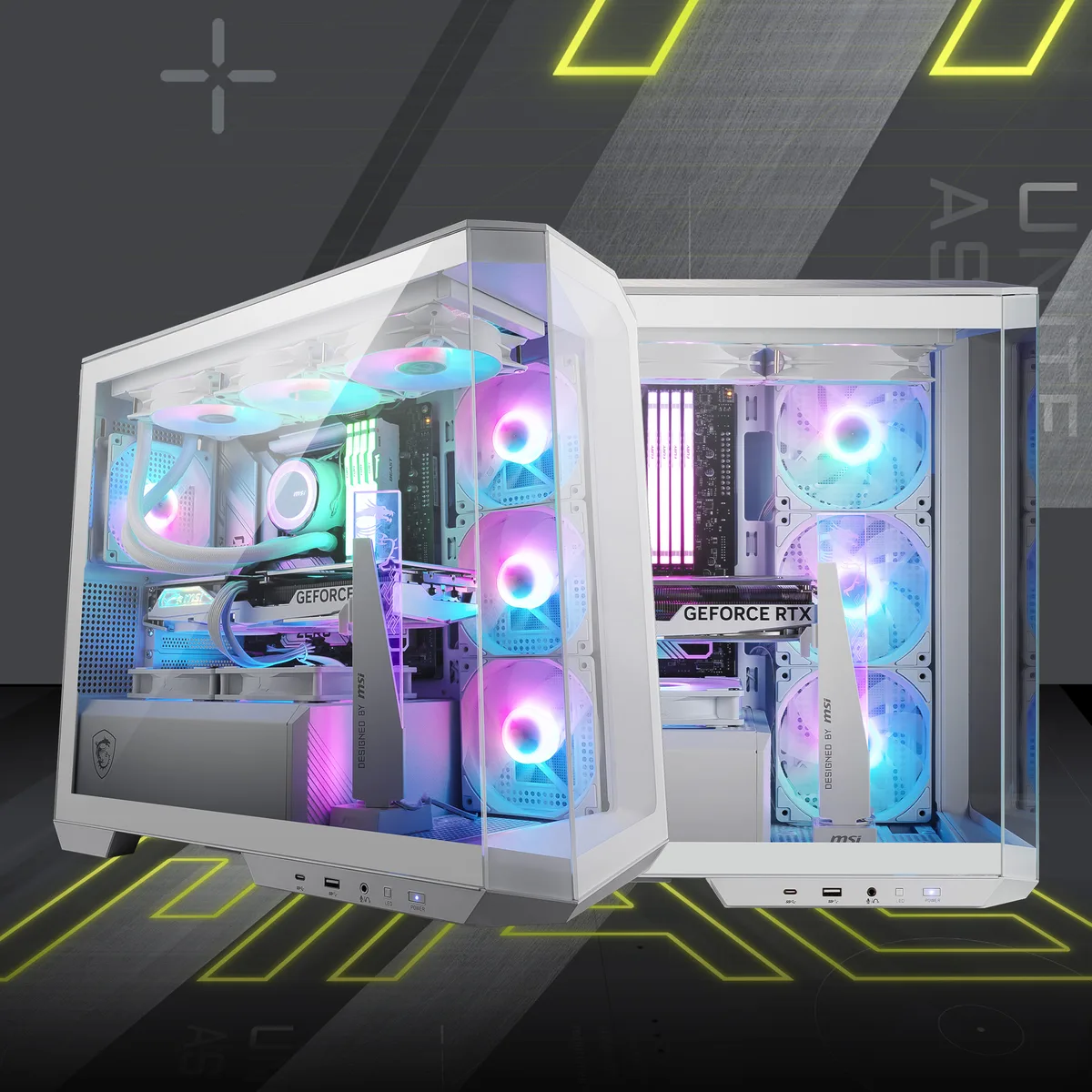

270-degree glass and four ARGB fans

Two edge-to-edge tempered glass panels create a 270-degree panoramic view without corner obstructions. Four pre-installed 120mm ARGB fans — three on the side and one at the rear — connect to a 1-to-4 ARGB-PWM control board that reduces cable clutter. Top, side, rear, bottom and PSU-shroud mounts support additional 120mm or 140mm fans and radiators up to 360mm on top.

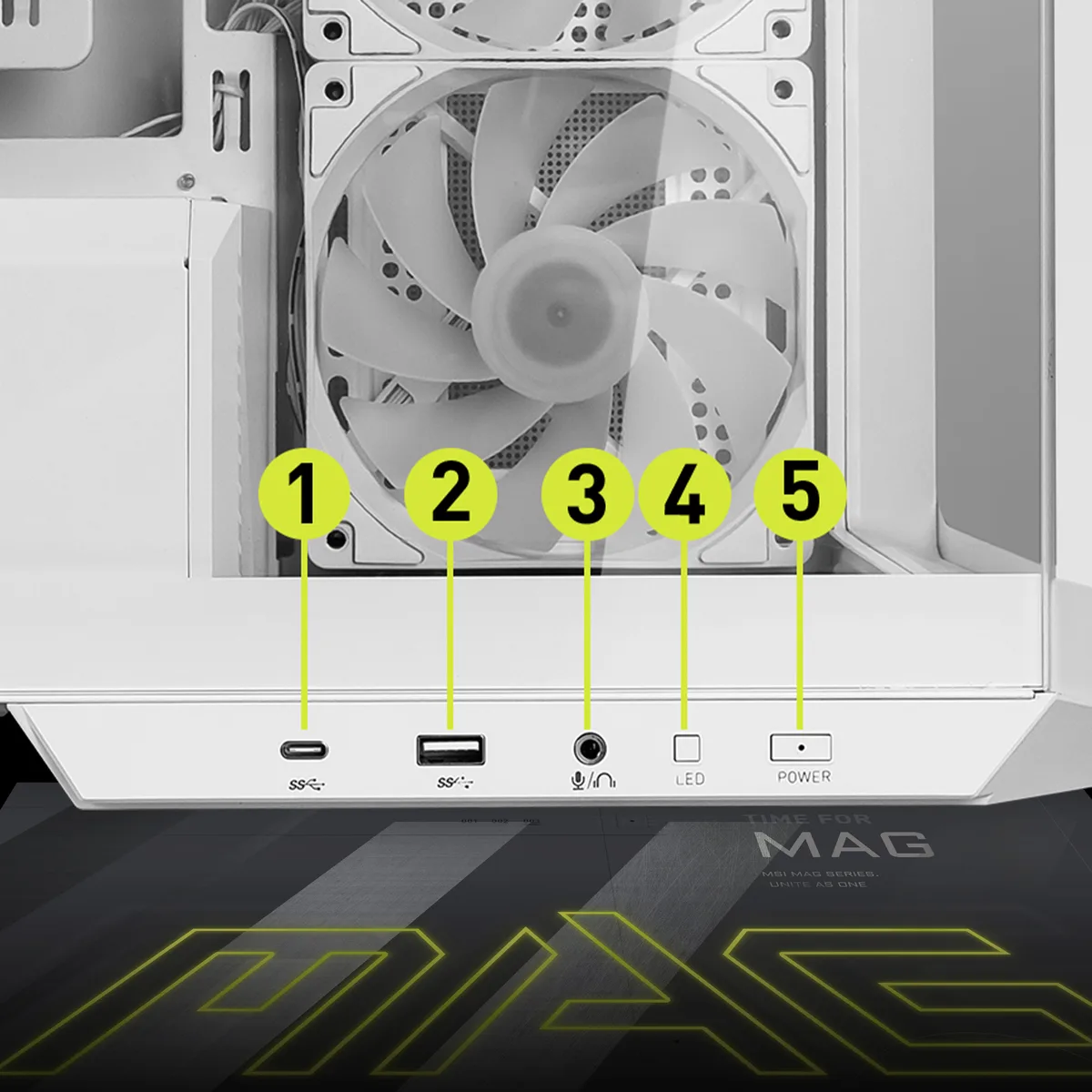

Lighting hub, GPU stand and fast front I/O

The included ARGB-PWM hub lets you cycle lighting profiles with the Insta-Light Loop button on the front panel. A dedicated GPU support stand helps prevent sag on long cards up to 390mm. Front I/O provides one USB 3.2 Type-C port at 20Gbps, one USB 3.2 Gen 1 port, ARGB control and dual audio jacks. Dust filters cover the main intake areas.

Highlights

  • 270-degree panoramic tempered glass showcases ARGB components inside
  • Four pre-installed ARGB fans deliver vibrant lighting out of the box
  • Back-connect motherboard support keeps cables hidden for a clean build
  • GPU support stand included prevents sag on heavy graphics cards
  • Front USB 3.2 Type-C at 20 Gbps enables fast peripheral connections

Specifications

BrandMSI
ModelMAG PANO M100R PZ WHITE
TypeMicro ATX Tower
ColorWhite
Case MaterialABS Plastic / SPCC Steel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityMicro ATX (Back Connect) / Mini ITX
Side Panel2 x Sides Tempered Glass Panel
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots5
Front Ports1 x USB 3.2 Type-C, 1 x USB 3.2 Gen 1, Control board: ARGB, 2 x Audio
Fan OptionsTop: 3x 120mm or 2x140mm
Side: 3x 120mm
Rear: 1x 120mm
Bottom : 1x 120mm
PSU Shroud: 2 x 120mm
Fan Including:
Side: 3x 120mm A-RGB Fan
Rear: 1x 120mm A-RGB Fan
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator OptionsTop:120/240/360mm radiator x 1
Rear : 120/140mm radiator x 1
Max GPU Length390 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions17.32*9.25*15.94in
Weight24.89 lbs
Shipping weight11.29 kg
Package size597 × 559 × 356 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What speed does the front USB Type-C port actually deliver?

The front USB 3.2 Type-C port runs at 20 Gbps, so large file transfers hit that ceiling when the drive and motherboard header also support the standard.

How much clearance do I have for a graphics card and CPU cooler in this case?

The chassis fits GPUs up to 390 mm long and CPU coolers up to 175 mm tall; measure your parts against those limits before buying.

How are the four pre-installed ARGB fans wired, and what is the common oversight?

The three side fans and one rear fan connect to the included 1-to-4 ARGB-PWM control board; the step often missed is plugging the board’s power lead and the motherboard’s 5 V ARGB header so the Insta-Light Loop button works.
