ATX motherboard dark finish silver heatsinks four DDR5 slots large CPU socket area

MSI

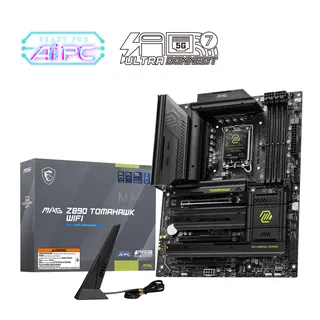

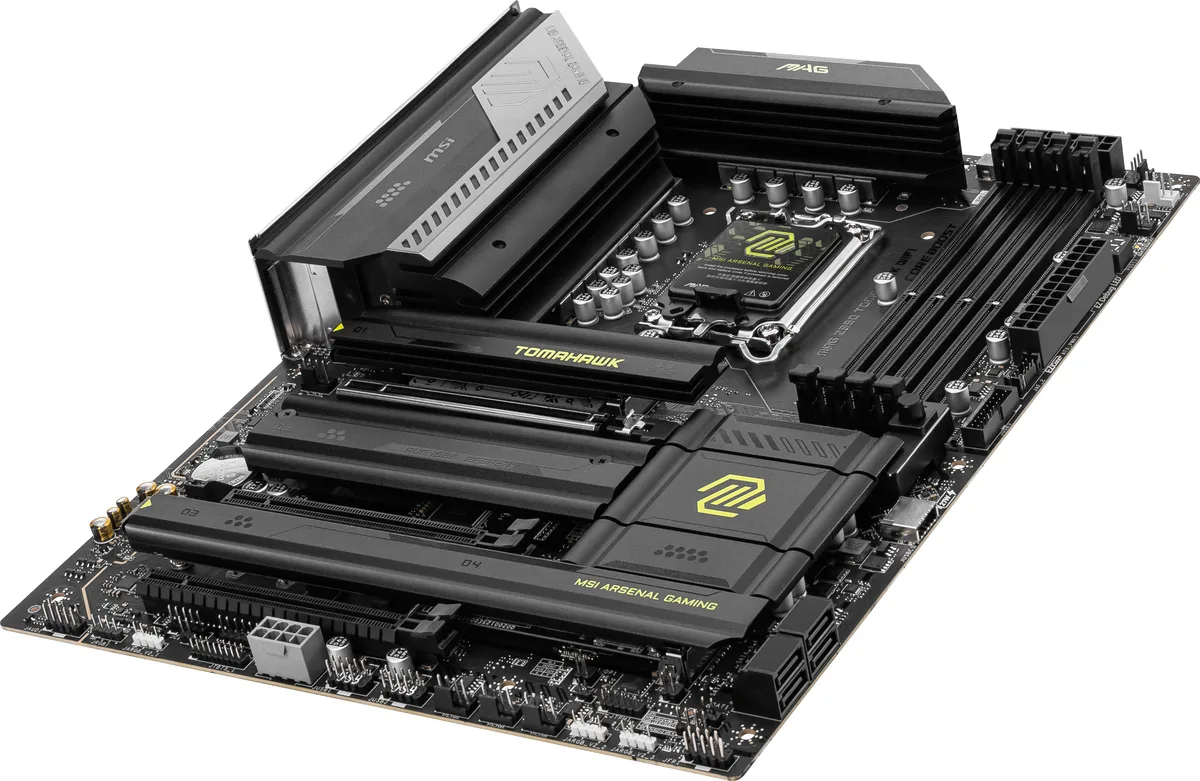

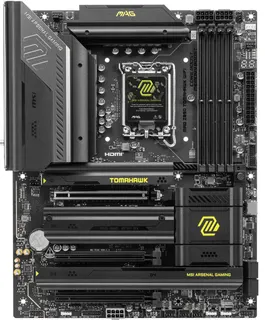

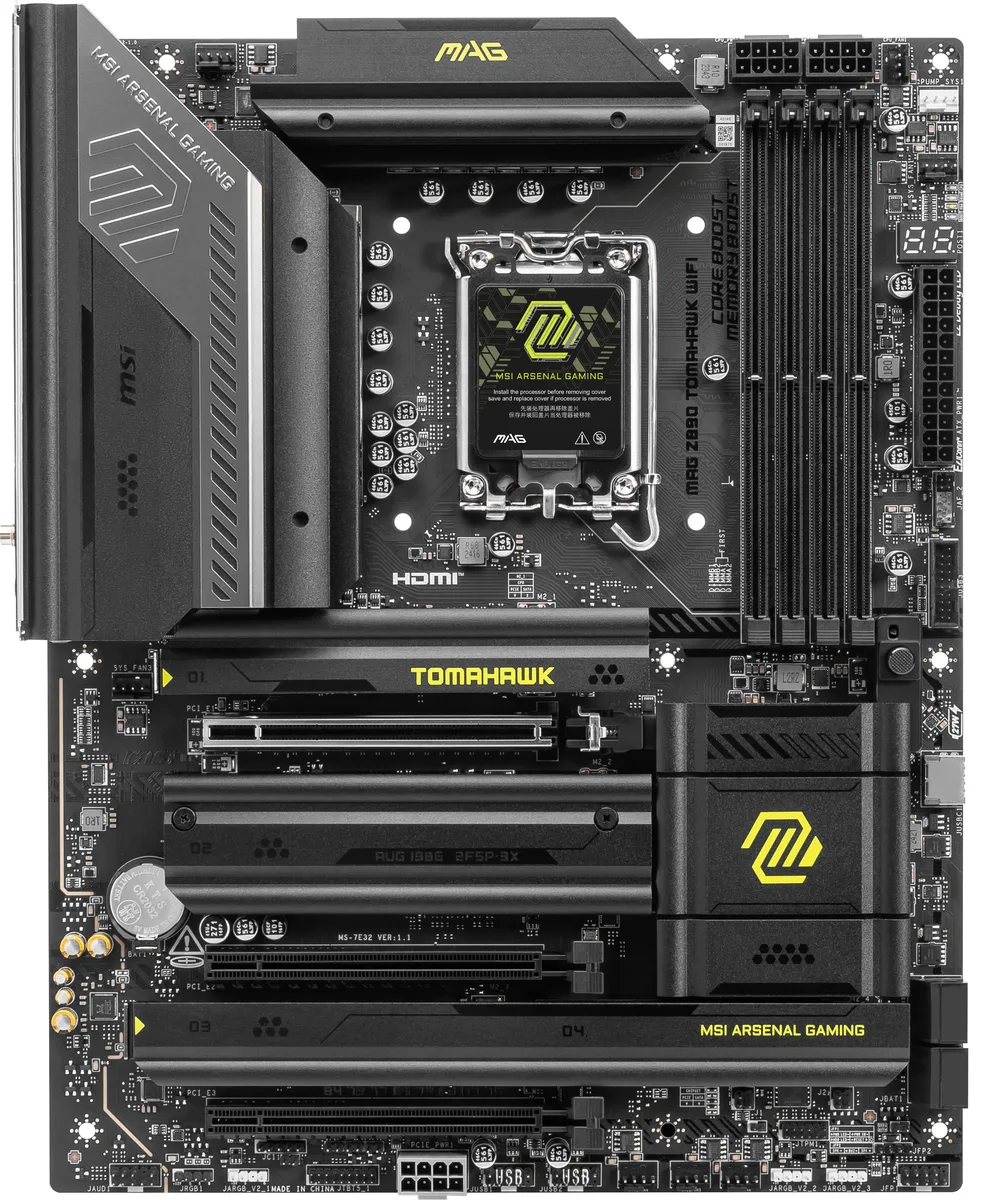

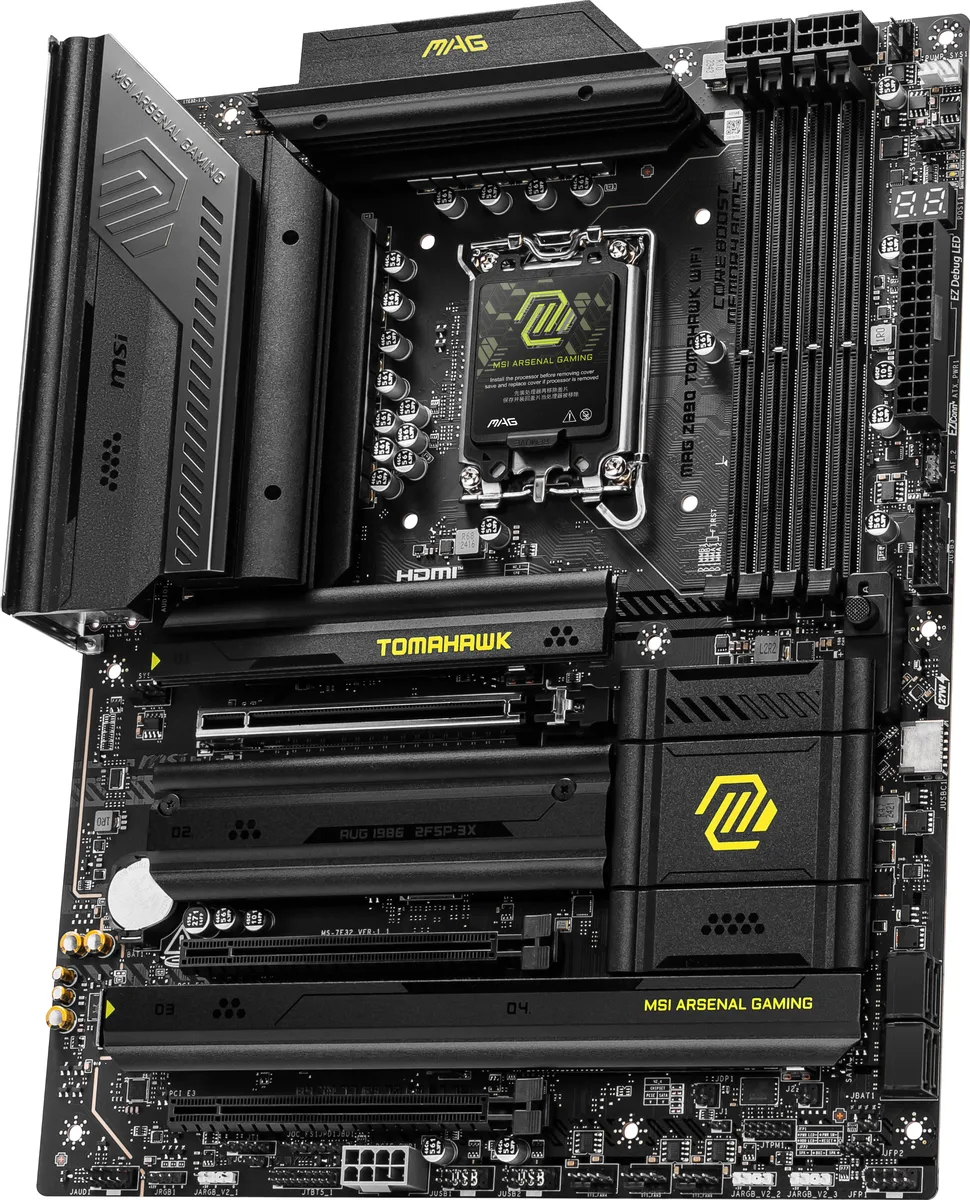

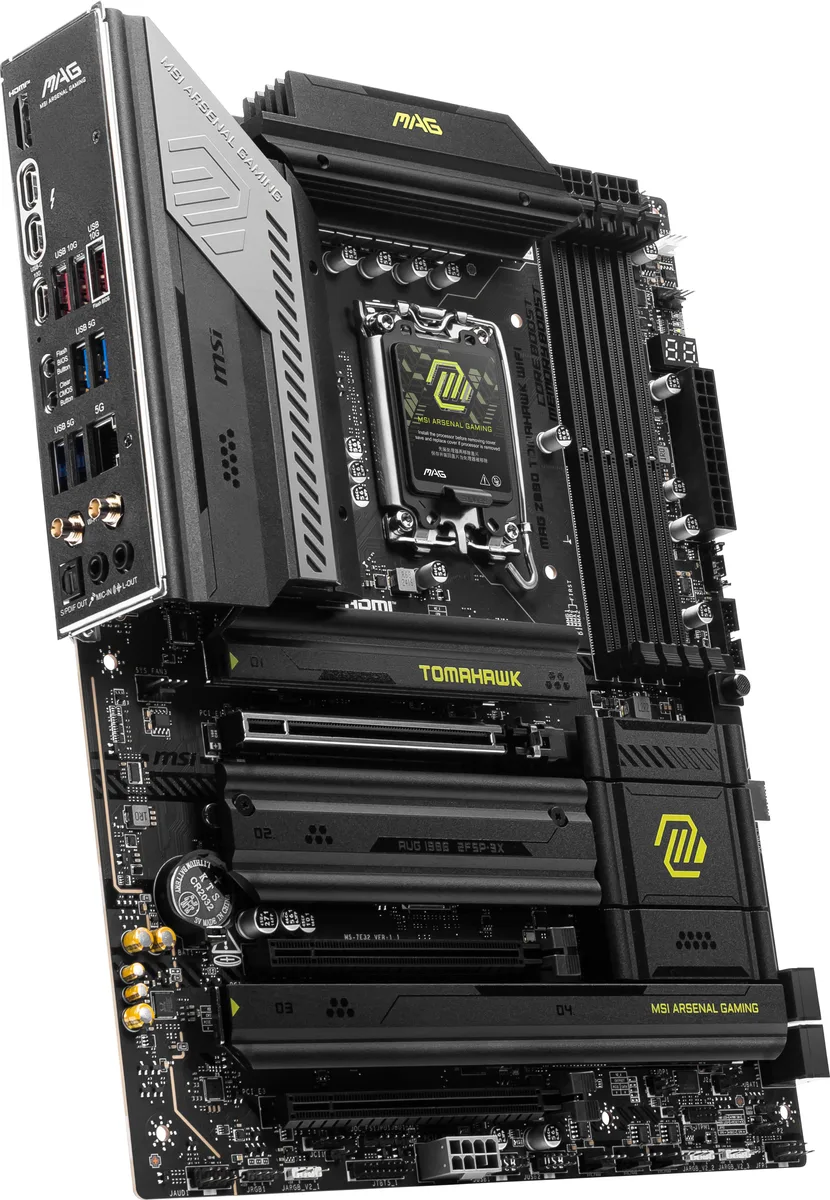

MSI MAG Z890 TOMAHAWK WIFI Intel motherboard

SKU CH-3NYW-QYFTC MPN MAG Z890 TOMAHAWK WIFI

ATX motherboard for Intel Core Ultra Series 2 processors with LGA 1851 socket, DDR5 memory up to 9200 MT/s, PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN and Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported256GB

Option MAG Z890 TOMAHAWK WIFI

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory overclocking up to 9200+ MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot and M.2 Gen5 for fastest GPU and SSD speeds
  • Wi-Fi 7 with 320 MHz channel delivers 5.8 Gbps wireless throughput
  • Thunderbolt 4 provides 40 Gbps connectivity with 8K display support

Intel Z890 ATX motherboard for Core Ultra Series 2

The MSI MAG Z890 TOMAHAWK WIFI is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 Intel Core Ultra Processors (Series 2). It provides four 288-pin DDR5 slots supporting up to 256GB in dual-channel mode with XMP 3.0 profiles. The board delivers one PCIe 5.0 x16 slot, two PCIe 4.0 x16 slots, four SATA 6Gb/s ports and three M.2 sockets including a CPU-attached Gen5 M.2_1 for 2280/2260 drives.

Builders needing Wi-Fi 7 5.8Gbps and 5G LAN

This board suits users who want integrated Wi-Fi 7 with a 320MHz channel capable of 5.8Gbps peak throughput and a Killer E5000B-CG 5G LAN controller. Thunderbolt 4 adds 40Gbps USB-C connectivity with 8K display support and daisy-chaining. Builders without high-speed wireless needs or those requiring more than one PCIe 5.0 x16 slot should consider other Z890 options.

Check LGA 1851 CPU cooler clearance and DDR5 kit

Verify that your CPU cooler mounting pattern matches LGA 1851 and that the extended PWM heatsink does not interfere with your chosen cooler height. Confirm your DDR5 kit appears on the qualified vendor list for the target MT/s, noting that 1DPC 1R configurations can reach 9200+ MT/s while 2DPC 2R tops out at 4800+ MT/s. Ensure your case accommodates ATX dimensions and that the power supply provides dual 8-pin CPU connectors for the 16 Duet Rail 90A power system.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory overclocking up to 9200+ MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot and M.2 Gen5 for fastest GPU and SSD speeds
  • Wi-Fi 7 with 320 MHz channel delivers 5.8 Gbps wireless throughput
  • Thunderbolt 4 provides 40 Gbps connectivity with 8K display support

Specifications

BrandMSI
ModelMAG Z890 TOMAHAWK WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Audio ChipsetRealtek ALC1220
Audio Channels8 Channels
LAN ChipsetKiller E5000B-CG
Max LAN Speed5Gbps
Wireless LANWIFI 7
BluetoothYes

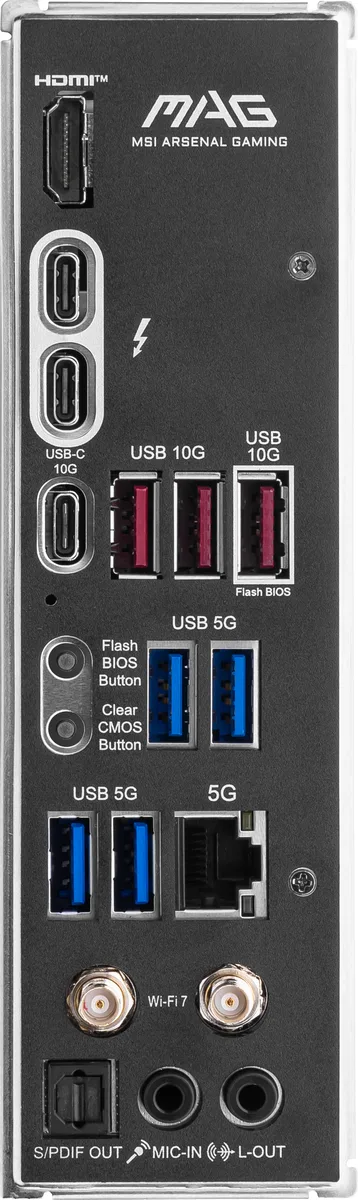

Back I/O Ports1 x Audio Jack / 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 / 2 x Thunderbolt 4 / 3 x USB 3.1 Gen 2 Type-A / 4 x USB 3.0
Windows 11Supported
Form FactorATX
Shipping weight2.09 kg
Package size330 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board fit in a standard ATX case and match the LGA 1851 socket on Intel Core Ultra Series 2 CPUs?

Yes, the board uses the ATX form factor and the LGA 1851 socket, so it fits standard ATX cases and accepts Intel Core Ultra Series 2 processors.

What DDR5 speeds can I run with four sticks versus two sticks?

With two single-rank modules you can reach 9200+ MT/s; with four single-rank modules the maximum is 4800+ MT/s, while two dual-rank modules top out at 7200+ MT/s.

Does the board include Wi-Fi 7 and 5 Gbps LAN without extra cards?

Yes, Wi-Fi 7 with a 320 MHz channel and a Killer 5 Gbps Ethernet controller are built in, so no separate network cards are required.
