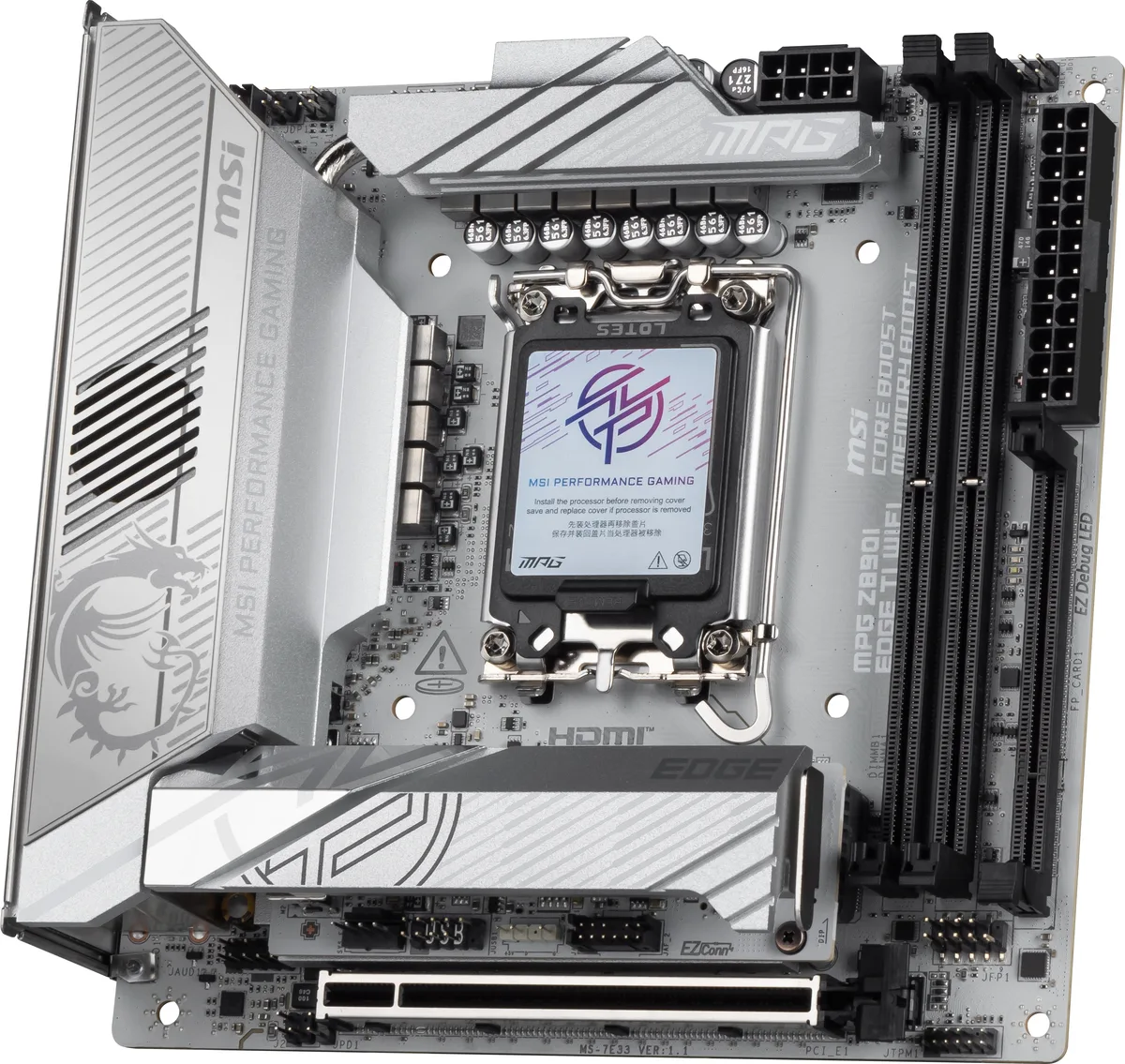

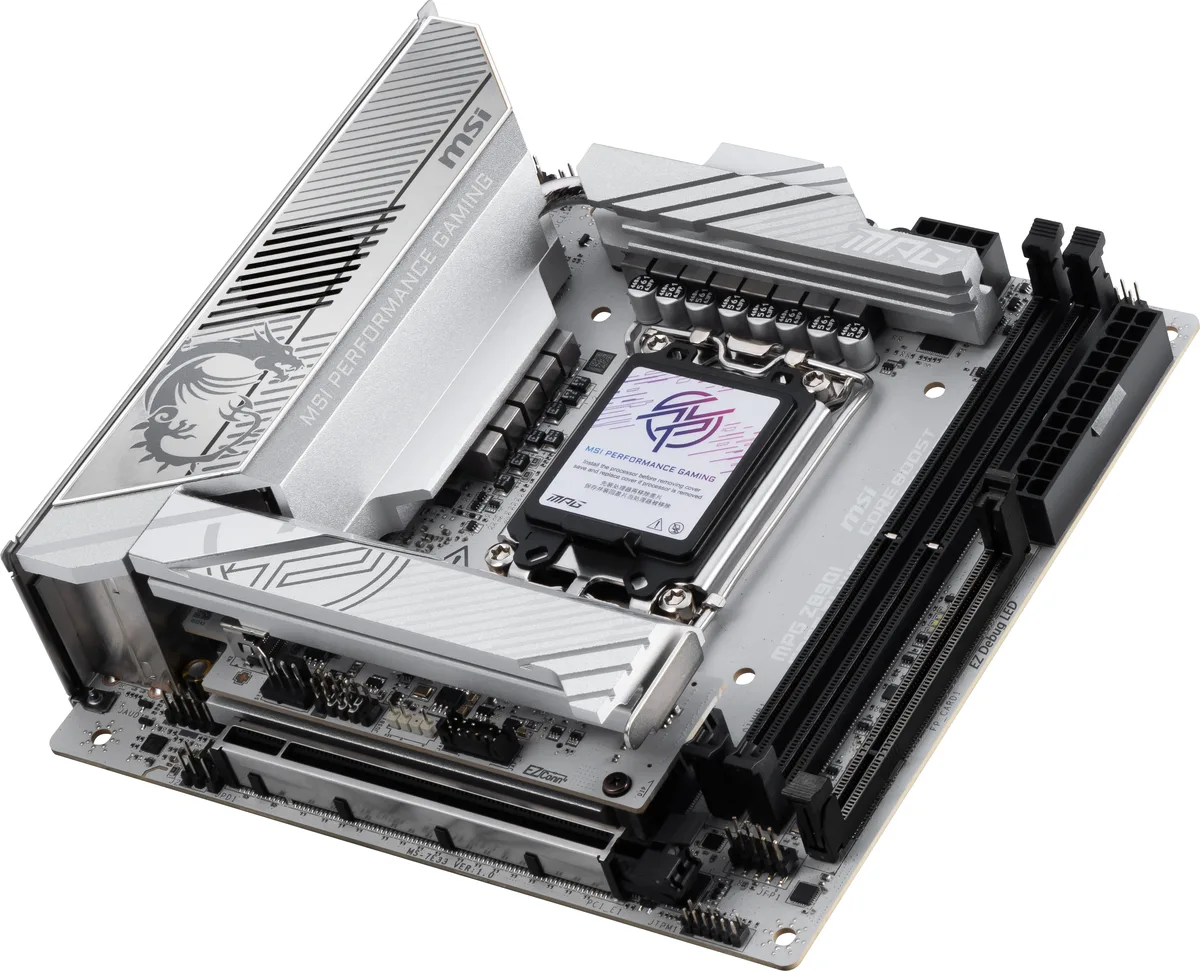

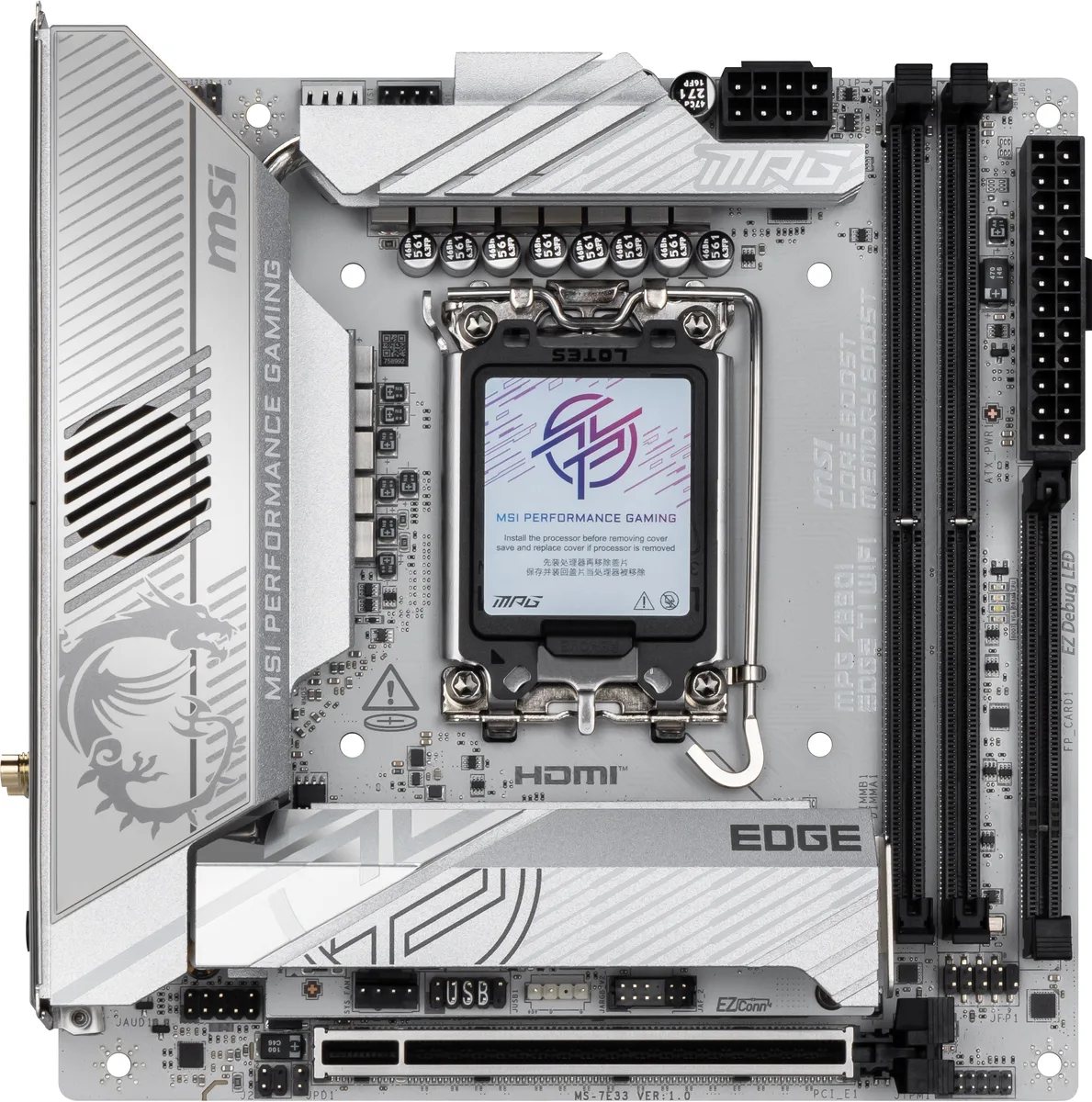

White Mini-ITX motherboard with silver heatsinks and black PCB

MSI

MSI MPG Z890I EDGE TI WIFI Intel motherboard

SKU CH-ZKXJ-R5WY6 MPN MPG Z890I EDGE TI WIFI

Mini-ITX board for Intel Core Ultra Series 2 on LGA 1851 with 10-phase 110A VRM, DDR5 to 8600 MT/s, PCIe 5.0 x16, dual Gen5 M.2, 5G LAN, Wi-Fi 7 and 7.1 audio

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported128GB

Option MPG Z890I EDGE TI WIFI

Struck-through versions exist but are not stocked here.

  • Direct 10-phase 110A VRM sustains heavy CPU loads
  • DDR5 overclocks to 8600+ MT/s via Memory Boost
  • PCIe 5.0 x16 plus Gen5 M.2 deliver 128GB/s bandwidth
  • Wi-Fi 7 with 320MHz channel and 5G LAN for fast networking
  • Mini-ITX LGA 1851 board supports Intel Core Ultra Series 2

Compact Intel Z890 platform

The MSI MPG Z890I EDGE TI WIFI is a Mini-ITX motherboard built on the Intel Z890 chipset for Intel Core Ultra Processors (Series 2) in the LGA 1851 socket. It delivers a direct 10-phase power design with 110A Smart Power Stages plus dedicated SA, GT and VNNAON phases. The board supports dual-channel DDR5 up to 128GB with XMP 3.0 profiles and rated overclock speeds of 8600+ MT/s on single-rank modules.

Ideal for small-form-factor builders

This board suits enthusiasts assembling a high-performance Mini-ITX system who need PCIe 5.0 graphics bandwidth, Gen5 M.2 storage and 5G wired networking alongside Wi-Fi 7 and Bluetooth 5.4. Users requiring more than two memory slots, additional full-size PCIe expansion or more than two SATA ports should consider a larger form factor instead.

Verify CPU cooler clearance and power connectors

Confirm that your chosen CPU cooler fits within Mini-ITX case limits and does not obstruct the VRM heatsink or the M.2_1 slot. Ensure the power supply provides an 8-pin EPS connector for the 10-phase VRM and that your DDR5 kit appears on the board's qualified vendor list for the desired MT/s rating.

Highlights

  • Direct 10-phase 110A VRM sustains heavy CPU loads
  • DDR5 overclocks to 8600+ MT/s via Memory Boost
  • PCIe 5.0 x16 plus Gen5 M.2 deliver 128GB/s bandwidth
  • Wi-Fi 7 with 320MHz channel and 5G LAN for fast networking
  • Mini-ITX LGA 1851 board supports Intel Core Ultra Series 2

Specifications

BrandMSI
ModelMPG Z890I EDGE TI WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureMemory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
- 1DPC 1R Max speed up to 8600+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
*PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Serial ATA (SATA)2 x SATA 6Gb/s
M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280 devices
*M.2_4 & 2x SATA are supported by 5-in-1 XPANDER
Audio ChipsetRealtek ALC4080
Audio Channels7.1-Channel USB High Performance Audio
LAN ChipsetIntel Killer E5000B 5G LAN
Max LAN Speed5Gbps
Wireless LANIntel Killer BE1750x Wi-Fi 7
BluetoothBluetooth 5.4

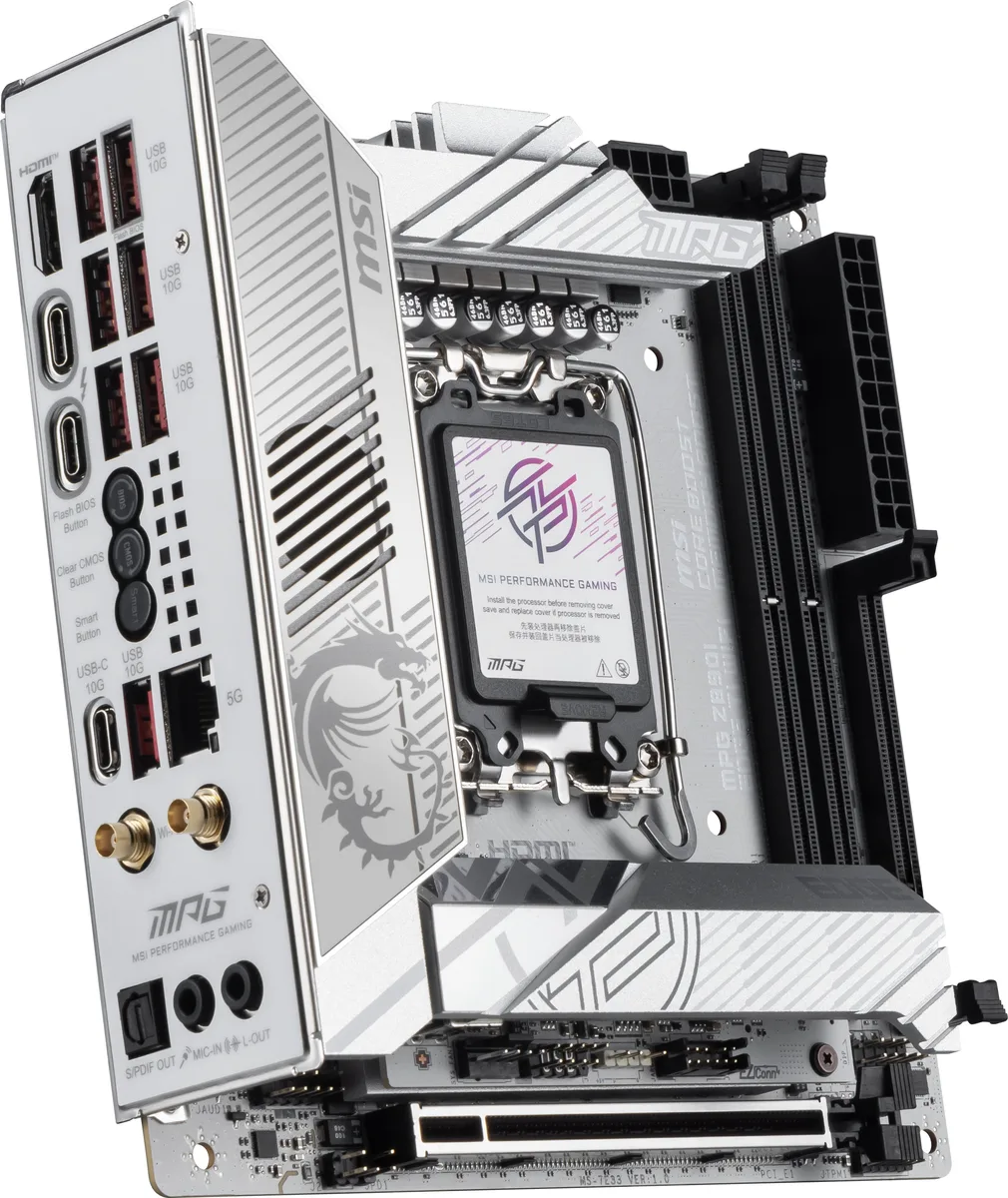

Back I/O Ports1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Smart Button / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x Thunderbolt 4 / 7 x USB 3.2 Gen 2 Type-A
Onboard USB2 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Other Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
1 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Thermal Sensor connectors(T_SEN)
1 x Addressable V2 RGB LED connector (JARGB_V2)
1 x TPM pin header(Support TPM 2.0)
Windows 11Supported
Form FactorMini ITX
Power Pin1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
Shipping weight1.13 kg
Package size356 × 279 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory kit do I need to reach the 8600+ MT/s overclocking speed shown on this board?

A 1DPC 1R DDR5 kit rated for 8600+ MT/s with Intel XMP 3.0 will hit the maximum overclocking frequency on the two 288-pin slots.

Will my PCIe 4.0 graphics card run at full speed in the PCIe 5.0 x16 slot of this Z890I Edge TI?

Yes, the PCI_E1 slot is backward compatible and will operate a PCIe 4.0 card at its native x16 bandwidth.

How can I confirm the Wi-Fi 7 radio is using a 320 MHz channel after I install the board?

Open the Killer Intelligence Center or Windows Wi-Fi settings and verify the active link shows a 320 MHz channel width.
