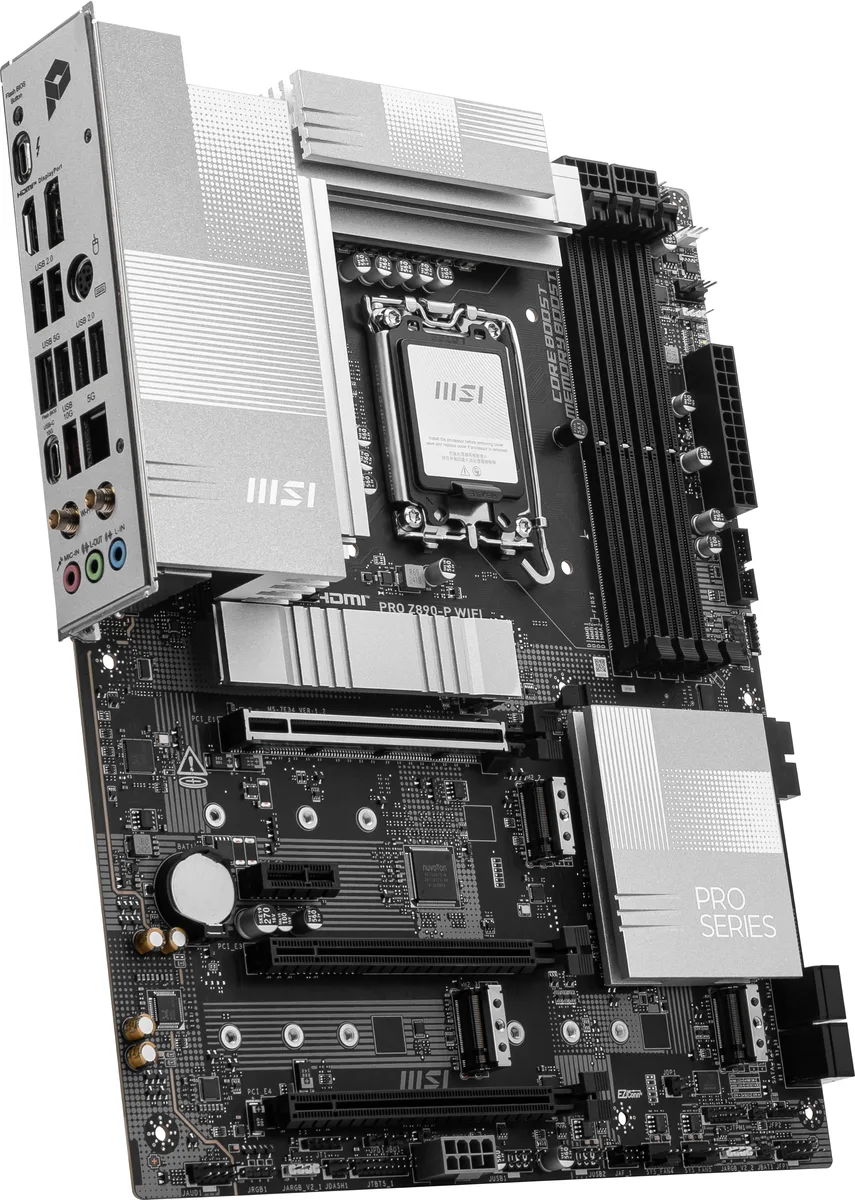

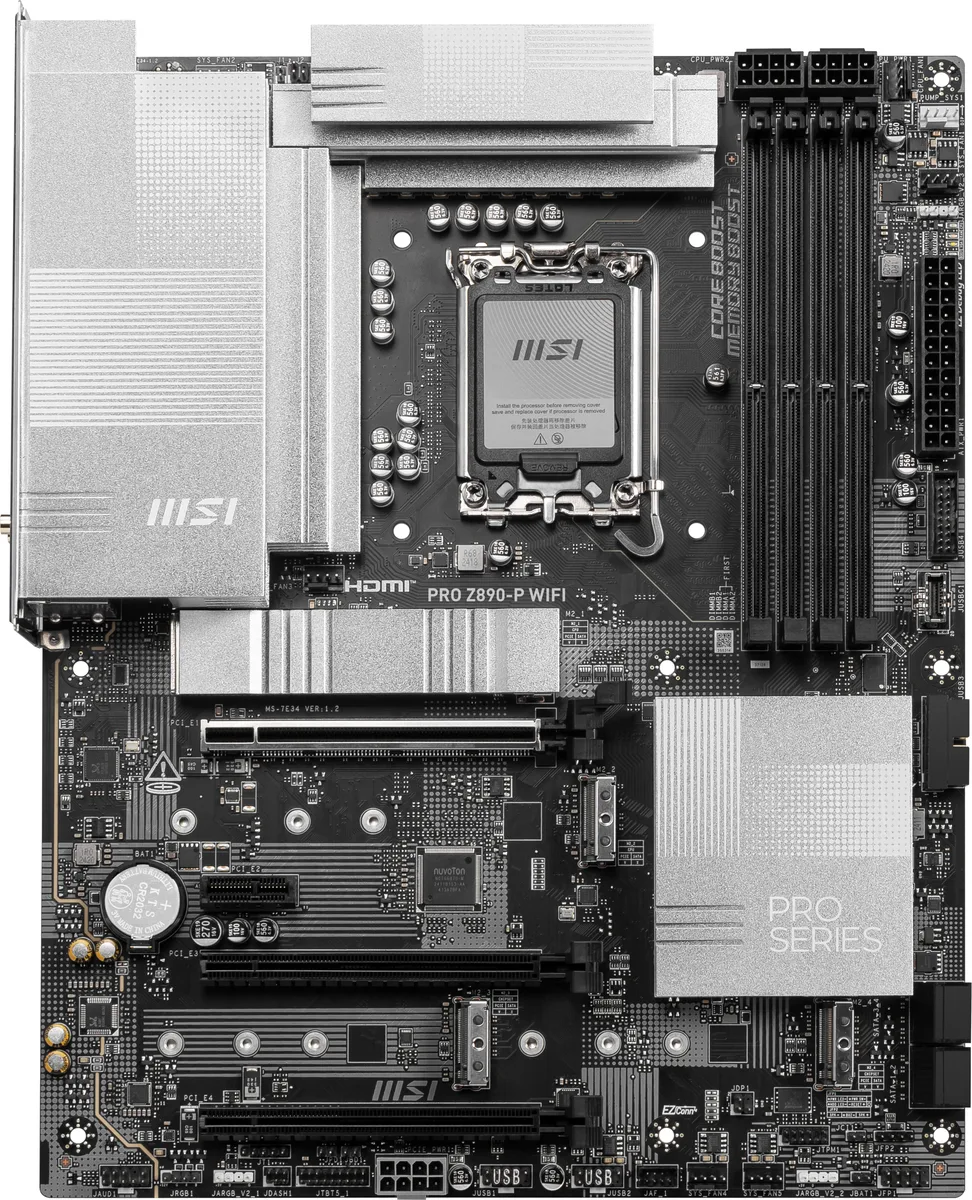

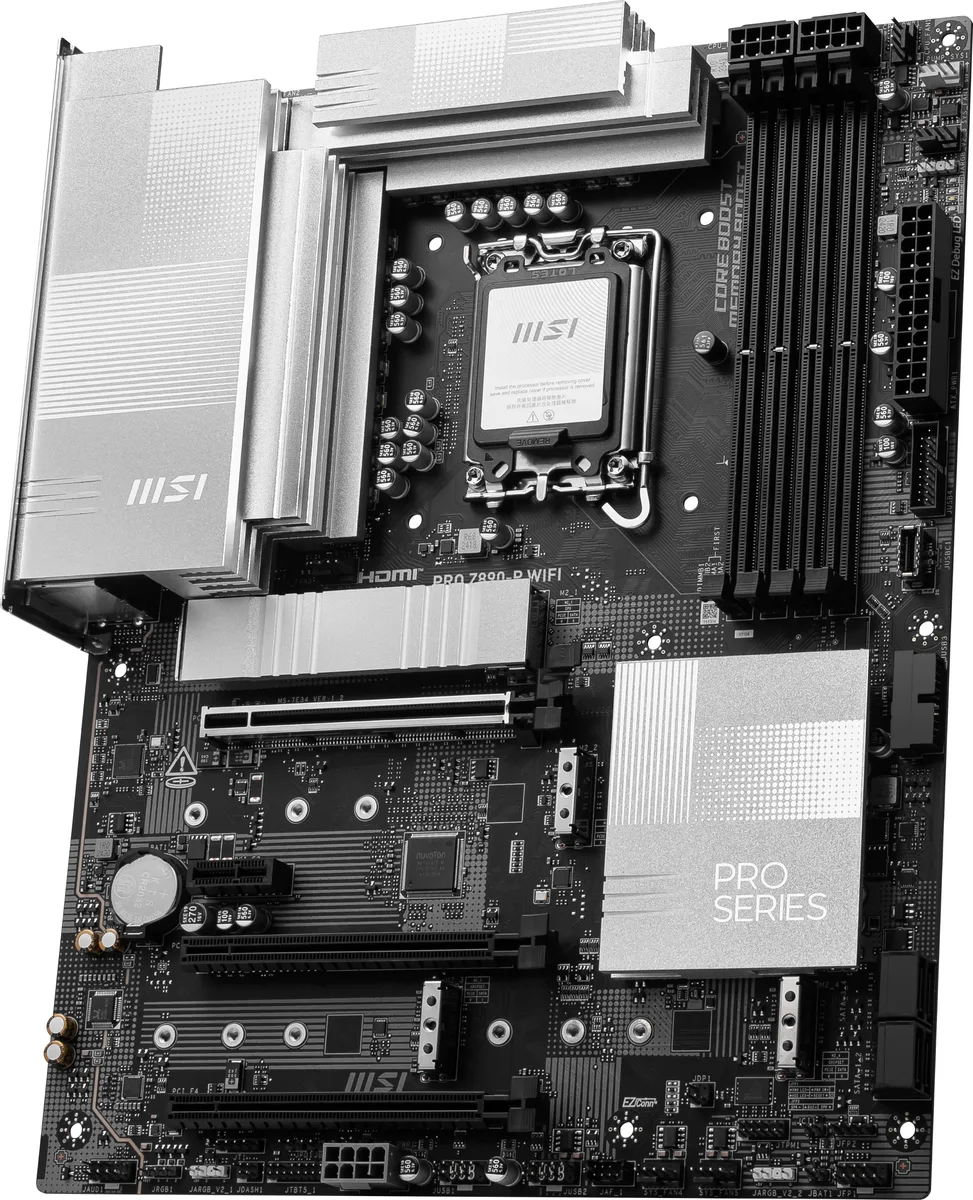

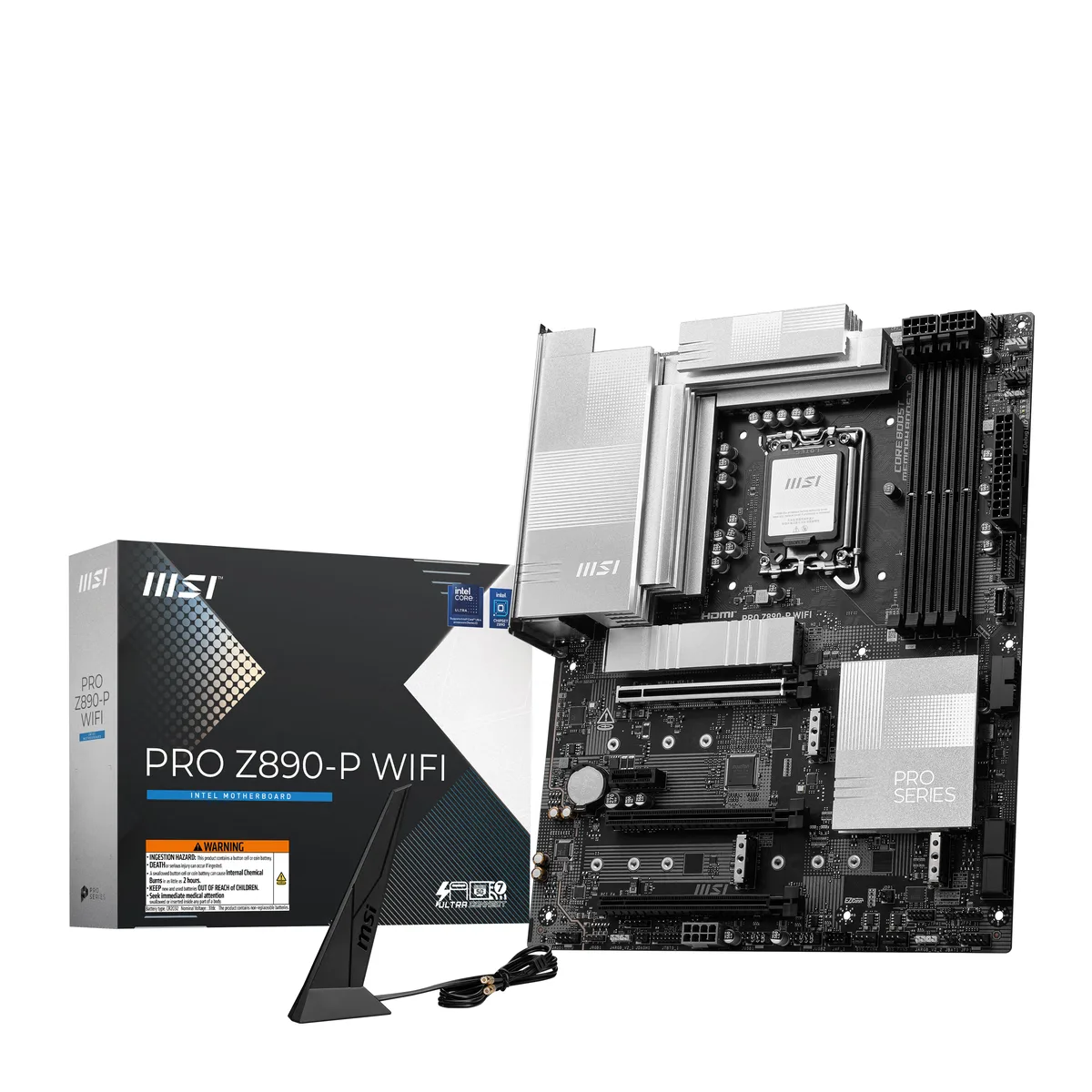

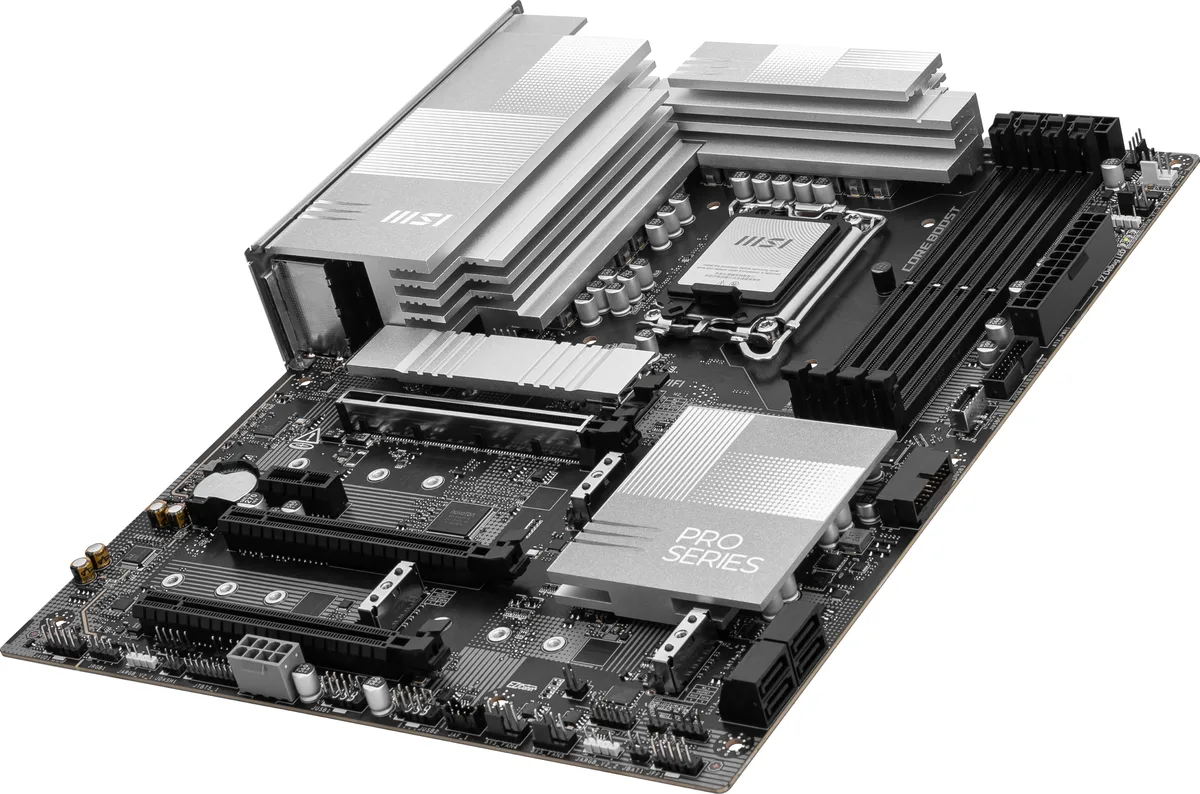

ATX motherboard dark PCB silver heatsinks rear I/O shield

MSI

MSI PRO Z890-P WIFI Intel motherboard

SKU CH-2QCM-XGXFB MPN PRO Z890-P WIFI

ATX motherboard for Intel Core Ultra Series 2 processors with LGA 1851 socket, 14-phase 55A DrMOS power, DDR5 up to 9200 MT/s, PCIe 5.0 x16, M.2 Gen5, 5G LAN and Wi-Fi 7

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported256GB

Option PRO Z890-P WIFI

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 on LGA 1851 socket
  • DDR5 memory overclocked to 9200 MT/s with Memory Boost
  • PCIe 5.0 x16 slot delivers 128 GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channel reaches 5.8 Gbps
  • 5G LAN and Thunderbolt 4 at 40 Gb/s

Socket LGA 1851 ATX motherboard

The MSI PRO Z890-P WIFI is an ATX motherboard built around the Intel Z890 chipset for Intel Core Ultra Processors (Series 2) using the LGA 1851 socket. It targets creators and power users who need a 14 Duet Rail Power System with 55A DrMOS to sustain heavy CPU loads. The board supports up to 256GB of DDR5 memory across four 288-pin slots running in dual-channel mode.

PCIe 5.0 M.2 Wi-Fi 7 Thunderbolt 4

A single PCI Express 5.0 x16 slot and one PCIe 4.0 x1 slot handle graphics and add-in cards while five M.2 Key M slots — two wired to the CPU and three via PCIe, one of which also supports SATA — provide high-speed storage options. Integrated Wi-Fi 7 (802.11 be) with a 320MHz channel reaches 5.8Gbps, 5G LAN via the RTL8126-VB-CG controller adds wired throughput, and a Thunderbolt 4 USB-C port delivers 40Gbps with 8K display support. Realtek ALC897 drives 7.1-channel audio.

DDR5 JEDEC OC limits PSU headers

Before ordering, verify that your DDR5 modules match the board’s validated speeds: JEDEC operation spans 4800 to 7950 MT/s while overclocked ceilings vary by population — 9200+ MT/s for one single-rank DIMM, 7200+ MT/s for one dual-rank DIMM, and 4800+ MT/s for two DIMMs per channel. Confirm your power supply provides the required EPS connectors for the 14-phase duet rail VRM and that your chassis fits an ATX form factor with standard mounting holes.

Highlights

  • Supports Intel Core Ultra Series 2 on LGA 1851 socket
  • DDR5 memory overclocked to 9200 MT/s with Memory Boost
  • PCIe 5.0 x16 slot delivers 128 GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channel reaches 5.8 Gbps
  • 5G LAN and Thunderbolt 4 at 40 Gb/s

Specifications

BrandMSI
ModelPRO Z890-P WIFI
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x Key M (CPU) + 1 x Key M (PCIe) + 1 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT)
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRTL8126-VB-CG
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports1 x Audio Jack / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x Thunderbolt 4 / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 3.0 / 4 x USB 2.0/1.1
Windows 11Supported
Form FactorATX
Shipping weight2.18 kg
Package size356 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board fit in a standard ATX case and align with the usual mounting holes?

Yes, the board uses the ATX form factor so it matches standard ATX case mounting points and I/O shield cut-outs.

Which Intel processors are supported and what socket do they use?

The board supports Intel Core Ultra Processors (Series 2) that fit the LGA 1851 socket.

What is the maximum DDR5 memory capacity and what speeds can be reached when overclocking?

Four DDR5 slots support up to 256 GB total; with one single-rank DIMM per channel the board can reach 9200+ MT/s when overclocked.
