Thin green circuit board with black controller and silver label, M.2 2280 form factor

MSI

MSI SPATIUM M450 PCIe 4.0 NVMe M.2 1TB internal SSD

SKU CH-Y894-F1TBD MPN SPATIUM M450 PCIe 4.0 NVMe M.2 1TB

PCIe 4.0 NVMe drive delivering up to 3600 MB/s read and 3000 MB/s write speeds with 600 TBW endurance in M.2 2280 form factor

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4, NVMe 1.4

Style Without Heatsink

Options 1TB M450

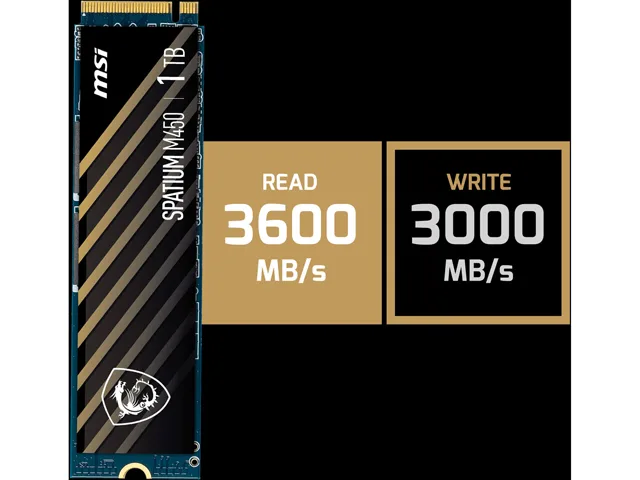

  • PCIe 4.0 x4 interface delivers sequential reads up to 3600 MB/s
  • Sequential writes up to 3000 MB/s accelerate large-file transfers
  • 420000 random read IOPS keep multitasking responsive
  • 550000 random write IOPS sustain heavy workloads
  • 600 TBW and 1500000-hour MTBF ensure long-term endurance

MSI SPATIUM M450 1TB NVMe SSD

The MSI SPATIUM M450 is an internal solid-state drive built for consumers who need fast storage in a compact M.2 2280 form factor. It uses a PHISON E19T controller with 3D NAND flash and connects through a PCI-Express 4.0 x4 interface running NVMe 1.4. The drive suits desktops and notebooks alike for gaming, content creation and professional workloads.

Capacity and endurance headroom

With 1TB of usable space the drive holds operating systems, applications and large media libraries without crowding. It is rated for 600 TBW and an MTBF of 1,500,000 hours, so sustained write workloads such as video editing or game installs stay well within endurance limits. Heavy database or logging tasks that exceed the TBW figure will eventually wear the NAND, so plan capacity accordingly.

PCIe 4.0 x4 NVMe 1.4 practical limits

The PCIe 4.0 x4 link caps sequential throughput at 3600 MB/s read and 3000 MB/s write, while random performance reaches 420,000 IOPS read and 550,000 IOPS write. Real-world speeds depend on motherboard lane allocation, thermal conditions and OS support for features like TRIM and APST. On platforms limited to PCIe 3.0 the drive will fall back to lower bandwidth.

Highlights

  • PCIe 4.0 x4 interface delivers sequential reads up to 3600 MB/s
  • Sequential writes up to 3000 MB/s accelerate large-file transfers
  • 420000 random read IOPS keep multitasking responsive
  • 550000 random write IOPS sustain heavy workloads
  • 600 TBW and 1500000-hour MTBF ensure long-term endurance

Specifications

BrandMSI
SeriesSPATIUM Series
ModelM450
Part NumberSM450N1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4, NVMe 1.4
ProtocolNVMe 1.4
ControllerPHISON E19T
EncryptionTCG Pyrite (Encryption, Data Security)
Max Sequential ReadUp to 3600 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random ReadUp to 420,000 IOPS
4KB Random WriteUp to 550,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,500,000 hours
FeaturesTRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
TCG Pyrite (Encryption, Data Security)
Power Consumption (Idle)40 mW
Power Consumption (Active)4.0W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height2.15mm
Width22.00mm
Depth80.00mm
Shipping weight0.05 kg
Package size159 × 81 × 19 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the M450 work in a PCIe 3.0 slot on my older motherboard?

Yes, the drive is backward compatible and will operate at PCIe 3.0 x4 speeds, though sequential reads drop below the 3600 MB/s peak.

How can I verify the drive is delivering its rated 420000 IOPS random read performance?

Run a synthetic benchmark such as CrystalDiskMark with a 4 KB random read test; results should approach the published 420000 IOPS figure on a PCIe 4.0 platform.

Does the retail package include a heatsink or cloning software?

The box contains only the M.2 2280 SSD; any heatsink must be purchased separately, while MSI Center and Actiphy backup software are free downloads.
