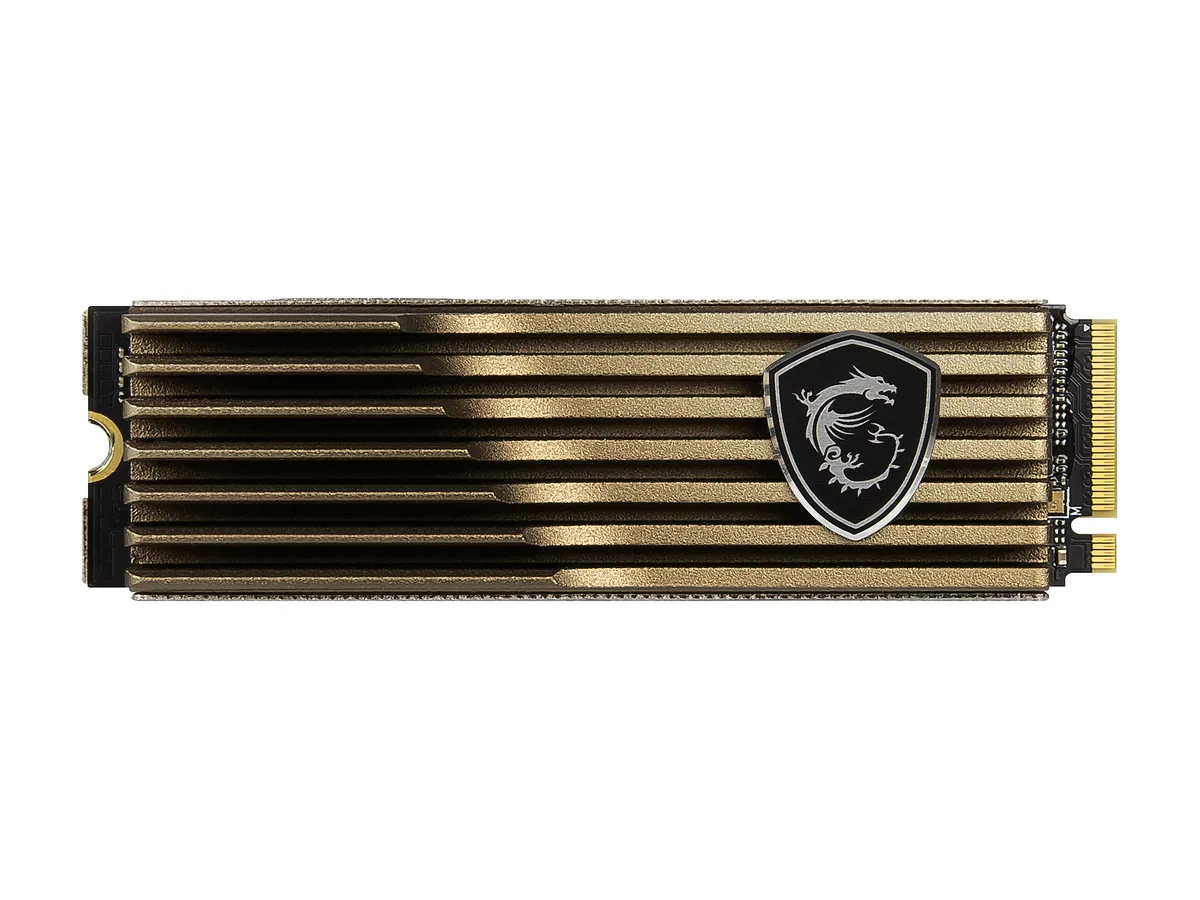

Bronze aluminium heatsink on M.2 2280 NVMe SSD

MSI

MSI SPATIUM M480 PCIe 4.0 NVMe M.2 2TB HS internal SSD

SKU CH-TM1W-GR5D2 MPN SPATIUM M480 PCIe 4.0 NVMe M.2 2TB HS

PCIe 4.0 NVMe drive with a heatsink delivers up to 7000 MB/s reads and 6800 MB/s writes for 2 TB of fast storage

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCIe Gen4x4, NVMe 1.4

Style With Heatsink

Options 2TB M480 w/ Heatsink

  • Sequential reads up to 7000 MB/s via PCIe 4.0 interface
  • Sequential writes up to 6800 MB/s via PCIe 4.0 interface
  • Random reads up to 650000 IOPS with PHISON E18 controller
  • Random writes up to 700000 IOPS with 2GB DDR4 cache
  • Endurance rated at 1400 TBW with 1600000 hours MTBF

M480 2TB PCIe 4.0 NVMe drive

The MSI SPATIUM M480 is a 2TB internal SSD built on a PCIe 4.0 x4 interface with NVMe 1.4 support. It uses 3D NAND flash and a PHISON E18 controller paired with 2GB of DDR4 cache. The M.2 2280 form factor includes an integrated aluminium heatsink for thermal management.

Suits high-capacity gaming and content workloads

This drive targets users who need sustained throughput for large game libraries, video projects or heavy multitasking. The 1400 TBW rating and 1.6 million hour MTBF back endurance for frequent writes. Systems limited to PCIe 3.0 or SATA interfaces will not realise the stated sequential speeds.

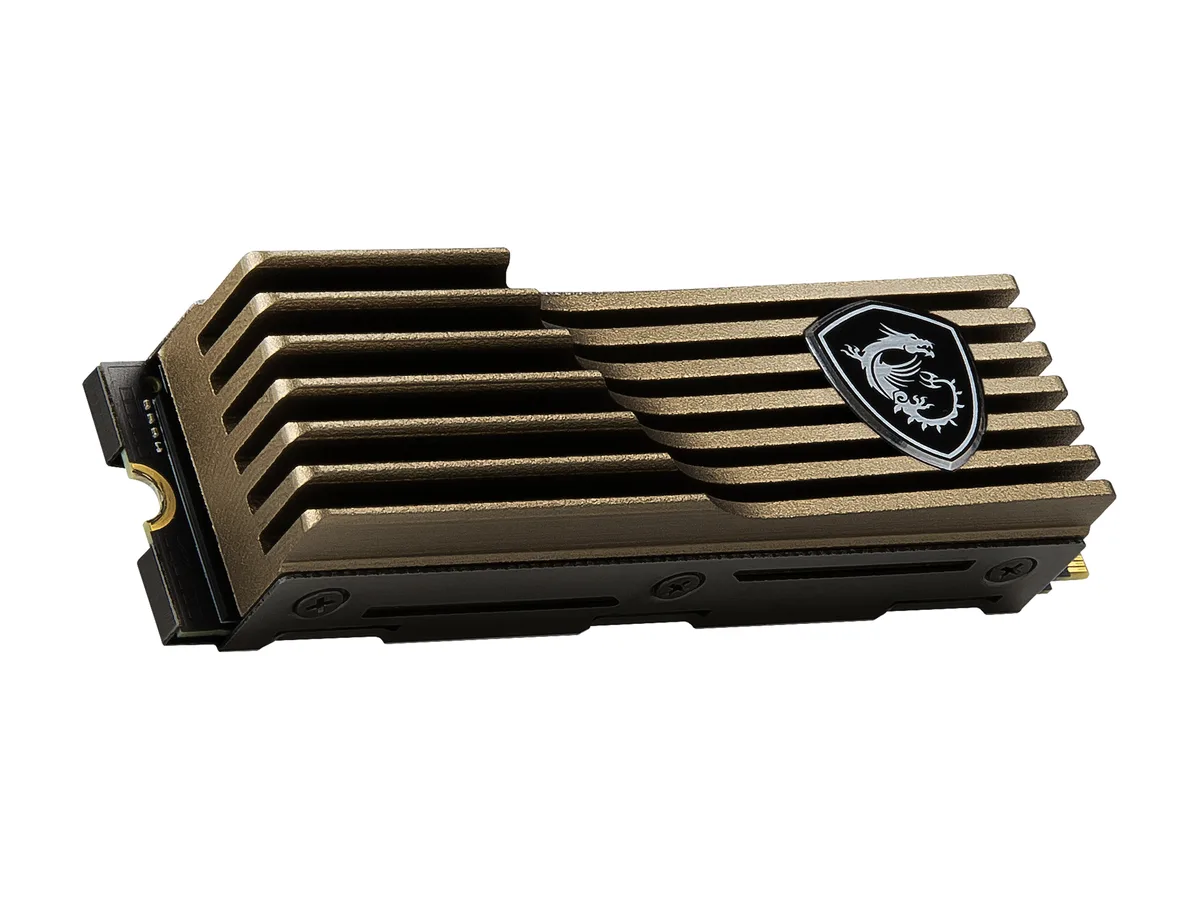

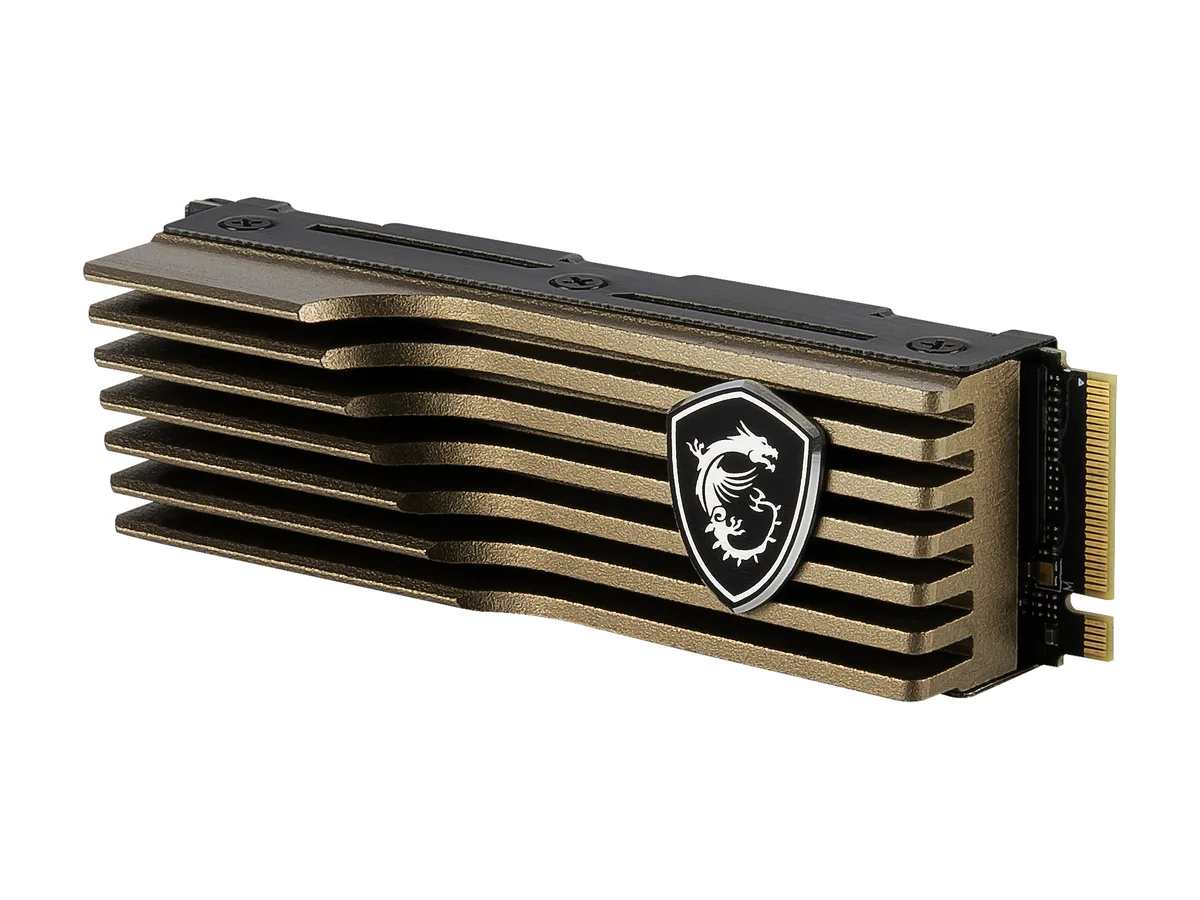

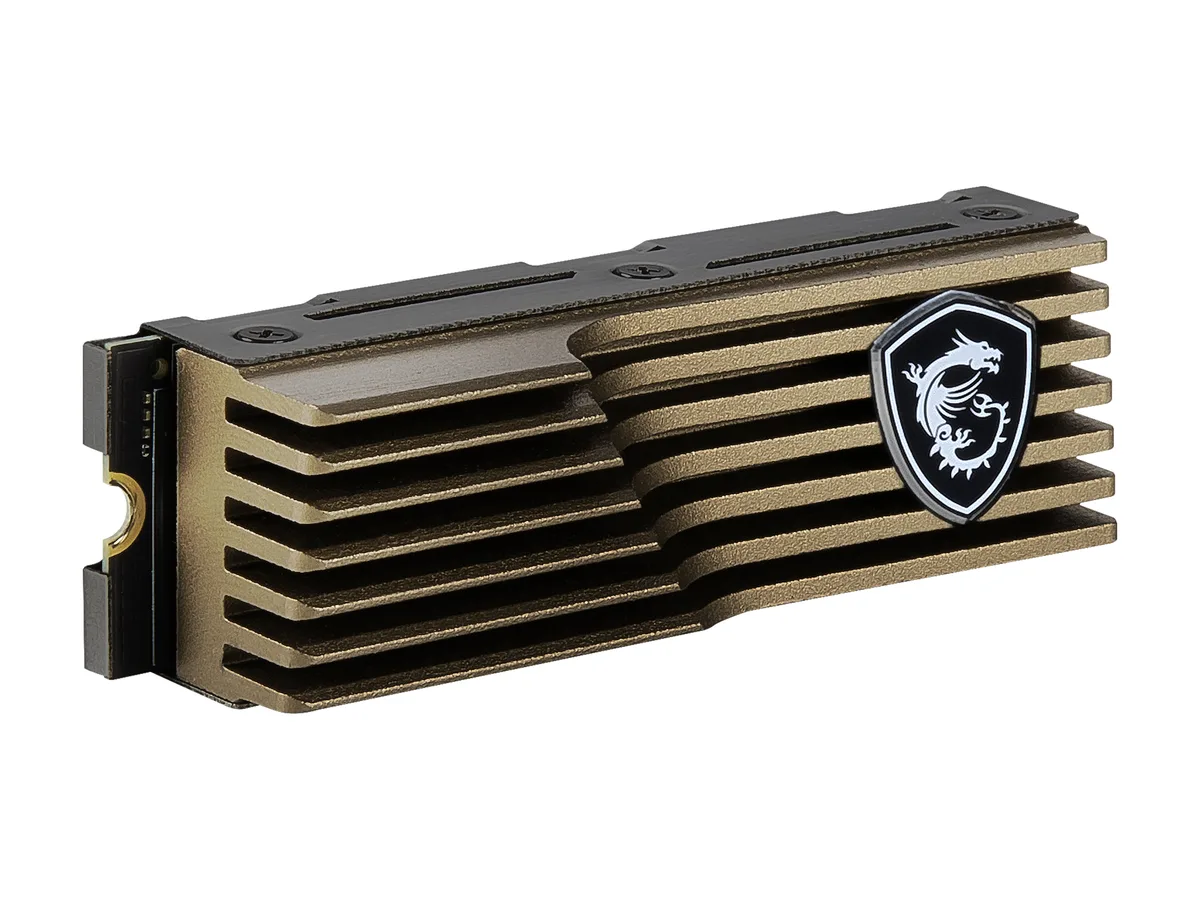

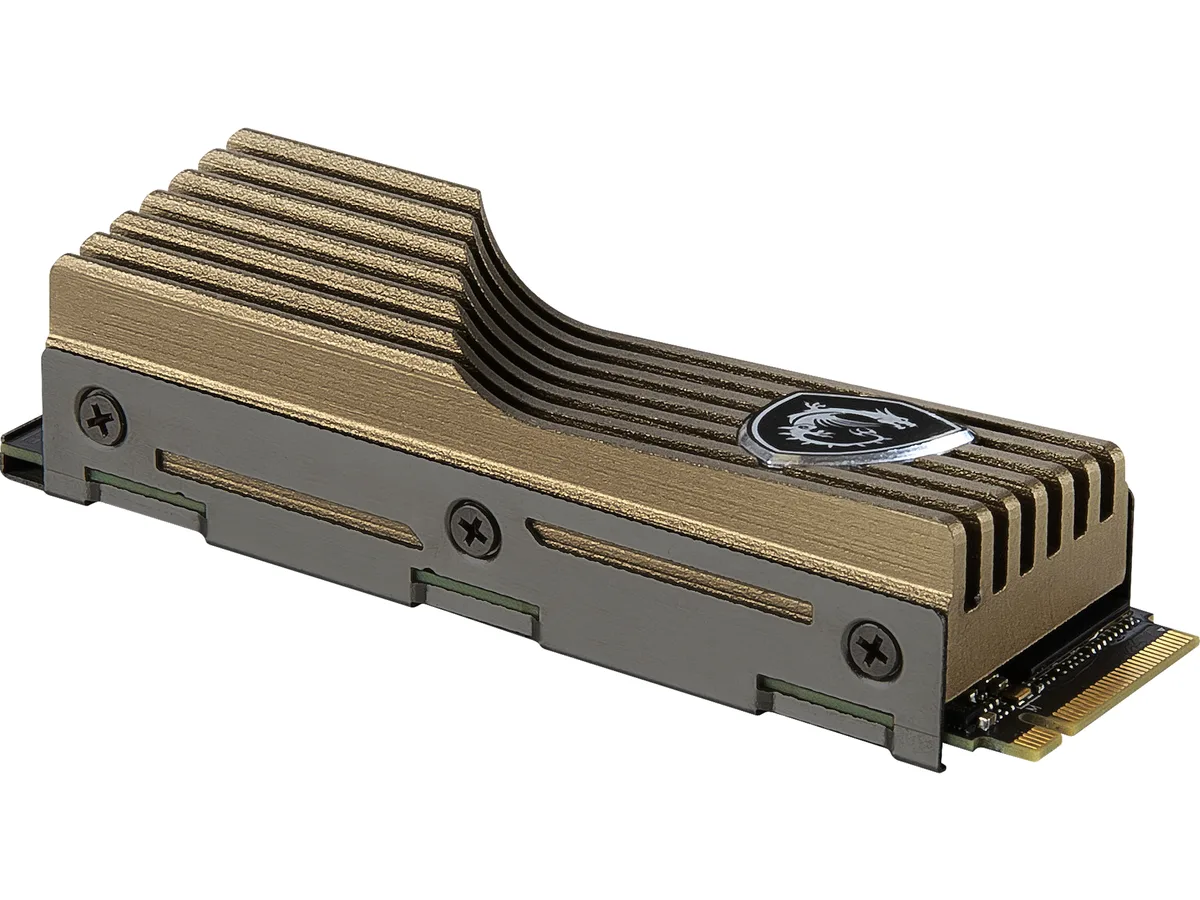

Aluminium heatsink sustains peak throughput

The stacked-fin heatsink dissipates heat so the controller can maintain up to 7000 MBps read and 6800 MBps write during extended transfers. Random performance reaches 650000 IOPS read and 700000 IOPS write under load. LDPC error correction and end-to-end data path protection preserve integrity without throttling.

Highlights

  • Sequential reads up to 7000 MB/s via PCIe 4.0 interface
  • Sequential writes up to 6800 MB/s via PCIe 4.0 interface
  • Random reads up to 650000 IOPS with PHISON E18 controller
  • Random writes up to 700000 IOPS with 2GB DDR4 cache
  • Endurance rated at 1400 TBW with 1600000 hours MTBF

Specifications

BrandMSI
SeriesSPATIUM Series
ModelM480
Part NumberSPATIUM M480 1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCIe Gen4x4, NVMe 1.4
ControllerPHISON E18
Cache2GB DDR4
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 6800 MBps
4KB Random ReadUp to 650,000 IOPS
4KB Random WriteUp to 700,000 IOPS
Terabytes Written (TBW)1400TB
MTBF1,600,000 hours
HeatSinkwith HeatSink
FeaturesTRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
Power Consumption (Idle)22 mW
Power Consumption (Active)8.2W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height20.40mm
Width23.00mm
Depth80.40mm
Shipping weight0.20 kg
Package size146 × 104 × 37 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the aluminum heatsink fit under my motherboard's M.2 shield?

The drive uses the standard M.2 2280 form factor with an integrated aluminum heatsink. Most motherboard shields accommodate this height, but check your board's clearance if the shield sits very close to the PCB.

Does the 2 GB DDR4 cache improve everyday responsiveness?

The onboard 2 GB DDR4 cache buffers write bursts and metadata, helping sustain the rated 7000 MBps read and 6800 MBps write speeds during heavy workloads.

Is 1400 TBW enough for a gaming and content-creation drive?

At 1400 TBW you could write the full 2 TB capacity hundreds of times over; typical gaming and video workloads consume a small fraction of that endurance.
