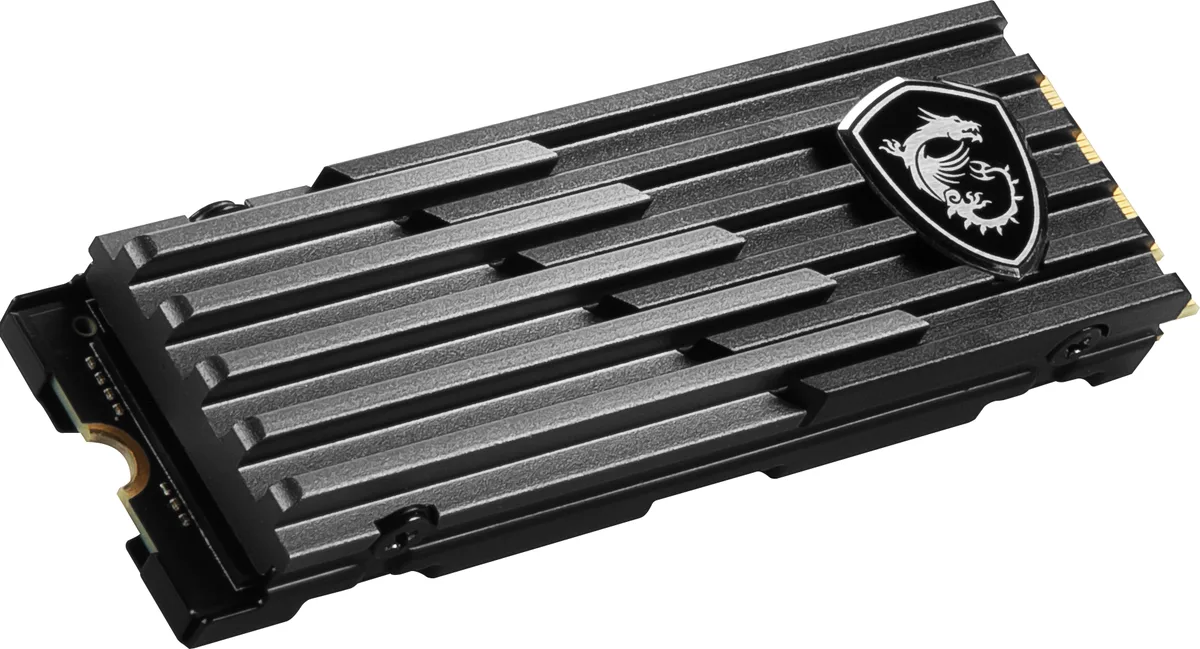

MSI SPATIUM M480 1TB M.2 2280 SSD with black heatsink and gold connector

MSI

MSI SPATIUM M480 PCIe 4.0 NVMe M.2 1TB PLAY internal SSD

SKU CH-100B-N35E1 MPN SPATIUM M480 PCIe 4.0 NVMe M.2 1TB PLAY

A PCIe 4.0 x4 NVMe drive with a PS5-compatible heatsink, delivering up to 7000 MB/s reads and 5500 MB/s writes

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Style Without Heatsink

Options 1TB M480

  • Fast game loads with 7000 MB/s sequential read
  • Quick level streaming from 5500 MB/s sequential write
  • PS5™ storage expansion via compatible heatsink
  • Data protected by 256-bit AES encryption
  • Cool operation under load with included heatsink

1TB NVMe M.2 2280 with heatsink

The MSI SPATIUM M480 is a 1TB internal solid-state drive built on the M.2 2280 form factor. It connects through a PCIe 4.0 x4 interface and includes a heatsink designed for PS5 compatibility. The drive uses 3D NAND flash memory and a PHISON E18 controller for consumer workloads.

Sustained throughput with PHISON E18 controller

Under continuous load the PHISON E18 controller manages data flow across the PCIe 4.0 x4 lanes to maintain sequential reads up to 7000 MBps and writes up to 5500 MBps. The integrated heatsink dissipates heat during extended transfers so performance remains stable rather than throttling after a short burst. 256-bit AES encryption secures data without reducing throughput.

PCIe 4.0 x4 lane limits and physical constraints

The four-lane PCIe 4.0 interface caps maximum bandwidth at the drive's rated 7000 MBps read and 5500 MBps write ceilings. The M.2 2280 dimensions and attached heatsink define the physical space required inside a laptop, desktop or PS5 console. No higher throughput is possible without moving to a newer interface generation.

Highlights

  • Fast game loads with 7000 MB/s sequential read
  • Quick level streaming from 5500 MB/s sequential write
  • PS5™ storage expansion via compatible heatsink
  • Data protected by 256-bit AES encryption
  • Cool operation under load with included heatsink

Specifications

BrandMSI
SeriesSPATIUM Series
ModelM480 PS5™ Compatible Heatsink
Part NumberSM480N1TBP
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ControllerPHISON E18
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 5500 MBps
HeatSinkwith HeatSink
Shipping weight0.45 kg
Package size254 × 127 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the SPATIUM M480 1 TB drive run hot under sustained workloads?

The included heatsink is designed to keep the controller and 3D NAND within safe temperatures during continuous operation.

My motherboard only has a PCIe 4.0 x4 M.2 slot — will the SPATIUM M480 1 TB work without an adapter?

Yes, the M.2 2280 form factor plugs directly into any PCIe 4.0 x4 M.2 slot; no extra bracket or cable is required.

Will the SPATIUM M480 1 TB slow down if I install it in a PCIe 3.0 system?

The drive is backward-compatible and will operate at PCIe 3.0 speeds when installed in an older platform.
