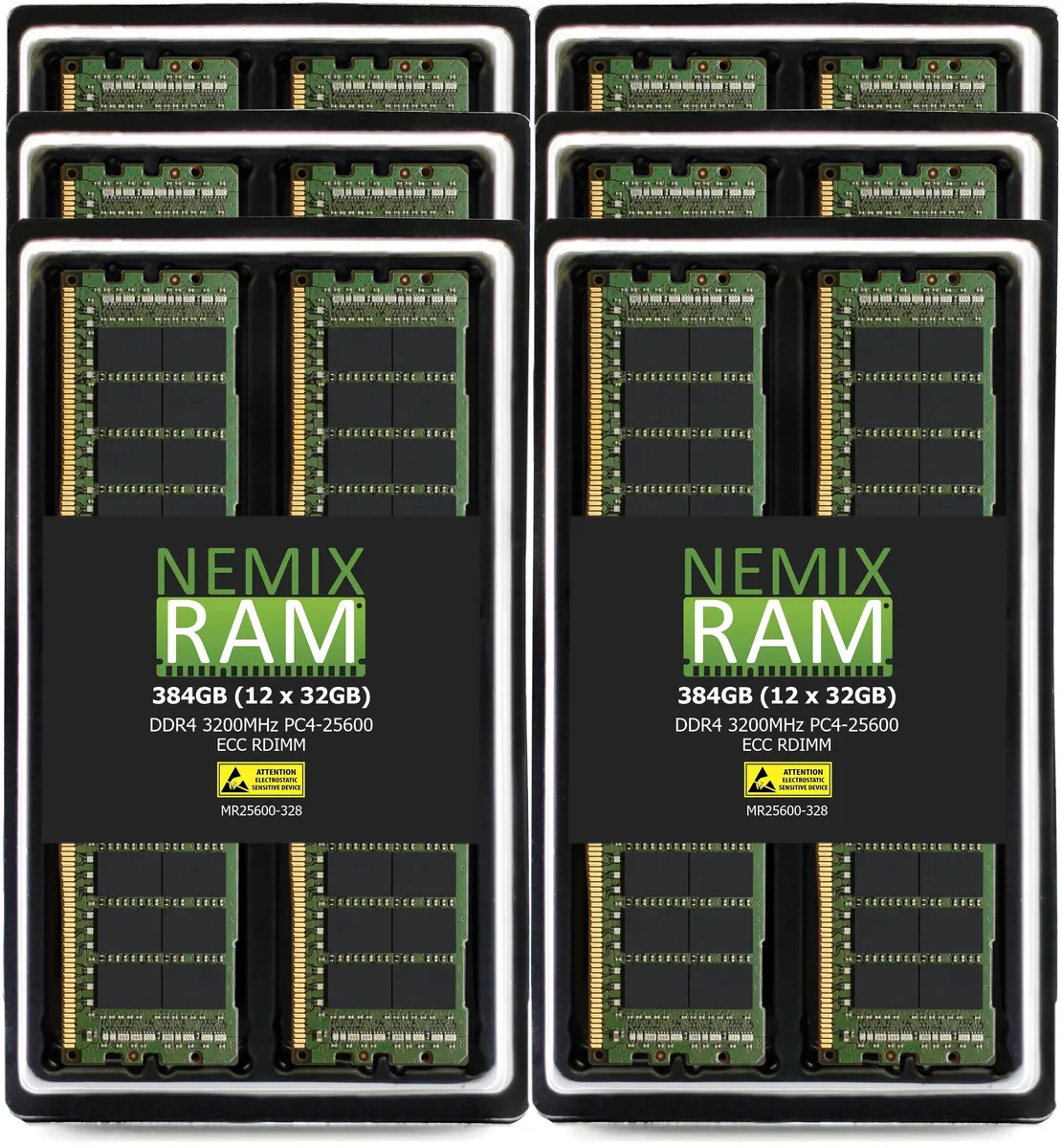

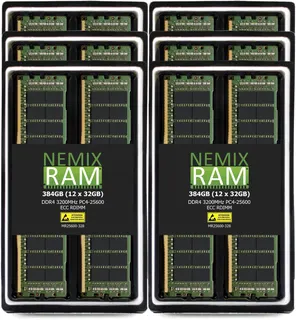

Twelve green DDR4 RDIMM modules in a row

NEMIX RAM

NEMIX RAM 384GB (12x32GB) DDR4 3200 CL22 ECC RDIMM memory upgrade

SKU CH-1C17-CGDKC

A 384 GB DDR4-3200 ECC RDIMM kit of twelve 32 GB modules at CL22, 1.2 V, 288-pin registered memory for Thinkmate servers

  • Capacity384GB (12 x 32GB)
  • SpeedDDR4 3200 (PC4 25600)
  • ECCYes
  • Buffered/RegisteredRegistered
  • ChipsetMajor OEM Samsung, Micron, Hynix
  • Voltage1.20V
  • 384 GB total capacity with twelve 32 GB modules
  • DDR4 3200 speed rated at PC4-25600 bandwidth
  • ECC registered RDIMM for server data integrity
  • CL22 latency at 1.2 V operating voltage
  • 288-pin 2Rx8 design compatible with ThinkMate EDX-QS10-11E3

384GB DDR4 3200 ECC RDIMM kit

This 384GB kit contains twelve 32GB DDR4 3200 ECC registered DIMMs built for Thinkmate servers and workstations. Each module runs at 1.2V with CL22 latency and a 2Rx8 organisation. The registered design adds a buffer that reduces electrical load on the memory controller in multi-DIMM configurations. IT teams upgrading Thinkmate EDX-QS10-11E3 platforms can install the full set to reach the system's supported capacity.

Sustained load behaviour

Modules are stress tested under load before shipping to verify stability during continuous operation. ECC circuitry detects and corrects single-bit errors in real time, preventing data corruption during long compute jobs. Registered buffering keeps signal integrity consistent across all twelve slots even when every channel is populated. The 1.2V operating voltage helps limit thermal output during extended duty cycles.

Pre-installation checks

Verify that the target Thinkmate system accepts 288-pin DDR4 RDIMMs and supports 32GB density per slot across twelve slots. Confirm the BIOS recognises 2Rx8 registered modules at 3200MT/s without down-clocking. Ensure the memory controller can address the full 384GB total capacity with the current firmware revision. Check that no UDIMM or LRDIMM population rules restrict mixing registered modules in the same chassis.

Highlights

  • 384 GB total capacity with twelve 32 GB modules
  • DDR4 3200 speed rated at PC4-25600 bandwidth
  • ECC registered RDIMM for server data integrity
  • CL22 latency at 1.2 V operating voltage
  • 288-pin 2Rx8 design compatible with ThinkMate EDX-QS10-11E3

Specifications

BrandNEMIX RAM
SeriesTHINKMATE Server/Workstation Compatible Series Memory
ModelTHINKMATE DDR4 3200MHZ ECC RDIMM Registered Server Memory
Part NumberMR25600-328K12
Capacity384GB (12 x 32GB)
SpeedDDR4 3200 (PC4 25600)
ECCYes
Buffered/RegisteredRegistered
ChipsetMajor OEM Samsung, Micron, Hynix
Voltage1.20V
Compatible SystemTHINKMATE
CAS LatencyCL22
Heat SpreaderNo
Type288-Pin DDR4 RDIMM
Rank2Rx8
FeaturesDDR4 ECC Registered RDIMM Server Motherboard Compatible
Package Content384GB (12X32GB) DDR4 3200MHZ PC4-25600 2Rx8 1.2V CL22 288-PIN ECC RDIMM Registered Server Memory KIT

Questions about this item

How much power does the 1.20V DDR4 3200 RDIMM kit draw when the server runs continuously?

Each 32GB module operates at 1.20V; total draw depends on how many of the 12 sticks the platform activates, but voltage stays at 1.20V per DIMM.

What motherboard slots and firmware support are required for the 288-pin ECC RDIMM kit to function?

The kit needs 12 free DDR4 RDIMM slots on a ThinkMate EDX-QS10-11E3 or compatible board with BIOS that enables registered ECC memory.

Will the 3200 CL22 registered ECC modules run at their rated speed alongside slower DDR4 sticks already installed?

The memory controller sets one common frequency; mixing speeds forces all modules to the lowest common rate, so 3200-rated sticks will down-clock to match older DIMMs.
