White 280 mm dual-fan unit with semi-translucent RGB blades in a single frame

NZXT

NZXT RF-U28HF-W1 280 mm dual-fan case fan

SKU CH-Z1KD-6RDF8 MPN RF-U28HF-W1

A 280 mm dual-fan unit with fluid dynamic bearings delivers 98.61 CFM airflow at up to 2000 RPM and 34.5 dBA noise per fan

  • Fan Size280mm
  • LEDRGB
  • TypeCase Fan
  • Bearing TypeFluid Dynamic Bearing
  • RPM500 - 2000 +/- 200 RPM per fan
  • Air Flow98.61 CFM per fan

Fan Size 280mm

  • 280 mm single-frame design simplifies installation with one cable
  • 61 CFM airflow per fan delivers strong cooling performance
  • 5 dBA noise level per fan keeps operation quiet
  • Fluid dynamic bearing with Zero RPM mode ensures durable silence

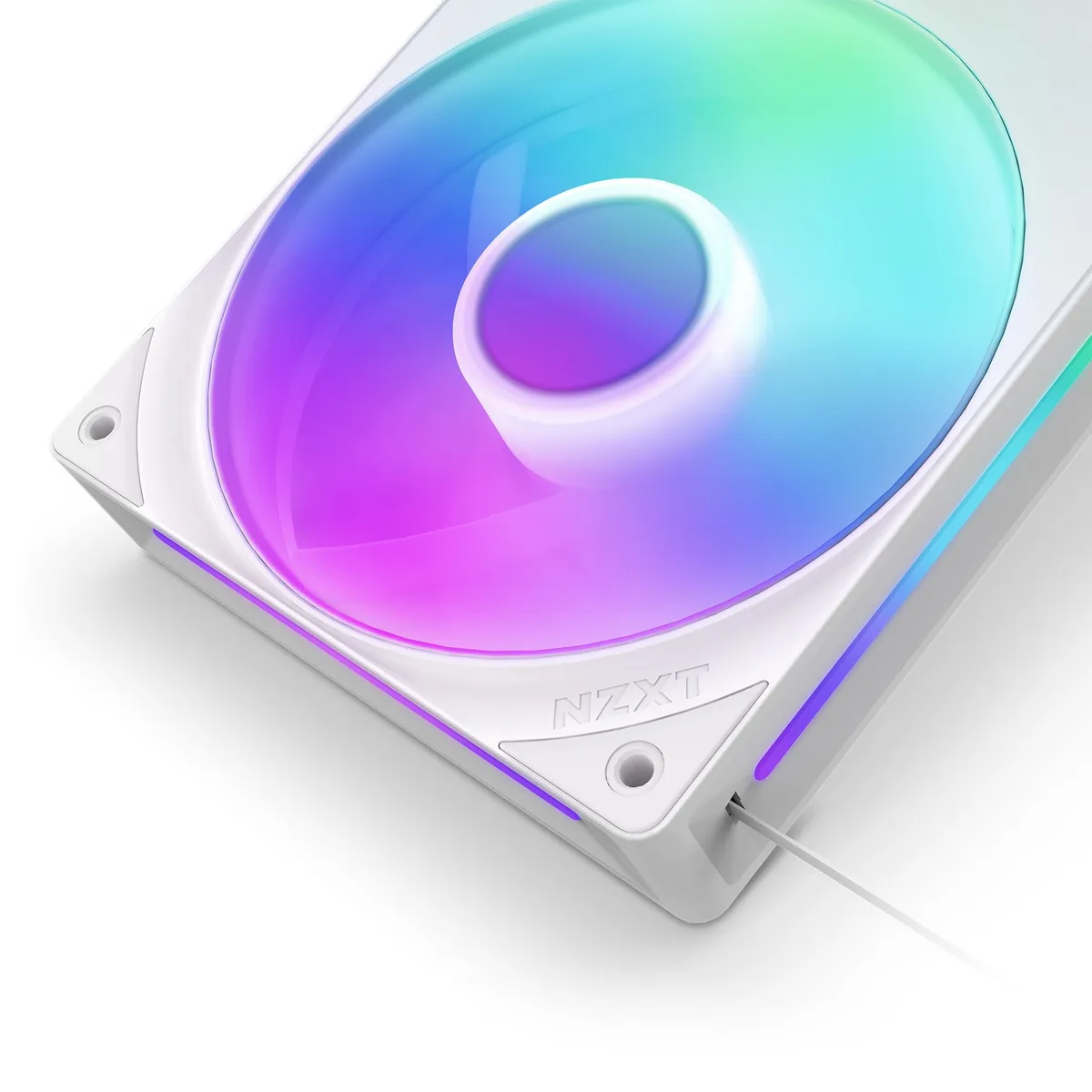

  • Eight RGB LEDs per fan create vibrant semi-translucent illumination

280 mm RGB fan unit for radiators

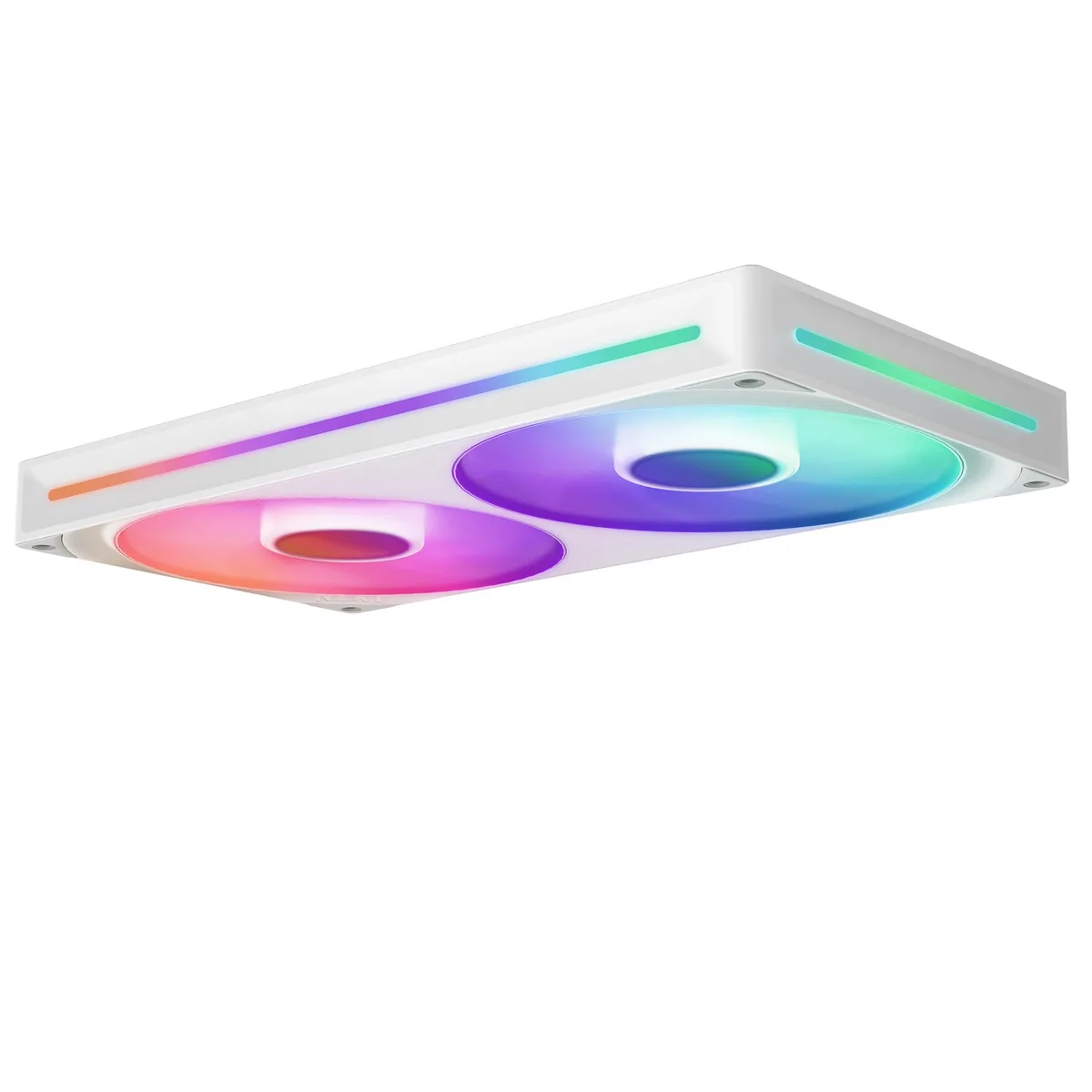

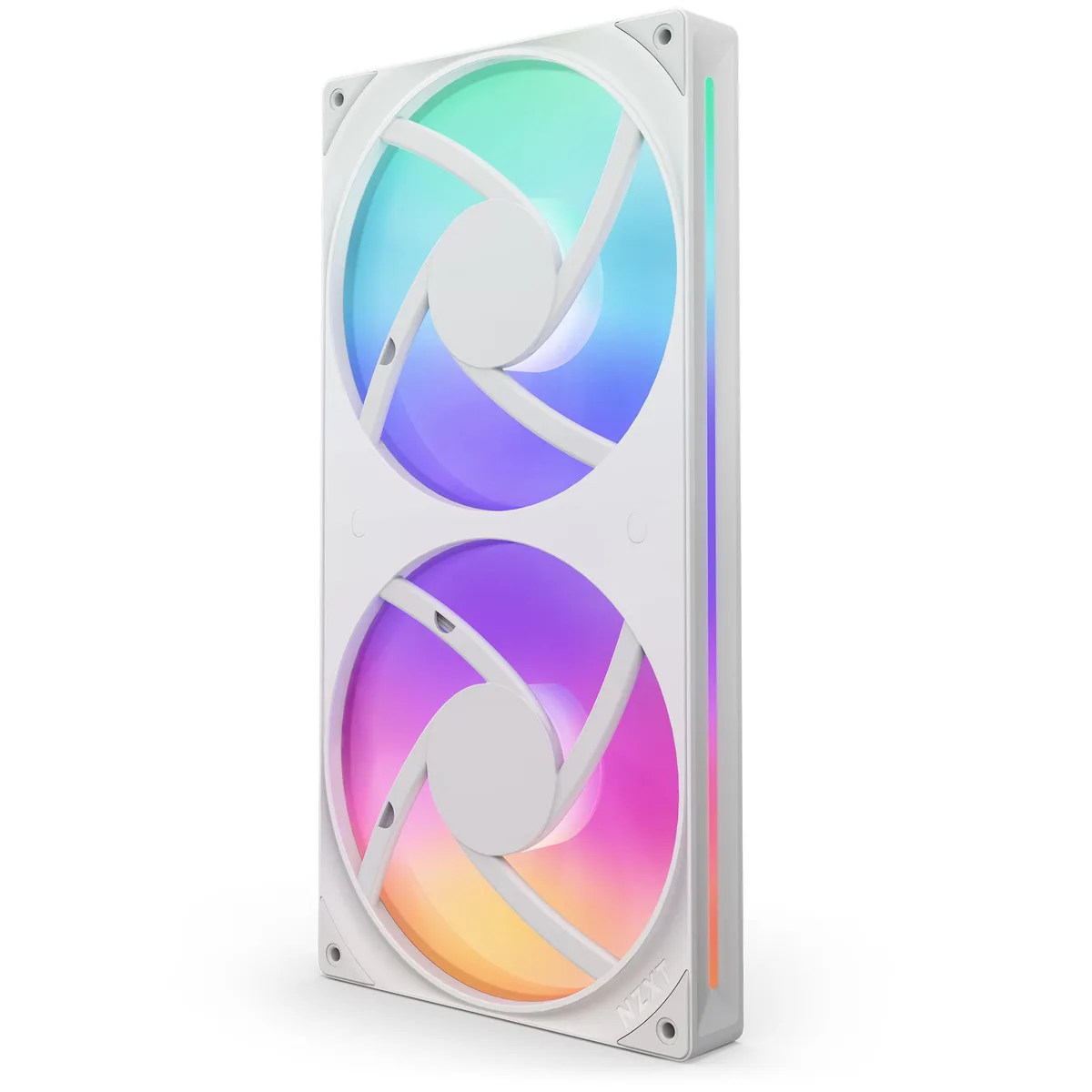

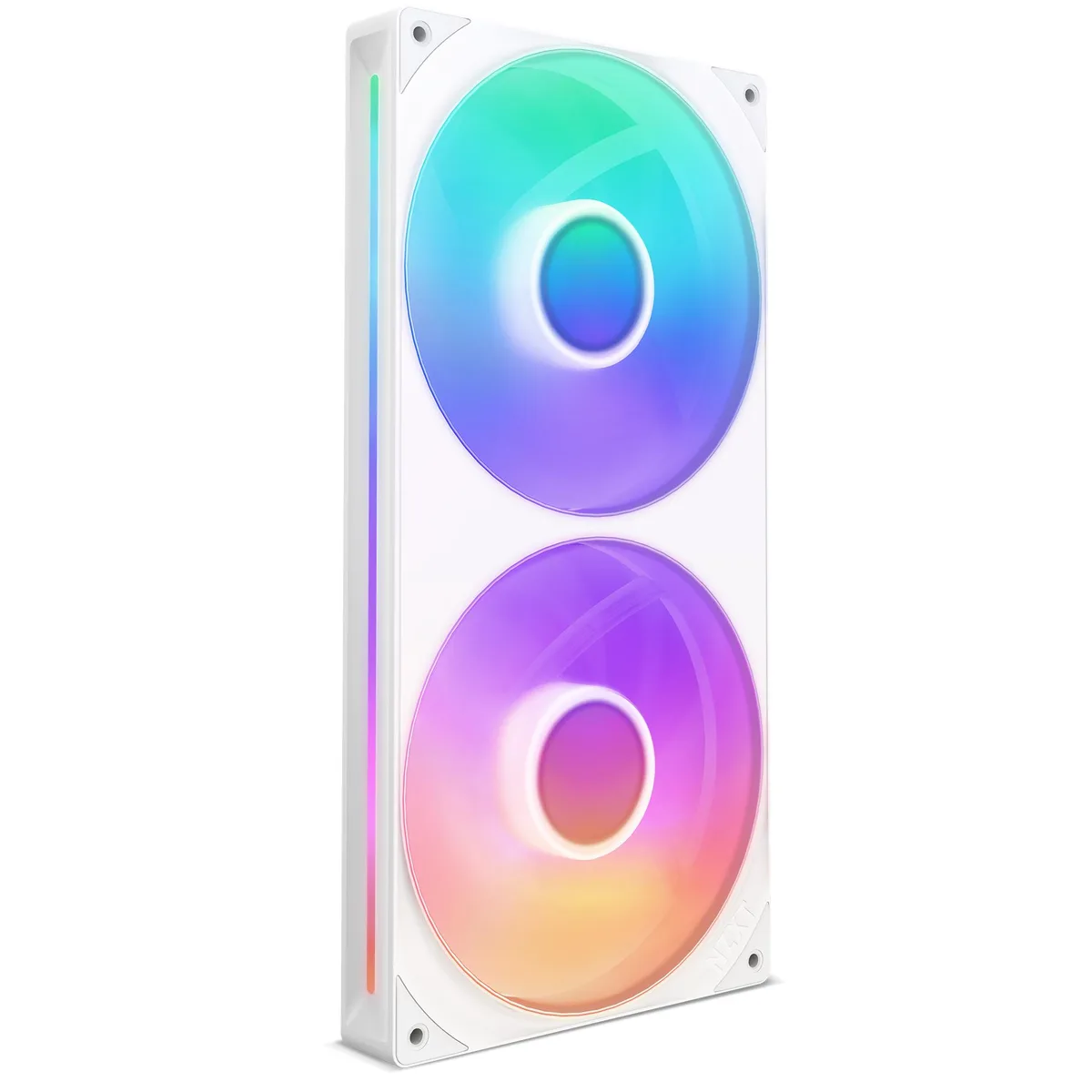

The NZXT F280 RGB CORE RF-U28HF-W1 is a 280 mm single-frame unit that integrates two 140 mm fans in a white finish. It targets builders fitting a 280 mm radiator or large intake who want RGB lighting and simplified cabling. The unit connects through an 8-pin cable carrying both PWM and RGB signals to an NZXT controller or motherboard splitter.

Single 8-pin PWM and RGB connector

Operation requires an NZXT RGB & Fan Controller or a compatible NZXT motherboard for full CAM software control; both are sold separately. A splitter cable is included for direct motherboard connection, but digital RGB control depends on the external controller. The 8-pin interface combines power and lighting into one cable, reducing internal clutter.

98.61 CFM per fan at 34.5 dBA

Each fan delivers 98.61 CFM airflow and 3.2 mm H2O static pressure between 500 and 2000 RPM with a 200 RPM tolerance. Fluid dynamic bearings and a zero-RPM mode keep noise at 34.5 dBA per fan under load. The 26 mm thick dual-fan assembly suits high-airflow cooling but occupies a 280 mm mounting footprint, limiting use to cases with matching radiator support.

Highlights

  • 280 mm single-frame design simplifies installation with one cable
  • 61 CFM airflow per fan delivers strong cooling performance
  • 5 dBA noise level per fan keeps operation quiet
  • Fluid dynamic bearing with Zero RPM mode ensures durable silence
  • Eight RGB LEDs per fan create vibrant semi-translucent illumination

Specifications

BrandNZXT
SeriesF280 RGB CORE
ModelRF-U28HF-W1
Part NumberRF-U28HF-W1
Fan Size280mm
LEDRGB
TypeCase Fan
Bearing TypeFluid Dynamic Bearing
RPM500 - 2000 +/- 200 RPM per fan
Air Flow98.61 CFM per fan
Noise Level34.5 dBA per fan
Power Connector8-pin for PWM & RGB
ColorWhite
Fan Counts2 Fans
Fan Thickness26mm
Air Pressure3.2 mm H2O per fan
FeaturesHIGH PERFORMANCE. LOW NOISE.
Optimized for cooling, the integrated fans balance airflow and static pressure. Minimal blade-to-edge gap boosts efficiency. Fluid dynamic bearings with Zero RPM Mode* ensure quiet, durable operation.
*Requires an NZXT RGB & Fan Controller or NZXT motherboard, each sold separately.
SIMPLE INSTALLATION
Single-frame design simplifies installation and digital control. Connect a single cable to an NZXT RGB & Fan Controller (sold separately) to use CAM software or use the included splitter for motherboard connection.
RADIANT RGB
Eight RGB LEDs per fan illumina
Dimensions280 x 140 x 26 mm
Package Contents4-pin PWM Fan Cable - 1 x 300 mm
5V RGB & 4-pin NZXT RGB Cable - 1 x 100 mm
Shipping weight0.59 kg
Package size330 × 152 × 32 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the white 280 mm dual-fan unit or a different colour for my build?

This model is offered in white with two 280 mm fans, 26 mm thick, each delivering 98.61 CFM and 3.2 mm H₂O static pressure.

What does 98.61 CFM per fan mean for actual case temperatures?

Each fan moves up to 98.61 CFM at 2000 RPM, providing strong airflow through radiators or mesh while staying at 34.5 dBA.

How does the 8-pin PWM and RGB connector work with my motherboard?

The single 8-pin cable carries both PWM speed control and 5 V RGB signal; a 300 mm 4-pin PWM and 100 mm RGB splitter are included for direct motherboard headers.
