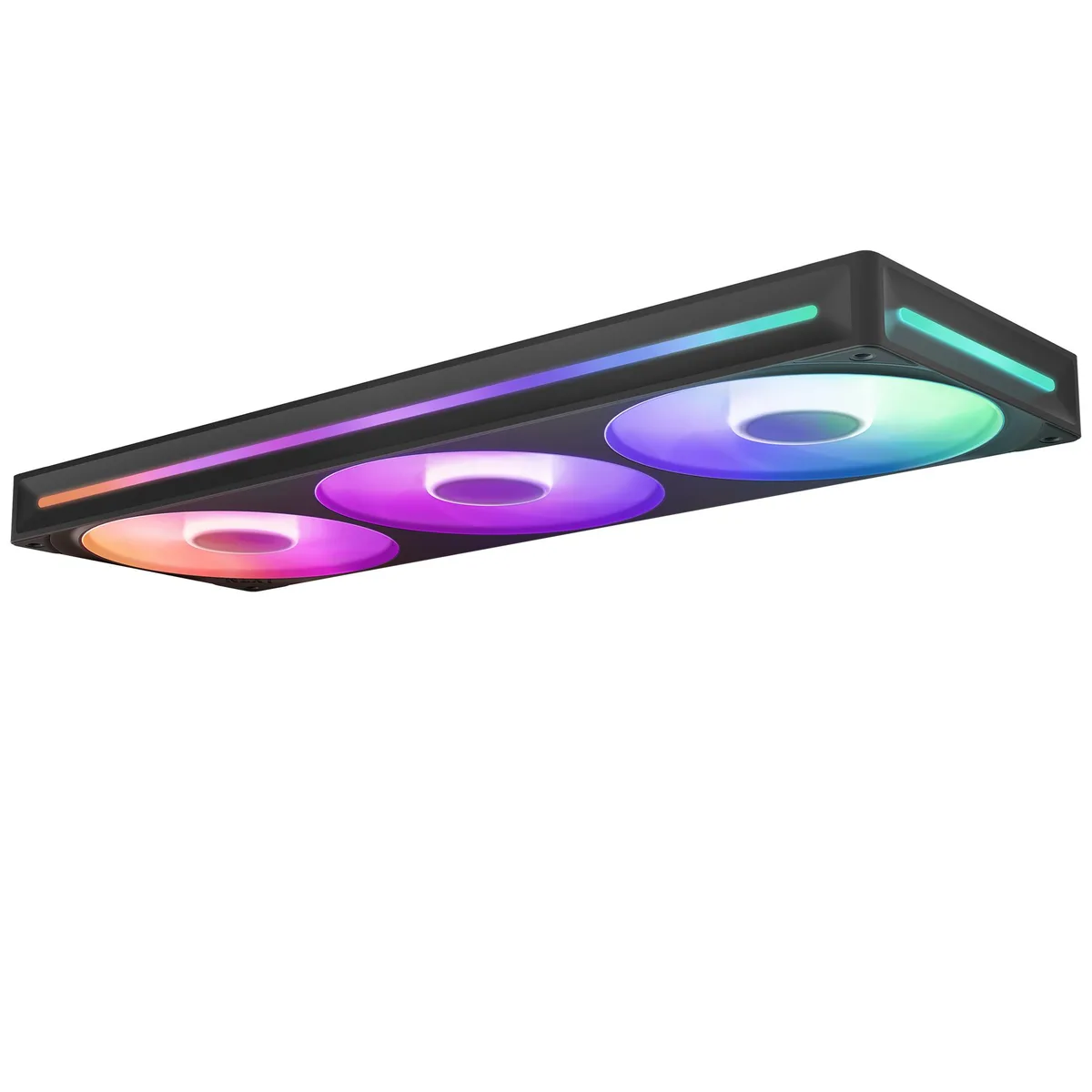

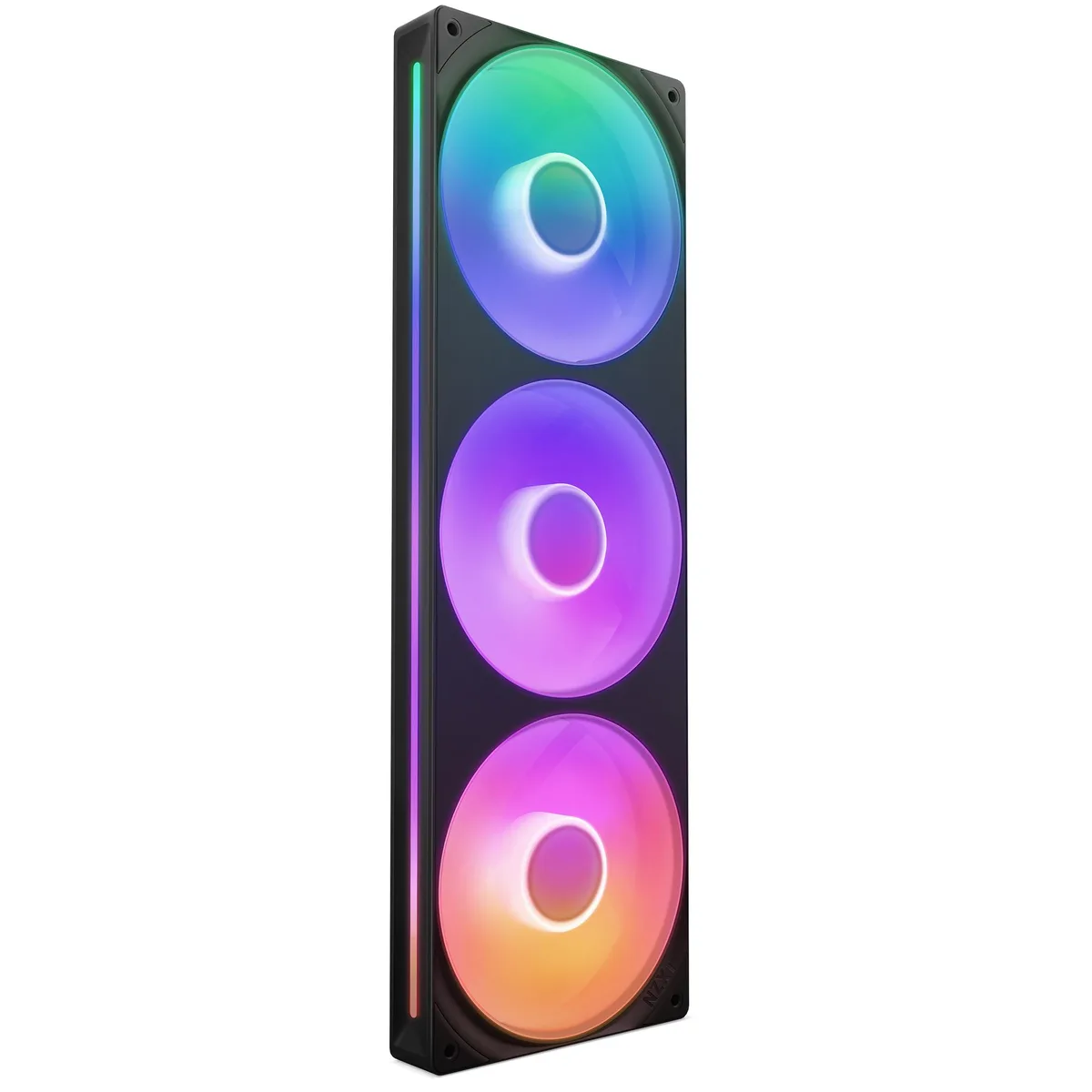

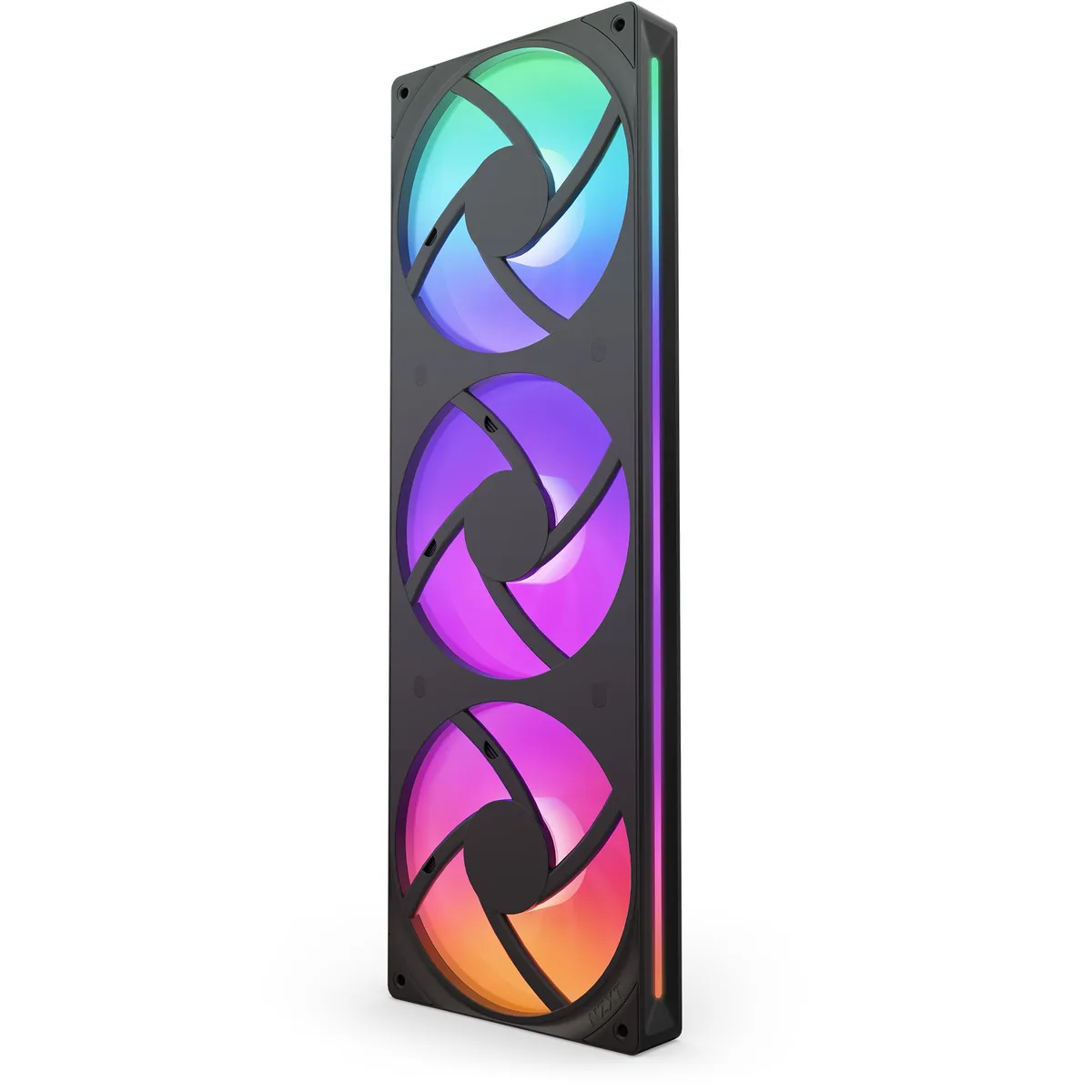

Black 360 mm single-frame RGB fan unit with three integrated fans and semi-translucent blades

NZXT

NZXT RF-U36HF-B1 F360 RGB Core 360 mm case fan

SKU CH-6J68-RR8ZQ MPN RF-U36HF-B1

360 mm single-frame RGB fan unit with three fluid-dynamic-bearing fans delivering 75.12 CFM each at up to 2400 RPM and 30 dBA

  • Fan Size360mm
  • LEDRGB
  • TypeCase Fan
  • Bearing TypeFluid Dynamic Bearing
  • RPM500 - 2400 +/- 250 RPM per fan
  • Air Flow75.12 CFM per fan

Fan Size 360mm

  • 360 mm single-frame design simplifies installation with one cable
  • Three integrated fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings and Zero RPM mode keep noise at 30 dBA
  • 500–2400 RPM range balances static pressure of 3.3 mm H₂O
  • Eight RGB LEDs per fan light semi-translucent blades for vivid colour

Single-frame 360 mm RGB fan unit

The NZXT F360 RGB Core RF-U36HF-B1 is a single-frame assembly that houses three 120 mm fans within a 360 mm wide frame. Each fan uses a fluid dynamic bearing and runs between 500 and 2400 RPM with a tolerance of ±250 RPM. Eight RGB LEDs per fan light the semi-translucent blades for addressable colour effects.

Builders who want a tidy triple-fan install

The single-frame design reduces cable count to one 8-pin connector that carries both PWM and RGB signals, and a splitter is included for direct motherboard connection. Control via NZXT CAM software requires an NZXT RGB & Fan Controller, which is sold separately. Buyers who prefer to manage each fan independently or who need a different overall width should consider other options.

75.12 CFM airflow at 30 dBA per fan

At full speed each fan delivers 75.12 CFM of airflow and 3.3 mm H₂O of static pressure while producing 30 dBA of noise. The 26 mm thick frame fits standard 360 mm radiator mounts. Zero RPM mode stops the fans completely at low temperatures when used with a compatible controller.

Highlights

  • 360 mm single-frame design simplifies installation with one cable
  • Three integrated fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings and Zero RPM mode keep noise at 30 dBA
  • 500–2400 RPM range balances static pressure of 3.3 mm H₂O
  • Eight RGB LEDs per fan light semi-translucent blades for vivid colour

Specifications

BrandNZXT
SeriesF360 RGB CORE
ModelRF-U36HF-B1
Part NumberRF-U36HF-B1
Fan Size360mm
LEDRGB
TypeCase Fan
Bearing TypeFluid Dynamic Bearing
RPM500 - 2400 +/- 250 RPM per fan
Air Flow75.12 CFM per fan
Noise Level30 dBA per fan
Power Connector8-pin for PWM & RGB
ColorBlack
Fan Counts3 Fans
Fan Thickness26mm
Air Pressure3.3 mm H2O per fan
FeaturesHIGH PERFORMANCE. LOW NOISE.
Optimized for cooling, the integrated fans balance airflow and static pressure. Minimal blade-to-edge gap boosts efficiency. Fluid dynamic bearings with Zero RPM Mode* ensure quiet, durable operation.
*Requires an NZXT RGB & Fan Controller or NZXT motherboard, each sold separately.
SIMPLE INSTALLATION
Single-frame design simplifies installation and digital control. Connect a single cable to an NZXT RGB & Fan Controller (sold separately) to use CAM software or use the included splitter for motherboard connection.
RADIANT RGB
Eight RGB LEDs per fan illumina
Dimensions360 x 120 x 26 mm
Package Contents4-pin PWM Fan Cable - 1 x 300 mm
5V RGB & 4-pin NZXT RGB Cable - 1 x 100 mm
Shipping weight0.84 kg
Package size406 × 127 × 32 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long will the fluid dynamic bearings last before they need replacement?

Fluid dynamic bearings are rated for long life and the fan includes a Zero RPM mode that stops the fans at low loads, reducing wear during idle periods.

At 2400 RPM will the 75.12 CFM airflow or the 3.3 mm H2O static pressure hit its limit first?

The 3.3 mm H2O static pressure is the limiting factor when pushing air through dense radiator fins, while the 75.12 CFM figure represents free-air flow.

What is the noise level and power draw when all three fans run at full speed all day?

Each fan reaches 30 dBA at maximum speed and all three draw power through a single 8-pin connector that carries both PWM and RGB signals.
