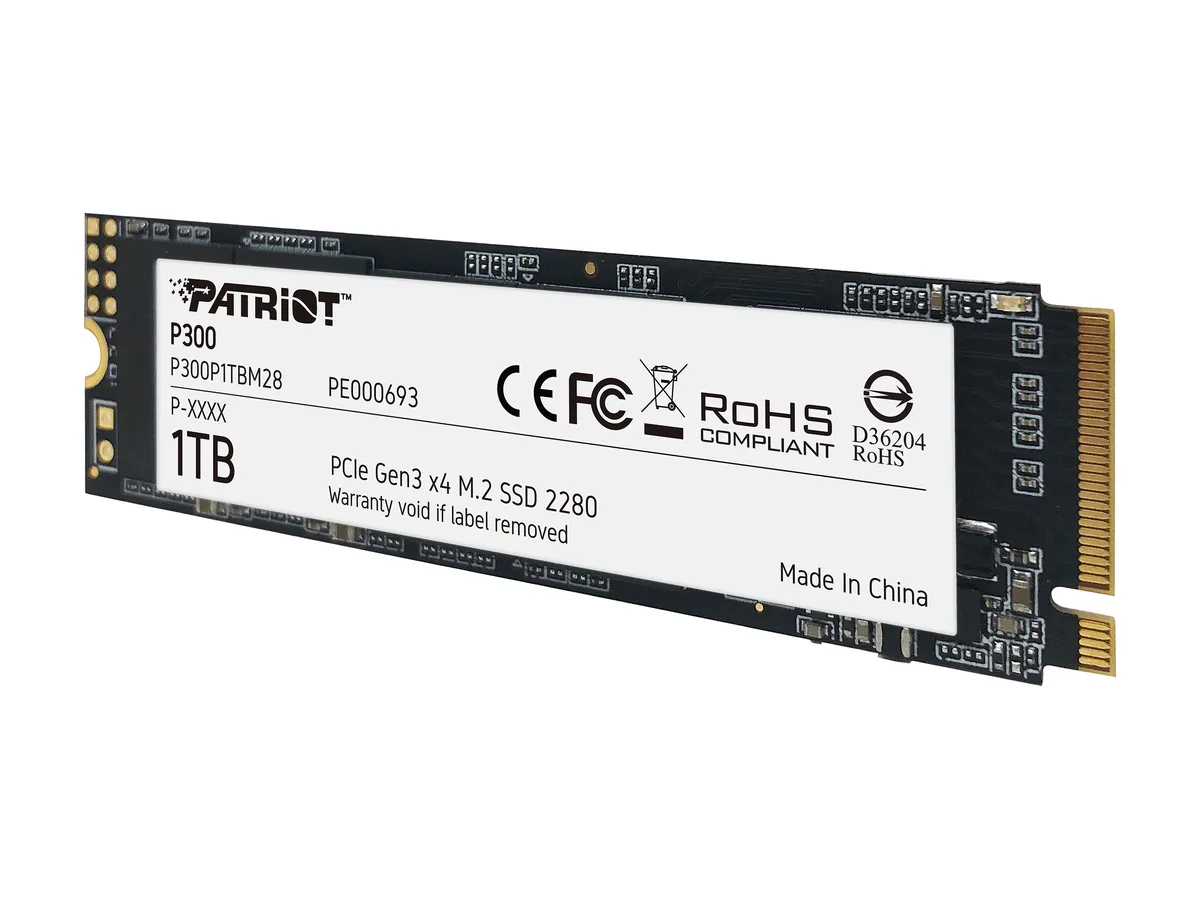

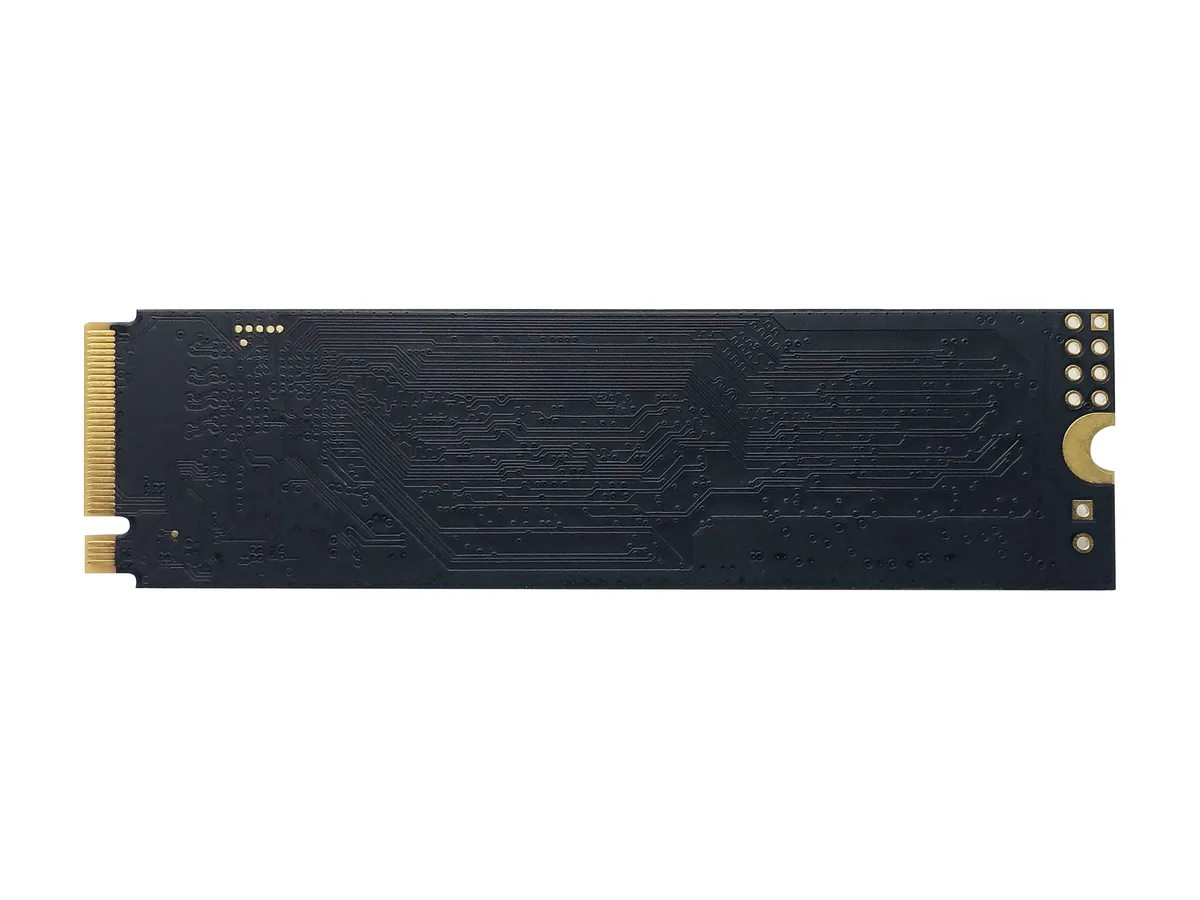

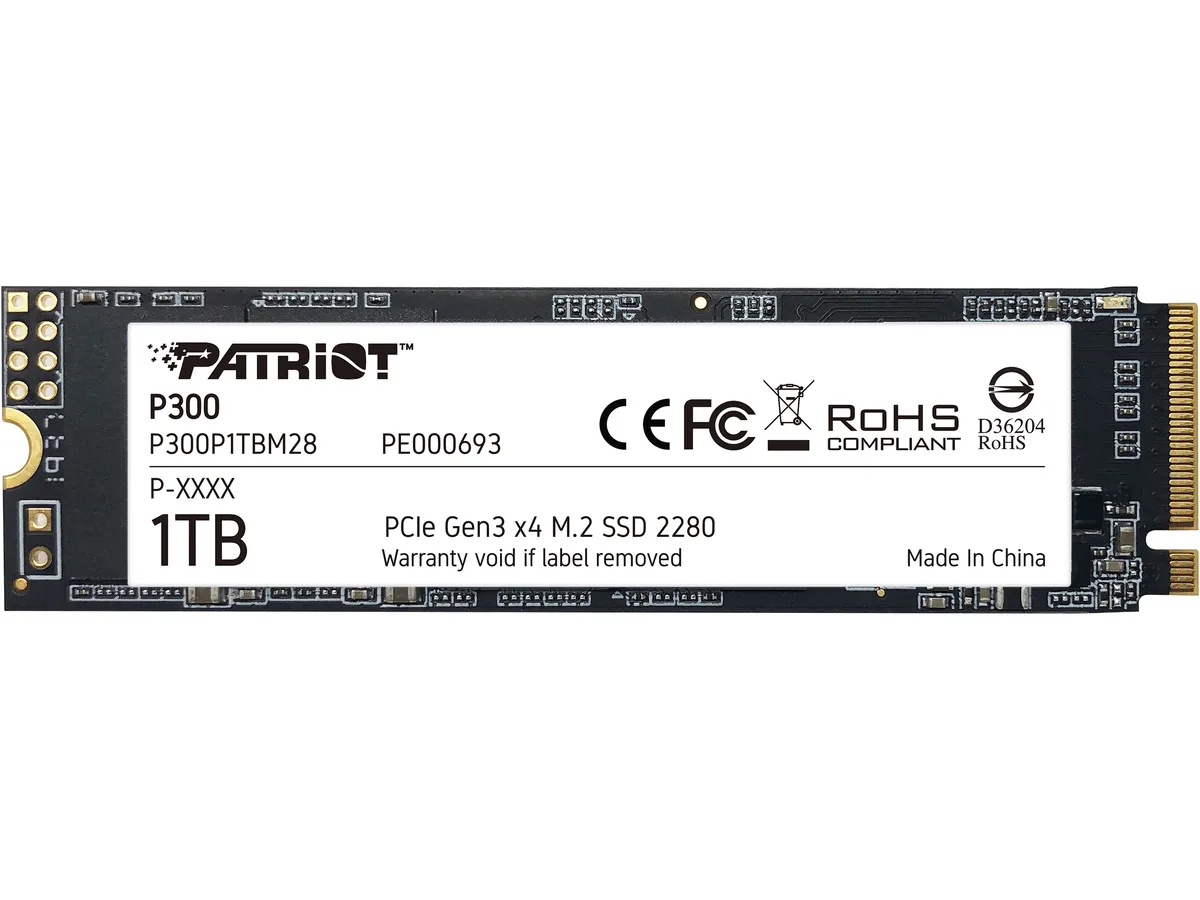

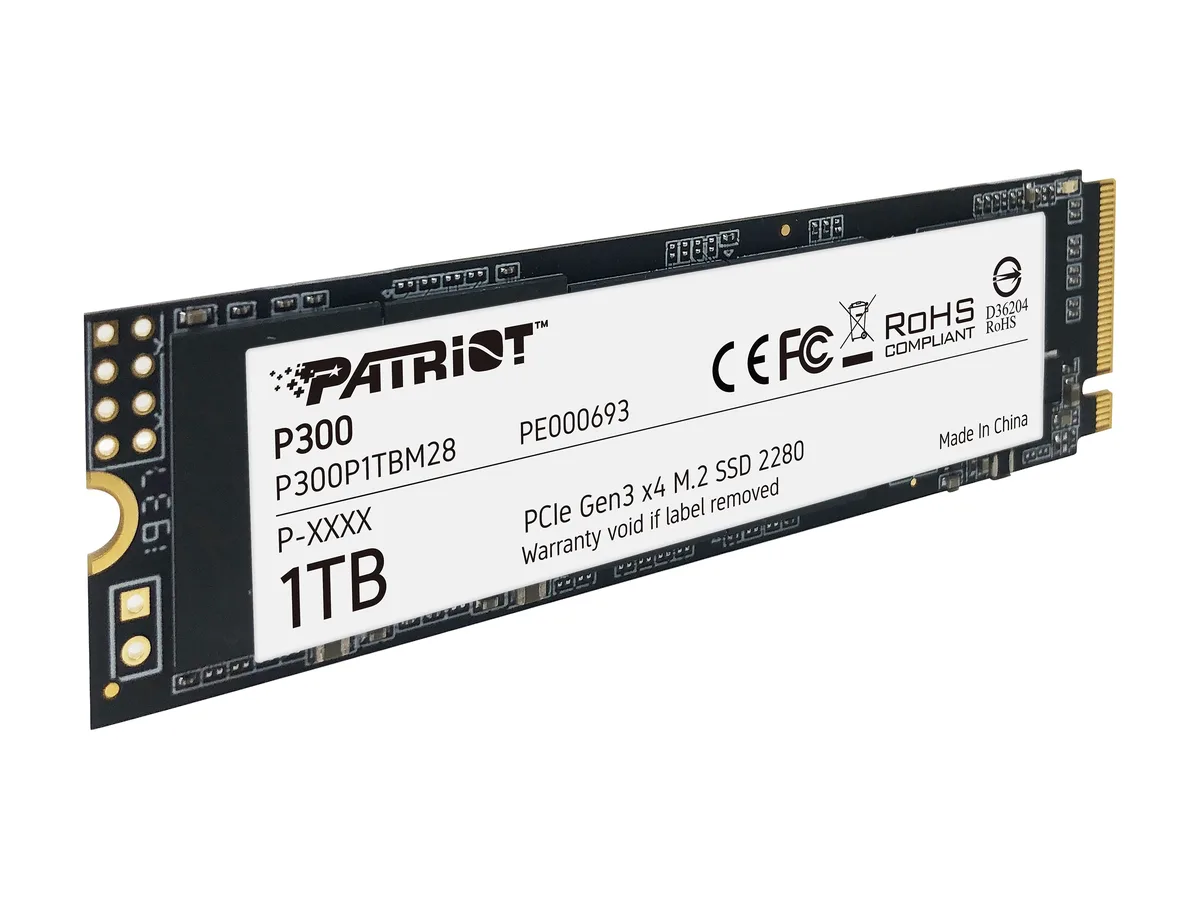

Patriot P300 1TB M.2 2280 internal SSD bare circuit board

Patriot Memory

Patriot Memory P300P1TBM28 1TB M.2 2280 internal SSD

SKU CH-4QF9-GPVW8 MPN P300P1TBM28

1TB PCIe Gen3 x4 NVMe 1.3 internal SSD with up to 2100 MBps read, 1650 MBps write, 290000 IOPS random read and 320TB TBW

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • InterfacePCIe Gen3 x4, NVMe 1.3
  • ControllerSMI 2263XT Series Controller

Options 1TB

  • Sequential read up to 2100 MBps for fast boot
  • Sequential write up to 1650 MBps speeds up file saves
  • Random read up to 290000 IOPS for snappy apps
  • Random write up to 260000 IOPS handles heavy workloads
  • 320 TBW rating ensures long drive life

Patriot P300 1TB NVMe SSD

The Patriot P300 is a 1TB internal solid-state drive in the M.2 2280 form factor. It uses a PCIe Gen3 x4 interface with NVMe 1.3 protocol and an SMI 2263XT controller. The drive operates without a dedicated DRAM cache, relying on host memory buffer technology instead.

Suits mainstream laptops and desktops

This drive suits users upgrading a mainstream laptop or desktop who want faster boot and application load times without the cost of a Gen4 drive. It is less suited for sustained heavy write workloads such as video editing scratch disks or database servers where a DRAM-cached or Gen4 SSD would maintain higher consistent throughput.

1TB capacity with 320TB endurance

The 1TB capacity provides ample room for an operating system, applications and a large game library. Sequential reads reach 2100 MBps and writes 1650 MBps, while random performance hits 290,000 read IOPS and 260,000 write IOPS. The 320TB total bytes written rating and end-to-end data path protection support long-term reliability for typical consumer workloads.

Highlights

  • Sequential read up to 2100 MBps for fast boot
  • Sequential write up to 1650 MBps speeds up file saves
  • Random read up to 290000 IOPS for snappy apps
  • Random write up to 260000 IOPS handles heavy workloads
  • 320 TBW rating ensures long drive life

Specifications

BrandPatriot
SeriesP300
ModelP300P1TBM28
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
InterfacePCIe Gen3 x4, NVMe 1.3
ControllerSMI 2263XT Series Controller
CacheNo DRAM (HMB)
EncryptionEnd-to-End Datapath Protection
Max Sequential ReadUp to 2100 MBps
Max Sequential WriteUp to 1650 MBps
4KB Random ReadUp to 290,000 IOPS
4KB Random WriteUp to 260,000 IOPS
HeatSinkwithout HeatSink
FeaturesTBW: 320TB
The P300 is Patriot's next generation of mid-tier PCIe gen 3 x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3 x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.
The P300's advanced firmware offers ECC technology and end-to-end data path protection to ensure data integrity throughout the life to t
Power Consumption (Idle)0.38W
Power Consumption (Active)2.38W
Operating Temperature0°C ~ +70°C
Height3.80mm
Width22.00mm
Depth80.00mm
Weight9.00g
Shipping weight0.02 kg
Package size131 × 100 × 7 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need an M.2 2280 slot with PCIe 3.0 x4 and NVMe 1.3 support for this Patriot P300 1TB drive to work?

Yes, the drive requires an M.2 2280 slot that provides a PCIe 3.0 x4 electrical interface and supports the NVMe 1.3 protocol.

Will the Patriot P300 1TB SSD run on an older system that only has PCIe 3.0 x2 lanes wired to its M.2 slot?

The drive will operate on a PCIe 3.0 x2 slot, but sequential read and write speeds will be limited to the x2 bandwidth rather than the rated 2100 MBps read and 1650 MBps write.

How can I verify the Patriot P300 1TB is delivering its rated 2100 MBps read and 1650 MBps write after installation?

Run a sequential benchmark such as CrystalDiskMark using a 1 GB test file on an empty drive and compare the results to the 2100 MBps read and 1650 MBps write specifications.
