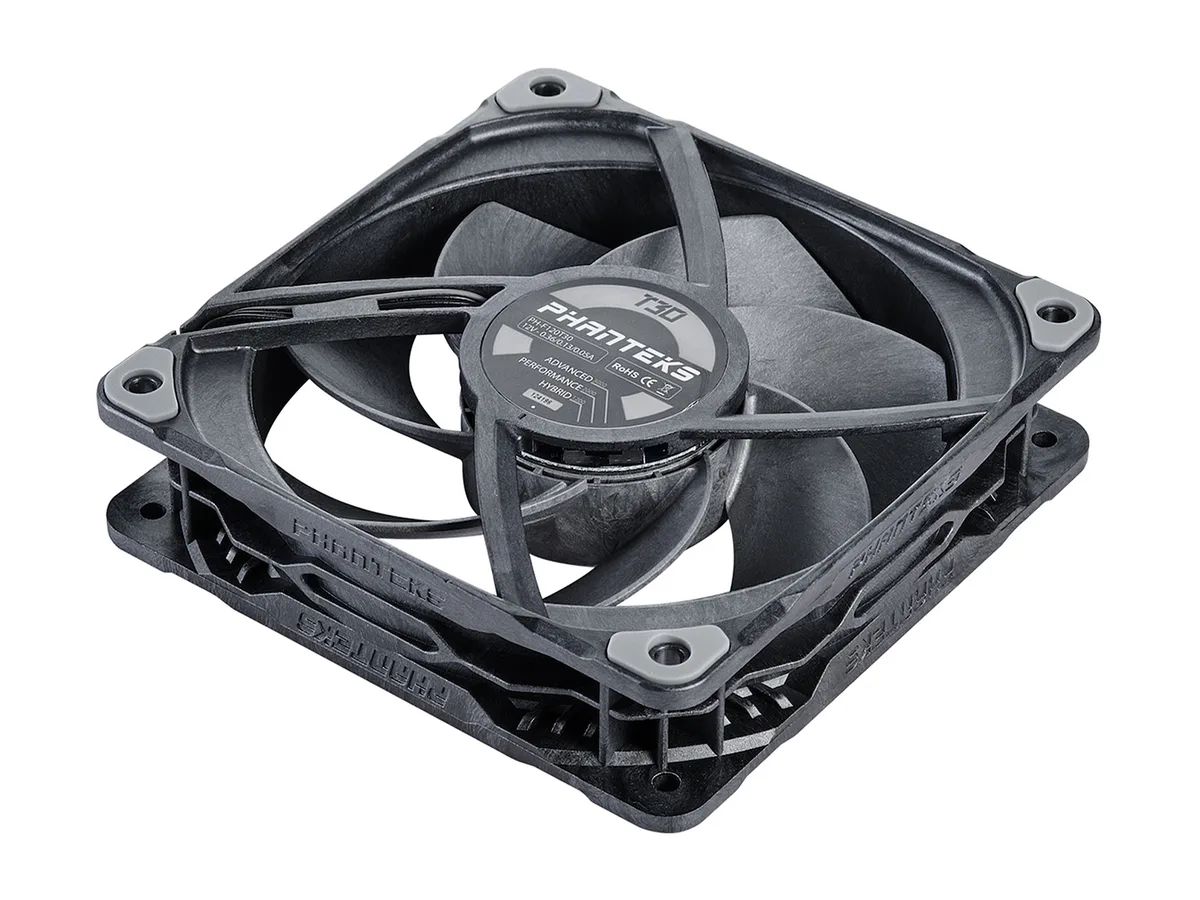

A black and grey 120mm square case fan with a 30mm thick frame and rubber corner dampeners

Phanteks

Phanteks PH-F120T30_BG 120mm 30mm case fan

SKU CH-MCV0-7T317 MPN PH-F120T30_BG

A 30mm-thick 120mm PWM case fan with Vapo bearing, 1200-3000 RPM range, 39.1-101.0 CFM airflow and 11.1-39.7 dBA noise, plus a profile switch for silent, balanced or extreme modes

  • Fan Counts1 Fan
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm
  • Bearing TypeVapo Bearing

Option T30-120 Fan

Struck-through versions exist but are not stocked here.

  • 30 mm thick frame delivers 39.1-101.0 CFM airflow for dense radiators
  • Vapo bearing with magnetic levitation runs 1200-3000 RPM at 11.1-39.7 dBA

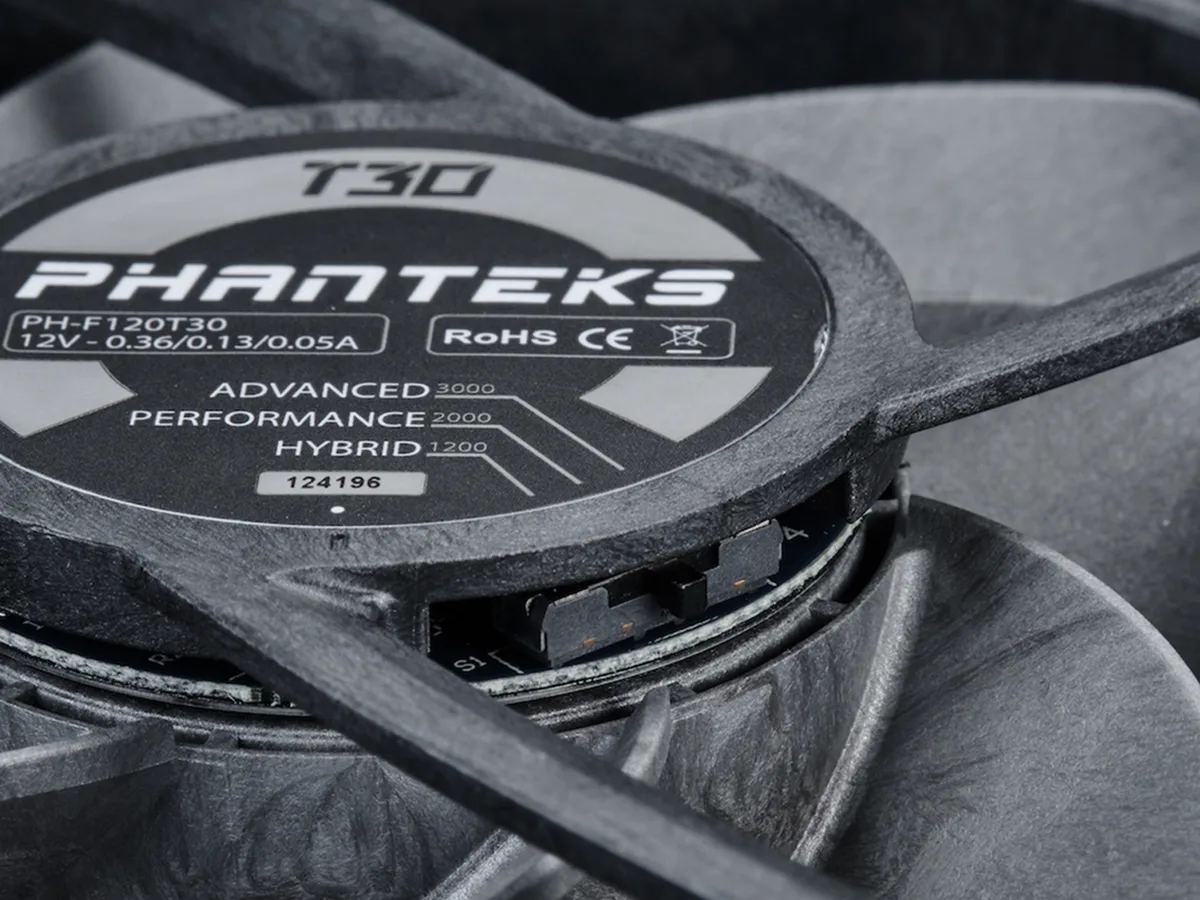

  • Three hardware profiles selectable by switch: silent, balanced, extreme performance
  • LCP frame and blades meet UL-94V-0 flame rating and UL Class A insulation
  • 150 000 hour MTTF rating backed by 12 V 0.36 A 4.32 W motor

120 mm 30 mm Case Fan

The Phanteks T30-120 is a single 120 mm case fan with a 30 mm thick frame designed for radiators, heatsinks or case ventilation. It targets builders who want high static pressure and low noise from a premium component.

Capacity and Headroom

PWM control spans 1200 to 3000 RPM, delivering 39.1 to 101.0 CFM at 11.1 to 39.7 dBA. The three selectable profiles let you trade airflow for silence, but the maximum output is fixed by the 4.32 W motor limit.

Bundled Hardware

The package includes a 4-pin extension cable, four standard fan screws, four 36 mm radiator screws and four 39 mm radiator-plus-halos screws. No RGB lighting or software utilities are supplied.

Highlights

  • 30 mm thick frame delivers 39.1-101.0 CFM airflow for dense radiators
  • Vapo bearing with magnetic levitation runs 1200-3000 RPM at 11.1-39.7 dBA
  • Three hardware profiles selectable by switch: silent, balanced, extreme performance
  • LCP frame and blades meet UL-94V-0 flame rating and UL Class A insulation
  • 150 000 hour MTTF rating backed by 12 V 0.36 A 4.32 W motor

Specifications

BrandPhanteks
ModelPH-F120T30_BG
Fan Counts1 Fan
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeVapo Bearing
RPM1200-3000 RPM
Air Flow39.1-101.0 CFM
Noise Level11.1-39.7 dBA
Power Connector4 Pin
ColorBlack / Grey
LEDNo DRGB
FeaturesMaterial(s): LCP frame, LCP blades, rubber dampeners
Insulation Type: UL Class A
Flame Retardancy: UL-94V-0
Rated Voltage: DC 12V
Operating Voltage Range: DC 10.2-13.2V
Max Current: 0.36A
Max Power: 4.32W
MTTF: 150000 hours
Dimensions120.00 x 120.00 x 30.00 mm
Package Contents1x T30-120 Fan
1x 4-Pin Extension Cable
4x Fan Screw
4x Radiator Screw 36mm
4x Radiator+Halos Screw 39mm
Shipping weight0.34 kg
Package size191 × 150 × 43 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 30mm thick frame clear my existing radiator or heatsink mounting holes?

The fan includes 36mm radiator screws and 39mm radiator-plus-halos screws so it fits standard radiator stacks despite the extra thickness.

How can I confirm the Vapo bearing motor is running in the profile I selected?

Switch between Hybrid, Performance and Advanced modes using the accessible profile switch; the RPM will settle between 1200 and 3000 RPM and noise between 11.1 and 39.7 dBA for the chosen mode.

Which screws and cables come in the box for a fresh radiator install?

You receive the fan, a 4-pin extension cable, four case screws, four 36mm radiator screws and four 39mm radiator-plus-halos screws — no extra hardware is needed.
