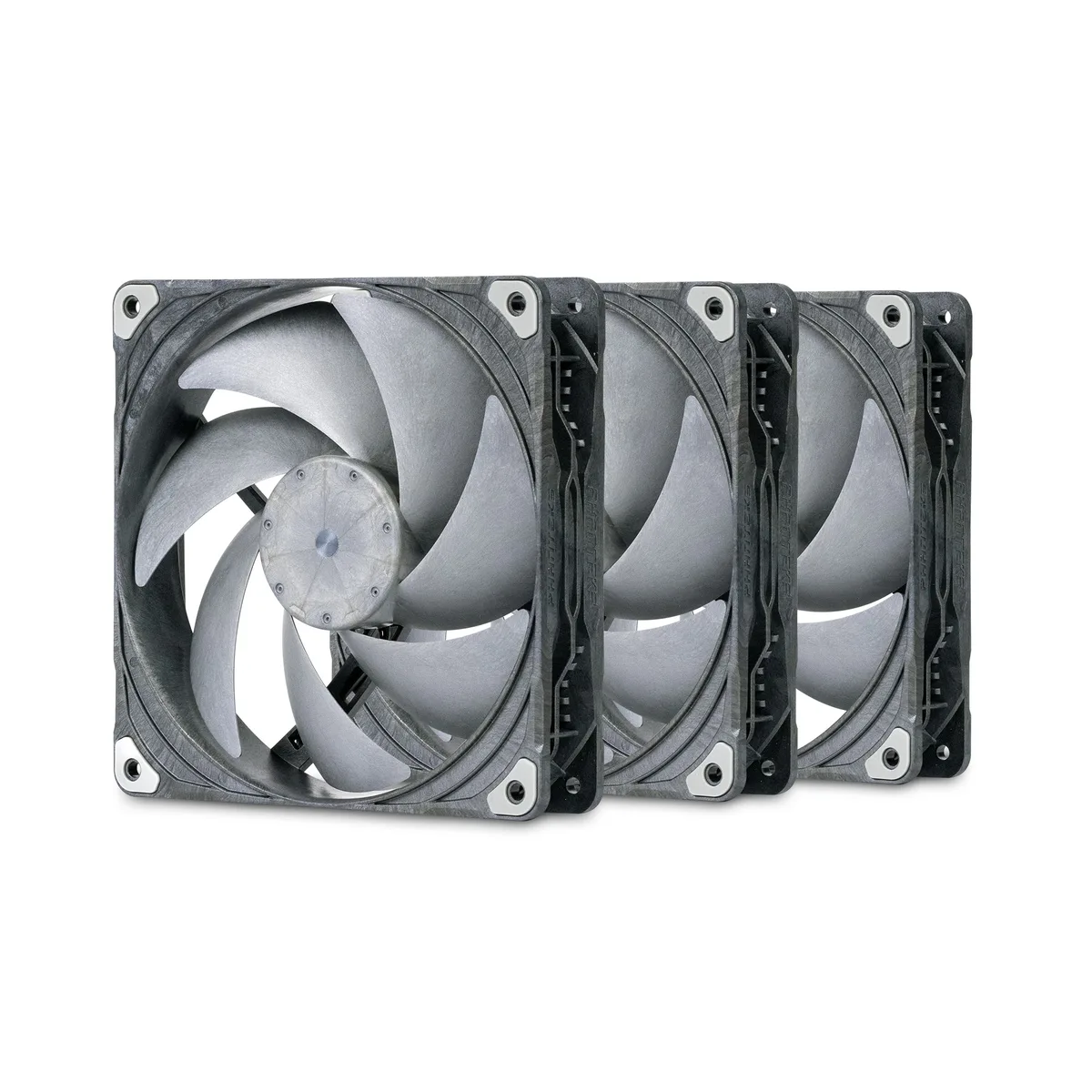

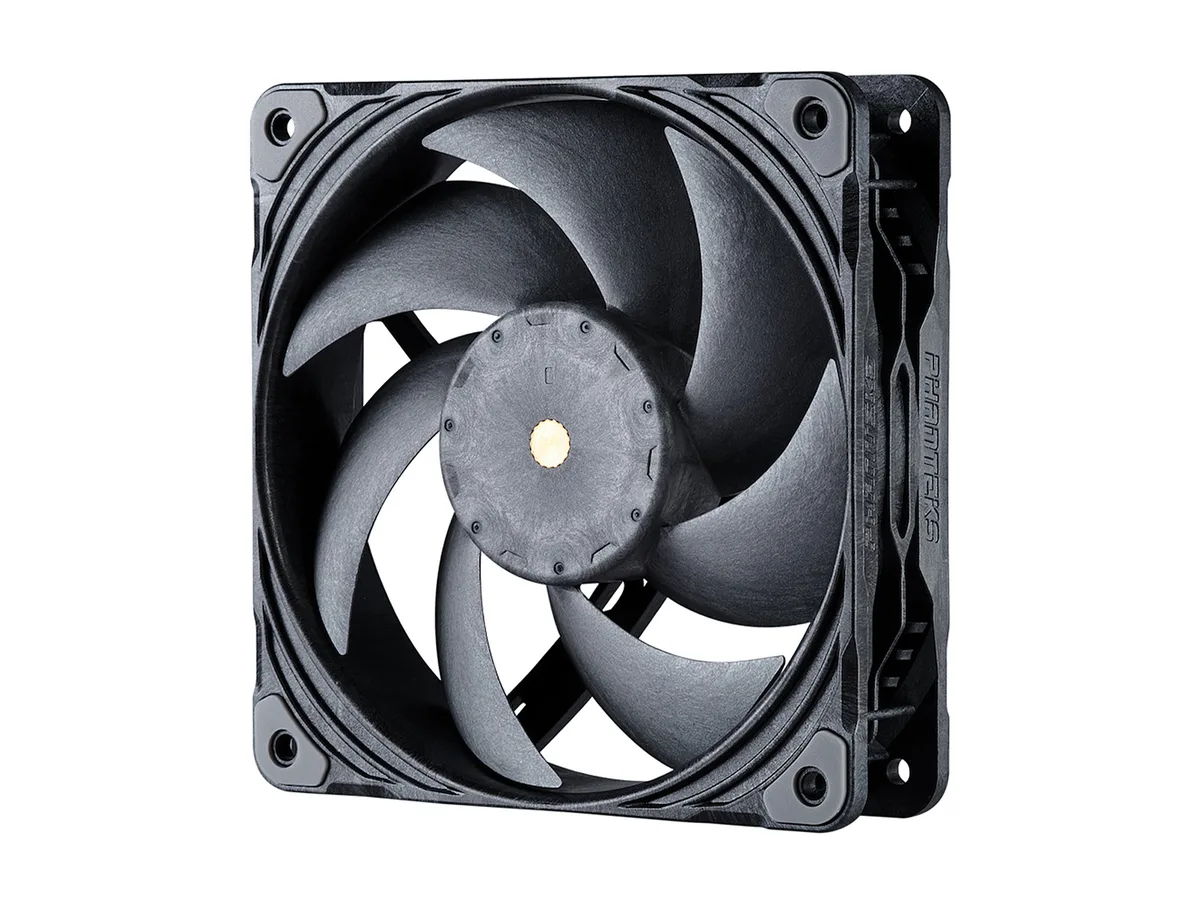

Three 140mm black and grey case fans, 30mm thick, LCP frames and blades, PWM daisy-chain connectors

Phanteks

Phanteks PH-F140T30_BG_3P 140mm 30mm case fan triple pack

SKU CH-QNRS-EMKMW MPN PH-F140T30_BG_3P

Three 140 mm, 30 mm-thick PWM fans with a three-position speed switch deliver up to 139.6 CFM at 44.3 dBA

  • Fan Counts3 Fans
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness30mm
  • Bearing TypeVAPO Bearing System
  • RPMAdvanced Mode: 2500 ±150 Performance Mode: 2000 ±100 Hybrid

Option

Struck-through versions exist but are not stocked here.

  • Three selectable speed profiles via integrated switch

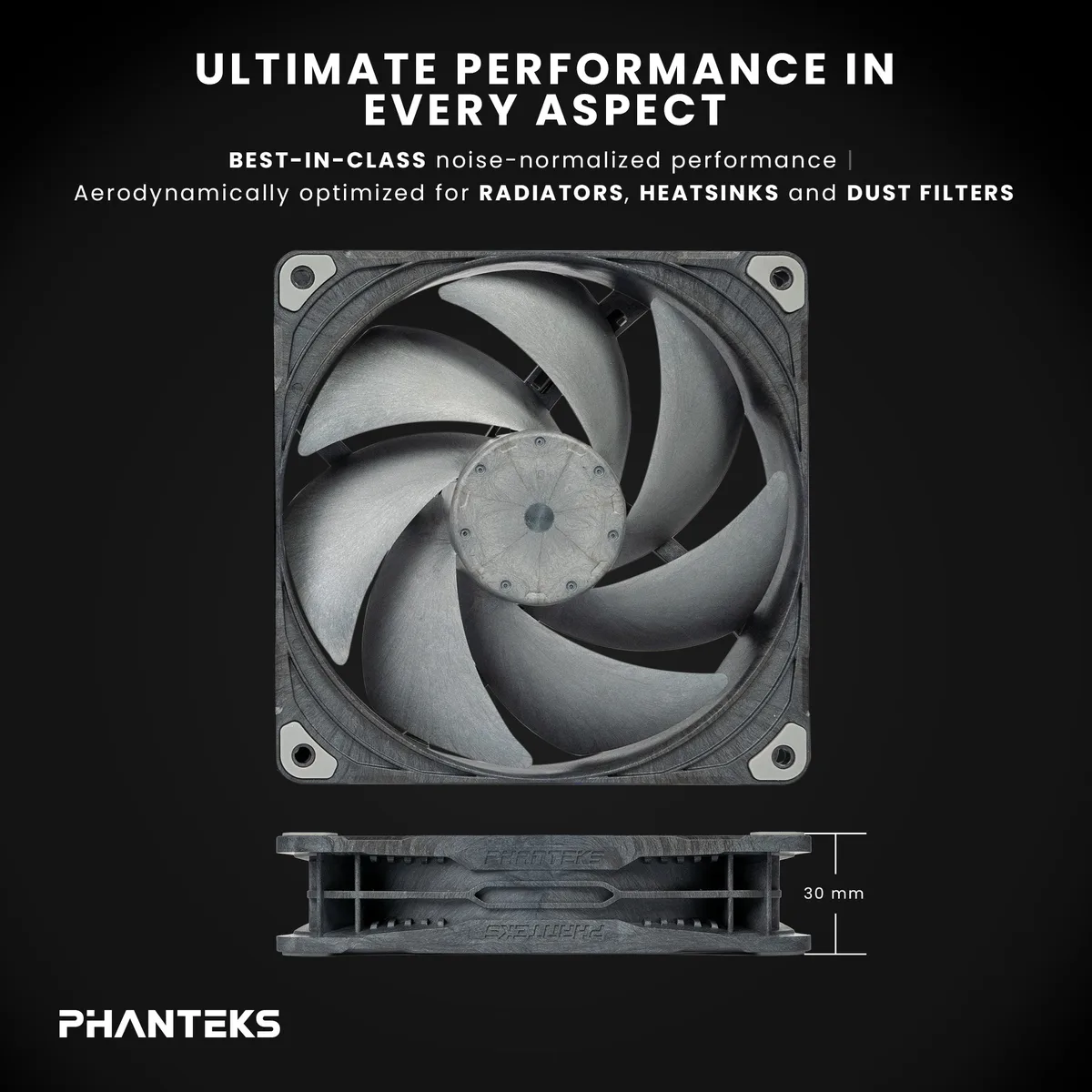

  • 30 mm thick frame with 25 % larger blades boosts airflow
  • 6 CFM at 2500 RPM in Advanced mode
  • 2 dBA at 1200 RPM in Hybrid mode

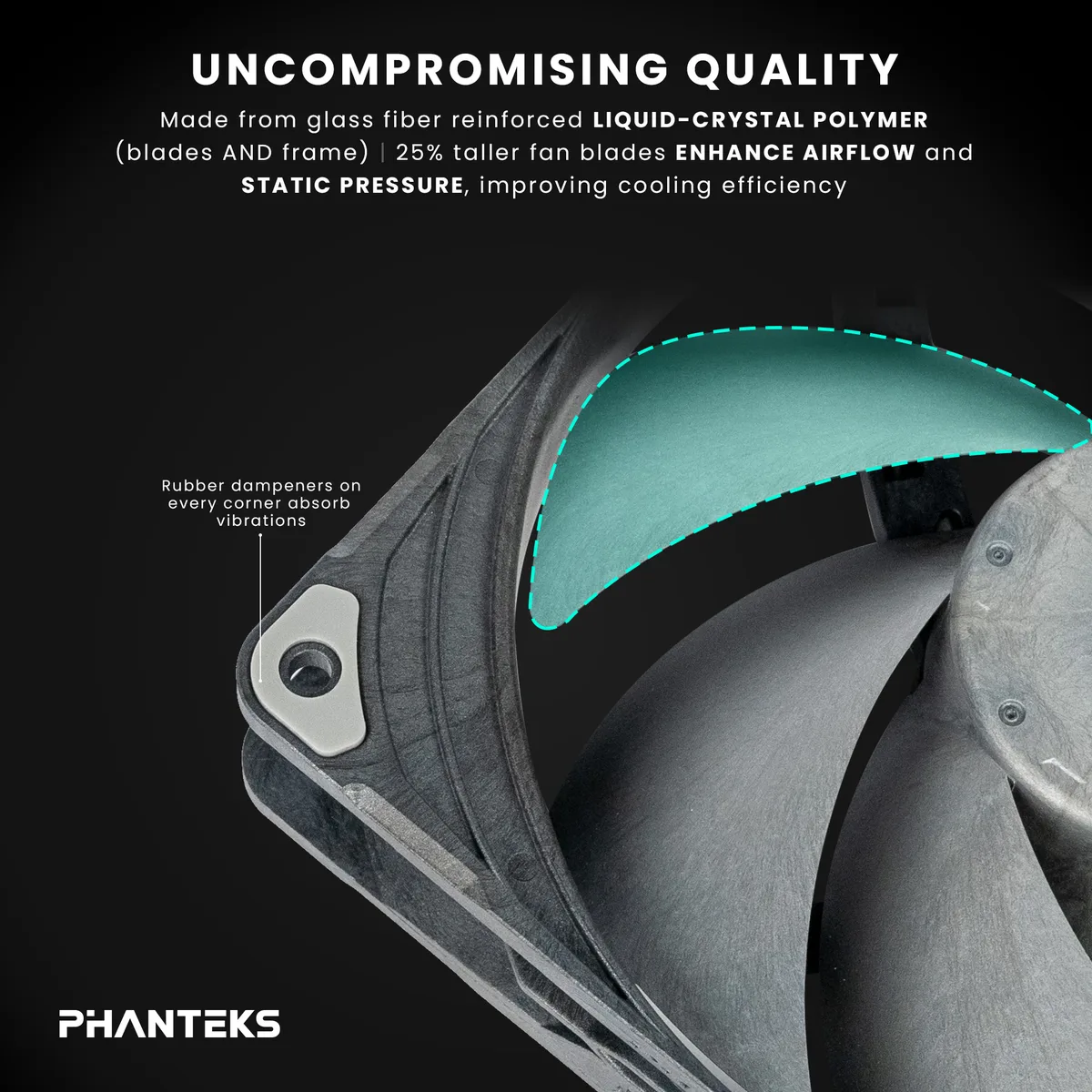

  • Glass-fibre reinforced LCP blades and frame for rigidity

Premium 140mm triple pack

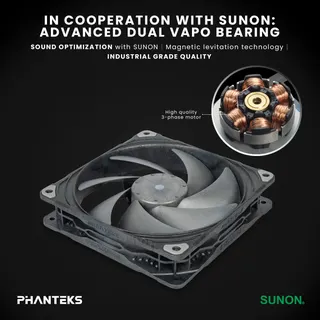

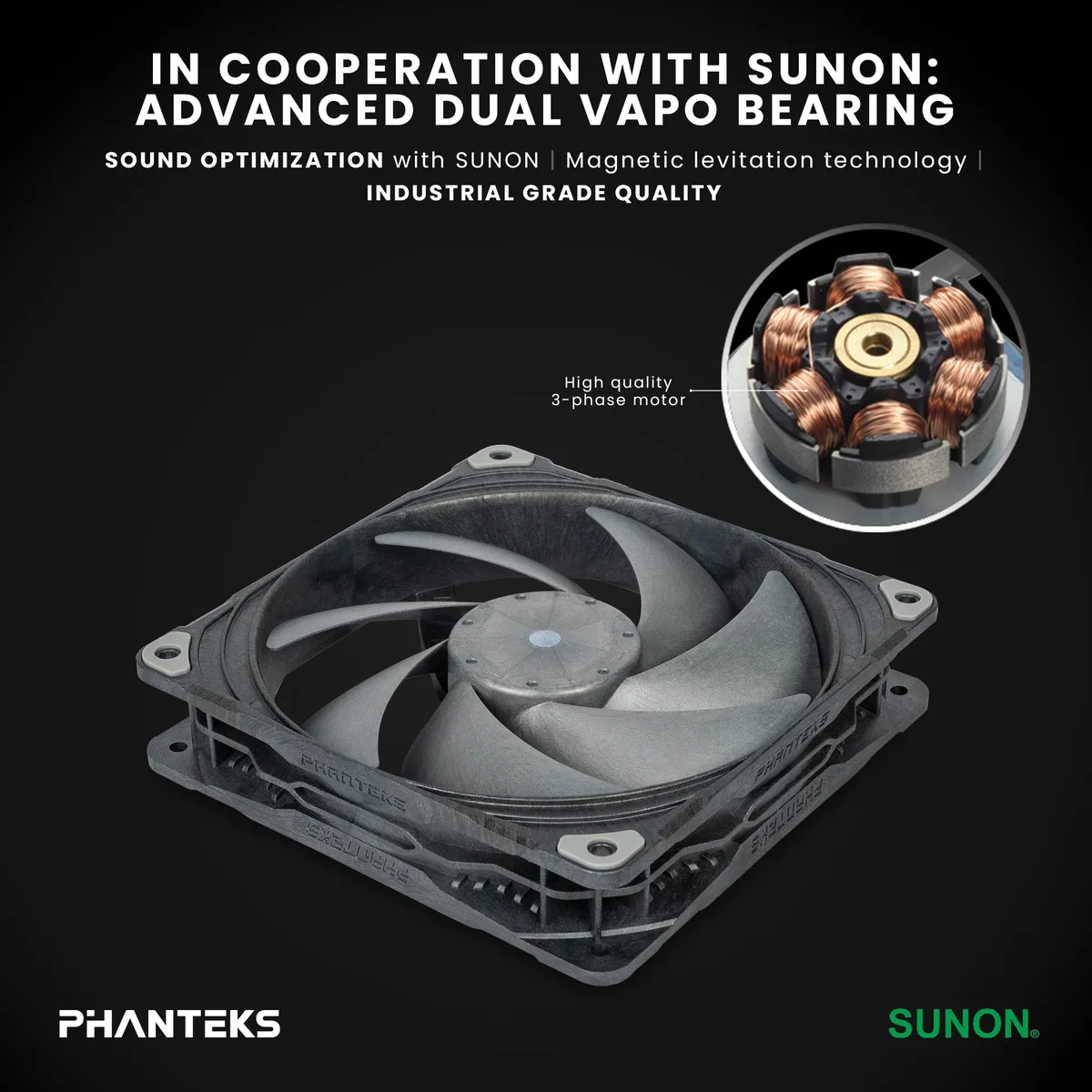

This Phanteks triple pack supplies three 140mm case fans, each 30mm thick with glass fibre reinforced LCP blades and frame. A 3-phase 6-pole motor and VAPO bearing system drive airflow up to 139.6 CFM at 2500 RPM in Advanced mode. The fans use a 4-pin daisy-chain connector and have no LED lighting.

Builders who want adjustable performance

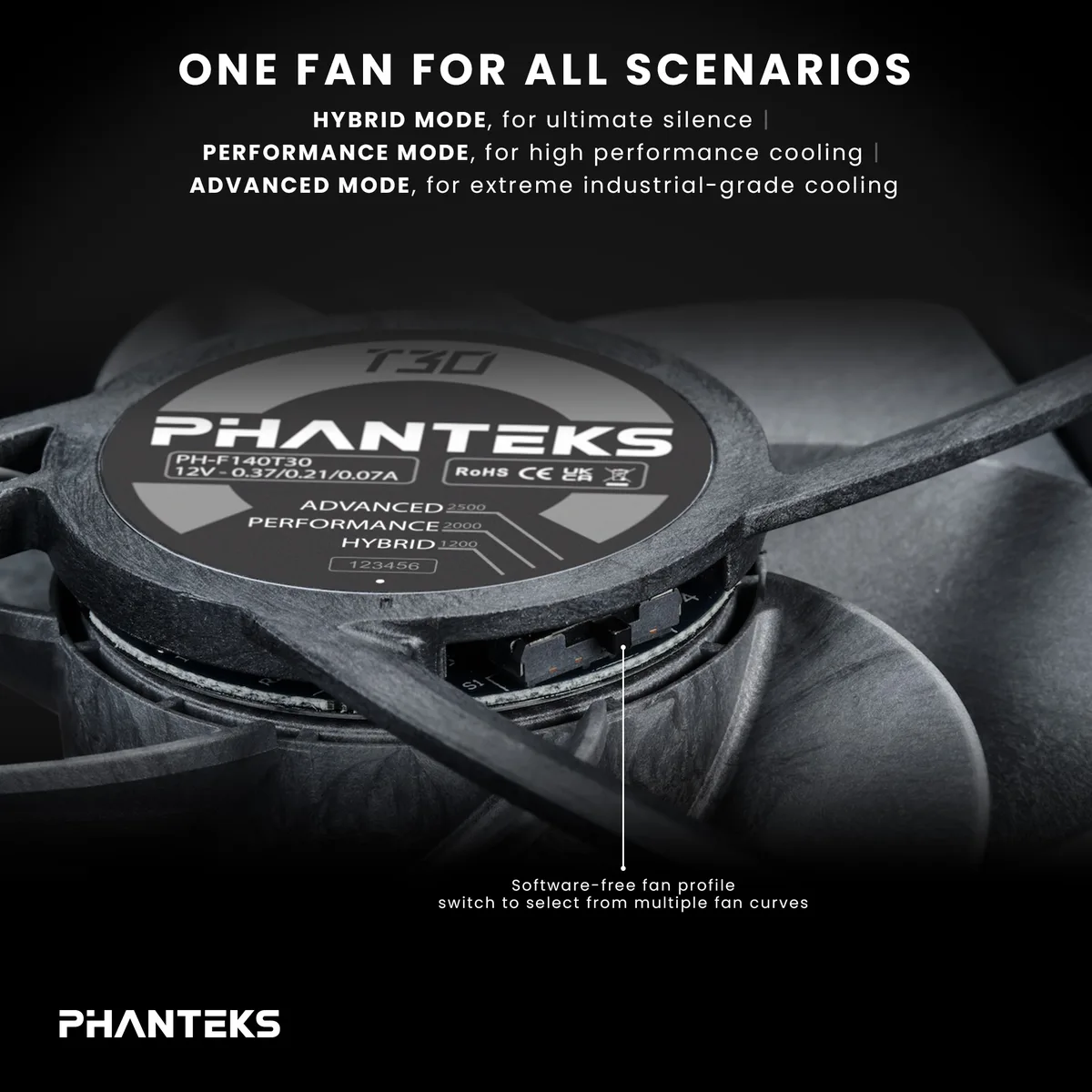

The integrated three-position switch lets you select Hybrid mode at 1200 RPM for 23.2 dBA, Performance mode at 2000 RPM for 38.1 dBA, or Advanced mode at 2500 RPM for 44.3 dBA. Buyers who need ultra-thin fans for tight clearances or who require RGB illumination should look elsewhere.

Straightforward installation with a cable trap

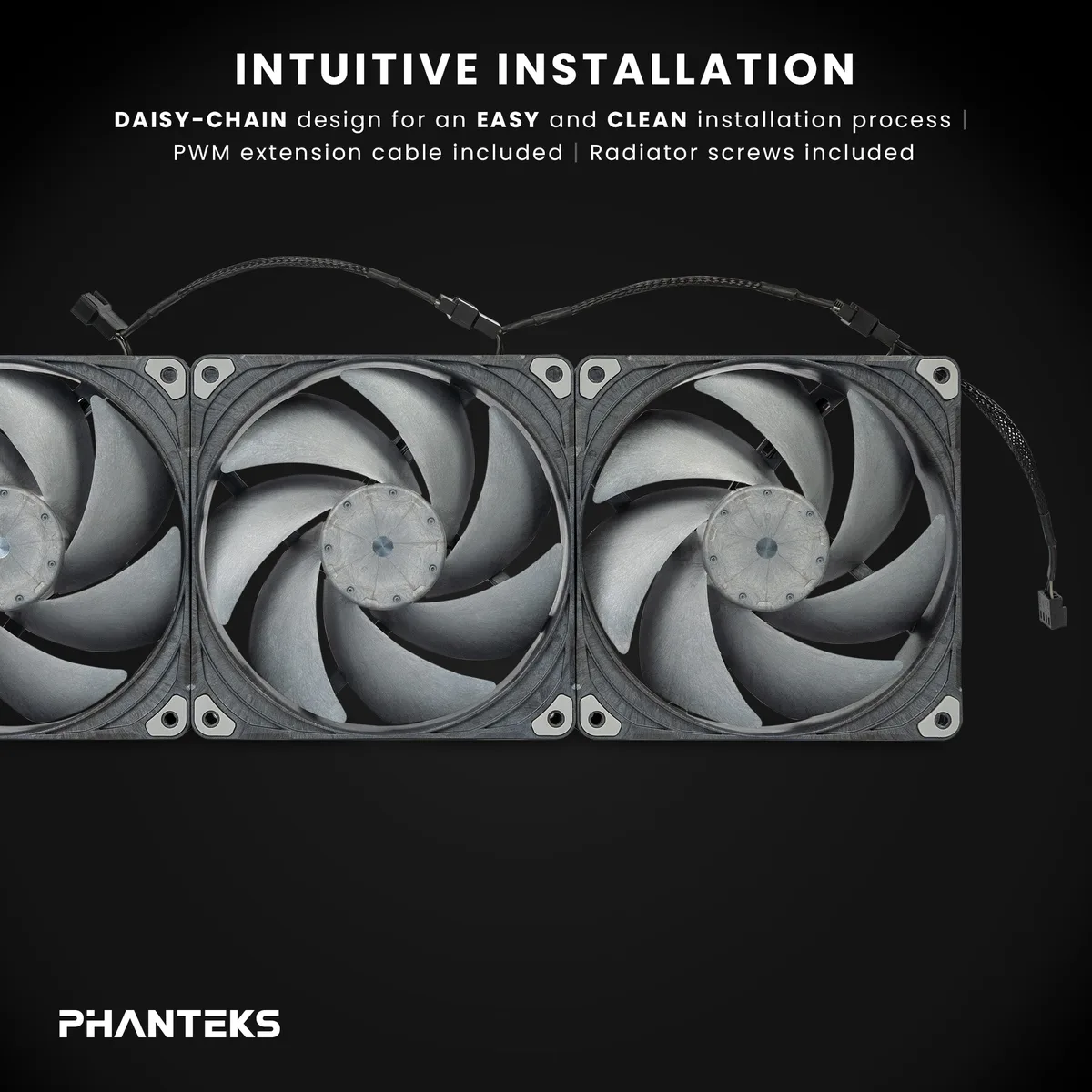

Daisy-chaining the 4-pin connectors reduces cable count, but the 30mm thickness can interfere with narrow radiator mounts or side-panel clearance. The profile switch is recessed, so set the desired mode before securing the fans in place.

Highlights

  • Three selectable speed profiles via integrated switch
  • 30 mm thick frame with 25 % larger blades boosts airflow
  • 6 CFM at 2500 RPM in Advanced mode
  • 2 dBA at 1200 RPM in Hybrid mode
  • Glass-fibre reinforced LCP blades and frame for rigidity

Specifications

BrandPhanteks
ModelPH-F140T30_BG_3P
Fan Counts3 Fans
TypeCase Fan
Fan Size140mm
Fan Thickness30mm
Bearing TypeVAPO Bearing System
RPMAdvanced Mode: 2500 ±150
Performance Mode: 2000 ±100
Hybrid Mode: 1200 ±75
Air FlowAdvanced Mode: 139.6 CFM
Performance Mode: 109.9 CFM
Hybrid Mode: 63.2 CFM
Noise LevelAdvanced Mode: 44.3 dBA
Performance Mode: 38.1 dBA
Hybrid Mode: 23.2 dBA
Power Connector4-Pin Daisy-Chain
ColorBlack / Gray
LEDNon-LED
Shipping weight1.09 kg
Package size210 × 171 × 116 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need three separate 4-pin headers for the daisy-chain connector?

No, the 4-pin daisy-chain lets you run all three fans from one header while each fan still reports its own speed.

Will the 30mm thickness and 140mm size fit in the same mounts as my old 25mm fans?

The 30mm frame is 5mm thicker, so verify your case or radiator has the extra clearance before installing.

How can I confirm the fan is running in the mode I selected on the switch?

Check the RPM in BIOS or software: Hybrid Mode targets 1200 RPM, Performance Mode 2000 RPM, Advanced Mode 2500 RPM.
