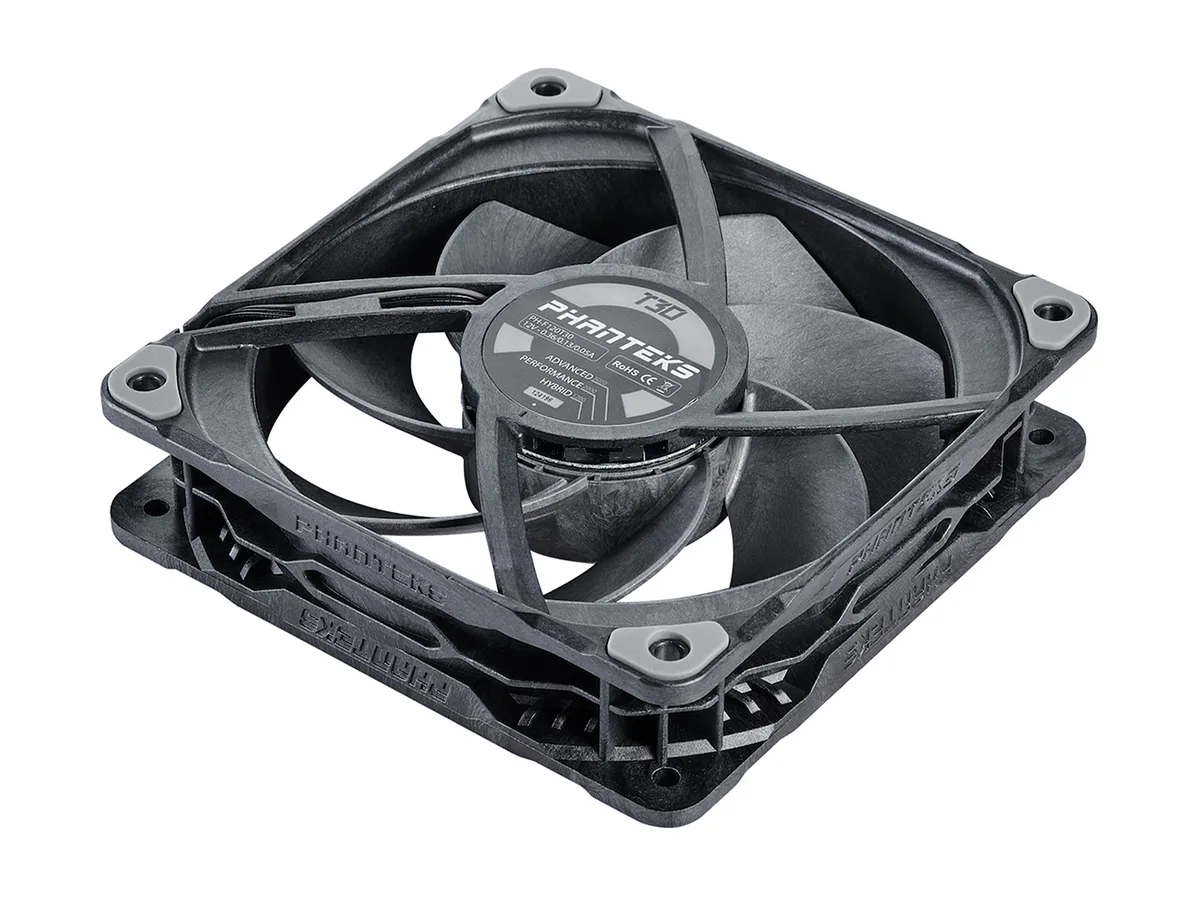

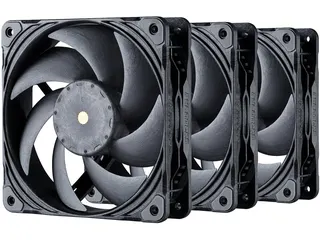

Three black and grey 120mm case fans with thick 30mm frames in a triple pack

Phanteks

Phanteks PH-F120T30_BG_3P 120mm 30mm case fan triple pack

SKU CH-01W9-316YD MPN PH-F120T30_BG_3P

Triple pack of 30 mm thick 120 mm PWM fans with three selectable speed profiles up to 3000 RPM and 101.0 CFM airflow

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm

Option T30-120 Fan Triple-Pack

Struck-through versions exist but are not stocked here.

  • Triple pack supplies three 120 mm fans for full chassis coverage
  • 30 mm thick frame with 25 % thicker blades pushes 39.1–101.0 CFM through radiators and filters
  • Vapo bearing and 3-phase motor keep noise down to 11.1–39.7 dBA across the speed range
  • PWM profile switch selects 1200, 2000 or 3000 RPM without software
  • LCP frame and blades rated UL 94 V-0 with 150000 hour MTTF

Triple-pack 120 mm 30 mm fans

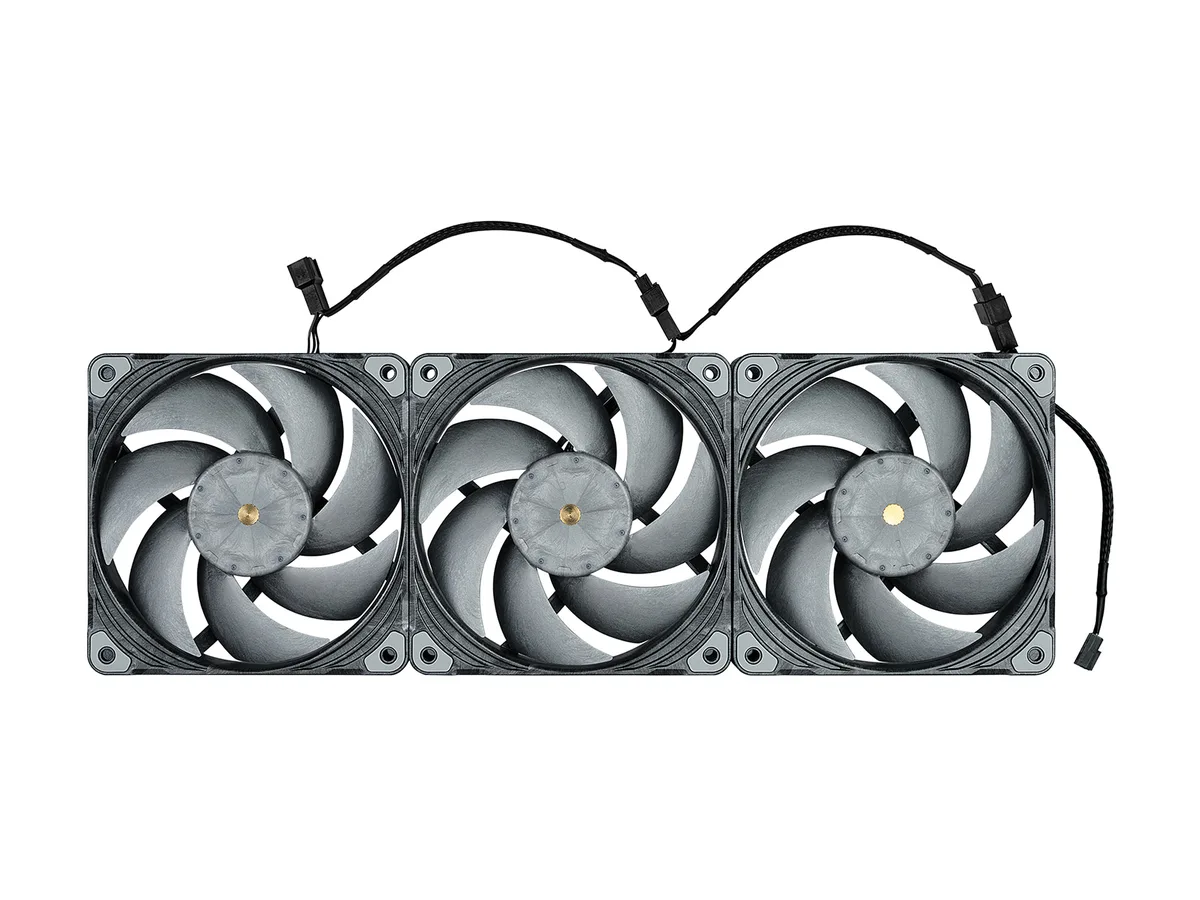

This triple pack supplies three 120 mm case fans with a 30 mm thick frame, each driven by a 4-pin PWM connector. The fans target builders who want high static pressure for radiators or dense dust filters without adding a separate controller. They are not for buyers who need addressable lighting or a bundled fan hub.

LCP frame and Vapo bearing

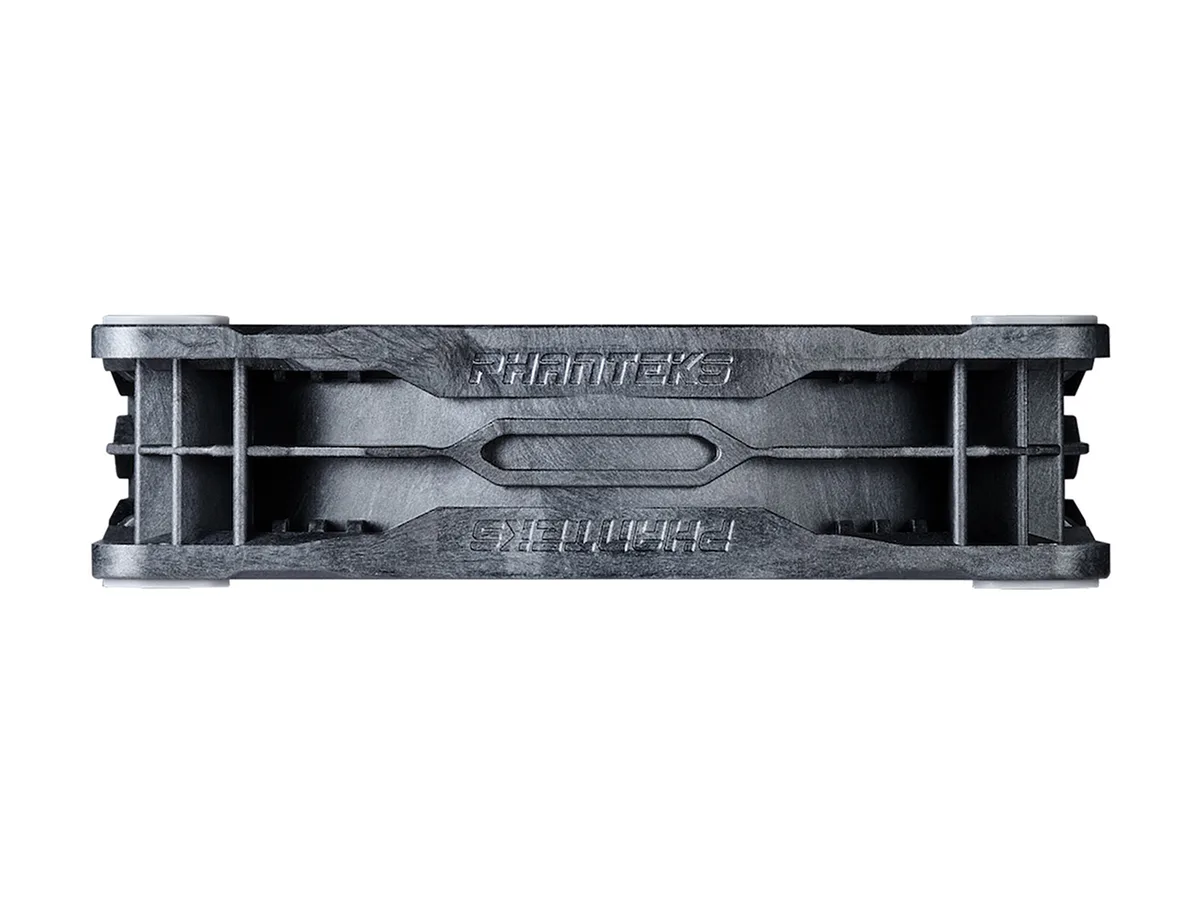

Glass-fibre reinforced LCP forms both frame and blades, meeting UL Class A insulation and UL-94V-0 flame retardancy. A Vapo bearing and 3-phase 6-pole motor deliver a lower frequency response for smoother acoustics across the 1200–3000 RPM range. Rubber dampeners on the corners reduce vibration transfer to the chassis.

Profile switch and screw kit

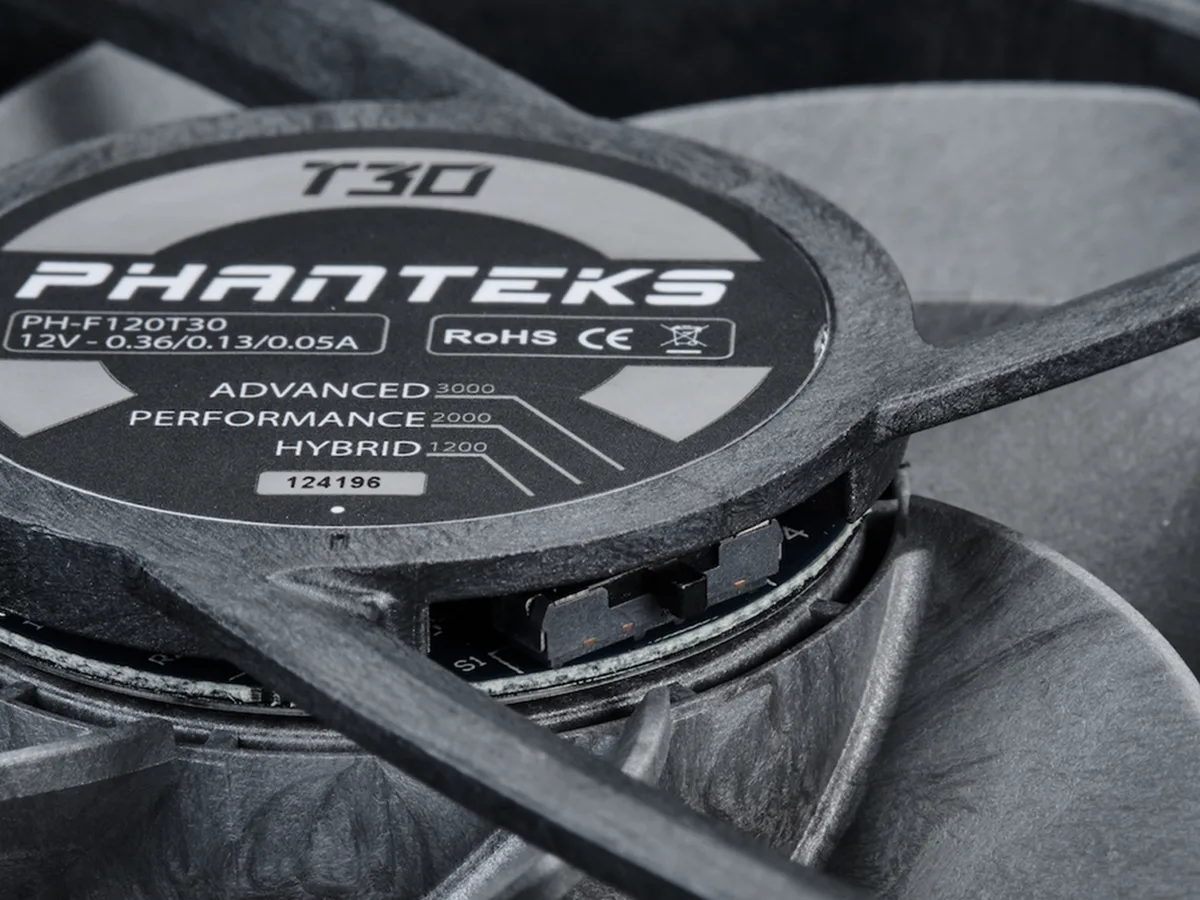

An accessible switch selects Hybrid Mode at 1200 RPM, Performance Mode at 2000 RPM or Advanced Mode at 3000 RPM, letting the fan stop at low temperature for silent idle. The box includes twelve 36 mm radiator screws, twelve 39 mm radiator-plus-halos screws, twelve standard fan screws and three 4-pin extension cables for flexible mounting.

Highlights

  • Triple pack supplies three 120 mm fans for full chassis coverage
  • 30 mm thick frame with 25 % thicker blades pushes 39.1–101.0 CFM through radiators and filters
  • Vapo bearing and 3-phase motor keep noise down to 11.1–39.7 dBA across the speed range
  • PWM profile switch selects 1200, 2000 or 3000 RPM without software
  • LCP frame and blades rated UL 94 V-0 with 150000 hour MTTF

Specifications

BrandPhanteks
ModelPH-F120T30_BG_3P
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
Bearing TypeVapo Bearing
RPM1200-3000 RPM
Air Flow39.1-101.0 CFM
Noise Level11.1-39.7 dBA
Power Connector4 Pin
ColorBlack / Grey
LEDNo DRGB
FeaturesMaterial(s): LCP frame, LCP blades, rubber dampeners
Insulation Type: UL Class A
Flame Retardancy: UL-94V-0
Rated Voltage: DC 12V
Operating Voltage Range: DC 10.2-13.2V
Max Current: 0.36A
Max Power: 4.32W
MTTF: 150000 hours
Dimensions120.00 x 120.00 x 30.00 mm
Package Contents3x T30-120 Fan
3x 4-Pin Extension Cable
12x Fan Screw
12x Radiator Screw 36mm
12x Radiator+Halos Screw 39mm
Shipping weight0.95 kg
Package size191 × 150 × 122 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 4-pin PWM connector control on the T30-120, and where does its speed range top out?

The 4-pin PWM connector allows motherboard speed control across 1200 to 3000 RPM, with the onboard switch offering fixed Hybrid, Performance and Advanced profiles at 1200, 2000 and 3000 RPM respectively.

Will the 30mm thick frame fit my case or radiator, and which screws are supplied for each?

Each fan measures 120 by 120 by 30 mm; the pack includes 12 case screws, 12 radiator screws at 36 mm and 12 radiator-plus-halos screws at 39 mm for the thicker mounting points.

How do I set the fan profile using the physical switch, and what mistake should I avoid?

Slide the switch to Silent (1200 RPM), Balanced (2000 RPM) or Extreme (3000 RPM) before powering on; the common error is leaving it in a fixed mode while also enabling PWM in BIOS, which causes the two controls to fight.
