Charcoal-black mid-tower with front fabric panel and tempered-glass side, three D-RGB fans visible

Phanteks

Phanteks PH-XT523VM1_DBK01 PC case

SKU CH-AC1Z-XM1FQ MPN PH-XT523VM1_DBK01

Mid-tower ATX case with a 600-LED matrix display behind fabric, dual tempered-glass panels, rear-connector motherboard support, and three pre-installed 120 mm D-RGB fans

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Pla
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
  • Side PanelYes, Side Tempered Glass
  • Internal 3.5" Drive Bays2x (1x if 2x SSD installed)

Options PH-XT523VM1 (Black)

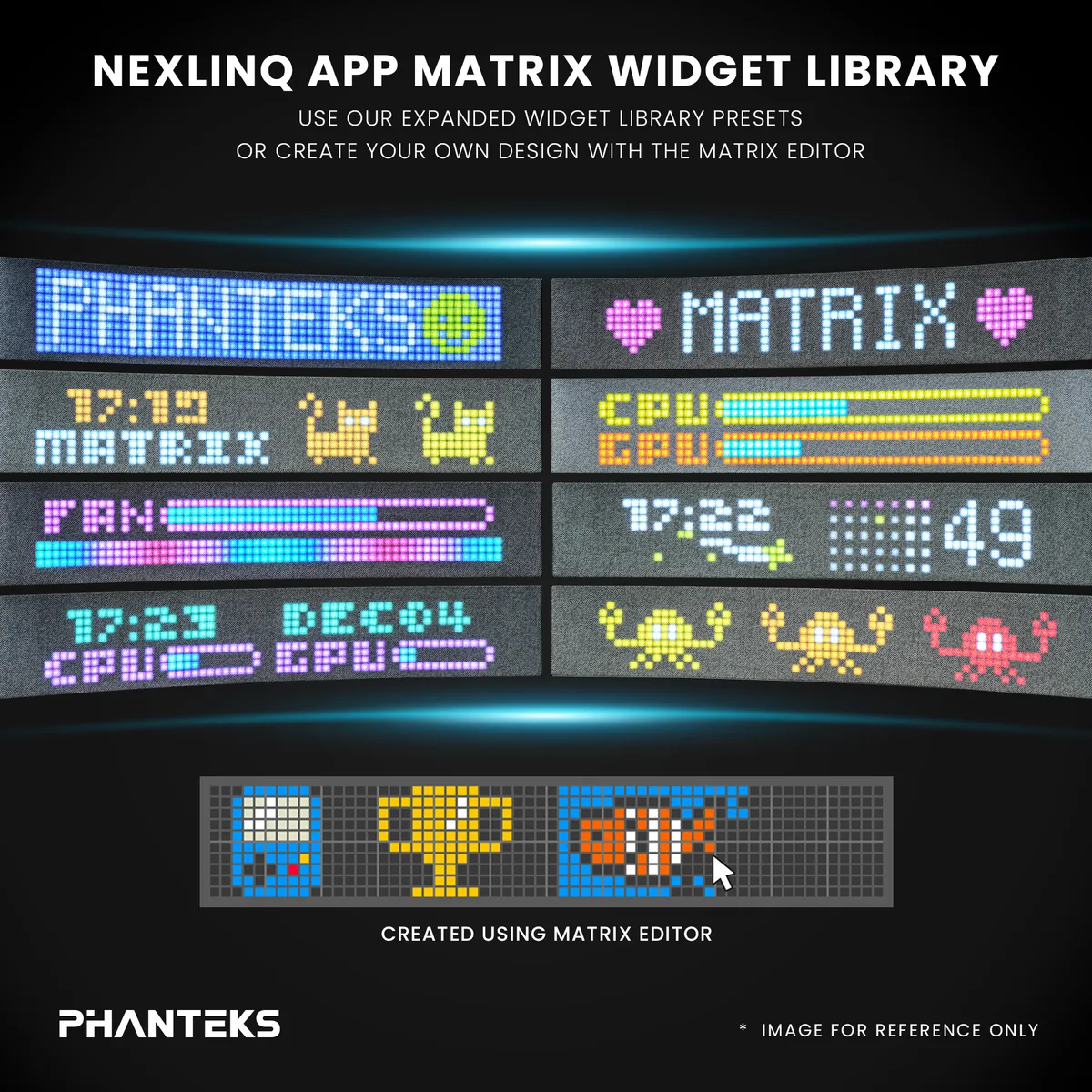

  • 600-LED matrix display shows live stats and custom animations behind a premium fabric panel

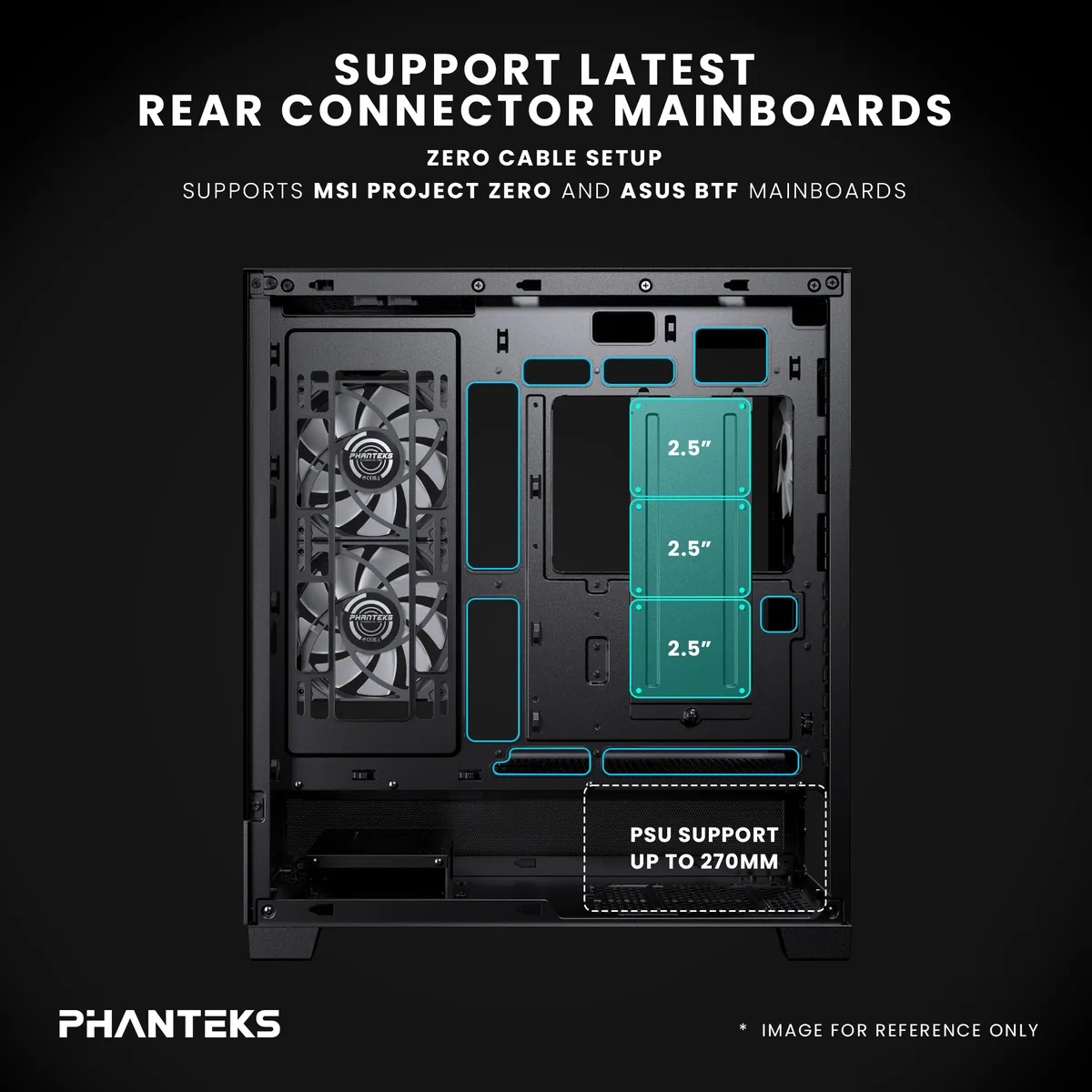

  • Rear-connector motherboard ready for a cleaner, cable-free interior build
  • Dual tempered-glass front and side panels showcase components and lighting from every angle
  • Three 120 mm D-RGB fans included with support for up to nine fan positions
  • Top-mount 360 mm radiator support enables high-performance liquid cooling configurations

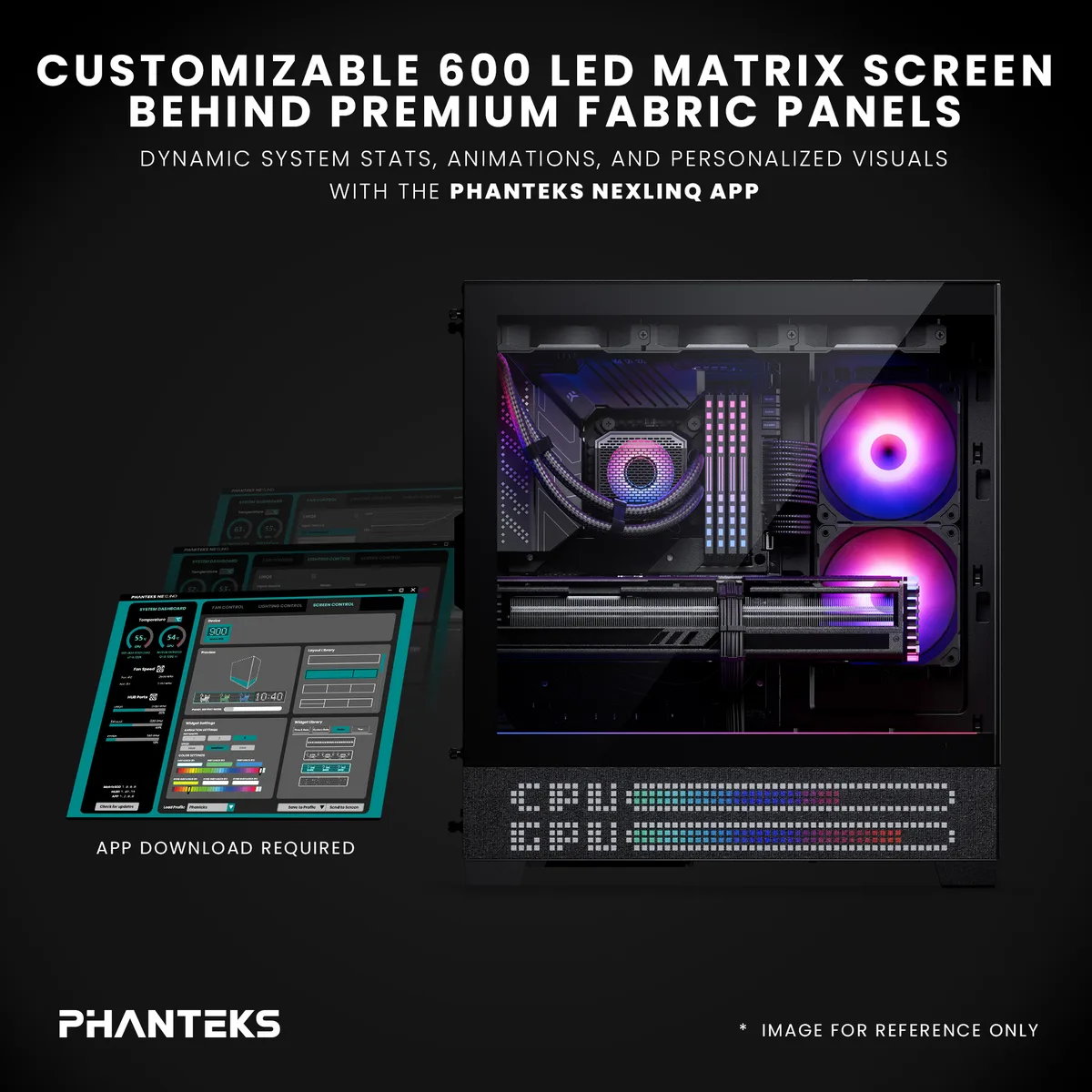

Immersive 600-LED Matrix Display

The Phanteks XT View Matrix is a mid-tower ATX case finished in charcoal black. It targets builders who want a programmable 600-LED fabric screen for system stats and custom animations alongside high-end component support. Steel, ABS and tempered glass form the chassis, while the front and side glass panels showcase the interior. Motherboard compatibility covers ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide.

Build quality and daily connectivity

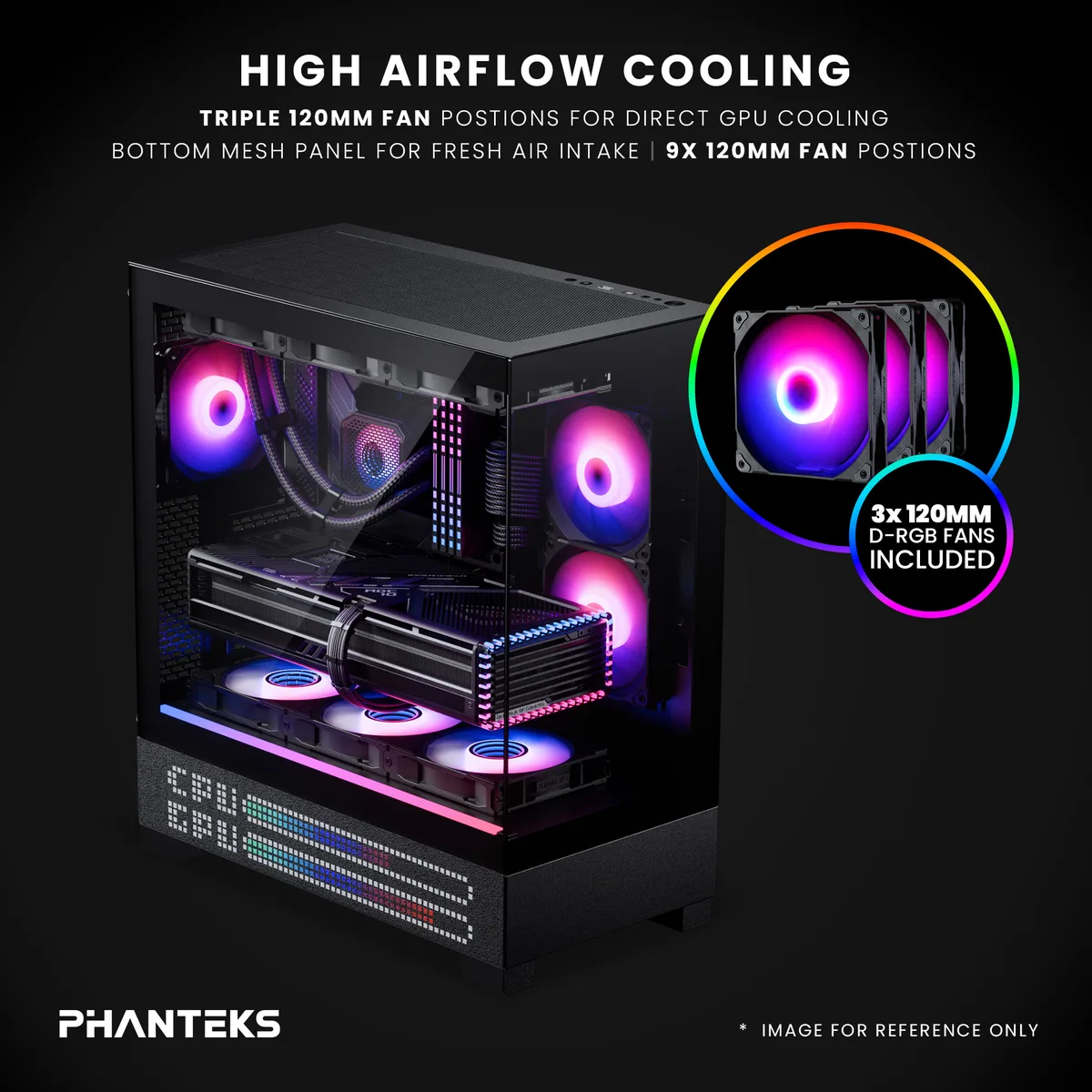

The case ships with three M25 120 mm D-RGB fans pre-installed and offers nine total 120 mm mounting points across the midplate, top and rear. Top radiator support reaches 360 mm, while the side accepts up to 240 mm and the rear up to 120 mm. A USB 3.2 Gen 2 Type-C port sits on the front I/O for fast peripheral access. Dual tempered-glass windows and a fabric-covered matrix panel give a premium look, and the rear-connector motherboard layout keeps cables hidden for a cleaner build.

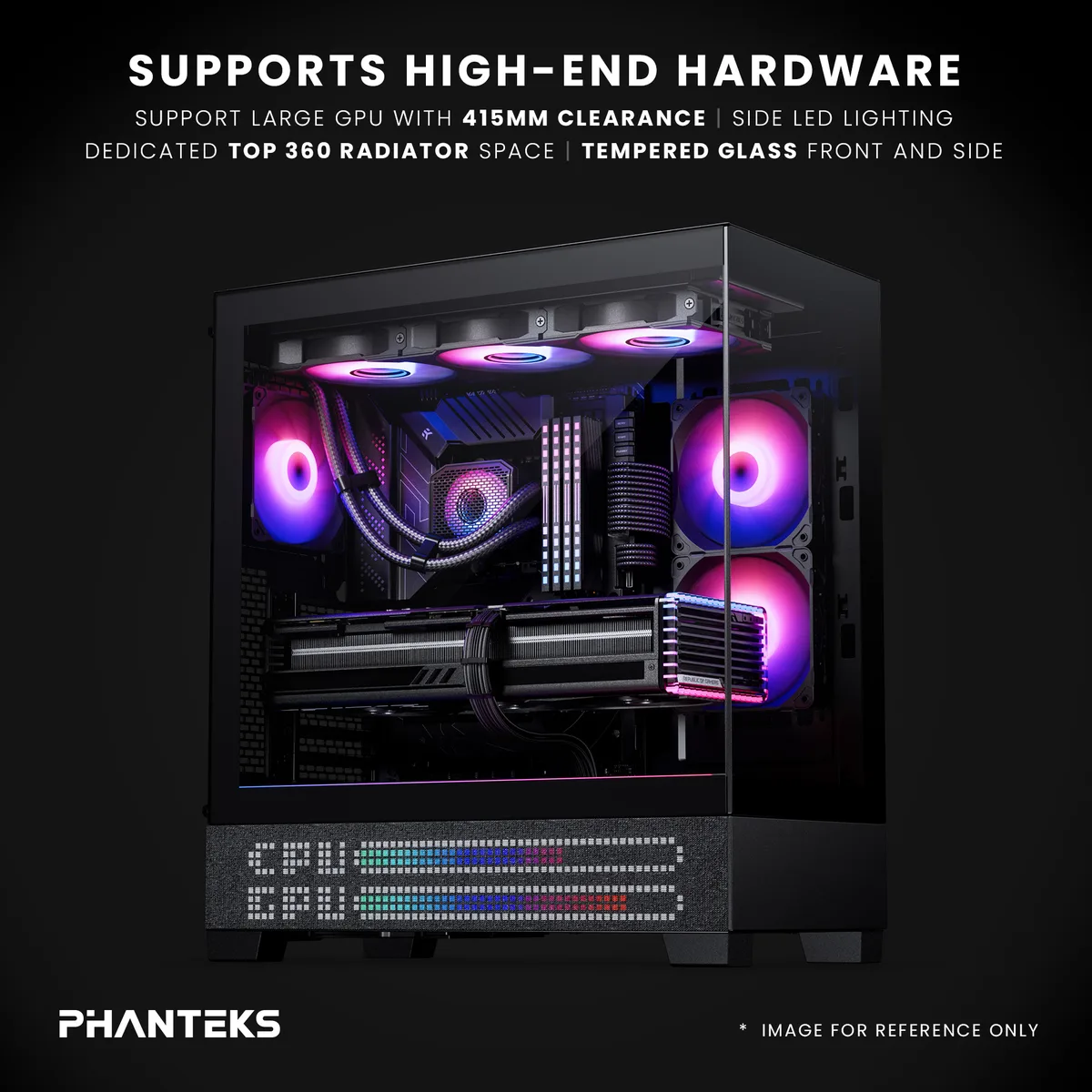

Deciding specification: 415 mm maximum GPU length

This single figure determines whether your graphics card will fit. The chassis accommodates cards up to 415 mm long, covering current flagship models with room for cable routing behind the midplate. If your GPU exceeds this length, you will need a larger enclosure; if it is shorter, the XT View Matrix provides ample clearance and direct midplate airflow for thermal performance.

Highlights

  • 600-LED matrix display shows live stats and custom animations behind a premium fabric panel
  • Rear-connector motherboard ready for a cleaner, cable-free interior build
  • Dual tempered-glass front and side panels showcase components and lighting from every angle
  • Three 120 mm D-RGB fans included with support for up to nine fan positions
  • Top-mount 360 mm radiator support enables high-performance liquid cooling configurations

Specifications

BrandPhanteks
ModelPH-XT523VM1_DBK01
TypeATX Mid Tower
ColorBlack
Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Plastic
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
Side PanelYes, Side Tempered Glass
Internal 3.5" Drive Bays2x (1x if 2x SSD installed)
Internal 2.5" Drive Bays5x (3x if 2x HDD installed)
Expansion Slots7
Fan OptionsMidplate - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 140mm / Top - 3 x 120mm
Radiator OptionsRear - Up to 120mm / Side - Up to 240mm / Top - Up to 360mm
Max GPU Length415 mm
Max CPU Cooler Height184 mm
Max PSU Length270 mm
Dimensions440 x 230 x 500mm / 17.32 x 9.06 x 19.69in (DxWxH)
Weight7.91kg / 17.44 lbs
Shipping weight9.53 kg
Package size552 × 533 × 305 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a 415 mm graphics card fit with the mid-plate fans installed?

The case supports graphics cards up to 415 mm long, and the mid-plate accommodates three 120 mm fans without reducing that clearance.

Can I mount a 360 mm radiator on the top and still use the rear 120 mm fan?

Yes, the top supports radiators up to 360 mm while the rear retains a dedicated 120 mm fan position.

Does the 600-LED matrix display require a separate controller or software?

The matrix screen is built into the front fabric panel and is controlled through the included D-RGB fan ecosystem; no extra controller is needed.
