White mid-tower case with fabric front panel and tempered glass side panel

Phanteks

Phanteks PH-XT523VM1_DWT01 XT View Matrix Mid-Tower ATX PC Case, 600-LED, White

SKU CH-CC0S-AKT9D MPN PH-XT523VM1_DWT01

A white mid-tower ATX case with a 600-LED matrix display, tempered-glass front and side panels, three included 120mm D-RGB fans and support for rear-connector motherboards

  • TypeATX Mid Tower
  • ColorWhite
  • Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Pla
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
  • Side PanelYes, Side Tempered Glass
  • Internal 3.5" Drive Bays2x (1x if 2x SSD installed)

Options PH-XT523VM1 (White)

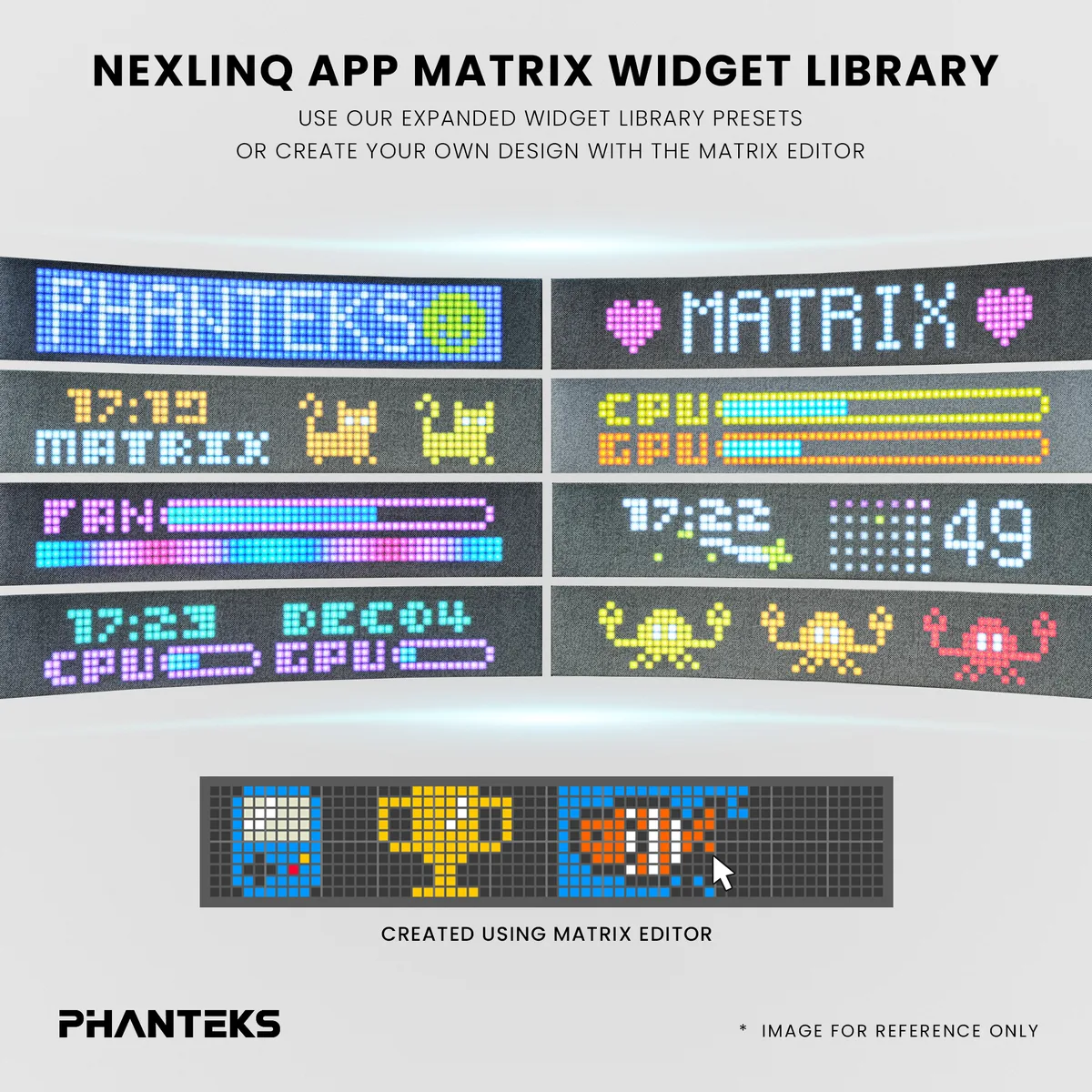

  • 600-LED fabric matrix shows live stats and custom animations

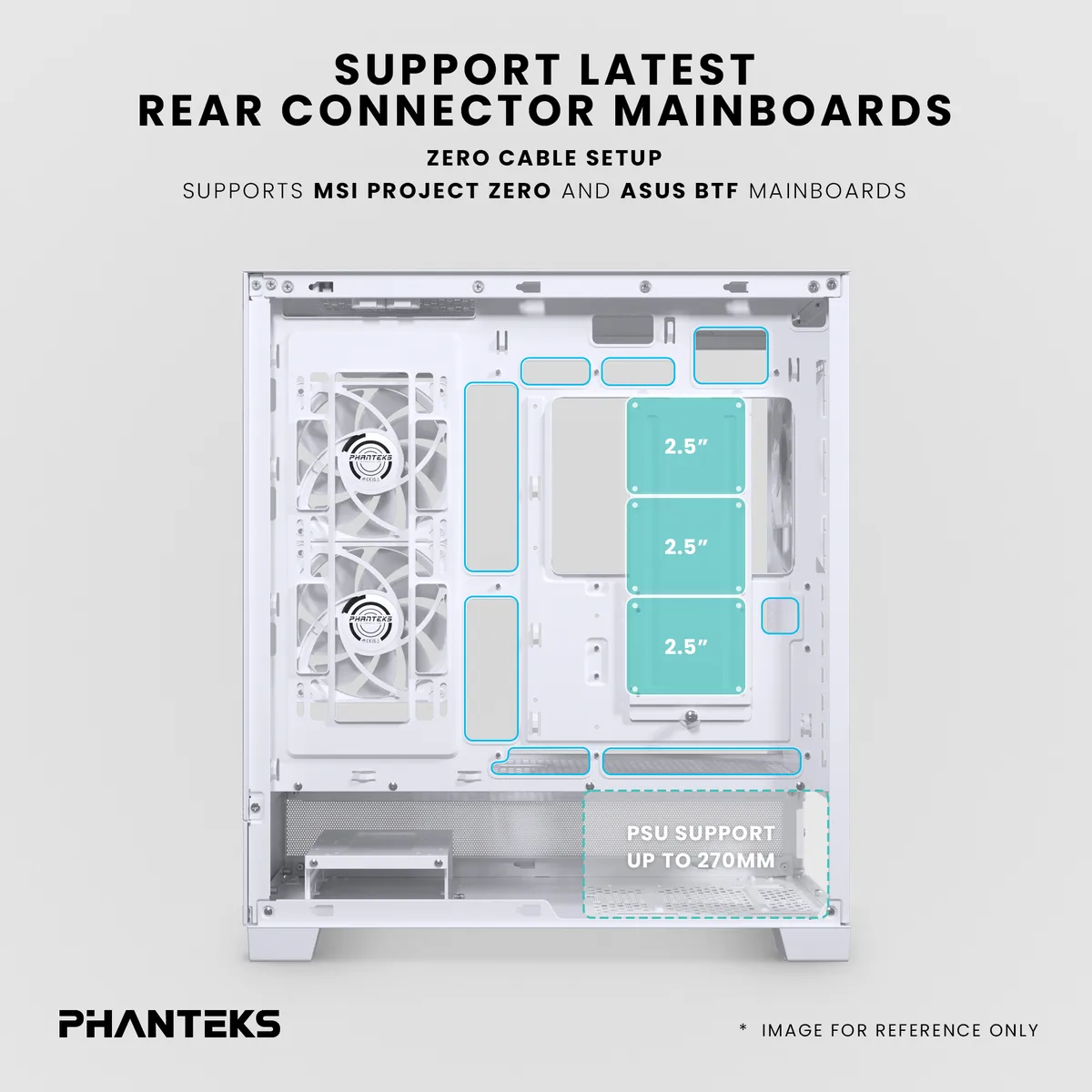

  • Rear-connector motherboard ready for a clean, cable-free interior
  • Dual tempered-glass front and side panels showcase every component
  • Three pre-installed 120 mm D-RGB fans with room for nine total
  • Top mount supports 360 mm radiator for high-performance liquid cooling

Matrix Display & Rear-Connector Ready

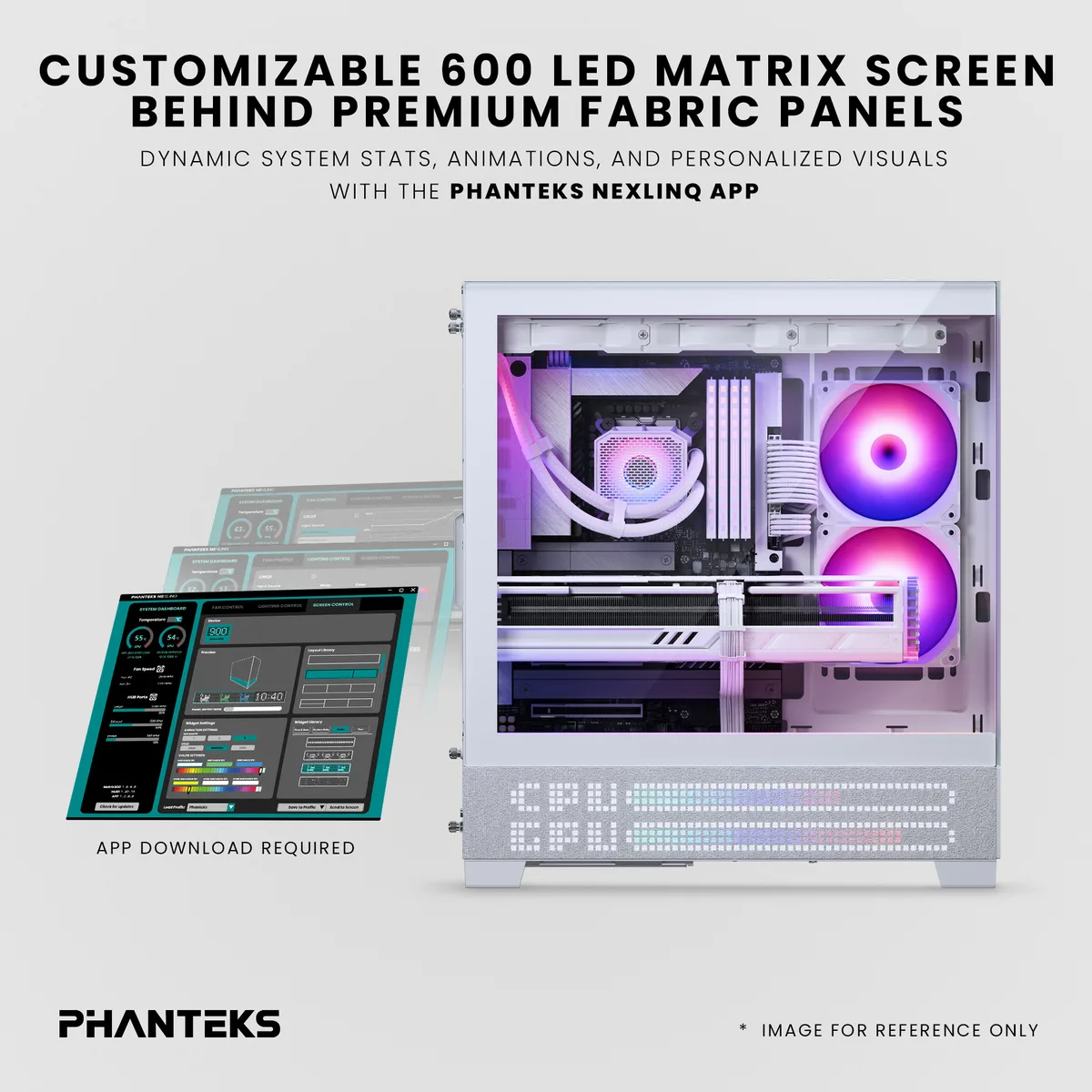

The Phanteks XT View Matrix is a mid-tower ATX case in white with a 600-LED fabric-covered matrix screen that shows system stats and custom animations. It supports ATX, micro-ATX, mini-ITX and E-ATX boards up to 280mm wide and is built for the latest rear-connector motherboards to enable a cleaner internal layout.

Cooling Under Sustained Load

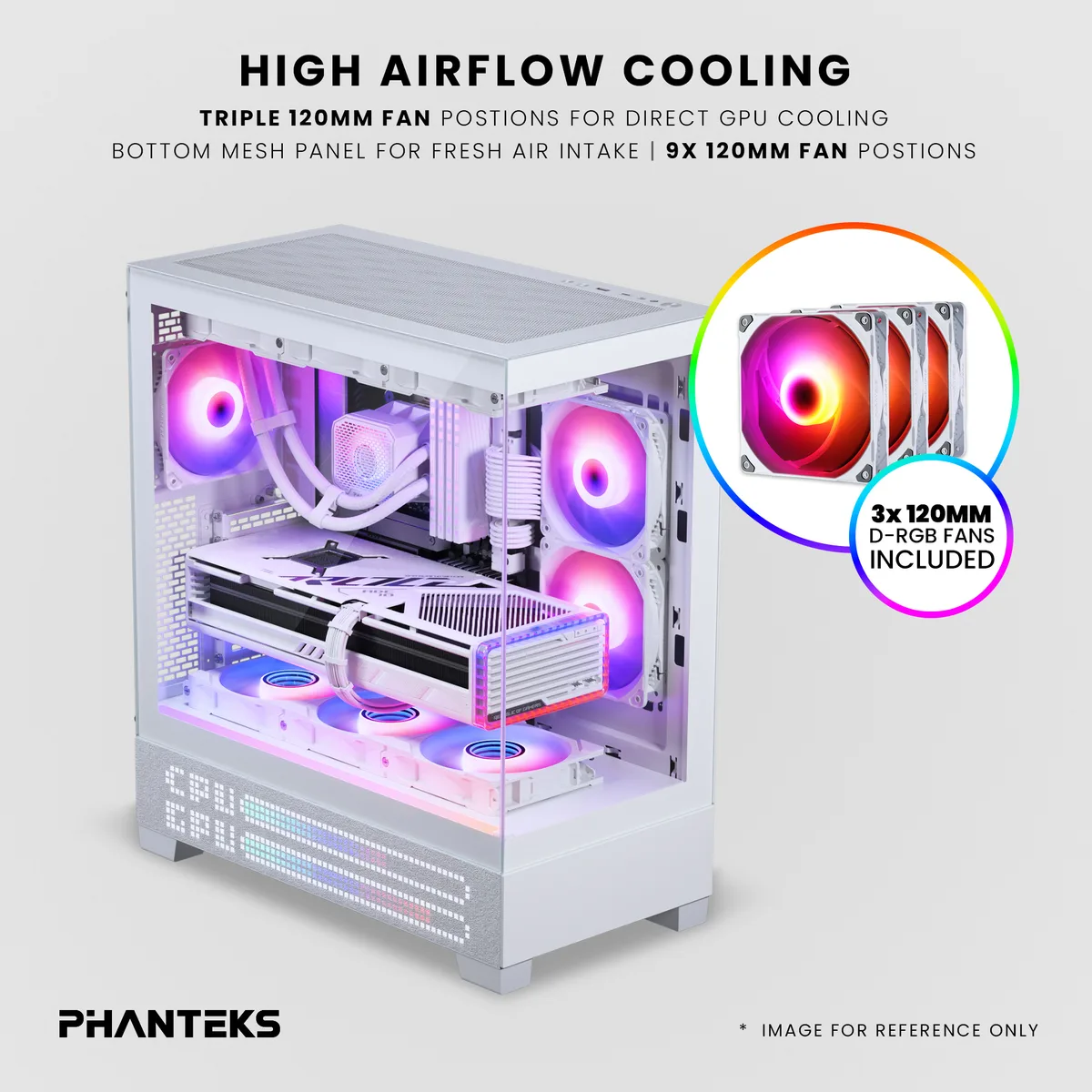

Three pre-installed 120mm D-RGB fans provide immediate airflow while the chassis offers up to nine 120mm positions and multiple 140mm mounts on the top and rear. A dedicated top bracket accepts radiators up to 360mm and the midplate includes three 120mm fan locations that direct air straight onto the graphics card during long sessions.

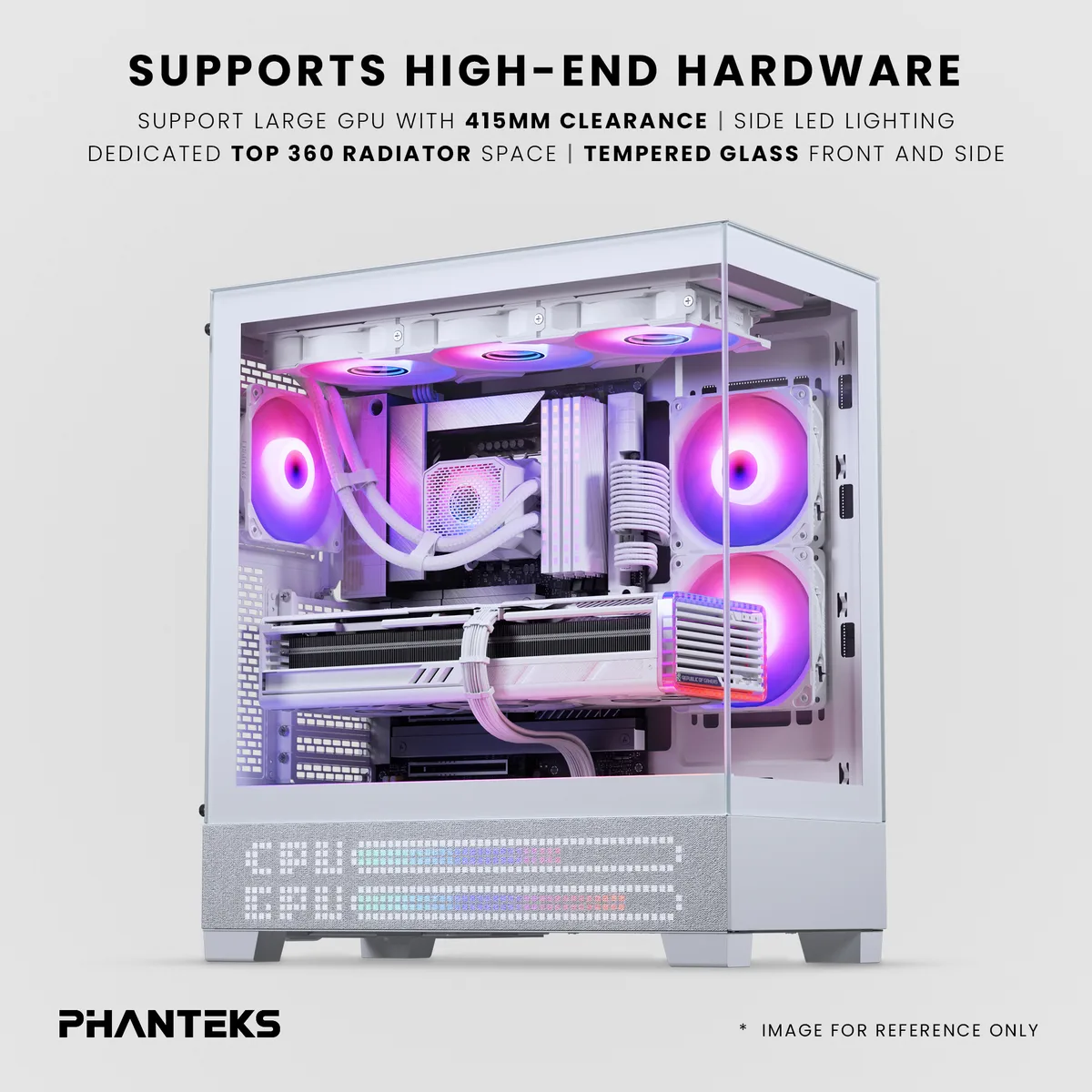

415mm GPU Clearance

The interior fits full-length graphics cards up to 415mm without restriction, making it suitable for current high-end models. CPU cooler height is limited to 184mm and the power supply compartment accepts units up to 270mm long. Seven expansion slots and dual tempered-glass panels complete the build space.

Highlights

  • 600-LED fabric matrix shows live stats and custom animations
  • Rear-connector motherboard ready for a clean, cable-free interior
  • Dual tempered-glass front and side panels showcase every component
  • Three pre-installed 120 mm D-RGB fans with room for nine total
  • Top mount supports 360 mm radiator for high-performance liquid cooling

Specifications

BrandPhanteks
ModelPH-XT523VM1_DWT01
TypeATX Mid Tower
ColorWhite
Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Plastic
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
Side PanelYes, Side Tempered Glass
Internal 3.5" Drive Bays2x (1x if 2x SSD installed)
Internal 2.5" Drive Bays5x (3x if 2x HDD installed)
Expansion Slots7
Fan OptionsMidplate - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 140mm / Top - 3 x 120mm
Radiator OptionsRear - Up to 120mm / Side - Up to 240mm / Top - Up to 360mm
Max GPU Length415 mm
Max CPU Cooler Height184 mm
Max PSU Length270 mm
Dimensions440 x 230 x 500mm / 17.32 x 9.06 x 19.69in (DxWxH)
Weight7.91kg / 17.44 lbs
Shipping weight9.53 kg
Package size552 × 533 × 305 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud are the three included 120 mm D-RGB fans when the system runs all day?

The three pre-installed M25 120 mm D-RGB fans are designed for high-airflow cooling; actual noise varies with fan-curve settings and load, but the case supports up to nine fan positions so speeds can stay lower.

Does the case include a motherboard, power supply or CPU cooler, or must I supply them?

Only the chassis, tempered-glass panels, fabric matrix screen and three 120 mm D-RGB fans are included; you must provide a motherboard, PSU, CPU cooler, storage and graphics card yourself.

Will my existing ATX motherboard and 360 mm top radiator fit together in this case?

Yes — the chassis accepts ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide and offers dedicated top-mount space for a 360 mm radiator without interfering with standard ATX layouts.
